Data Presentation is not a mystery!

1

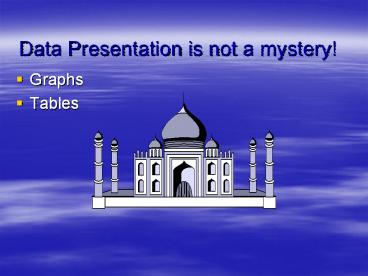

Data Presentation is not a mystery!

• Graphs
• Tables

2
An Experiment

• The hypothesis is pea plants sprayed with
  gibberellic acid will be taller because of
  greater internode elongation.
• The control plants are sprayed with distilled
  water and the experimental plants sprayed with a
  dilute solution of gibberellic acid. There are 10
  plants per treatment.
• Plant heights are measured for 5 days in row on
  the fifth day the number of leaves and the second
  internode from the apex is measured.
• What follows is how the data will be presented.

3
Graph construction

• You have height data over time for control and
  treatment pots.
• Each pot consisted of several plants.
• Each day after spraying you measured plant
  height.
• Plot the average height of all of your plants in
  the control pots versus time.
• Plot the average height of all of your plants in
  the treatment pots versus time.
• Put both plots on the same piece of graph paper.

4
Graph Basics

• Graphs always have axes.
• Graphs always use the whole piece of graph paper.
• Graphs always have titles and are numbered
• Graphs always have axes titles
• Graphs always have units given in the axes titles
• A graph always have appropriate tick marks
• A graph can have a legend

5
Graphs always have axes.
6
Graphs always use the whole piece of graph paper!!
7
A graph always has a title and are numbered.
Figure 1. The Effect of Gibberellic Acid on Pea
Plant Growth
8
A graph always has axes titles.
Figure 1. The Effect of Gibberellic Acid on Pea
Plant Growth
Time (days)
9
A graph has appropriate tick marks
10
There is a trend line for each data set.

• For our purposes we will assume a linear
  relationship unless it is indicated otherwise.

11
A graph should have a legend
Figure 1. The Effect of Gibberellic Acid on Pea
Plant Growth
Gibberellic acid spray
Control
12
Table Construction.

• Your have control and treatment plots.
• Report the mean internode length and of leaves
  for all of the pea plants in the control pot.
• Report the mean internode length and of leaves
  for all of the peas in the treatment pot.
• Report this information in the same table.

13
Table Basics

• Tables always have titles.
• Tables always are numbered.
• Tables always have headings for columns and rows.
• Tables always indicate what the units are.
• Tables summarize data.

14
Tables always have titles!
15
Tables always are numbered.
16
Tables always have headings for columns and rows.
Gibberllic Acid Treatment
Observation
Control
Mean Internode Length (cm)
Mean Number of Leaves per Plant
17
Gibberllic Acid Treatment
Observation
Control


Mean Internode Length (cm)


Mean Number of Leaves per Plant
2nd internode from apex
18
Other Data

• Report your qualitative data using sentences.

19
Finishing Thoughts

• Tables and Figures used in reports summarize
  data.
• Never report the same data in both a Figure and a
  Table.
• Always encapsulate the relevant points of a
  Figure or Table using data points (the numbers)
  in one or more well constructed sentences in the
  text.
• Tables and Figures appear in the text of the
  report as soon after they are referred to as
  possible, not in a separate section at the end of
  the paper.

20
Data presentation is really black and white!
