ADAPTIVE AIRFRAME TECHNOLOGY USING SHAPE MEMORY ALLOYS

1

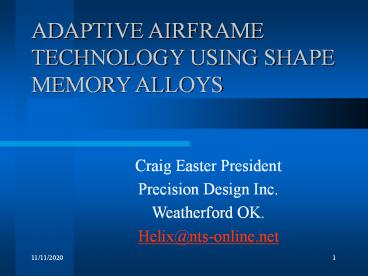

ADAPTIVE AIRFRAME TECHNOLOGY USING SHAPE MEMORY
ALLOYS

• Craig Easter President
• Precision Design Inc.
• Weatherford OK.
• Helix_at_nts-online.net

2
Acknowledgement of Research Team

• William Craig Easter
• Robert Allen Winston
• Dr. Ramkumar N. Parthasarathy
• Dr. Alfred G. Striz
• Dr. J. David Baldwin

3
Overview Purpose

• Develop a wing capable of Multiple advanced
  flight missions.
• Involve Oklahoma Universities and Industry in
  Advanced Technologies
• Promote Advanced Technology in Oklahoma.

4
Awards from NASA by state
5
Prior Micro Morphing Developments

•  Leading edge flaps
• Trailing edge flaps
• Telescoping wings
• Sweep wings
• Camber changing airfoil

6
Need Statement

• Different phases of flight require different wing
  configurations
• - Landing
• - Takeoff
• - High speed cruises
• - Attack
• - Loiter

7
Possible Airfoil Shapes
8
Possible Military Application Concept
9
Host Structures

• Class of host structure (kinematics)
• Folding Deployable
• Geodesic
• Nature (birds, bats, fish)
• Strengths
• Multi mission / Multi role
• Weaknesses
• Needs much research and analysis

10
Technology

• New technology
• Host structures
• Shape Memory alloys actuation
• Def. 50 nickel, 50 titanium
• FEA analysis of complex movements
• Control of servo aeroelastic
• wing by computer control.

11
Goals

• Going away from rigid structures
• Develop Shape memory alloys that act as actuator
  and sensor.
• Improve band width of current applications

12
Current Status

• Overview of progress
• Developed two host structures
• Proposal to Darpa and AirForce pending
• The outcome of the proposed work could
  revolutionize the future wing design concept, and
  could introduce extensive NASA flight test
  programs to evaluate the revolutional
  multiple-mission adaptable wing performance.
  (NASA)

13
Questions

• Questions
• Craig Easter
• President Precision Design Inc.
• P.O. Box 2064
• Weatherford OK. 73096
• Helix_at_nts-online.net
