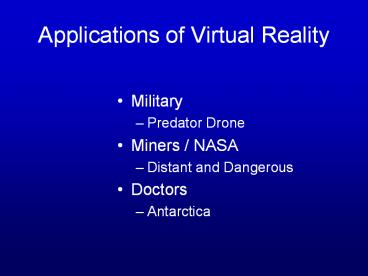

Applications of Virtual Reality

1
Applications of Virtual Reality

• Military
• Predator Drone
• Miners / NASA
• Distant and Dangerous
• Doctors
• Antarctica

2
Motion Tracking HMD

• Nick Sorenson
• Adam Thompson

3
Existing Products

• Expensive
• Inaccurate
• Limited range

4
(No Transcript)
5
LCD Glasses

• Two 0.55-inch LCD screens
• Creates the effect of viewing a 52-inch screen
  from 6.5 feet away
• 800x225 Pixel resolution
• S-Video and RCA connections
• AC or Battery powered

6
(No Transcript)
7
Accelerometers

• An accelerometer is a device for measuring
  acceleration. An accelerometer inherently
  measures its own motion.
• Accelerometers are used along with
  gyroscopes in inertial guidance systems, as well
  as in many other scientific and engineering
  systems. One of the most common uses for micro
  electro-mechanical system (MEMS) accelerometers
  is in airbag deployment systems for modern
  automobiles. In this case the accelerometers are
  used to detect the rapid deceleration of the
  vehicle to determine when a collision has
  occurred and the severity of the collision.
• From wikipedia.org

8
Accelerometers

• Provide measurement of the acceleration of the
  users head
• Analog or PWM (Pulse Width Modulated) output
• Can measure 360 by mounting 2 accelerometers
  perpendicular

9
(No Transcript)
10
(No Transcript)
11
Soft Ware Two Paths

• Microcontroller
• Device Driver

12
(No Transcript)
13
Hardware Components

• LCD Glasses
• Microcontroller
• Accelerometers
• Radio Controlled Car
• Wireless Camera
• Servos
• Computer
• Misc. Circuitry (Resistors, Capacitors,
  Potentiometers, etc.)

14
WOW

• Wireless
• Real Device Driver
• Pitch and Yaw
• Re-Centering
• Extra Function Buttons
• Range of Motion

15
Range of Motion
16
Applications

• Virtual reality

• In Medicine

17
(No Transcript)
18
Questions? Details at http//www.cs.utah.edu/adam
t/hmd.html
