Title: Bottom-Up Microfabrication Using DNA


1

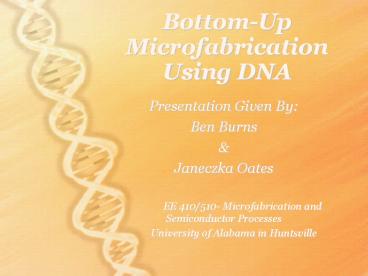

Bottom-Up Microfabrication Using DNA
Presentation Given By Ben Burns Janeczka
Oates EE 410/510-
Microfabrication and Semiconductor Processes
University of Alabama in Huntsville
2
Outline
  • Introduction
  • Bottom- Up fabrication
  • Self-assembling DNA structures
  • DNA tiles
  • Single Walled carbon Nano-Tube Field Effect
    Transistor (SWNT FET)
  • DNA shadow lithography
  • Conclusion
  • Issues

3
Bottom-Up Fabrication
  • Starts with small-scale components and design
    larger structures

4
Self-Assembly
DIY
  • Self Assembly
  • Is a Bottom-up rather than a Top-Down process as
    used in manufacturing or lithography
  • Involves self-ordering substructures into
    superstructures
  • Living organisms are best example
  • Life (DNA) is a good basis for artificial
    bottom-up design

5
What is Deoxyribonucleic Acid (DNA)?
  • DNA is the genetic blueprint for all living
    organisms
  • Composed of four nucleic acids adenine(A),
    guanine (G), cystosine (C), and thymine (T).
  • Well understood assembly
  • -Watson-Crick pairing
  • Easy to make
  • -Just order from company!
  • Small Size

6
Bottom-Up Fabrication
  • DNA self-assembly is a bottom-up fabrication
    technique that can be used to achieve molecular
    scale resolution.
  • Speed of DNA self-assembly reactions
  • Between a few seconds to many minutes.
  • Far slower per assembly than silicon technology.
  • Concurrent DNA self-assembly
  • Concurrent assemblies execute computations
    independently.
  • Massively parallel
  • Use
  • DNA tilings and/or assembling structures bound to
    DNA

7
DNA Tiling
  • Like a puzzle
  • Artificial ssDNA assembles to form a tile
  • Sticky ends match to form lattice

8
DX and TX Tiles
  • Double crossover two strands of DNA fused
  • Triple crossover three strands
  • Lots of other ways to make tiles

DX
TX
9
DNA Tiling
  • AFM image of TX array

10
DNA Tiling
  • E) AFM image of the letters D, N, and A
    displayed on self-assembled 4 x 4 nano-arrays
    (lt80 nm / side)
  • TEM image of 6nm gold particles labeled with
    15-mer oligo paired with matching strand on
    assembled DX lattice

11
DNA Tiling
  • Can be used for computation....

12
DNA used to assemble SWNT FET
Assembly of a DNA-templated FET and wires
contacting it. The following steps are (i)
RecA monomers polymerize on a ssDNA molecule to
form a nucleoprotein filament. (ii) Homologous
recombination reaction leads to binding of the
nucleoprotein filament at the desired address on
an aldehyde-derivatized scaffold dsDNA molecule.
(iii) The DNA-bound RecA is used to localize a
streptavidin-functionalized SWNT, utilizing a
primary antibody to RecA and a biotin-conjugated
secondary antibody. (iv) Incubation in an AgNO3
solution leads to the formation of silver
clusters on the segments that are unprotected by
RecA. (v) Electroless gold deposition, using the
silver clusters as nucleation centers, results in
the formation of two DNA-templated gold wires
contacting the SWNT bound at the gap
13
SWNT FET AFM Image Results
  • Localization of a SWNT at a specific address on
    the scaffold dsDNA molecule using RecA. (A) An
    AFM image of a 500-base-long ( 250 nm) RecA
    nucleoprotein filament (black arrow) localized at
    a homologous sequence on a DNA scaffold molecule.
    Bar, 200 nm. (B) An AFM image of a
    streptavidin-coated SWNT (white arrow) bound to a
    500-base-long nucleoprotein filament localized on
    a -DNA scaffold molecule. Bar, 300 nm. (C) A
    scanning conductance image of the same region as
    in (B). The conductive SWNT (white arrow) yields
    a considerable signal whereas the insulating DNA
    is hardly resolved. Bar, 300 nm

14
SWNT FET SEM Image Results
A DNA-templated carbon nanotube FET and metallic
wires contacting it. SEM images of SWNTs
contacted by self-assembled DNA-templated gold
wires. (A) An individual SWNT. (B) A rope of
SWNTs. Bars, 100 nm
15
DNA Shadow NanoLithography
When Top-Down meets Bottom-Up
  • Combination of traditional microfabrication and
    DNA
  • DNA bonds to substrate treated with specific
    silane, CDMOS (chlorodimethyloctadecylsilane)
  • thermal deposition of Al (small grain size) lt2 x
    10-6 Torr, 4nm _at_ 0.5 Às-1
  • Si etch ICP-RIE SF6C4F8, 2x10-7 Torr, 1-4 min

16
DNA Combing
  • Substrate is treated with CDMOS
  • 30 min, 90 C
  • DNA attaches
  • Substrate then dried

17
DNA Shadow NanoLithography Results
Transfer of linear DNA pattern to silicon
surfaces by DSN SEM micrographs of linear (E)
nanometer-scale trenches etched into silicon.
Scale bar on the inset is 50 nm, and the trenches
are 8 nm wide.
  • width depends on angle of deposition (7-22nm)
  • sidewall quality depends on width (40nm depth)

18
Conclusion
  • One problem for integrating DNA is its low
    melting point.
  • depends on AT/GC bonds (more GC higher Tm)
    30-70 C
  • DX, TX 60-80 C
  • There is no method to implement a chain reaction
    of self-assembling design steps
  • Lots of errors in tiling assembly
  • 'D''N''A' tiles yield 30
  • hard to check
  • fewer steps, fewer errors
  • 3D tiles hard to control shape
  • DSN
  • Poor side walls

Instead of
19
References
  • J F Allemand et al. pH-dependent specific
    binding and combing of DNA. Biophys J. 1997
    October 73(4) 20642070.
  • Héctor A. Becerril and Adam T. Woolley. DNA
    Shadow Nanolithography. Small 3.9 (2007)
    1534-38
  • Kurt V. Gothelf and Thomas H. LaBean.
    DNA-programmed assembly of nanostructures. Org.
    Biomol. Chem., 2005, 3, 4023 4037
  • Kinneret Keren et al. DNA-templated carbon
    nanotube field-effect transistor. Science
    302.5649 (2003) p1380(3)
  • T. Kusakabe et al. DNA mediated sequential
    self-assembly of nano/micro components. In MEMS
    2008. IEEE 21st International Conference on
    (2008) 1052-1055
  • Thomas H. LaBean et al. "Construction, Analysis,
    Ligation, and Self-Assembly of DNA Triple
    Crossover Complexes." J. Am. Chem. Soc. 122.9
    (2000) 1848-60
  • Park, Sung Ha et al. Finite-Size, Fully
    Addressable DNA Tile Lattices For7med by
    Hierarchical Assembly Procedures Angewandte
    Chemie 118.40 (2006) 749-753
  • John H. Rief, Thomas H. LaBean, Nadrian C.
    Seeman. Challenges and Applications for
    Self-Assembled DNA Nanostructures Lecture Notes
    In Computer Science Vol. 2054 (2000) 173-198
  • John H. Reif, Thom LaBean and Nadrian Seeman
    Challenges and Applications for Self-Assembled
    DNA Nanostructures (2001) online
    http//scai.snu.ac.kr/cec2001/selfassemble.talk.pd
    f

20
Questions?
