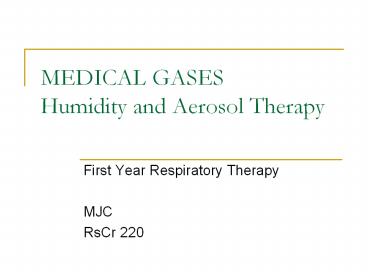

MEDICAL GASESHumidity and Aerosol Therapy
  • First Year Respiratory Therapy
  • MJC
  • RsCr 220

2
HUMIDITY THERAPY
  • Add moisture to the gases we breathe
  • Reduce upper airway swelling
  • Maintain normal physiologic functions

3
The Patient Needs Water
  • Patients require hydration
  • Normally through systemic hydration
  • Respiratory signs of dehydration
  • Crusty nasal passages
  • Thick tenacious secretions
  • Dry hacking cough
  • Nosebleeds
  • Dry mouth

4
Respiratory Patients are Special
  • Often have SUPER (0 humidity) dry gases
    delivered to them
  • Have bypassed normalupper airways
  • Need to heat and humidify

5
Humidity Concepts
  • Temperature effects humidity
  • The warmer the air the more humidity it is
    capable to carry
  • Weather, condensation and evaporation are results
    of changing conditions
  • Water vapor content is measured in mg of water in
    liters of air (mg/L)
  • Normal is 44 mg/L (100 humidity at 37oC)

6
Definitions
  • Water Vapor Pressure
  • Exerts a pressure as part of the atmospheric
    pressure
  • Normal is 47 mmHg in the lungs
  • Daltons law of Partial Pressure (but more on
    that later with Gas Physics)
  • Nitrogen, Oxygen and Carbon Dioxide exert their
    own partial pressure totaling 760 mmHg

7
Definitions
  • HUMIDITY
  • Addition of water to gas delivered to airway
  • Absolute Humidity
  • Actual amount of water in air
  • Relative Humidity
  • Percentage of full saturation

8
Definitions
  • Body Humidity
  • Fully saturated at body temperature
  • 100 RH, 43.9 mg/L at 37C
  • Body (Humidity) Deficit
  • Difference between measured and fully sat
  • Amount needed to achieve full saturation that
    temperature.

9
Humidity Deficit
10
I.S.B.
  • Isothermic Saturation Boundary
  • At or just below carina (end of trachea)
  • Point at which inspired gases are fully 100
    saturated and warmed to body temperature
  • 44 mg/L at 37oC

11
Compromised ITB
  • Upper airway is bypassed with artificial airway
  • Environmental temperature or humidity drops
  • Tidal volumes (breathing) increased

12
The Bodys Normal Humidifier
  • The nose is a efficient active humidifier which
    adds heat and moisture to the inspired gas.
  • Nasal mucosa, vascular capillary beds, turbinates
    and conchae

13
Reasons for Using Humidity Therapy
  • Humidify Gases
  • Thin Secretions
  • Reduce Swelling
  • Induce Sputum Samples

14
Solutions Used
  • Hypertonic (10) Sputum Inductions
  • Greater tonicity then surrounding tissues
  • Tend to draw fluid from surroundings
  • Isotonic (Normal Saline) 0.9 - Breathing Tx
  • Neither gains or loses water but maintains a
    steady size Body neutral
  • Hypotonic Most Humidity Therapy
  • Sterile Water

15
Indications for Humidity Therapy
  • Upper airway inflammation
  • (Croup and Post extubation)
  • Reduces swelling with vasoconstriction
  • Humidity deficit
  • Sputum induction

16
Upper Airway Swelling
  • Croup
  • Post-Extubation

17
Upper Airway Stridor
  • Narrowing of the neck breathing passages
  • Caused by swelling of inner lining
  • Cool temperature causes decreased swelling and
    increased size of opening
  • CROUP
  • POST EXTUBATION

18
Humidity Deficit
  • Normal Humidification is Inadequate

19
Respiratory Patients
  • Usually patients in ICU with bypassed upper
    airway
  • Trach or ET Tube
  • Always heated
  • Provide oxygen and humidity (sterile water)

20
Sputum Inductions
  • For patients unable to cough up on their own
  • Nebulize 10 saline solution for 10 minutes
  • The hypertonic saline draws out water from the
    tissues of the throat and trachea to help
    liquifey secretions for expectoration
  • Could also use mucomyst to help break down the
    thick secretions
  • Microbes then can be identified

21
Goals of Humidity Therapy
  • Provide adequate heat and humidity to the
    inspired gas
  • Reduce airway swelling
  • To aid in the removal of thick secretions
  • To prevent airway response to cold air

22
ANSI Standards
  • American National Standard Institute states
    minimum standards for humidification
  • Reminder Normal 44 mg/l or 100
  • Upper Airway
  • Output of 10 mg/L for unheated
  • 50 RH at room temperature (22oC)
  • Lower Airway
  • At least 30 mg/L heated (100 at 30oC)

23
Hazards of Humidification
  • Just Right
  • Too Little
  • Too Much

24
Hazards of Humidity Therapy
  • Bronchospasm to cool mist
  • Watch out for Asthmatics
  • Infection
  • Universal precautions
  • Fluid overload
  • Especially CHF and Newborns

25
Underhumidification
  • Caused by exposure to dry medical gases
  • Thicken mucous and retained secretions
  • Decreased mucocilliary transport
  • Cold can cause bronchospasm

26
Overhumidification
  • Lead to excess body fluid retention
  • Susceptible patients
  • Efficiency of cilia is decreased
  • Dilutes surfactants and collapsed alveoli
  • Swelling of mucous layer and causing narrowing of
    air passages

27
Systemic Hydration
  • The most effective method to improve thick
    secretions is by
  • Systemic Hydration with intravenous fluids

28
Humidifier Types
  • Bubble diffusers
  • HME
  • Wick
  • Cascade, Babington, Passover

29
Overall factors affecting humidity
  • Need to design features into apparatus
  • Temperature
  • Has the greatest effect of all
  • Heating allows for increased humidity
  • Length of time
  • Longer contact time increases humidity
  • Surface area
  • Greater surface area increases humidity

30
Low-Flow Humidifiers
  • Unheated
  • Bubble Diffuser

31
Bubble Humidifiers
32
Bubble Humidifiers
  • Used with nasal cannula only
  • Adjust flow on flowmeter from 1 to 6 LPM
  • Does NOT do well with high flows from flowmeter

33
Diffuser Humidifier - Increases Surface Area of
Gas
34
High-Flow Humidifiers
  • CAPABLE OF BEING HEATED
  • Aerosol Setup
  • Concha
  • Wick
  • HME

35
Large Volume Aerosol
36
Large Volume Jet Aerosol Humidifier
  • Called Aerosol set-up
  • Always run at flush
  • Flow restrictor in most brands limit flow to just
    12 or 13 liters

37
Another Aerosol Setup
38
Tandem Set-up
39
50 Rule
  • With very little air entrainment with high oxygen
    concentrations, total flows are pitiful
  • Need to double the output in creative ways
  • The most common way is to use two nebulizers teed
    in together in tandem

40
Collection Bag
  • All large bore circuits have a tendency to
    collect water
  • This is mainly caused through condensation
  • Also called rainout
  • Best remedy is to place drain bag at lowest loop
    in the circuit.

41
Too much water in the tubing
  • Often the drain bag is poorly positioned
  • Not at the bottom of the loop
  • A gurgling sound can be heard when air passes
    through the collection of water
  • The oxygen concentration is increased as the
    water acts as a restriction that messes up the
    entrainment ratios of the venturi device

42
Collection Water Bag
43
Fisher Paykel (Wick Humidifier)
44
Wick Internal View
45
Concha Humidifier
46
Water in the line
  • Can be limited with heated wires in tubing

47
Heated Wire Circuit
48
Servo Control
  • Many modern ventilator circuits maintain a water
    free tubing with a feedback servo system that
    keeps the temperature constant
  • Recommended temperature range from 34 to 35 and
    even 37oC
  • But more on that with ventilator class

49
Dated Little Seen Humidifiers
  • Passover
  • De Vilbiss
  • Babbington

50
Passover Humidifier
51
Cascade Humidifier
52
De Vilbiss
53
Babbington Nebulizer
54
Now for something new
  • Heat Moisture Exchanger
  • (HME)

55
HME
56
HME
57
HME
  • Can produce 70 90 body humidity
  • For short term use
  • Usually replaced every 24 hours (72 hrs max)
  • Excessive secretions lead to blockage
  • If secretions thicken, it should be replaced
  • Considered passive (vs active) humidifier because
    it uses patient to heat unit

58
Humidifiers
  • Aid in the removal of thick secretions
  • Sputum Inductions
  • with Hypertonic Saline (10)

59
SVN for Sputum Induction
  • Use normal
  • Small Volume Nebulizer
  • Draws fluid out of tissue,
  • causes mucous layer to
  • increase and easier to
  • effectively cough up sample.

60
The End
