Geology and Soils in Relation to Vadose Zone Hydrology

1

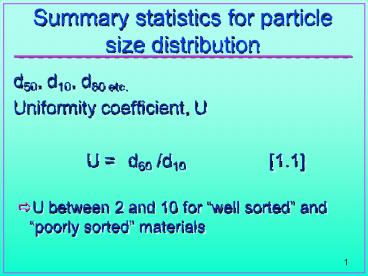

Summary statistics for particle size distribution

• d50, d10, d80 etc.
• Uniformity coefficient, U
• U d60 /d10 1.1
• U between 2 and 10 for well sorted and poorly
  sorted materials

2
Dependence of bulk density on particle size
distribution

• Uniform particle size distribution gives low
  packing density
• increasing the range of particle sizes gives
  rise to greater bulk density.

3
(No Transcript)
4
What are is the basis of size classes?

• Clay wont settle (lt2m doesnt feel gritty
  between your teeth).
• Silt settles freely, but cannot be
  discriminated by eye (isnt slippery between your
  fingers doesnt make strong ribbons goes
  through a number 300 sieve 2mltsiltlt0.05mm).
• Sand you can see (gt0.05 mm), but is smaller
  than pebbles (lt2mm).

5
Systems of soil textural classification

• (The USDA is standard in the US)

6
Sand, Silt, Clay Textural Triangle

• Standard textural triangle for mixed grain-size
  materials

Clay axis
Silt axis
Sand axis
7
Soil Classification

• Based on present features and formative
  processes
• Soil is geologic material which has been altered
  by weathering an biological activity. Typically
  extends 1-2 meters deep below soil is parent
  material
• Soil development makes sequence of bands, or
  horizons.

8
Eluvial processes

• Clay is carried with water in eluviation and
  deposited in illuviation in sheets (lamellae)
  making an argillic horizon.
• Soluble minerals may be carried upward through a
  soil profile driven by evaporation giving rise to
  concentrated bands of minerals at particular
  elevations.

9
Vertical Variations in Soils

• Banding also arises from the depositional
  processes (parent material).
• The scale of variation shorter in the vertical
  than horizontal.
• Layers may be very distinct, or almost
  indistinguishable.

10
System of designations

• Three symbol designation e.g. Ap1
• A here is what is referred to as the
  designation of master horizon
• There are six master horizon designations O, A,
  E, B, C, and R.

11
Master Horizon Designations

• O dominated by organic matter.
• A first mineral horizon in a soil with either
  enriched humic material or having properties
  altered by agricultural activities (e.g.,
  plowing, grazing).
• E loss of a combination of clay, iron and
  aluminum only resistant materials. Lighter in
  color than the A horizon above it (due to a
  paucity of coatings of organic matter and iron
  oxides).

12
Master Horizon Designations (cont.)

• B below A or E, enriched in colorants (iron and
  clays), or having significant block structure.
• C soil material which is not bedrock, but shows
  little evidence of alteration from the parent
  material.
• R too tough to penetrate with hand operated
  equipment.
• For complete definitions, see the SCS Soil
  Taxonomy (Soil Conservation Service, 1994).

13
Master Horizon Designations (cont.)

• Major designations may be combined as either AB
  or A/B if the horizon has some properties of the
  second designation

14
Subordinate classifications

• Lower case letter indicates master horizon
  features.
• There are 22. e.g.
• k accumulation of carbonates
• p plowing
• n accumulation of sodium
• May be used in multiple

15
Final notes on designations

• Arabic numerals allow description of sequences
  with the same master, but with differing
  subordinate (e.g., Bk1 followed by Bn2).
• Whenever a horizon is designated, its vertical
  extent must also be reported.

16
Color and Structure tell genetic and
biogeochemical history

• Dark colors are indicative of high organic
  content
• Grayish coloration indicates reducing (oxygen
  stripping) conditions
• Reddish color indicates oxidizing (oxygen
  supplying) conditions.
• Relates closely to hydraulic conditions of site
• Often of greater use than a slew of lab analysis
  of soil cores.

17
Quantification of Color

• Munsell Color chart by hue, value and chroma
  summarized in an alpha-numerical coding
  shorthand.
• Pattern of coloration is informative. Mottling,
  where color varies between grayish to reddish
  over a few cm, most important.
• Intermittent saturation oxidizing then reducing
• Precise terminology for mottle description (e.g.,
  Vepraskas, M.J. 1992).

18
Structure

• Must identify the smallest repeated element which
  makes up the soil ped Include details of the
  size, strength, shape, and distinctness of the
  constituent peds.

19
Climate

• Six major climatic categories employed in soil
  classification useful in groundwater recharge
  and vadose zone transport.
• Aquic precipitation always exceeds
  evapotransiration (ET), yielding continuous net
  percolation.
• Xeric recharge occurs during the wet cool
  season, while the soil profile is depleted of
  water in the hot season.
• Identifying the seasonality of the local water
  balance is fundamental to understanding the
  vadose zone hydrology.

20

• Six categories of climates

21
High Points of Clay Mineralogy

• General
• Clay constituents dominate hydraulic chemical
  behavior
• Two basic building blocks of clays
• silica centered tetrahedra
• variously centered octahedra

22
Basic Formations

• chain structures (e.g., asbestos)
• amorphous structures (glasses)
• sheet structure (phyllosilicates clay!)

http//whyfiles.org/coolimages/images/csi/asbesto
http//usgsprobe.cr.usgs.gov/gpm/dickite.gif
23
Unit-cells octa- and tetrahedral units
www.georgehart.com/virtual-polyhedra/ dice.html
http//www.pssc.ttu.edu/pss2330/images/uday15_1_3.
gifhttp//www.pssc.ttu.edu/pss2330/images/uday15_
24
Isomorphic Substitution

• Silica tetrahedron four oxygen surrounding one
  silica atom
• Space filled by the silica can accommodate atoms
  up to 0.414 times O2 radius (5.8 x 10-9 m)
  includes silica and aluminum.
• Balanced charge if the central atom has charge
  4, negative charge if the central atom has a
  less positive charge (oxygen is shared by two
  tetrahedra in crystal so contributes -1 to each
  cell).
• Same for the octahedra 0.732 times O2 radius
  (1.02 x 10-8 m) iron, magnesium, aluminum,
  manganese, titanium, sodium or calcium, (sodium
  and calcium generate cubic lattice rather than
  octahedra)

25
Ionic radii dictate isomorphic substitution
Fit
into
Tetrahedron

(radius lt0.41

t
imes that of
oxygen


Fit
into

Octahedron


(radius lt0.732
Na

0.097

0.693

2
Ca

0.099

0.707

t
imes that of

K

0.133

0.950

oxygen)

2
Ba

0.13
4

0.957



Rb
0.147

1.050




26
Surface Functional Groups

• Clay minerals surfaces made up of hexagonal rings
  of tetrahedra or octahedra.
• The group of atoms in these rings act as a
  delocalized source of negative charge surface
  functional group (a.k.a. SFG).
• Cations attracted to center of SFGs above
  surface of the sheet.
• Some (e.g., K and NH4) dehydrated and attached
  to the SFG inner sphere complex with the SFG
• Cations bound to the SFG by water outer sphere
  complex
• Inner and outer sphere ion/clay complexes are the
  Stern layer.

27
Details of Stearn Layer
http//www.ornl.gov/ORNLReview/v34_2_01/p24a.jpg

• Anions will be repelled from clay surfaces.
• Zig-zag negative and positively charged elements
  in clay generates dipole moment attracting
  charged particles.
• Diffuse attraction results in increased ionic
  concentration Gouy layer (Gouy, 1910).
• Dipole-dipole attraction also holds water to the
  clay surfaces, in addition to osmotic force from
  cation concentration near the clay surfaces.

28
Hydration of Cations
http//www-sst.unil.ch/perso_pages/Bernhard_homepa
ge/On20line20publications/Image31.gif
29
Cation Exchange

• The degree to which soil cations may be swapped
  for other cations is quantified as the cation
  exchange capacity (CEC) which is measured as
• CEC cmol of positive charge/kgcmol() is
  equal to 10 Milliequivilents (meq)
• 1 CEC 1 meq per 100 grams of soil.
• Typical values of CEC are less than 10 for
  Kaolinite, between 15 and 40 for illite, and
  between 80 and 150 for montmorilonite.

30
Swelling of Clays
31
Distinguishing features between clays

• Order of layering of tetra and octa sheets
• Isomorphic substitutions
• Cations which are bound to the surface
  functional groups

32
Examples Kaolinite

• 11 alternating octatetra sheets
• Little isomorphic substitution. Thus...
• Very stable thicker stacks
• Relatively low surface area 7-30 m2/gr
• Do not swell much

http//www.arenisca.com/kaol-2.gif
33
Examples Montmorilonite (smectite family)

• The most common smectite is Montmorillinite,
  with general formula
• (½Ca,Na)(Al,Mg,Fe)4(Si,Al)8O20(OH)4.nH2O
• 21 octa sandwiched in 2 tetra sheets.
• Lots of isomorphic substitutionMg2, Fe2,
  Fe3 for Al3 in octa. Since the octa is
  between tetras, cations in outer sphere
  complexes with hydrated SFGs. Thus
• High surface area (600-800 m2/gr)
• Lots of swelling
• Big CEC.

http//www.dc.peachnet.edu/janderso/acres/Sum99/t
alksan/img018.gif
34
Examples Illite
http//www.curtin.edu.au/curtin/centre/cems/report
_2000/images/41_7.jpg

• 21 octa sandwiched in 2 tetra sheets.
• Lots of isomorphic substitutionAl3 for the
  Si4 in the tetra. Generates charged SFGs
  binding potassium ionically between the
  successive 21 units. Thus
• Moderate surface area 65-120 m2/g)
• Little swelling
• moderate CEC.

http//www.glossary.oilfield.slb.com/Files/thumb_O
35
Summary of Clays

• Clays are 10s atomic radii thick and thousands
  of atomic radii in horizontal extent
• high surface to weight area plate structure.
• Hold both water and cations
• Highly reactive.
• Swell wetted state due to hydration.
• Dissociate if cations which glue layers together
  are depleted
• Paths tortuous high resistance to flow of water
  impermeableCareful in the vadose zone
  shrinkage voids
