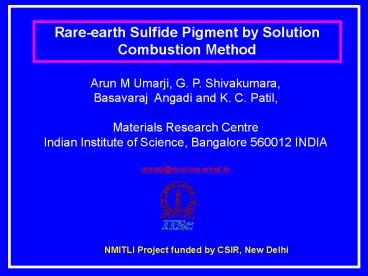

Rare-earth Sulfide Pigment by Solution Combustion
Method
Arun M Umarji, G. P. Shivakumara, Basavaraj
Angadi and K. C. Patil, Materials Research
Centre Indian Institute of Science, Bangalore
560012 INDIA   umarji_at_mrc.iisc.ernet.in
NMITLI Project funded by CSIR, New Delhi
2
Ultrasonic nebulised spray pyrolysis of an
aqueous combustion mixture for the deposition of
ZnO thin films for gas sensing Ujwala Ail, S.A.
Shivashankar and A.M. Umarji
Thanks to Dr K C Adiga for discussions and support
3
Combustion synthesis and color evolution studies
of Praseodymium doped Ceria Environmentally
safe red pigmentsBasavaraj Angadi1,3, K. C.
Patil2, A. M. Umarji3
4
High Temperature electrical and Magnetic studies
on Na0.76 Co(1-X)/Nix/FexO2 Prepared by
aqueous combustion method Venkatesan.P1
N.Y.Vasanthacharya2 V.B.Shenoy1, A.M.Umarji1
Na0.74Co1-xFexO2 prepared by combustion synthesis
followed by hot pressing High Density gt98
theoretical Maximum temperature lt 850C
5
Fabrication of inert/CS2 atmosphere combustion
chamber
Schematic diagram
Top view port
Emergency pressure releaser
6
Water cooling
Al-bell jar
Side view port
Furnace
8
Al-Supports
1
Al-Block
Electrical feedthroughs
Gas inlet
Gas outlet/ to pump
6
Fabrication of inert/CS2 atmosphere combustion
chamber
Photograph
Quartz setup
7
Preheated furnace mounted on the tripod on the
base plate
8
Quartz setup kept inside the furnace and
connected to the gas inlet
9
Success on Ce2S3/Ce4O4S3 and La2O2S

• Formation of Ce2S3/La2O2S by inert/CS2
  atmosphere combustion reaction
• Using Cerium/Lanthanum nitrate and Thiourea
  2
  Ce(NO3)3 5 N2H4CS 2 La(NO3)3 5 N2H4CS
• Preheated furnace at 500 600 C
• Avoid oxygen by partially evacuating the chamber
  and refilling by inert gas
• Create excess sulphur partial pressure by CS2
  flow inside the specially designed quartz setup
  kept inside the belljar
• Cool to RT in CS2/N2 flow

10
Results of ?-Ce2S3
11
Results of ?-Ce2S3
12
Results of ?-Ce2S3
13
Results of ?-Ce2S3
14
Results of ?-La2S3
15
Rare earth sulphides Synthesis using
Ammoniumthocyanate
16
Experimental set up Fabrication of tubular
furnace for combustion in N2/H2S Atmosphere
Sulfudisation of CeCl36H2O and RE2O3 by using
ammonium thiocyanate instead of
thiourea. Cerium Chemical reactions 2 CeCl3
6H2O8NH4SCN Ce2S310 H2O
8 CO2 8 N2NH4Cl 2CeCl36H2O8NH2CSNH2
Ce2S310 H2O 8 CO2 8 N2NH4Cl
17
Direct Synthesis of Ce2O2S/Ce4O4S3 and La2O2S

• Formation of Ce2O2S/La2O2S in an inert/H2S
  atmosphere by combustion reaction
• Using Cerium Chloride/Lanthanum sesqui oxide and
  ammonium thiocyanate
  3CeCl36H2O 8NH4CSN 3 La2O3
  8 NH4CSN
• Preheated furnace at 350 400 C
• Avoid oxygen by purging N2 gas initially into
  the chamber
• Create excess sulphur partial pressure by H2S/N2
  flow inside the specially designed tubular
  furnace
• Cool to RT in H2S/N2 flow

18
Photographs of Pigment Powders Produced by
direct Sulfudisation of Rare Earth Oxides and
Salts
Sample1
19
Color analysis of rare earth sulfides/oxysulfides
Fig.6. The variation of diffuse reflectance
spectra for Cerium,Lanthanum,Neodymium,
Praseodymium sulphides (by using Ammonium
thiocyanate and N2-H2S.)

Table 3 The corresponding L a b
parameters of the above graphs are as follows
20
Effect of use of with CeCl3.6H2O and CeO2
Sample1- Ce(NO3)3.6H2OGlycineCeCl36H2O
Sample2-(NH4)2Ce(NO3)6GlycineCeCl36H2O Samp
le3-(NH4)2Ce(NO3)6AmmAcetateCeCl36H2O
Sample4-Ce(NO3)36H2OAmmAcetateCeCl36H2O
21
XRD pattern of Ceria obtained form Ce(NO3)4
22
Table 1 A)X-ray analysis and B)Colour analysis
of ceria obtained by different fuels and
different precursors with added CeCl3
A)
B)
23
Sulfudised product in IIT Madras-
XRD Pattern
24
?-Ce2S3
25
?-Ce2S3 Flurinated
26
Ce 2.5 Na 0.5S4
27
??-Ce2S3-Fluorinated
28
Sample-3-Na-2
29
CONCLUSION

• Solution combustion technique can be used to
  make sulfide/oxy-sulfide inorganic materials
• Nano CeO2 made by solution combustion method is
  good precursor for making gama Ce3S4

30
Thank You
31
Results of Cerium

32
Combustion Synthesis of Ce Chloride/oxychloride 1.
Synthesis of ceria by solution combustion method
using different precursors and different fuels
with CeCl36H2O 2.Cerum nitrate, Ceric ammonium
nitrate precursors Glycine and ammonium acetate
-- fuels. 3.Addition of CeCl3 lead to the
decrease in crystallite size and color. Chemical
reaction 1) 3 Ce(NO3)3 6H2O 5 C2H5NO2
3CeCl36H2O 6CeO2 12H2O10CO2
7N2HCl 2) (NH4)2Ce(NO3)6 NH4OOCCH3
CeCl36H2O CeO2CO2H2ONH4ClN2
33
(No Transcript)
34
SEM images of Ce2O2S/Ce2S3
Thermo gravimetrc analysis of cerium
sulfide/oxysulfide.
35
Results of Lanthanum
36
SEM images of La2O2S
37
Results of Neodymium
38
(No Transcript)
39
SEM Images of Nd2O2S
Thermogravimetric analysis Neodymium oxysulfides
40
Results of Pr2O2S/Pr2S3
41
SEM images of Pr2S3/Pr2O2S
42

• Future plan/direction
• Standardise the preparation of Ce oxychloride
  for sulfudisation in IIT Madras
• Thermal decomposition of rare earth sulphates
  which can lead to the formation of corresponding
  sulfides or oxysulfides
• Using of cerium phosphate as a precursor for
  sulfides and oxy sulfides
• Efforts will be made to scale up the
  preparation of cerium sulphide, lanthanum
  sulphide or the oxysulphides by the inert H2S
  atmosphere combustion reactions.
• Using of trapping agent in the combustion
  synthesis to trap residual species present, such
  as oxygen chlorine etc.

43
Sulfudisation of CeCl36H2O and RE2O3 by using
ammonium thiocyanate instead of
thiourea. Cerium Chemical reactions 2 CeCl3
6H2O8NH4SCN Ce2O2S/Ce2S310 H2O
8 CO2 8 N2NH4Cl 2CeCl36H2O8NH2CSNH2
Ce2O2S/Ce2S310 H2O 8 CO2 8
N2NH4Cl Lanthanum Chemical reaction 2 Ln2O38
NH4SCN Ln2S2O/La2S3 10 H2O 8
CO2 8 N2 2 Ln2O38NH2CSNH2
Ln2S2O/La2S3 10 H2O 8 CO2 8 N2 Ln La, Nd,
Pr
