thermal properties of water and lakes

1

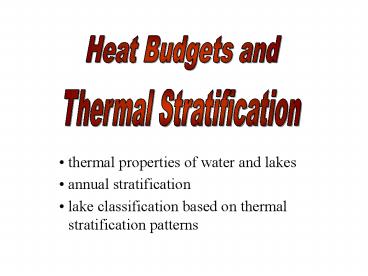

Heat Budgets and
Thermal Stratification

• thermal properties of water and lakes
• annual stratification
• lake classification based on thermal
  stratification patterns

2
Thermal Properties of Lakes

• Sources of heat
• Solar radiation
• Sensible heat conduction
• Stream Input
• Sediment absorption of sunlight
• Geothermal
• Biogenic

3
Thermal Properties of Lakes

• Sinks of heat
• Evaporation
• Sensible heat conduction
• Back radiation from lake surface
• Stream inputs (snow melt)
• Surface outflow

4
Lake Tahoe, CA-NV
5
Lake Mendota, WI
6
Annual Lake Heat Budget
S Rn E H Q

• where S storage rate of heat in the lake
• Rn net radiation
• E evaporation
• H sensible heat transfer, conduction
• Q advective heat transfers due to water
• inflows and outflows

7
Lakes stratify because water density varies with
temperature
Figure 3-4 in Horne and Goldman
8
Thermal Stratification for a typical temperate
lake
9
Castle Lake Stratification
10
(No Transcript)
11
Lake Classification Based on Thermal
Stratification Patterns

• Holomixis
• monomictic mixes once per year
• warm monomictic never below 4C
• cold monomictic never above 4C
• ex Lake Tahoe
• large volume and large depth
• no winter ice cover

12

• dimictic mixes twice per year
• ex Castle Lake and Lake Mendota
• small temperate lake
• freezes over during winter

• amictic does not mix, permanently ice-covered
• ex Lake Vanda, Antarctic
• high latitude lake

13
Lake Vanda, Antarctica
14
(No Transcript)
15

• oligomictic mixes rarely, thaws rarely
• ex small lakes at high altitude or latitude

• polymictic mixes many times per year
• warm polymictic
• cold polymictic
• ex Clear Lake
• shallow lake
• exposed to strong winds

16

• Meromixis
• structure of a meromictic lake
• mixolimnion
• chemocline
• monimolimnion
