Title: Telecommunication Systems 1


1

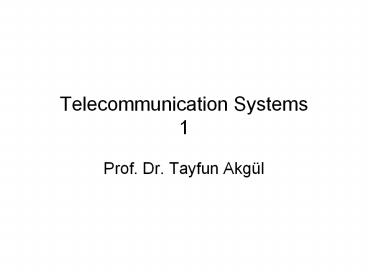

Telecommunication Systems1
  • Prof. Dr. Tayfun Akgül

2
COMMUNICATION ENGINEERING
  • Course Code ISE301
  • Course title Telecommunication Systems
  • Credit Hours 3

  • Semester Fall 2009
  • Instructor Prof. Dr. Tayfun AKGÜL
  • Course Page http//atlas.cc.itu.edu.tr/akgult
    ay/
  • Refernece Book A. B. Carlson, P.B. Crilly, J.C.
    Rutledge, Communication Systems, McGraw-Hill,
    4th Edition, 2002.

3
Syllabus - I
  • Introduction to Signals
  • General Topics in Communications and Modulation
  • Spectral Analysis
  • Fourier Series
  • Fourier Transform
  • Frequency Domain Representation of Finite Energy
    Signals and Periodic Signals
  • Signal Energy and Energy Spectral Density
  • Signal Power and Power Spectral Density
  • Signal Transmission through a Linear System
  • Convolution Integral and Transfer Function
  • Ideal and Practical Filters
  • Signal Distortion over a Communication Channel

4
Syllabus - II
  • Amplitude (Linear) Modulation (AM)
  • Amplitude Modulation (AM)
  • Double Side Band Suppressed Carrier (DSBSC)
  • Single Side Band (SSB)
  • Vestigial Side Band (VSB)
  • AM Modulator and Demodulator Circuits
  • AM transmitter block diagram
  • Angle (Exponential) Modulation
  • Phase Modulation (PM)
  • Frequency Modulation (FM)
  • Modulation Index
  • Spectrum of FM Signals
  • Relationship between PM and FM
  • FM Modulator and Demodulator Circuits
  • FM Transmitter Block Diagram
  • FM Receiver

5
Outline
  • What is a communications system?
  • Block Diagram
  • Why go to higher frequencies?
  • Telecommunication
  • Wireless Communication
  • Another Classification of Signals (Waveforms)
  • Power, Distortion, Noise
  • Shannon Capacity
  • How transmissions flow over media
  • Coaxial Cable
  • Unshielded Twisted Pair
  • Glass Media
  • Wireless
  • Connectors
  • The Bands
  • Signals and Systems
  • Signals and Systems
  • What is a signal?
  • Signal Basics
  • Analog / Digital Signals
  • Real vs Complex
  • Periodic vs. Aperiodic
  • Bounded vs. Unbounded
  • Causal vs. Noncausal
  • Even vs. Odd
  • Power vs. Energy

6
Signal and System
  • Signals are variables that carry information
  • System is an assemblage of entities/objects, real
    or abstract, comprising a whole with each every
    component/element interacting or related to
    another one.
  • Systems process input signals to produce output
    signals
  • Examples
  • Motion, sound, picture, video, traffic light
  • Natural system (ecosystem), human-made system
    (machines, computer storage system), abstract
    system (traffic, computer programs), descriptive
    system (plans)

7
Signal Examples
  • Electrical signals --- voltages and currents in a
    circuit
  • Acoustic signals --- audio or speech signals
    (analog or digital)
  • Video signals --- intensity variations in an
    image (e.g. a CAT scan)
  • Biological signals --- sequence of bases in a
    gene
  • Noise unwanted signal

8
Measuring Signals
Amplitude
Period
9
Definitions
  • Voltage the force which moves an electrical
    current against resistance
  • Waveform the shape of the signal (previous
    slide is a sine wave) derived from its amplitude
    and frequency over a fixed time (other waveform
    is the square wave)
  • Amplitude the maximum value of a signal,
    measured from its average state
  • Frequency (pitch) the number of cycles produced
    in a second Hertz (Hz). Relate this to the
    speed of a processor eg 1.4GigaHertz or 1.4
    billion cycles per second

10
Signal Basics
  • Continuous time (CT) and discrete time (DT)
    signals
  • CT signals take on real or complex values as a
    function of an independent variable that ranges
    over the real numbers and are denoted as x(t).
  • DT signals take on real or complex values as a
    function of an independent variable that ranges
    over the integers and are denoted as xn.
  • Note the subtle use of parentheses and square
    brackets to distinguish between CT and DT
    signals.

11
Analog Signals
  • Human Voice best example
  • Ear recognises sounds 20KHz or less
  • AM Radio 535KHz to 1605KHz
  • FM Radio 88MHz to 108MHz

12
Digital signals
  • Represented by Square Wave
  • All data represented by binary values
  • Single Binary Digit Bit
  • Transmission of contiguous group of bits is a bit
    stream
  • Not all decimal values can be represented by
    binary

13
Analogue vs. Digital
  • Analogue Advantages
  • Best suited for audio and video
  • Consume less bandwidth
  • Available world wide
  • Less susceptible to noise
  • Digital Advantages
  • Best for computer data
  • Can be easily compressed
  • Can be encrypted
  • Equipment is more common and less expensive
  • Can provide better clarity

14
Analog or Digital
  • Analog Message continuous in amplitude and over
    time
  • AM, FM for voice sound
  • Traditional TV for analog video
  • First generation cellular phone (analog mode)
  • Record player
  • Digital message 0 or 1, or discrete value
  • VCD, DVD
  • 2G/3G cellular phone
  • Data on your disk
  • Your grade
  • Digital age why digital communication will
    prevail

15
A/D and D/A
  • Analog to Digital conversion Digital to Analog
    conversion
  • Gateway from the communication device to the
    channel
  • Nyquist Sampling theorem
  • From time domain If the highest frequency in the
    signal is B Hz, the signal can be reconstructed
    from its samples, taken at a rate not less than
    2B samples per second

16
A/D and D/A
  • Quantization
  • From amplitude domain
  • N bit quantization, L intervals L2N
  • Usually 8 to 16 bits
  • Error Performance Signal to noise ratio

17
Real vs. Complex
  • Q. Why do we deal with complex signals?
  • A. They are often analytically simpler to deal
    with than real signals, especially in digital
    communications.

18
Periodic vs. Aperiodic Signals
  • Periodic signals have the property that x(t T)
    x(t) for all t.
  • The smallest value of T that satisfies the
    definition is called the period.
  • Shown below are an aperiodic signal (left) and a
    periodic signal (right).

19
Causal vs. Non-causal
  • A causal signal is zero for t lt 0 and an
    non-causal signal is zero for t gt 0
  • Right- and left-sided signals
  • A right-sided signal is zero for t lt T and a
    left-sided signal is zero for t gt T where T can
    be positive or negative.

20
Bounded vs. Unbounded
  • Every system is bounded, but meaningful signal is
    always bounded

21
Even vs. Odd
  • Even signals xe(t) and odd signals xo(t) are
    defined as
  • xe(t) xe(-t) and xo(t) -xo(-t).
  • Any signal is a sum of unique odd and even
    signals. Using
  • x(t) xe(t)xo(t) and x(-t) xe(t) - xo(t),
    yields
  • xe(t) 0.5(x(t)x(-t)) and xo(t) 0.5(x(t) -
    x(-t)).

22
Signal Properties Terminology
  • Waveform
  • Time-average operator
  • Periodicity
  • DC value
  • Power
  • RMS Value
  • Normalized Power
  • Normalized Energy

23
Power and Energy Signals
  • Energy Signal
  • Finite duration
  • Normalized energy is finite and non-zero
  • Normalized power averaged over infinite time is
    zero
  • Physically realizable
  • Power Signal
  • Infinite duration
  • Normalized power is finite and non-zero
  • Normalized energy averaged over infinite time is
    infinite
  • Mathematically tractable
  • Although real signals are energy signals, we
    analyze them pretending they are power signals!

24
The Decibel (dB)
  • Measure of power transfer
  • 1 dB 10 log10 (Pout / Pin)
  • 1 dBm 10 log10 (P / 10-3) where P is in Watts
  • 1 dBmV 20 log10 (V / 10-3) where V is in Volts

25
Communication System
History and fact of communication
26
What is a communications system?
  • Communications Systems Systems designed to
    transmit and receive information

27
Block Diagram
Info Sink
28
Telecommunication
  • Telegraph
  • Fixed line telephone
  • Cable
  • Wired networks
  • Internet
  • Fiber communications
  • Communication bus inside computers to communicate
    between CPU and memory

29
Wireless Comm Evolution UMTS (3G)
http//www.3g-generation.com/ http//www.nttdocomo
.com/reports/010902_ir_presentation_january.pdf
30
Wireless Communications
  • Satellite
  • TV
  • Cordless phone
  • Cellular phone
  • Wireless LAN, WIFI
  • Wireless MAN, WIMAX
  • Bluetooth
  • Ultra Wide Band
  • Wireless Laser
  • Microwave
  • GPS
  • Ad hoc/Sensor Networks

31
Comm. Sys. Bock Diagram
Noise
Channel
Rx
m(t)
Tx
r(t)
s(t)
  • Low Frequencies
  • lt20 kHz
  • Original data rate
  • High Frequencies
  • gt300 kHz
  • Transmission data rate

Formal definitions will be provided later
32
Aside Why go to higher frequencies?
Half-wave dipole antenna
c f l c 3E08 ms-1 Calculate l for f 5
kHz f 300 kHz
Tx
l/2
There are also other reasons for going from
baseband to bandpass
33
Another Classification of Signals (Waveforms)
  • Deterministic Signals Can be modeled as a
    completely specified function of time
  • Random or Stochastic Signals Cannot be
    completely specified as a function of time must
    be modeled probabilistically
  • What type of signals are information bearing?

34
Power, Distortion, Noise
  • Transmit power
  • Constrained by device, battery, health issue,
    etc.
  • Channel responses to different frequency and
    different time
  • Satellite almost flat over frequency, change
    slightly over time
  • Cable or line response very different over
    frequency, change slightly over time.
  • Fiber perfect
  • Wireless worst. Multipath reflection causes
    fluctuation in frequency response. Doppler shift
    causes fluctuation over time
  • Noise and interference
  • AWGN Additive White Gaussian noise
  • Interferences power line, microwave, other users
    (CDMA phone)

35
Shannon Capacity
  • Shannon Theory
  • It establishes that given a noisy channel with
    information capacity C and information
    transmitted at a rate R, then if RltC, there
    exists a coding technique which allows the
    probability of error at the receiver to be made
    arbitrarily small. This means that theoretically,
    it is possible to transmit information without
    error up to a limit, C.
  • The converse is also important. If RgtC, the
    probability of error at the receiver increases
    without bound as the rate is increased. So no
    useful information can be transmitted beyond the
    channel capacity. The theorem does not address
    the rare situation in which rate and capacity are
    equal.
  • Shannon Capacity

36
How transmissions flow over media
  • Simplex only in one direction
  • Half-Duplex Travels in either direction, but
    not both directions at the same time
  • Full-Duplex can travel in either direction
    simultaneously

37
Coaxial Cable
  • First type of networking media used
  • Available in different types (RG-6 Cable TV,
    RG58/U Thin Ethernet, RG8 Thick Ethernet
  • Largely replaced by twisted pair for networks

38
Unshielded Twisted Pair
  • Advantages
  • Inexpensive
  • Easy to terminate
  • Widely used, tested
  • Supports many network types
  • Disadvantages
  • Susceptible to interference
  • Prone to damage during installation
  • Distance limitations not understood or followed

39
Glass Media
  • Core of silica, extruded glass or plastic
  • Single-mode is 0.06 of a micron in diameter
  • Multimode 0.5 microns
  • Cladding can be Kevlar, fibreglass or even steel
  • Outer coating made from fire-proof plastic
  • Advantages
  • Can be installed over long distances
  • Provides large amounts of bandwidth
  • Not susceptible to EMI RFI
  • Can not be easily tapped (secure)
  • Disadvantages
  • Most expensive media to purchase and install
  • Rigorous guidelines for installation

40
Wireless
41
Wireless (2)
  • Radio transmits at 10KHz to 1KHz
  • Microwaves transmit at 1GHz to 500GHz
  • Infrared transmits at 500GHz to 1THz
  • Radio transmission may include
  • Narrow band
  • High-powered
  • Frequency hopping spread spectrum (the hop is
    controlled by accurate timing)
  • Direct-sequence-modulation spread spectrum (uses
    multiple frequencies at the same time,
    transmitting data in chips at high speed)

42
Connectors
Fibre Optic
RJ45
Token Ring
Thicknet
T-Piece
43
(No Transcript)
44
The Bands
3MHz
30MHz
300MHz
3GHz
30GHz
300GHz
300KHz
30KHz
3THz
3KHz
VLF
LF
MF
HF
VHF
UHF
SHF
EHF
ELF
Far Infra- Red
Submillimeter Range
Radio
Optical
300mm
1500nm
1PetaHz
1ExaHz
Near Infra- Red
R e d
O r a n g e
Y e l l o w
G r e e n
B l u e
I n d i g o
V i o l e t
Ultraviolet
X-Ray
700nm
600nm
400nm
500nm
45
(No Transcript)
46
(No Transcript)
Write a Comment
User Comments (0)
About PowerShow.com
