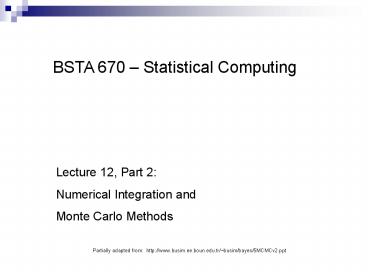

BSTA 670 – Statistical Computing

1
BSTA 670 Statistical Computing

Lecture 12, Part 2 Numerical Integration and
Monte Carlo Methods
Partially adapted from http//www.busim.ee.boun.
edu.tr/busim/bayes/5MCMCv2.ppt
2
Numerical Integration

• Newton-Cotes quadrature (replaces integrand with
  a polynomial approximation at each sub-interval,
  where each sub-interval has equal
  length.)
• Riemann rule
• Trapezoidal rule, linear approx. for
  each sub-interval
• Simpson's rule, quadratic approx. in
  each sub-interval
• Midpoint rule (linear approximation for each
  sub-interval)
• Guassian quadrature (Unequal sub-interval
  lengths, with emphasis on regions where integrand
  is largest.
• Monte Carlo methods

3

• In many cases it is difficult to evaluate
  integrals integrals analytically.
• Examples- Computing expectations, Bayesian
  analysis

4

• Marginal Distribution - Marginalisation integral
• Suppose (multidimensional parameter)
• We have calculated and we want to calculate
  the posterior for one parameter only
• Where
• This is a k-1 dimensional integration

5

• Expectation integral
• Evaluate a point estimate
• Often, it is not possible to evaluate the
  integral analytically
• This is a common problem with the Bayesian
  approach

6
Example shape parameter of the Gamma distribution

• a is known and we observe
• Take the prior as uniform distribution
• The posterior is proportional to
• Very difficult to have closed form integrals over
  this complicated integrand

7
One possible solution is numerical integration

• Suppose we wish to integrate
• Any of the methods we covered will work, with
  some modification for the infinite limits.

8
Approximation of Integral

• 1. Find values and beyond
  which
• is negligible
• 2. Split into N equivalent
• intervals. Then

9

• With multiparameters, this is numerically
  inefficient, since we need very large N for good
  approximation
• When there are multi-parameters, you need to form
  grids on which to assess the function
• Where the distributions are peaked, finer grids
  are needed, and non-equal grids are best.
• Methods become quite complicated in practice
• Alternative Monte Carlo methods

10
Monte Carlo

• Monte-Carlo, created in 1866, named in honor of
  Prince Charles III, hosts an internationally
  famous Casino, luxury hotels and leisure
  facilities.Monte Carlo is a district of the
  Principality of Monaco.

11
Monte Carlo

• Monte Carlo is the use of experiments with random
  numbers to evaluate mathematical expressions.
• The experimental units are the random numbers.
• The expressions can be definite integrals,
  systems of equations, or complicated mathematical
  models.

12
Monte Carlo

• The term Monte Carlo was coined by John von
  Neumann and S.M. Ulam, as a code word for their
  secret work at Los Alamos Labs that applied these
  methods to problems in atomic physics as part of
  the development of the atomic bomb during World
  War II. The name was suggested by the gambling
  casinos in the city of Monte Carlo in Monaco.
• The use of these methods increased rapids are the
  availability of the computer.

13
Monte Carlo

• Standard approximations from numerical analysis
  are preferred. However, Monte Carlo methods
  provide an alternative when the numerical
  approaches are intractable (dont work).
• Monte Carlo methods are typically preferred for
  the evaluation of integrals over high-dimensional
  domains.

14
Monte Carlo

• Monte Carlo methods can be used to solve very
  large systems of equations. In this application,
  there is no inherent randomness. The randomness
  is introduced through RVs, which are defined and
  simulated for the purpose of solving a
  deterministic problem.

15
Monte Carlo

• In some applications, there is an inherent
  randomness in the model, and the objective of the
  Monte Carlo study is to estimate or evaluate the
  distribution of a variable or statistic. The
  Monte Carlo method is used to generate data from
  the underlying distribution of interest. Methods
  for probability density estimation are then
  applied using this data, as well as a graphical
  presentation of the density.

16
Monte Carlo StudiesSome Practical Considerations

• Software
• Most statistical software programs have very
  limited built in simulation functions, but
  include the basic tools needed to write programs
  to perform simulations.
• STATA, Splus, SAS, Matlab (?)

17
Monte Carlo StudiesSome Practical Considerations

• Software
• Matlab has Simulation module Simulink .
• But, this is written specifically to design,
  simulate, implement, and test a
• variety of time-varying systems, including
  communications, controls,
• signal processing, video processing, and image
  processing.
• Thus, it is not generally applicable to the
  problems you will encounter.

18
Monte Carlo StudiesSome Practical Considerations

• Successive sets of Monte Carlo generated data
  should be based on non-overlapping sequences of
  random numbers.
• One uninterrupted sequence of random numbers
  should be used for the complete Monte Carlo study.

19
Monte Carlo StudiesSome Practical Considerations

• The results any scientific experiment should be
  reproducible.
• This requirement is stricter for a Monte Carlo
  study.
• The experimental units should be strictly
  reproducible. This means that the complete
  sequence of random numbers can be repeated, given
  the same initial conditions (up to machine
  precision).

20
What is Monte Carlo used for?

• Monte Carlo techniques are used for
• Integration problems
• Marginalization (Bayesian problem primarily)
• Computing Expectation
• Optimization problems
• Model selection
• Modeling
• Simulations

21
In the case of Bayesian Analysis

• We do not need to numerically calculate the
  posterior density function. Rather we generate
  values with its distribution.
• These values are then used to approximate the
  density functions or estimates such as posterior
  means, variances, etc.
• Various ways
• Rejection sampling
• Importance sampling

22
Monte Carlo principle

• Given a very large set X and a distribution p(x)
  over it
• We draw i.i.d. a set of N samples
• We can then approximate the distribution using
  these samples

23
Monte Carlo principle
24
Monte Carlo principle

• These samples can also be used to compute
  expectations
• The samples can be used to determine the maximum
  or minimum (Note arg max stands for argument
  of the maximum, which is the value of the
  argument for which the value of the expression
  attains its maximum)

25
Sampling X Reverse sampling Method

• Simplest method
• Used frequently for non-uniform random number
  generation
• Sample a random
• number ? from U0,1)
• Evaluate xF?¹(?)
• Simple, but you need
• the functional form of F.

26
Sampling X Rejection sampling

• More generally, we would like to sample from
  p(x), but its easier to sample from a proposal
  distribution q(x)
• q(x) satisfies p(x) lt M q(x) for some Mlt8
• Procedure
• Sample x(i) from q(x)
• Accept with probability p(x(i)) / Mq(x(i))
• Reject otherwise
• The accepted x(i) are sampled from p(x)!
• Problem if M is too large, we will rarely accept
  samples

27
Rejection Sampling
28
Example Rejection Sampling

• Shape parameter of a Gamma distribution
• Choosing uniform prior, the prior is bounded and
  on a finite interval
• We need to find a constant such that
• In this case c is

29
Note that only about 0.11 of the proposals are
accepted in this example. A lot of waste!
30
Importance sampling

• The problem with the rejection sampling is that
  we have to be clever in choosing the proposal
  density!
• Importance sampling avoids difficult choices and
  generates random numbers economically.

31
Importance sampling

• Also called biased sampling
• It is a variance reduction sampling technique
• Introduced by Metropolis in 1953
• Instead of choosing points from a uniform
  distribution, they are now chosen from a
  distribution which concentrates the points where
  the function being integrated is large. (It
  encourages important samples)

32
Importance sampling

• Nicholas Constantine Metropolis
• Worked ar Los Alamos on
• the Manhatten project
• Worked with Enrico Fermi
• (developed quantum physics)
• and Edward Teller (father of the hydrogen
  bomb) on the first nuclear reactors

33
Importance sampling

• Sample from g(x) and evaluate f(x)/g(x)
• The new integrand, f/g, is close to unity and so
  the variance for this function is much smaller
  than that obtained when evaluating the function
  by sampling from a uniform distribution. Sampling
  from a non-uniform distribution for this function
  should therefore be more efficient than doing a
  crude Monte Carlo calculation without importance
  sampling

34
Importance Sampling
To account for the fact we sampled from the wrong
distribution we introduce weights
Then
Monte Carlo estimate of I(f)
Choose proposal distribution to minimize variance
of the estimator
35
Markov Chain sampling

• Recall again the set X and the distribution p(x)
  we wish to sample from
• Suppose that it is hard to sample p(x) and
  difficult to suggest a proposal distribution but
  that it is possible to walk around in X using
  only local state transitions
• Insight we can use a random walk to help us
  draw random samples from p(x)

36
Andrei A. Markov 1856-1922
Russian mathematician
37
Markov Chain sampling
38
Markov Chain sampling

• That is, if our sampling follows a well defined
  structure, i.e. if our sample at one instant
  depends on our sampling at the previous step, we
  can use this information.
• This is a Markov Chain Monte Carlo (MCMC)
  Sampling and we can benefit from a random walk.
• MCMC theory basically says that if you sample
  using a Markov Chain, eventually your samples
  will be coming from the stationary distribution
  of the Markov Chain.

39
Markov Chain sampling

• The key to the success of Markov Chain sampling
  is the fact that at every iteration you sample
  from a different distribution in a sequence of
  distributions, which eventually converge to the
  target distribution.
• In importance sampling, you always sample from
  the same (and wrong) distribution, and then make
  an adjustment for this.
