Title: Counterexample Guided Abstraction Refinement via Program Execution


1

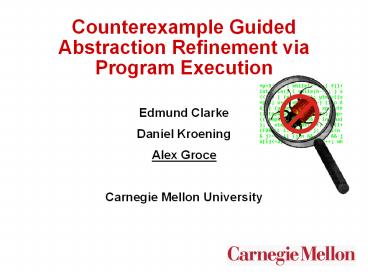

Counterexample Guided Abstraction Refinement via
Program Execution
  • Edmund Clarke
  • Daniel Kroening
  • Alex Groce
  • Carnegie Mellon University

2
Testing
  • The program is executed
  • Inputs are taken from a test vector
  • Advantages
  • Scales to large programs
  • Applies to all programs
  • Problems
  • Where to get good test vectors?
  • When are you done?

3
Getting Inputs from an Abstraction
  • The program performs input
  • Typically done by calling API functions
  • E.g., UNIX API
  • read(), getc(), fread(), fgets(),
  • But also time(), getuid(),
  • These values are usually taken from
  • Random source
  • Manually created test vector
  • A good test vector makes all the difference!

4
Getting Inputs from an Abstraction
  • Idea Ask a model checker what input will get us
    to a possible bug
  • Problem Original program too big for any model
    checker
  • Idea Use an abstract model
  • Predicate Abstraction has been applied
    successfully to ANSI-C

5
Motivation Predicate Abstraction
  • Software has too many state variables
  • - State Space Explosion
  • Graf/Saïdi 97 Predicate Abstraction
  • Promoted by success of SLAM project at MSR
  • Idea Only keep track of predicates on data
  • Abstraction function

6
Predicate Abstraction
Concrete States
Predicates
Abstract transitions?
7
Under- vs. Overapproximation
  • How to abstract the transitions?
  • Depends on the property we want to show
  • Typically done in a conservative manner
  • Existential abstraction
  • - Preserves safety properties

8
Predicate Abstraction
Abstract Transitions
?
?
?
Property
Property holds. Ok.
9
Predicate Abstraction for Software
  • How do we get the predicates?
  • Automatic abstraction refinement!

Kurshan et al. 93
Ball, Rajamani 00
Clarke et al. 00
10
Predicate Abstraction
  • Abstract Model may contain spurious error traces
  • These traces can be removed by refining the
    abstract model
  • Numerous abstraction and refinement methods
    available
  • Implemented in many existing tools
  • SLAM
  • MAGIC
  • BLAST

11
Problem with Existing Tools
  • Existing tools (BLAST, SLAM, MAGIC) use a Theorem
    Prover like Simplify
  • Theorem prover works on real or natural numbers,
    but C uses bit-vectors ? false positives
  • Most theorem provers support only few
    operators(, -, lt, , ), no bitwise operators
  • Idea Use SAT solver to do bit-vector!

12
Abstraction with SAT
  • Successfully used for abstraction of C programs
    (CMU Techreport available)
  • There is now a version of SLAM that uses this
  • Found previously unknown bug
  • Create a SAT instance which relates initial value
    of predicates, basic block, and the values of
    predicates after the execution of basic block
  • SAT also for simulation and refinement

13
Getting Inputs from an Abstraction
  • Idea Use the abstract model
  • Build a predicate abstraction of the program
  • Set the initial state to be the input location
  • Obtain an abstract error trace
  • Concretize abstract error trace
  • Error trace contains input value

14
Getting Inputs from an Abstraction
  • Example

ORIGINAL PROGRAM
int main() char buffer100 unsigned i0
int ch while((chgetchar())!EOF)
assert(ilt100) bufferich
What inputdo we need?
15
Getting Inputs from an Abstraction
  • Example

ABSTRACT PROGRAM(no predicates)
void main() while()
assert()
Obvious error trace
1
INITIALPC
2
16
Getting Inputs from an Abstraction
  • Example

CONCRETIZATION
int main() char buffer100 unsigned i0
int ch while((chgetchar())!EOF)
assert(ilt100) bufferich
Constraints
1
? ? EOF
2
i 100
Ask SAT Solverfor solution
17
Getting Inputs from an Abstraction
  • Problems during concretization
  • There might not be any solution!
  • Then the abstract error trace is spurious
  • Use regular abstraction refinement
  • This will make the abstract model more and more
    detailed over time

18
Testing
  • The program is executed
  • Inputs are taken from a test vector
  • Advantages
  • Scales to large programs
  • Applies to all programs
  • Problems
  • Where to get good test vectors?
  • When are you done?

?
19
Another Benefit
  • What if there exists no abstract error trace?
  • Possibly after refinement
  • We have a conservative abstraction
  • - There is no way to get from theinput location
    to any bug!
  • We can abort this test run (reset)
  • A model checking person would say we backtrack

20
Backtracking
  • Go back to the previous input location
  • Done by re-playing the last n-1 inputs
  • No more locations left?We are done! There are
    no bugs!
  • This addresses the completeness issuein testing
  • Model checking guysNo storing of concrete
    states needed!

21
Overview
22
CRunner Implementation
  • Replace library calls with CRunner calls
  • getchar, time, fscanf, etc.
  • The new ones call the model checker to get an
    input value
  • Results of previous calls are cached
  • Recompile/relink program
  • Run the program

23
Experimental Results
  • Artificial benchmark with buffer overflow after n
    iterations
  • Comparison against conventional predicate
    abstraction tool
  • Run-times include the compilation time for the
    execution method.
  • A star denotes a time-out.

24
Experimental Results
  • spamc Part of spamassassin
  • Front-end written in C for efficiency reasons
  • Reproduced previously known buffer overrun
  • Error trace requires filling up buffer with 1024
    entries
  • Non-trivial conditions on input

25
Experimental Results
  • spamc

char buffer1024 ...
switch(m-gttype)\ ... case
MESSAGE_BSMTP total full_write(fd,
m-gtpre, m-gtpre_len) for(i 0 i lt
m-gtout_len ) \ jlimit (off_t)
(sizeof(buffer) /
sizeof(buffer) - 4) for(j 0 i lt
(off_t) m-gtout_len j lt jlimit ) \
if(i 1 lt m-gtout_len m-gtouti
'\bsn' m-gtouti1
'.') \ if(j gt jlimit - 4)
break / avoid overflow
/ bufferj
m-gtouti bufferj
m-gtouti bufferj
'.' \ else \
bufferj m-gtouti ...
26
Experimental Results
  • sendmail
  • Mail gateway for Unix machines
  • Reproduced previously known bug
  • Requires non-obvious email-message
  • Bug too deep for conventional predicate
    abstraction tools
  • Exploits type conversion bug for char(255)

27
