Title: Information System Security Engineering and Management

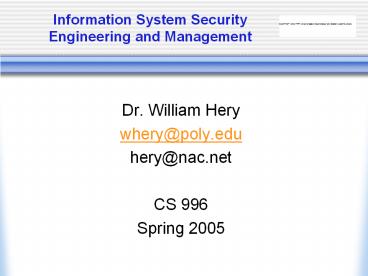

1
Information System Security Engineering and
Management
  • Dr. William Hery
  • whery_at_poly.edu
  • hery_at_nac.net
  • CS 996
  • Spring 2005

2
Outline of Presentation
  • Course Motivation
  • Approach to Learning, Grading in This Course
  • Main Course Topics
  • Highlights of course topics to show linkage
  • Term Project Structure

3
Initial Course Motivation
  • For SFS students fill in gaps in National
    Security Telecommunications and Information
    Systems Security Committee (NSTISSC)
    certification for NSA
  • NSTISSI 4011 National Training Standards for
    INFOSEC Professionals (http//www.nstissc.gov/html
    /library.html)
  • Most technical topics are covered in other
    courses
  • Missing NSTISSI technical tidbits inserted as
    needed
  • The missing topics are all related to
    management, policy and systems engineering.
  • The course will be a survey of information system
    security engineering and management topics over a
    system life cycle
  • Although a government motivation in selecting
    the topics, all are broadly applicable to
    developing and managing commercial systems
    securely

4
Course Focus
  • Broad management perspective applicable to
    DoD/NSA, civilian government agencies, corporate
    world think like a manager
  • If you are a manager
  • If you have to deal with a manager
  • System, not detail, focus
  • Not about security products (crypto, fiewall,
    etc.), but how to use them in a system
  • Many topics are subjective, not objective
  • There may be no right way or right answer
  • Many topics should be courses in themselves
  • This course will teach you what to think about,
    not how to do everything!
  • Secondary goal Gain experience in teamwork,
    government project organization, presentations
    and report writing.

5
Course Organization
  • Weekly graded homework
  • Each student will present a one hour lecture on a
    topic--and assign reading and homework for it
  • Reading assignments and class discussion
  • Active participation in discussion part of grade!
  • Student team projects (more later)

6
Grading
  • Homework
  • Due before the next class after assignment
  • Each graded on a 100 point scale
  • 10 points per week (or fraction thereof) deducted
    for any homework submitted after the due date
  • Ten highest individual HW grades averaged to get
    overall HW grade
  • Lecture Graded on the basis of discovering and
    understanding material, and organization of
    presentation.
  • Team Project Grades based on
  • Depth of understanding of security both the
    technical issues and the application of systems
    engineering and management processes
  • Organization of final presentation and report
  • All members of a team get the same grade
  • Overall grade 40 homework, 40 project, 20
    lecture

7
References
  • Primary text Ronald Krutz and Russell Vines, The
    CISM Prep Guide, Wiley, 2003, ISBN 0-471-45598-9
  • Supplementary material from
  • Ross Anderson, Security Engineering, Wiley, 2001,
    ISBN 0-471-38922-6
  • Tipton and Krause, Information Security
    Management Handbook, 4th Edition, Auerbach, ISBN
    0-8493-1518-2 (Copy in ISIS Lab)
  • Various web sites, etc.

8
Key Points About Security For a Manager
  • Information Security is a key part of the life
    cycle processes for any system
  • System conception and design
  • System development
  • Operation of deployed systems
  • System decommission
  • It is critical to include security considerations
    from the beginning of system conception and
    design
  • Use of security technology (firewalls, crypto,
    IDS, patching), etc. is only part of security
    security is based on people, processes, and
    technology
  • Actively managing the security process is a key
    part of achieving security
  • People (developers, users, hackers) are
    (sometimes without actively knowing it) are part
    of the security process

9
Key Points (Part II)
  • Security is a wide array of options, not a yes/no
    choice
  • No security is probably not enough
  • Near perfect security is difficult, expensive,
    hard to use, and takes a long time to do. It is
    probably too much
  • The key is to find the sweet spot of enough
    security for your particular system. This is a
    key management decision.
  • Many topics are subjective, not objective
  • There may be no right way or right answer

10
Extremes of Security
A system in a locked room, with 2 foot thick
concrete and metal walls (Faraday cage), no
windows, battery operated (no power lines, a
secure operating system, strongly encrypted data,
armed guards, and only one person allowed in
provides very strong security (e. g., most secure
NSA systemmaybe)
A system in an open area, which allows anyone to
use it and allows anything to come in or go out
over multiple networks provides virtually no
security (e. g., Internet Café)
11
Costs of Security
Security
Development cost
Development time
Equipment cost
Maintenance cost
Usability?
Functionality?
Performance?
12
Finding the Sweet Spot
  • The sweet spot depends on what you need to
    protect, and what environment you are operating
    in
  • The key to finding the sweet spot is to
    understand the security requirements
  • Requirements may be hard to pin down
  • Different aspects of a system may have very
    different security requirements
  • The sweet spot is getting the right level of
    security for each aspect
  • Two common errors in finding the sweet spot
  • Uniformly low security because management does
    not understand the risk.
  • Uniformly, strong, and expensive approach to
    security everywhere, when less (e. g., no crypto)
    is enough in most places, with something stronger
    in selected places (e. g., protecting passwords
    or crypto keys)

13
What is Information Security?
  • A set of properties of the information system,
    not a technology
  • These properties are provided with both of
    processes and technologies
  • The properties CIA
  • Confidentiality only permitted entities are
    allowed to see the information
  • Integrity only permitted entities are allowed to
    modify the information (this includes creation
    and deletion)
  • Integrity preservation you know it cant be
    changed
  • Integrity violation detection you cant trust
    and must go to a backup or alternate source
  • Availability the information is available when
    needed

14
Related security concepts
  • Identification a means of saying who/what an
    entity is
  • Authentication a means to verify that an entity
    is who it claims to be for decisions in support
    of confidentiality and integrity
  • Access Control a means to enforce which entities
    have access to information to support
    confidentiality and integrity
  • Authorization a combination of authentication
    (who) and access control
  • Non-repudiation integrity of the pair
    (information, creator of information)
  • Privacy confidentiality of personal information
  • Anonymity confidentiality of identity
  • Recovery restoration of a system to a correct
    state after a security incident.

15
Methods to Provide Security Properties
16
DoD terminology
  • Communications Security (COMSEC)
  • Security of information (voice, data) while in
    transit. Includes switched circuits, radio links,
    microwave, satellite, packet nets, Asynchronous
    Transfer Mode (ATM), Synchronous Optical Networks
    (SONET), Packet over fiber, free space optics,
    etc.
  • Computer Security (COMPUSEC)
  • Security of information while stored or being
    processed on a computer
  • Information Security (INFOSEC)
  • COMPUSEC COMSEC
  • Transmission Security (TRANSEC)
  • Security of Transmission media
  • Operations Security (OPSEC)
  • Operational processes for protecting potentially
    sensitive unclassified material (people and
    technology)
  • Automated Information Systems (AIS)
  • Computers networks linking computers

17
Security vs. Reliability
  • Security attacks, software flaws, and hardware
    failure can all lead to violations of CIA
  • For some events, it may be hard to determine
    which class of flaws is the cause.
  • Some protection and recovery mechanisms are the
    same for both security attacks and hardware or
    software failures

18
Security vs Reliability Differences
  • Hardware failures
  • No malicious cause
  • Usually affects A, sometimes I or C
  • Typically independent events
  • Testing is often a reliable way to find hardware
    failures on deployed systems
  • Stochastic and temporal (e. g., mean time between
    failure, MTBF) failure models are useful metrics
  • Availability is also a standard term in
    reliability
  • Software failure
  • No malicious attack design or coding error
  • Can affect A, sometimes I or C
  • Often correlated events from same flaw as similar
    state conditions arise in different
    instantiations
  • Stochastic models of limited value

19
Security vs Reliability Differences (continued)
  • Security breach
  • Malicious attack
  • Serious attacks often attempt to hide event
  • Can affect A, I or C
  • In most cases, the most serious impacts are
    attacks on I or C
  • Many attacks are highly correlated worldwide, but
    some are very targeted and correlations may be
    hard to find

20
Survivable Systems
  • Systems that provide both reliability and
    security are called survivable (or dependable)
  • Reliability and security requirements are often
    similar in nature (particularly availability),
    and it makes sense to combine the requirements
    analysis for both
  • Designing secure systems and reliable systems
    both depend on understanding what is at risk if
    there is a failure (security compromise or system
    failure), what the threats are (hackers, failure
    modes), and managing that risk
  • It is sometimes hard to distinguish between a
    reliability failure and a security breach (e. g.,
    the 2003 northeast blackout).
  • Recovery from a failure and a security breach are
    sometimes similar, and it makes sense to combine
    the recovery plans.
  • Security is considered by some to be a subset of
    reliability, with security breaches just another
    form of failure
  • But the malicious, planned, correlated, and
    hidden aspects of security breaches requires a
    very different protection approach to most
    aspects of reliability

21
Where are security flaws?
  • In system design
  • Not planning for security (many things today)
  • Designing security incorrectly (WiFi original
    encryption standard)
  • In system implementation
  • Ambiguous/incomplete design document
  • Implementation errors (buffer overflows, etc.)
  • In system use
  • Configuration--often weakest security out of the
    box
  • Failure to keep up with updates/patches
  • Physical security
  • Ill advised user actions
  • Poor passwords/passwords written down
  • Victims of social engineering
  • Management needs to keep all of this in mind when
    designing, implementing and deploying systems

22
Management Security Concerns
  • Classified information at DoD/NSA/other govt
    agencies
  • National security, loss of life, sources and
    methods, political, career impacts of security
    breech
  • Unclassified government information
  • Political, financial, legal, career impacts of
    security breech
  • Corporate
  • Financial, intellectual property, legal,
    corporate image, career impacts of security
    breech
  • Almost no managers neat technology

23
Sources of Security Requirements
  • Risk analysis (national security, lives,
    property, money)
  • Legal (e. g., HIPAA, Sarbannes_Oxely, privacy
    laws)
  • Higher level government/corporate policies
  • Corporate/agency/personal image
  • Others derived from the above
  • Requirements may change due to costs, changing
    threat environment, etc.
  • Requirements may not be known or understood at
    the start of a project

24
Steps to Include Security in the System Life Cycle
  • Risk analysis (for the most fundamental security
    requirements)
  • Complete security requirements analysis
  • Security is a non-functional requirement, as is
    reliability
  • High level security policy (technology,
    management processes, personnel policies)
  • Overall system engineering
  • Includes security design and development
  • Lower level security requirements and policies
    developed
  • Security should be an integral element from the
    start
  • Security management of deployed system
  • Incident Response
  • Business Continuity Planning
  • Decommissioning of systems and components

25
Risk Analysis
  • What is at risk (national security, lives,
    property, money)?
  • Some risk models are based on values
  • Where does the threat come from?
  • Motivation (national security, money, fame,
  • Capabilities (intellect, equipment, money)
  • What vulnerabilities can be exploited
  • Technical
  • Process
  • People
  • Risk management
  • Eliminate/reduce risk (e. g., put in crypto,
    firewall)
  • Accept risk (with recovery process)
  • Transfer risk (e. g., to an insurance company)

26
Security Policy
  • Essentially a statement of security requirements
  • Every security policy statement should have a
    corresponding enforcement mechanism
  • Policies are at multiple levels
  • High level policies flow down to multiple lower
    level policies
  • High level e. g., company proprietary
    information shall be protected from release to
    unauthorized personnel
  • Mid level e. g., there shall be no externally
    initiated ftp sessions
  • Low level e. g., a firewall rule blocking
    incoming traffic on ports 20 (ftp data), 21 (ftp
    control), and 69 (tftp)
  • The firewall is the enforcement mechanism
  • Policies also define management processes (e. g.,
    incident response actions) and personnel rules
    (e. g., dont write down passwords)

27
Security system engineering
  • Part of overall systems engineering process
  • Iterates requirements, design, review through
    multiple levels of detail
  • Includes design and development
  • Lower level security policies developed
  • Security should be an integral element from the
    start

28
Student talks
  • Presentations will focus on management and
    processes, not technical details (you know them
    already)
  • Presenter will be given basic references and
    other reference pointers, and is encouraged to
    search for more material
  • Presenter to assign background reading the week
    before the talk
  • Review presentation with me for guidance as you
    develop it
  • Prepare for 45 minutes of presentation
    material, but use one hour with discussion
  • Active participation of audience is encouraged
  • Presenter to assign homework on topic

29
Course Schedule (tentative)
  • 1/26 Overview (Hery)
  • 2/2 Risk Analysis (Hery)
  • 2/9 Secure Systems Engineering (Hery)
  • 2/16 ISO 17799 (taken)
  • SSE/CMM (secure syst. eng. maturity model)
  • 2/23 Policy (2 hours???--Hery)
  • Legal and other requirements
  • 3/2 Security Management and administration of
    Deployed Systems (2 hours)
  • 3/9 Incident Response
  • Business Continuity Planning (merge w/ above?)

30
Course Schedule (tentative) continued
  • 3/16 Assessment/Assurance (Hery)
  • Architecture of Classified Systems (Hery)
  • 3/30 Security Engineering for Software
  • TRANSEC/EMSEC/Tempest (EE background)
  • 4/6 Physical Security/tamper resistance
  • Information System Security Officer
  • 4/13 Government Key Management Policy
  • Security Audit (tentatively taken)
  • 4/20 Certification and Accreditation
  • Ethical issues in system design/management??

31
Student Team Project
  • Teams of 3 students
  • Pick a system (discuss choice with me)
  • Want simple functionality, security issues, whole
    system (e. g., client and server side)
  • Submit a 1-2 page proposal to management (Dr.
    Hery)
  • Assess risks, threats, vulnerabilities
  • Develop a security policy
  • Do a high level system security design
  • Present a preliminary design review (PDR) to
    management (include risk analysis, policies,
    system architecture)
  • Iterate on risk assessment, policy, design
  • Present a final critical design review (CDR) to
    management and the class
  • Write a final report to management on above
Write a Comment
User Comments (0)
About PowerShow.com
