Title: Drug Chirality : Past , Present & Future (?)


1

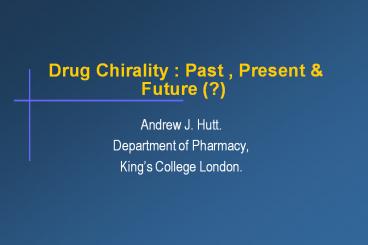

Drug Chirality Past , Present Future (?)
  • Andrew J. Hutt.
  • Department of Pharmacy,
  • Kings College London.

2
  • Stereochemistry
  • Concerned with the three dimensional spatial
    arrangement of the atoms within a molecule.
  • Stereoisomers
  • Compounds with the same molecular
    connectivity but differ in the spatial
    arrangement of their constituent atoms or groups.
  • Enantiomers
  • Stereoisomers which are non-superimposable
    mirror images of one another.
  • Diastereoisomers
  • Stereoisomers which are not enantiomeric.

3
Chiros Greek Handed
4
Stereoisomers of Ibuprofen
5
Stereogenic S P centres
6
Stereoisomers of Phenylpropanolamine
7
Phenylpropanolamine UK Confusion
  • Independent risk factor for hemorrhagic stroke in
    women1
  • Withdrawn in the USA (FDA, Oct. 10, 2000)
  • ()-norpseudoephedrine in European
    preparations(?)-norephedrine in North
    America(Martindale 32nd Pharm J, Nov. 11, 2000)
  • (?)-norephedrine in USA and Europe structure of
    norpseudoephedrine presented in the British
    Pharmacopoeia 2000 (Pharm J, Dec. 2, 2000)

1Kernan WN, et al. N Engl J Med.
20003431826-1832.
8
Methaqualone enantiomers
9
(No Transcript)
10
  • Differences between stereoisomers are hard to
    detect normally, but become much more marked in
    a chiral environment

11
Chiral Biological Macromolecules
  • Proteins
  • Enzymes
  • Structural elements of membranes
  • Receptors
  • Carbohydrates
  • Nucleic acids
  • Chiral building blocks of L-amino acids and
    D-carbohydrates.

12
Helical structures
13
Pasteur Tartaric Acid
  • Physically separation of enantiomorphous
    crystals sodium ammonium salts.
  • Biologically fermentation using Penicillum
    glaucum ()-enantiomer, carbon source leaving
    the (-)-enantiomer.
  • Chemically resolution of diastereoisomeric
    salts using the optically pure base cinchonicine.

14
Chirality Biology
  • Piutti (1886) - ()-asparagine has a sweet taste
    while the natural (-)- enantiomer is insipid.
  • Pasteur (1886) - --- this difference due to the
    presence of an optically active substance in the
    nervous mechanism of taste --
  • Regarded as the first mention of
    stereoselectivity of a receptor (Holmstedt,
    1990).

15
Arthur R. Cushny Chiral Pharmacology
  • (-)-Hyoscyamine almost exactly twice as active as
    atropine ()- hysocyamine (1904).
  • (-)-Adrenaline twice the potency of
    ()-adrenaline as a vasoconstrictor (1908)
    (-)-enantiomer 12-15 fold more potent than
    ()-adrenaline on sympathetic vessels (1909).
  • Biological Relations of Optically Isomeric
    Substances (1926)

16
Cushny Chiral Pharmacology
  • Believed that the receptor was chiral and
    combined with the enantiomers of the drug to
    produce diastereoisomeric drug receptor
    complexes.
  • ---- difference in action lies not in the
    facility with which the chemical combination is
    formed, but in the physical characteristics of
    the resultant compound (Cushny, 1926).

17
Easson Stedman ModelThree Point Interaction.
18
Easson Stedman Prochiral Analog Two Site
Interaction.
19
Ogston Prochirality
  • Three point attachment Model to rationalise the
    observed stereoselectivity in the enzymatic
    transformation of symmetrical, prochiral,
    substrates.
  • A A are identical enantiotopic if A is the
    catalytic site then A, but not A will undergo
    transformation.
  • Static Model.

20
Rocking Tetrahedron Model
  • Dynamic Model.
  • Substrate binds at two interaction sites.
  • A A occupy overlapping, identical volumes.
  • Enantioselectivity is dependant on the
    orientation of A A to the catalytic sites X or
    Y.
  • Attack from X, no selectivity from Y potentially
    highly selective/specific.

21
Four Location Model
  • Isocitrate dehydrogenase involved in the
    tricarboxylic acid cycle, converts
    ()-(1R,2S)-isocitrate to 2-oxoglutarate carbon
    dioxide.
  • In the presence of Mg2 the enzyme binds
    ()-(1R,2S)-stereoisomer, the substrate in the
    absence of Mg2 the (-)-(1S,2R)-enantiomer (not a
    substrate, weak inhibitor) binds.

22
Four Location Model
23
Chiral Recognition Current View
  • Complex formation between the selector (receptor,
    enzyme) and selectand (drug, substrate) such that
    there is a diastereomeric relationship.
  • In the absence of other constraints, imposing a
    specific orientation of the selector to the
    selectand, a minimum of four contact points are
    required.
  • Thus the Easson-Stedman Ogsten Models are
    specific cases of a Four Point Interaction.

Bentley (2000)
24
Chiral Pharmaceuticals the 1980s 90s
  • During the Golden Age of drug discovery
    development, the 1950s to the 1970s,
    stereochemistry was largely ignored resulting in
    approximately 25 of pharmaceuticals being
    marketed as racemates by the 1980s.
  • Advances in chemical technology associated with
    synthesis, analysis and preparative scale
    separation of chiral molecules resulted in a
    change in philosophy with respect to drugs.
  • Facilitated the Pharmacological evaluation of
    single stereoisomers increasing concern with
    respect to safety issues Regulatory interest.

25
Drug Chirality The 1980s
Non chiral 6
Sold as single isomer
Naturalsemisynthetic 475
461
Chiral 469
Sold as racemate
Drugs 1675
8
Sold as single isomer
Non chiral 720
58
Synthetic 1200
Chiral 480
Sold as racemate
422
26
Pharmacodynamic Considerations
  • Stereoselectivity of drug action has been known
    for a number of years.
  • Many natural ligands are chiral, eg,
    transmitters, hormones, etc.
  • Additional Terminology
  • Eutomer enantiomer with higher
    affinity/activity.
  • Distomer enantiomer with lower
    affinity/activity.
  • Eudismic Ratio Ratio of the Eutomer/Distomer
    affinities or activities.
  • Eudismic Ratios of 100 to 1000 fold are not
    uncommon.

27
Eudismic Ratio
  • Terminology applies to a particular activity of a
    drug.
  • Dual action drug the Eutomer of one activity may
    be the Distomer for another.
  • Propranolol S-enantiomer 40-100 fold more potent
    than the R- as a ß-adrenoceptor antagonist
    similar activity with respect to their membrane
    stabilising properties.
  • Eudismic Ratios may also vary with receptor
    subtypes.
  • Noradrenaline ER (R/S) a1, 107 a2, 480.
  • a-Methylnoradrenaline ER (1R,2S/1S,2R) a1,
    60a2, 550.

28
Pharmacodynamic Complexity
  • Activity resides in a single enantiomer
    (S)-?-Methyldopa
  • Both enantiomers have similar activity
    Flecainide
  • Both enantiomers marketed with different
    indications Propoxyphene
  • Enantiomers have opposite effects Picenadol
  • One enantiomer antagonizes the side effects of
    the other Indacrinone
  • Activity resides in one or both enantiomers,
    adverse effects predominantly associated with one
    Ketamine
  • Racemate provides a superior therapeutic effect
    than either individual enantiomer Dobutamine.

29
Pharmacokinetics
  • Absorption - active transport.
  • Distribution - active/selective uptake, protein
    binding,
  • selective tissues
    distribution.
  • Metabolism - numerous examples
  • Excretion - active secretion or reabsorption

30
Enantiomeric Differences in Pharmacokinetic
Profile
31
Drug Stereochemistry
  • Relatively little is known concerning the
    significance of
  • Route of administration, dose, formulation
  • Drug interactions
  • Age
  • Gender
  • Disease
  • Genetics

32
Verapamil Dose-response curve route of
administration
33
Propranolol Potency and route of administration.
34
Pharmacokinetics
  • As a result of stereoselectivity in drug
    disposition a pair of enantiomers rarely exist as
    11 mixtures in biofluids.
  • Estimation of pharmacokinetic parameters,
    development of Models and/or concentration-effec
    t relationships based on total drug are of
    limited value and potentially misleading.
  • Stereochemistry Sophisticated Nonsense.
  • Prof E.J.Ariens (1984)

35
Body of Evidence
  • Im not sure I get it, Marino said, rubbing his
    eyes. How can compounds be the same but
    different?
  • Think of dextromethorphan and levomethorphan as
    identical twins, I said. Theyre not the same
    people, so to speak, but they look the same
    except one is right-handed and the other
    left-handed. One is benign, the other strong
    enough to kill. Does that help? Dr Kay
    Scarpetta
  • Patricia Cornwell, 1991

36
(No Transcript)
37
Use of Racemates
  • Isomeric ballast
  • Clean drugs
  • Polypharmacy

38
FDA
  • The Agency is impressed by the possibility that
    the use of single enantiomers may be
    advantageous (1) by permitting better patient
    control, simplifying dose-response relationships
    (2) by reducing the extent of interpatient
    variation in drug response.

39
Potential Advantages of Single Isomer Products
  • Less complex and more selective pharmacological
    profile
  • Potential for an improved therapeutic index
  • Less complex pharmacokinetic profile
  • Reduced potential for complex drug interactions
  • Less complex relationships between plasma
    concentration and effect

40
Racemates vs Enantiomers
  • No requirement from any regulatory authorities
    for marketing single isomers
  • Choice of stereoisomeric form must be justified
    on scientific grounds

41
Handed Headlines (1)
  • S. Mason (1984)
  • The left hand of nature.
  • New Scientist 10110-14.
  • D. Matterson (1991)
  • Through the chemical looking glass.
  • New Scientist 13235-39.
  • I. Amato (1992)
  • Looking glass chemistry.
  • Science 256964-966.

42
Handed Headlines (2)
  • N. Moran
  • Drug firms sort their lefts from their
    rights.
  • Independent on Sunday (7/11/1993).
  • N. Hawkes
  • Lateral thinking.
  • The Times Magazine (5/6/1993).
  • T. Lister
  • Mirror images.
  • Guardian (11/1/1994).

43
Thalidomide
44
Thalidomide Enantiomers
  • Both are sedative in the mouse, only
    (S)-thalidomide is teratogenic.
  • Mouse is a poor model for teratogenicity.
  • Both are teratogenic in NZW rabbits.
  • Enantiomers undergo rapid racemization in vivo
    and in vitro.
  • In man following administration of the R- and
    S-enantiomers ca 25 and 43 of the total AUC is
    due to the alternative stereoisomer.

45
Strategies for the Synthesis Preparation of
Chiral Compounds
  • Use of optically pure starting materials
  • Carbohydrates, amino acids, alkaloids,
    steroids, other natural products.
  • Asymmetric Synthesis
  • Chiral catalysts.
  • Biological methods
  • Microorganisms and enzymes designer enzymes
    (site directed mutagenesis).
  • Separations
  • Classical resolutions Simulated Moving Bed
    (SMB) Supported Liquid Membrane.

46
Value of Chiral Products Approaches
Growth rate 11.4
CEN
47
Chiral Switch
  • Switch from a racemic to single enantiomer
    Active Pharmaceutical Ingredient is key to
    managing the life cycle, as well as improving the
    efficacy, of racemic drugs.
  • CEN 2004

48
Chiroscience UK
  • Dexketoprofen (Keral) 1996
  • Levobupivacaine (Chirocaine) 1998
  • Sepracor USA
  • Levalbuterol (Xopenex, Xopenex HRA)
  • Eszopiclone (Lunesta, 2005)
  • Levocetirizine (Xyzal, Xusal)
  • Arformoterol (Brovana, 2007)
  • (S)-Amlodipine (USA Phase II clinical trials
    India, marketed)

49
Chiral Switch Patents
  • One patent for a single isomer was refused
    because of a statement in a textbook that the
    biological effects of enantiomers can differ
  • Another refused because the discovery of the
    effect was not an inventive step but obvious
    from prior art
  • Hence, patentability of single enantiomers is
    based on inventiveness not obvious from prior
    art.
  • A patent on the racemate is a patent on the
    chemical formula without specifying
    stereochemistry.
  • CEN 81 (2003) 56

50
Enantiomeric Patents Inhalational Anaesthetics
  • US Patents 5,114,714 5,114,715
  • R-enantiomers of isoflurane and desflurane are
    better than the racemate
  • S-enantiomers of isoflurane and desflurane are
    better than the racemate
  • Essentially the only difference in the Patents
    are the R- and S- descriptors.

51
Chiral Switch Not a New Idea
  • Penicillamine treatment of Wilsons disease
    animal toxicity weight loss, intermittent fits,
    death in rats L gtgt D mutagenicity L gt D Optic
    neuritis with racemate in man, drug withdrawn
    (USA).
  • Dopa L-dopa decarboxylated to yield dopamine
    side effects nausea, vomiting, anorexia, mental
    effects,involuntary movements, granulocytopenia.
  • Norgestrel progestogen oral contraception.

52
Racemate to Enantiomer Racemic or Chiral
Switches
  • Drug Name Class Approval Status
  • Dexfenfluramine Anoretic Withdrawn
  • Levofloxacin Antimicrobial Japan, UK, USA
  • Dilevalol ?-blocker Development stopped
  • Dexibuprofen NSAID Austria (1994), Switzerland,
    EU (2005)
  • Dexketoprofen NSAID Spain, UK
  • Levobupivacaine Local anesthetic UK
  • (S)-Ketamine Anesthetic Germany
  • Esomeprazole H-pump inhibitor UK, USA
  • (R)-Salbutamol ?2-agonist USA
  • (R)-Fluoxetine Antidepressant Development stopped
  • Cisatracurium Neuromuscular blockade UK,
    USALevocetirizine Antihistamine UK,
  • (R,R)-Methylphenidate ADHD USA
  • Escitalopram Antidepressant UK, USA
  • (S)-Amlodipine Dihydropyridine India
  • Eszopiclone Insomnia USA (April 2005)
  • Arformoterol ?2-agonist USA (April 2007)
  • Armodafinil Antinarcoleptic USA (Approvable
    letter, April 2007)

53
Chiral Switch Commercial Aspects
  • Advantage over de novo drug design chance of
    success that much greater costs lower.
  • Omeprazole / Esomeprazole (R,S) sales 2001, 5.6
    billion combined sales (R,S) (S) 2002 6.6
    billion.
  • Patents for Nexium give AZ more than 20 years of
    protection on the same molecule, omeprazole.
  • Citalopram / Escitalopram (R,S) sales 2002, 1.1
    billion (S) last three months of 2002, 81
    million.
  • FDA does not consider single enantiomers of
    approved drugs as NCE and marketing exclusivity
    for (S) 3 years.

54
Chiral Switch Problems
  • Labetalol combined a- and ß-adrenoceptor
    antagonist mixture of four stereoisomers, two
    pairs of enantiomers a- and ß-activity resides
    in the S,R- and R,R-stereoisomers respectively.
  • Dilevalol (R,R)-labetalol development stopped
    due to hepatotoxicity in a small number of
    patients.
  • Cost Schering 100 million (Scrip 1543).

55
Chiral Switch Problems
  • Sotalol racemic, nonselective ß-adrenoceptor
    antagonist with Class III antiarrhythmic
    activity.
  • (-)- enantiomer 14 to 50 fold more potent as a
    ß-blocker equipotent as antiarrhythmic.
  • SWORD trial (Survival With Oral d-Sotalol)
    evaluated in patients with depressed ventricular
    function following myocardial infraction.
  • Study terminated following recruitment of less
    than 50 of the intended 6,400 patients due to
    increased mortality in tratment group (5)
    compared with placebo control group (3.1)
    Lancet 1996.

56
Chiral Switch Problems
  • (R)-Fluoxetine development as single isomer
    Sepracor Licensing agreement with Lilly.
  • More predictable pharmacology, shorter washout
    period reduction in accumulation increased
    flexibility of treatment.
  • But at the highest dose level examined small but
    significant increase in QTc interval development
    stopped.
  • Sepracor received 23 million of what was to have
    been a 90 million deal Sepracor stock value
    fell by 28 (Chem Eng News 2000).

57
Chiral Switch Problems
  • Dexfenfluramine / Fenfluramine anoretic agent
    racemic drug had been available for 25 years.
  • Association with valvular heart disease initially
    reported for the combined use of
    fenfluramine-phentermine
  • (fen-phen combination ) in the USA.
  • Also, rare but serious risk of pulmonary
    hypertension.
  • Both single enantiomer and racemate voluntarily
    withdrawn.
  • NEJM, 1997 Current Problems in
    Pharmacovigilance, 1997

58
Chiral Switch Reversed!
  • Methadone used as maintenance therapy in the
    management of opioid dependence.
  • R-enantiomer 50 fold more potent analgesic
    compared to (S)-methadone.
  • Racemate used in the majority of countries but
    R-enantiomer used in Germany.
  • Decrease costs, replaced by a double dose of the
    racemate.
  • Result decrease in the serum concentration/dose
    ratio for the active enantiomer some patients
    experienced withdrawal symptoms, required dose
    adjustment.

59
New Chemical Entities Assessed by the UK
Medicines Control Agency (MCA/MHRA) between
1996-2000
Non-chiral 2
Naturalsemisynthetic 19
Single isomer 16
Chiral 17
NCEs 95
Racemate 1
Non-chiral 31
Synthetic 76
Single isomer 30
Chiral 45
Racemate 15
Shah Branch, 2003.
60
The Future - Predictions
  • US Adopted Names (USAN).
  • The Council of the USAN assigns generic names to
    all drugs that have entered clinical trails and
    therefore have commercial potential.
  • Drugs with proven benefit reach the market a few
    years later.
  • Nomenclature is regarded as an indicator of the
    pharmaceutical pipeline.

61
Recent Chiral Trends USA
  • In 2006, 80 of small molecule drugs approved by
    the FDA were chiral and 75 were single
    enantiomers.
  • CEN August 2007

62
Analysis of USAN Adoption Records
63
Chiral Switches
  • The concept that a single enantiomer of a chiral
    drug may be preferable to a racemic mixture is
    intellectually appealling. However, in most
    instances this strategy has not been demonstrated
    to confer any clinical advantage.
  • Therapeutics Letter, June-Sept 2002
  • BC Ministry of Health

64
Chiral Switches
  • Esomeprazole --- at equivalent doses offers no
    therapeutic advantage over other PPIs.
  • Escitalopram Current knowledge provides no
    reason to expect a clinically significant
    advantage over the racemate.
  • (R)-Albuterol ((R)-Salbutamol) --- it offers no
    demonstrated clinical advantage.
  • Therapeutics Letter, June-Sept 2002
  • BC Ministry of Health

65
Chiral Switches
  • Levocetirizine To date, there are no studies
    that compare these drugs for the treatment of hay
    fever.
  • There is little evidence to confirm whether in
    practice, third generation antihistamines confer
    any benefit over those from the second
    generation.
  • MeReC Bulletin 14(5) 2004
  • The National Prescribing Centre

66
Chiral Switches
  • Unfortunately there seems to be a dearth of
    appropriate head to head studies that would allow
    prescribers the opportunity to decide whether any
    of these potential advantages can be
    substantiated for any particular drug.
  • London New Drugs Group
  • APC/DTC Briefing
  • --- escitalopram is a well-tolerated,
    efficacious antidepressant of the SSRI class
    which may also have application in anxiety
    disorders. However, concrete data is lacking
    demonstrating the benefits of this new
    antidepressant over the others currently
    marketed, including the racemic product.
  • Canadian Coordinating Office for Health
    Technology Assessment
  • January 2003

67
Esomeprazole
  • Efficacy and safety of Esomeprazole compared
    with omeprazole in GERD patients with erosive
    esophagitis A randomized controlled trial.
  • Gastroesophageal Reflux Disease 425 patients
    163 centres.
  • Compared once daily doses of 40 mg S- with 20 mg
    racemate.
  • Healing rates at 4 weeks 81.7 S- vs 68.7 Rac
    at 8 weeks 93.7 S- vs 84.2 Rac.
  • Conclusion Esomeprazole demonstrates
    significantly greater efficacy than omeprazole
    tolerability and safety of esomeprazole are
    comparable to that of omeprazole.
  • Am J Gastroenterol 96 (2001) 656-665.

68
Chiral Switches
  • Differences between single enantiomers and
    racemates are likely to become the focus for
    aggressive promotion of the new entity.
    Regulatory authorities and independent sources of
    drug information need to be provided with good
    evidence, from well-conducted clinical trials and
    appropriate pharmacoeconomic studies, that chiral
    switches have advantages for the prescriber and
    the consumer.
  • Australian Prescriber 27, 47-49 (2004)

69
Chiral Switch Problems USA
  • If insurers are less willing to pay the added
    cost fewer may be developed
  • Relative merits have been debated, benefits may
    not justify the added costs
  • Esomperazole vs Omeprazole in Chicago area Cost
    30 days supply
  • Omeprazole 20mg 22
  • Esomeprazole 40mg 155
  • Esomeprazole 20mg 145
  • Unscientific, no indication of clinical outcome.
  • AMA 3/11/05

70
  • Escitalopram (Lexapro)
  • Forest Lundbeck suing Ivax (Teva Pharmaceutical
    Industries) for patent infringement.
  • Ivax argue that single-isomer patents are
    invalid and only the original substance can be
    patented.
  • Scrip No 3140 17/3/06
  • Esomeprazole (Nexium)
  • AZ filed a lawsuit against Teva alleging
    infringement of patents.
  • Teva intends to market a generic version.
  • Scrip No 3140 17/3/06

71
How would you like to live in Looking-Glass
House, Kitty? I wonder if theyd give you milk
in there? Perhaps Looking-glass milk isnt good
to drink-
Lewis Carroll Through The Looking-Glass and What
Alice Found There
72
(No Transcript)
Write a Comment
User Comments (0)
About PowerShow.com
