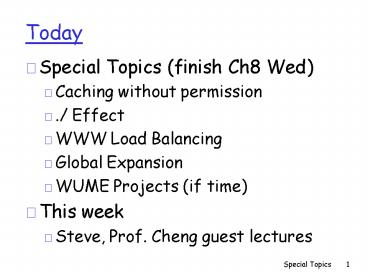

Today

1
Today

• Special Topics (finish Ch8 Wed)
• Caching without permission
• ./ Effect
• WWW Load Balancing
• Global Expansion
• WUME Projects (if time)
• This week
• Steve, Prof. Cheng guest lectures

2
Chapter 7 Quiz

• What is the difference between an active and a
  passive intruder?
• What is the purpose of a nonce in an
  authentication protocol?

3
Chapter 7 Quiz Answers

• Q What is the difference between an active and a
  passive intruder?A A passive intruder only
  monitors (sniffs, intercepts) messages. An
  active intruder can also monitor traffic, but
  will also actively send messages into the
  network.
• Q What is the purpose of a nonce in an
  authentication protocol?A A nonce is used to
  ensure that the person being authenticated is
  live. Nonces thus are used to combat playback
  attacks.

4
Caching without permission

• Youve been hired as a consultant
• Upstream connection is overloaded
• You suggest the use of a proxy cache to reduce
  upstream Web traffic needs
• A normal forward proxy requires each client to
  configure their browser to use it
• Many users will ignore requests to change their
  configuration
• You suggest filtering all port 80 traffic except
  from the proxy cache
• Users will complain loudly and bitterly about
  taking away their network access
• IT help desk will be overloaded with calls on how
  to make the correct configuration change too
  expensive
• What else can you do?

5
Caching without permission

• Interception proxy can transparently redirect
  traffic to a cache without client-side changes
• A router or switch can redirect Web traffic to
  a cache, with a network interface operating in
  promiscuous mode
• Essentially, policy-based routing using info from
  layer 4 (port number)
• Sometimes called a Web switch
• Thus, the cache will accept HTTP requests
  destined to any IP address, and use IP spoofing
  to make it look like the response is also from
  that IP address
• Essentially, a cache-in-the-middle attack
• Such proxies are common in some ISPs, such as
  cable services

6
/. Effect

• Your amazing, but otherwise low-traffic web site
  has been mentioned in an interesting article on
  www.slashdot.com
• Your site is now essentially unreachable because
  of the unexpected traffic
• You know that the extra traffic could pay (by
  advertising) for improvements
• What do you do?

7
Handling high Web loads

• Buy more bandwidth
• Get multiple connections (to different ISPs or
  same ISP which has multiple connections)
• Buy a bigger server
• Eventually gets very expensive
• Still a single point of failure
• Still has same limits on port numbers, etc. which
  limits simultaneous access
• Install a reverse proxy cache to handle static
  content
• Buy multiple inexpensive servers
• How do you distribute load across those servers?

8
WWW Load Balancing

• Optimal use of hardware suggests that each system
  have the same load
• Problem applies to cluster of proxies or to
  cluster of servers
• DNS Round-robin
• Each machine has IP address that is in DNS entry
  for hostname
• On each request, the DNS server gives the list in
  a different order
• Response is cached by other DNS servers
• No guarantee of even load distribution
• because of caching, variations in request cost,
  etc.
• Each machine must be equal in capabilities (same
  content)
• Multiple potential points of failure

9
WWW Load Balancing

• HTTP Redirection
• Server sends back response saying the resource
  has moved
• E.g., http//www.abc.com/path1/resource2.jpg gt
  moved to http//server1.abc.com/resource2.jpg
• Can provide good load balancing and fault
  tolerance
• Can have specialized servers for static vs.
  dynamic objects
• Exposes internal architecture to external view
• User can see final URL, bookmark location, link
  to location
• Causes problems with load balancing (not using
  central redirection process)
• Causes problems with robustness when architecture
  changes

10
WWW Load Balancing

• Proxy with URL re-writing
• Different servers can have different
  capa-bilities and processing capacities
• Might serve from cache
• If not in cache, take URL, re-write according
  to rules, and issue request
• E.g. http//www.abc.com/path1/object2.jpg gt
  http//server1.abc.com/object2.jpg
• Proxy is single point of failure and connection
  bottleneck
• Can provide server fault tolerance, load-balancing

11
WWW Load Balancing

• Load-balancing switch can redirect Web request
  to least loaded server
• Use layer 4 information (IPport)
• Needs to keep forwarding packets for lifetime of
  connection
• If heterogeneous servers, use layer 7 information
  (URL requested)
• Can cause problems with persistent connections
• For best performance/consistency, may want
  cache/server affinity
• Use cookie from request

12
Global expansion

• You have a large, successful e-commerce site
• Cluster of servers in Calif. ISP data center
• You are concerned about a natural disaster
  (earthquake, energy crisis, backhoe operators,
  etc.) and handling flash crowds
• You want to improve service to other parts of the
  country and world
• What do you do?
• Open second data center
• Use content delivery network services
• Both

13
Geographic load balancing

• Which data center serves a user?
• Policies Load-balancing, nearest, etc.
• DNS Round Robin
• Not good for nearest, or load-balancing or
  failover
• DNS responding with IP of nearest/best data
  center
• Determine nearness statically (analyze request IP
  address) or dynamically (first response from
  multiple sites)
• Might not really be nearest/best performing
• DNS response might be cached longer than expected
• Routing all data centers advertise same network
  address
• No DNS mess
• BGP automatically finds best/nearest center
• Routing instabilities could cause connection
  failures

14
Content Delivery Networks

• E.g., Akamai, Digital Island, Speedera, Mirror
• Operates a distributed set of servers/caches
• Same problem of finding nearest/best server
• Not all servers/caches have needed data
• Originally just for static data, streaming media
• Now ESI approach can dynamically build pages at
  edge servers
• Near future, edge servers can run some
  applications for content provider (J2EE, .NET)

15
Networking Projects in WUME

• WUME Web Understanding, Modeling, and
  Evaluation Laboratory (PL251)
• Some Projects
• WWW Proxy Evaluation
• Transparent WWW appliance evaluation
• Gnutella Mapping and Measurement
• Gnutella-WWW Gatew ay
• Search engine development
