Quantifying Seismic Reflectivity

1

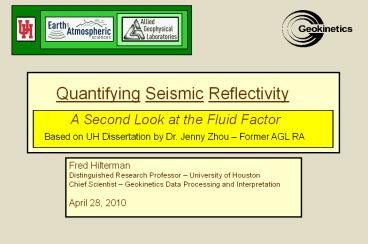

Quantifying Seismic Reflectivity
Fred Hilterman Distinguished Research Professor
University of Houston Chief Scientist
Geokinetics Data Processing and
Interpretation April 28, 2010
2
Birth of Fluid Factor George Smith Maurice
Gidlow South Africa - 1986
3
Fluid Factor Review
Class 1 AVO
2.9
Stack
3.0
4
Fluid Factor Review
Class 1 AVO
2.9
Stack
3.0
2.9
NIP
3.0
Brine saturated ?F 0 Gas Saturated ?F
NIPGAS- NIPWET
2.9
NIS
3.0
5
Fluid Factor Review
2.9
Stack
3.0
2.9
Gas
Oil
NIP - 0.56 NIS
3.0
6
Calibrating Fluid Factor to Well-Log Data
7
Fluid Factor from Normal Incidence
151 wells from South Marsh Island
(NIGAS-NIWET)
Wet
Oil
Gas
NIHYDROCARBON-NIWET ? Fluid Factor
NI varies significantly for gas- and
brine-saturated sand but (NIGAS-NIWET) changes
little.
Reservoir porosity 10-33 Encasing shale
2600-4200 m/s
How is Fluid Factor extracted from seismic data?
8
Fluid Factor from NIP NIS
?F(t) NIP(t) - ? NIS(t) (Smith
and Gidlow) ?F ? 0
In wet zones ?F ?
(NIP,GAS-NIP,WET) At top of reservoir

151 wells in South Marsh Island
9
Unique Properties of Fluid Factor
10
Fluid Factor Boundary or Layer Property?
NIGAS NIWET ?F
-
?
-
?F relates to gas/water contact -NIGWC not
encasing shale.
11
Fluid Factor 9-m Wet Thin Bed
12
Fluid Factor 9-m Gas Thin Bed
VP 2280 m/s
VP 2280 m/s
VP 1628 m/s
VP 3370 m/s

VP 3490 m/s

VP 2280 m/s
NIP
NIS
Approximately 109 increase in amplitude
13
Thin Bed Fluid Factor vs. NI
Normal-Incident Reflectivity
NI f( VP1, VP2, Rho1, Rho2) 2? ?t/T ?t
thin-bed traveltime T wavelet period

• Fluid factor independent
• shale properties
• reservoir porosity
• upper shale ? lower shale

14
Field Data
15
GOM Oil and Gas Reservoir
Reservoir exhibits fault shadow velocity anomaly
Well Production Early 1970s Seismic Data
1996 as OBS Seismic Processing 2008
Seismic data from Fairfield Industry, Inc.
16
AVO Inversion NIP NIS
Seismic NIP
Seismic NIS
400
1500
WET
WET
4.2 miles
0
-200
-1500
-800
4.6 miles
Zhou 2009
17
Fluid-Factor Projection Line
Calibrated Fluid Factor
NIP(2)0.3266 NIS(2)0.0022 R20.8408
NIP 0.33 NIS .002 R2 0.84
0.02
0
Calibrated NIP
-0.04
Fault
Wet area Whole survey
-0.08
Fluid Factor NIP -.33 NIS - .002
Calibrated NIS
Zhou 2009
18
Fluid Factor Prediction of Pore Fluid
3 producing wells correctly located
Gas zone correctly located
Gas and oil zones generally tie depth contours
Calibrated fluid factor is an accurate pore-fluid
discriminator.
Zhou 2009
19
Summary Fluid-Factor Properties

1. independent of shale properties above or below
   reservoir.

1. independent of reservoir porosity.

3. independent of wavelet shape.
4. related to NI of hydrocarbon/water contact.
5. function of thin-bed traveltime and pore
fluid.
20
Field Study Conclusions

• NIP vs. NIS horizon crossplot provides
• E?FWET 0.

2. Regional well-log curves provide
Seismic to well-log amplitude calibration.
3. With questionable wavelet and low-frequency
control, ?F was better pore-fluid
discriminator than PI or ??.
21
Thanks for your attention.
