Title: Salsnes Filter Overview


1

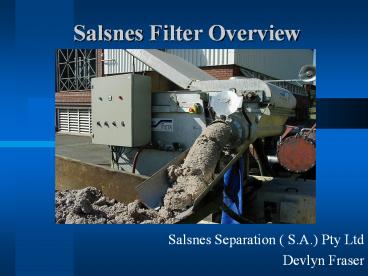

Salsnes Filter Overview
  • Salsnes Separation ( S.A.) Pty Ltd
  • Devlyn Fraser

2
Product Introduction
  • The purpose of the Salsnes Filter
  • 1) Separation dewatering of solids, leading to
    the reduction of the (TSS) Total Suspended Solids
    in municipal effluent
  • 2) Separation dewatering of solids in
    Industrial effluent, with the aim of lowering the
    SS, COD and BOD, effectively lowering effluent
    billing costs, as well as possible reductions in
    operations maintenance costs.

3
Technical Overview
  • 2 Models, SF 2000 SF 6000
  • Manufactured in 304 316 S/Steel
  • Hydraulic loading of 70- 575 m³ / Hr
  • Endless Cloth Filter, Woven Polyester, 0.1- 1.0
    mm pores (785 Microns Thick)
  • 40-70 removal of suspended solids
  • The cake (dewatered Sludge) 25-45 Dry substrate
  • Weight 375 Kg (SF2000) 725 Kg (SF6000)
  • Energy Consumption 2.5 Kw (SF2000) 4.2 Kw
    (SF6000)

4
Process Description
  • Effluent inflow through inlet tube
  • Effluent filtered through an endless Filter Cloth
  • Removal of 40-70 of suspended solids
  • The filtered water is released through
    outlet-pipe
  • Suspended solids are conveyed by filter cloth
    dumped into a sludge compartment
  • Excess sludge removed from cloth by an Air knife
  • Primary Sludge dewatering is facilitated by
    gravity during transport of the sludge to the
    trough

5
Process Description
  • Secondary dewatering of sludge is facilitated by
    screw press compacting the sludge in the press
    cylinder
  • Excess water is drained via secondary outlet
  • Compressed, dewatered sludge (cake) is released
    via a spring loaded lid on the press cylinder
  • Excess Fat deposits are removed from cloth twice
    per day via Hot water spray (20 Ltrs Each) -
    Adjustable
  • On/Off operating speed is controlled by
    pressure transmitter, measuring the level of
    inflow, to achieve optimal balance between inflow
    the filters filtration properties
  • Process is completely automated, incl. Cleaning
    minimal maintenance

6
Applications
A) Overview of Expanded process at Municipal
WWTPS
7
Applications Cont.
  • Salsnes Filter removes SS in parallel to
  • PST, possibly allowing
  • decommissioning of the digester.
  • Sludge cake to be stabilised (composted) sent
    to landfill or other
  • Alternately sludge must not be compressed
    dewatered, sent to digester to neutralise
    biological activity.

8
Installation Options - WWTP
  • Relieve overloaded capacity SF installed prior
    to PST
  • SF installed after PST to reduce loading on
    aeration basins
  • SF installed parallel with PST, tapping back to
    aeration basins, removing excess flow rates from
    PST
  • Reduce wear, maintenance re-furbishment costs
    on pumps, if installed prior to pump to remove
    abrasive materials

9
Applications to avoid in WWTP
  • Do not install SF after PST on the digester feed
    line, SF not able to deal with digested sludge.
  • Do not load SF with sludge treated with
    Flocculants (polymers), possible application for
    very limited flocculant dosing may be acceptable.

10
Industrial Applications
  • The following are possible applications for SF
  • Sugar Mills- Juice filtration
  • Tanning Processes
  • Paper Mills
  • Canneries
  • Fish, Poultry food processors and Abattoirs
  • Fruit Juice Processing
  • Biofuel Processes
  • Breweries
  • Screening Before Reverse Osmosis Desalinisation
  • Animal Feed Manufacturers
  • Grain based industries

11
Industrial Applications Cont.
  • It is imperative that the SF does not be
    considered as a means of removing Grit (Sand)
    from Effluent.
  • The SF is able to contend with approximately 10
    Grit in Effluent.
  • One must bear in mind that the higher the Grit
    Loading in the Effluent, the higher the wear and
    maintenance costs of the SF will be.

12
SF Benefits - Industrial Processes
  • Reduced effluent SS, COD, BOD, Efficiently
    Reducing Effluent Billing Costs.
  • Recovery of some Protein content in SS for
    Re-processing in the Rendering Process that may
    have income generating benefits.
  • The refining of Sugar cane and Fruit Juice
    Extracts, including the recovery of SS for
    further processing.
  • The recovery of Paper Fiber for Reprocessing.

13
SF Features Benefiting Industry and WWTPs
  • No Chemicals
  • Negliable Water Consumption
  • Recovers and Dewaters Sludge in Combined Process
  • Outstanding Results 40 70 SS Removal
  • 25 45 Dry Substrate
  • Low Maintenance Costs
  • Easy Repair and Maintenance Procedure

14
SF Features Cont.
  • Low Power Consumption and Running Costs
  • Self Cleaning Automated
  • Level Sensor Controls Speed and Optimises SF
    Filtering Performance at various flow Rates All
    Automated.
  • Exceptional After Sales Service and Back Up
  • Compact Design More Placement Options
  • Compact and Light Easily Maneuverable

15
SF Features Cont.
  • Refined for South African Applications
  • Globally Recognised, Approved and Industry Proven
  • Recovery of SS for re-processing if required
  • Substantial Effluent Billing Cost Saving
    Feasible Payback Term

16
PHOTOS
17
PHOTOS
18
PHOTOS
19
PHOTOS
20
THE END !
