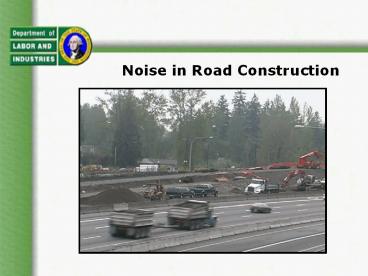

Title: Noise in Road Construction


1
Noise in Road Construction
2
What this presentation covers
  • Hearing loss rates and claims facts
  • Noise levels of construction equipment
  • Control methods to reduce harmful noise exposures
  • Resources

3
Hearing loss is expensive!
In Washington State,
  • Hearing loss is 1/3 of all costs of permanent
    impairments.
  • Hearing loss is the most expensive occupational
    disease for road construction workers.
  • Incidence rate is 10 times higher for Road
    Construction risk class than for all other risk
    classes.
  • Hearing loss claims rate is highest of all
    construction risk classes.

The result is higher industrial insurance
premiums paid by road construction contractors.
4
Noise and hearing loss
  • Noise is measured in units called decibels (dB).

Threshold of pain
Construction noise levels are often above 85 dBA
Jet take-off (200)
(A-weighting is a standard of sound measurement
used to evaluate continuous noise levels
designated as dBA)
Chipping hammer
Jackhammer
Bulldozer
Freeway noise
City traffic
  • Scientific studies have shown that hearing loss
    can occur when 8-hour average noise exposure
    exceeds 85 decibels.

Normal conversation (3)
Urban residence
  • (If two people 3 feet apart must shout to be
    heard, the background noise is too loud - above
    85 dBA.)

Soft whisper (5)
Threshold of hearing
For more information on noise and hearing, see
WISHA Noise Exposure Hearing Loss
Noise level (dBA)
5
Some Common Noise Levels in Construction
Source Center to Protect Workers Rights
Decibels (dBA)
6
Sample Noise Level Measurements
Saw Operator 95 dBA (7-hour sample)
Source OSHA case files
7
Sample Noise Level Measurements
Jackhammering 102 dBA (7.5-hour sample)
Source OSHA case files
8
Sample Noise Level Measurements
Breaking pavement 112 dBA (7-hour sample)
Source OSHA case files
9
Sample Noise Level Measurements
Lateral drilling
97 dBA (6.5-hour sample)
104 dBA (7-hour sample)
Source OSHA case files
10
Sample Noise Level Measurements
Sandblasting 125 dBA (4-hour sample) 109 dBA
(inside hood)
Source OSHA case files
11
Sample Noise Level Measurements
Dumping concrete 96 dBA (4-hour sample)
Source OSHA case files
12
Noise Sources in Road Work
Several factors influence the noise levels to
which workers are exposed
  • Type and condition of equipment being operated
  • Other equipment running at the same time
  • Enclosed or partially enclosed spaces (e.g.,
    underpass)
  • Traffic around work site

Underpass
Underpass work
13
When is hearing protection required?
  • At noise exposures of 85 dBA TWA8 and higher,
    you must use a hearing protection device.
  • Wherever the noise exposure is 90 dBA TWA8 and
    higher, feasible controls must be used to reduce
    your exposure.

Time-weighted average during an 8-hour period
High Noise Exposures Rules of Thumb You need
protection
  • If you have to shout at someone 3 feet away to be
    heard
  • When using electric, gasoline, or air powered
    tools
  • When sitting in an open cab of dozers, rollers,
    some cranes, earth moving or road building
    equipment

14
What are some methods to controlnoise exposures?
  • Substitute quieter process or equipment
  • Eliminate or minimize at the source
  • Isolate/enclose the process or operator
  • Increase distance from the source
  • Change work practices
  • Implement a hearing conservation program

The most desirable methods of controlling a noise
problem are to use quieter process/equipment,
eliminate the noise at the source, or to block
the noise from reaching you. Using hearing
protection devices (ear plugs, muffs) isn't
considered a control of the noise hazard. There
are many drawbacks and using them will not always
be effective.
15
What are some methods to controlnoise exposures?
Substitute quieter process or equipment
New quieter generators have sound-proofing and
produce only 75 dBA at 1 meter and 65 dBA at 7
meters under load.
Replacing a large jackhammer with a middle range
one reduced the noise level by 10 dBA.
16
What are some methods to controlnoise exposures?
Eliminate/minimize at the source
  • Install silencers/mufflers
  • Retrofit old equipment
  • Operate equipment as designed per
    manufacturers instructions
  • Damp noisy equipment and parts
  • install sound-absorbing material or vibration
    isolation systems
  • Maintain equipment properly
  • replace worn, loose, or unbalanced machine parts
    that cause vibration
  • keep machine parts well lubricated to reduce
    friction
  • adjust belts and valves, tighten bolts

Acoustically treated operator cabins on
earth-moving equipment have noise levels of 75
dBA or below.
17
What are some methods to controlnoise exposures?
Isolate/enclose the process or operator
  • Noise enclosures
  • Noise barriers
  • higher and wider than noise source
  • may be simple walls or curtains of acoustic
    materials
  • ½-inch plywood can provide a 10dB noise reduction
  • place close to noise source or to you
  • Include acoustic panels or baffles to
    walls/ceilings
  • Minimize leaks
  • e.g., cover joints with 1/8-inch thick neoprene
    strip or duct tape

A portable screen set up around a power pack
reduced the noise level from 98 to 90 dBA at 1
meter.
18
What are some methods to controlnoise exposures?
Isolate/enclose the process or operator (conti
nued)
Note if the source of noise is equipment
operated by you, a barrier placed close can
increase your noise exposure by reflecting the
noise back toward you. Be sure to line the
barrier with sound absorbing material to reduce
the reflected noise.
19
What are some methods to controlnoise exposures?
Increase the distance between the noise source
and you
  • Every doubling of the distance between you and
    the noise source results in as much as a 6 dB
    decrease in noise level thats a four-fold
    reduction!

(This is true if there is no reflected noise. The
reduction will be less if there are walls or
partitions between you and the noise source.)
  • Keep noisy equipment away from walls or other
    surfaces that will reflect noise toward you.
  • Combine distancing and barriers to further reduce
    noise exposure. Using both methods results in
    greater noise reduction than would be achieved
    from either method alone.

20
What are some methods to controlnoise exposures?
Change work practices
  • limit time exposed job rotation, rescheduling
    work
  • limit use of noisy equipment
  • rest breaks
  • turn off equipment not in use

Hearing Conservation Program Chapter 296-817 WAC
  • baseline and annual audiometric testing
  • monitoring of noise exposure levels
  • hearing protection devices (HPDs)
  • training and education
  • maintenance of employee exposure and hearing loss
    records

21
Summary
Hearing loss is expensive!
Many construction noise levels are high and
require controls to reduce workers exposures.
Control methods
  • Substitute quieter process or equipment
  • Eliminate or minimize at the source
  • Isolate/enclose the process or operator
  • Increase distance from the source
  • Change work practices
  • Implement Hearing Conservation Program

22
WISHA Consultation Services
  • Safety Health program review and worksite
    evaluation
  • By employer invitation only
  • Free
  • Confidential
  • No citations or penalties
  • Letter explains findings
  • Follow-up all serious hazards

For additional assistance, you can call one of
our consultants. Click below for local L I
office locations http//www.lni.wa.gov/wisha/cons
ultation/regional_consultants.htm
23
Web Resources
  • WISHA Noise Exposure Hearing Loss
  • NIOSH Noise and Hearing Loss Prevention
  • OSHA Construction - Noise and Hearing
    Conservation
  • National Hearing Conservation Association
  • MSHA Noise Control Manual Surface Mining
    Equipment
  • Institute of Noise Control Engineering of the USA

24
  • Thank you for taking the time to learn about
    safety and health and how to prevent future
    injuries and illnesses.
