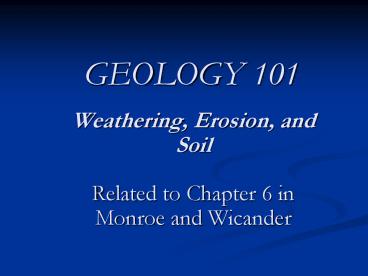

Title: GEOLOGY 101 Weathering, Erosion, and Soil Related to Chapter


1
GEOLOGY 101
  • Weathering, Erosion, and Soil
  • Related to Chapter 6 in Monroe and Wicander

2
WEATHERING
3
Earth's external processes
  • Weathering the disintegration and decomposition
    of material at or near the surface
  • Mass wasting the transfer of rock material
    downslope under the influence of gravity
  • Erosion the incorporation and transportation of
    material by a mobile agent, usually water, wind,
    or ice

4
Weathering
  • Two kinds of weathering
  • Mechanical weathering
  • Breaking of rocks into smaller pieces
  • Processes of mechanical weathering
  • Frost wedging
  • Unloading
  • Jointing
  • Thermal Expansion
  • Biological activity

5
Frost wedging
6
Unloading and exfoliation of igneous rocks
7
Weathering
  • Two kinds of weathering
  • Chemical weathering
  • Alters the internal structures of minerals by
    removing or adding elements
  • Most important agent is water
  • Oxygen dissolved in water oxidizes materials
  • Carbon dioxide (CO2) dissolved in water forms
    carbonic acid and alters the material

8
Weathering
  • Two kinds of weathering
  • Chemical weathering
  • Weathering of granite
  • Weathering of potassium feldspar produces clay
    minerals, soluble salt (potassium bicarbonate),
    and silica in solution
  • Quartz remains substantially unaltered
  • Weathering of silicate minerals produces
    insoluble iron oxides and clay minerals

9
Rates of weathering
  • Advanced mechanical weathering aids chemical
    weathering by increasing the surface area
  • Important factors
  • Rock characteristics
  • Mineral composition and solubility
  • Physical features such as joints

10
Increase in surface area by mechanical
weathering
11
Rates of weathering
  • Important factors
  • Climate
  • Temperature and moisture are the most crucial
    factors
  • Chemical weathering is most effective in areas of
    warm temperatures and abundant moisture

12
Rates of weathering
  • Differential weathering
  • Caused by variations in composition
  • Creates unusual and spectacular rock formations
    and landforms

13
Joint-controlled weathering in igneous rocks
14
Soil
  • An interface in the Earth system
  • Soil is a combination of mineral matter, water,
    and air that portion of the regolith (rock and
    mineral fragments) that supports the growth of
    plants

15
Typical components in a soil that yield
good plant growth
16
Soil
  • Soil texture and structure
  • Texture refers to the proportions of different
    particle sizes
  • Sand (large size)
  • Silt
  • Clay (small size)
  • Loam (a mixture of all three sizes) is best
    suited for plant life

17
Soil Texture
18
Soil
  • Soil texture and structure
  • Structure
  • Soil particles clump together to give a soil its
    structure
  • Four basic soil structures
  • Platy
  • Prismatic
  • Blocky
  • Spheroidal

19
Soil
  • Controls of soil formation
  • Parent material
  • Residual soil parent material is the bedrock
  • Transported soil parent material has been
    carried from elsewhere and deposited
  • Time
  • Important in all geologic processes
  • Amount of time to evolve varies for different
    soils

20
Soil
  • Controls of soil formation
  • Climate
  • Plants and animals
  • Organisms influence the soil's physical and
    chemical properties
  • Furnish organic matter to soil

21
Soil
  • Controls of soil formation
  • Slope
  • Angle
  • Steep slopes often have poorly developed soils
  • Optimum is a flat-to-undulating upland surface
  • Orientation (direction the slope is facing)
    influences
  • Soil temperature
  • Moisture

22
Soil
  • Soil Profile
  • Soil forming processes operate from the surface
    downward
  • Horizons zones or layers of soil
  • Horizons in temperate regions
  • O organic matter
  • A organic and mineral matter
  • E little organic matter

23
Soil
  • Soil Profile
  • Horizons in temperate regions
  • B zone of accumulation
  • C partially altered parent material
  • O and A together called topsoil
  • O, A, E, and B together called solum, or "true
    soil"

24
An idealized soil profile
25
A soil profile showing different horizons
26
Soil
  • Classifying soils
  • System for classifying soils in the United States
    is called the Soil Taxonomy
  • Emphasizes physical and chemical properties of
    the soil profile
  • Names of the soil units are combinations of
    syllables of Latin and Greek origin

27
Soil Type and Climate
  • Climate is the most important factor in
    determining the type and rate of soil formation.
  • In general, warm, moist temperate climates
    develop pedalfer soils. Most of the eastern U.S.
    and much of Canada are composed of this type of
    soil.
  • Soils in much of the arid and semiarid western
    U.S. and western Canada are pedocals.
  • Laterites are soils that form in the tropical
    climates where chemical weathering is intense and
    leaching of soluable minerals is intense.

28
Climate and Soil Formation
29
(from http//www.geo.wvu.edu/kammer/g100/Weather
ing.pdf)
30
(No Transcript)
31
Climate and Soil Formation
Soil
Soil
Where precipitation is high and the temperatures
are warm, soil will be the thickest.
32
(No Transcript)
33
Activities of Organisms
  • Organisms such as bacteria, fungi, algae,
    burrowing animals, earthworms, ants, termites,
    etc. live in the soil and help break mineral
    matter down and mix soil particles. They also
    provide humus when they die. Microorganisms help
    break down plant material that provides nutrients
    and humus to the soil. Organic acids (like
    acetic acid, etc.) produced by decaying organisms
    are important in further chemical weathering of
    rock material.

34
Relief and Slope
  • Topographic relief is the difference between the
    highest elevation and lowest elevation in an
    area. In areas of high relief, mountainous
    areas, climate changes with elevation this is a
    big factor on rate of soil formation. Obviously
    colder conditions at high elevations slows down
    soil formation processes.
  • Slope. Steep slopes have little or no soil
    formation because weathered materials erodes
    faster than soil-forming processes operate.
    Slope direction is also and important factor in
    soil formation. In the northern hemisphere,
    north facing slopes receive less sunlight and are
    thus colder, have different types of vegetation,
    and generally are slower in soil formation.

35
END CHAPTER 6
