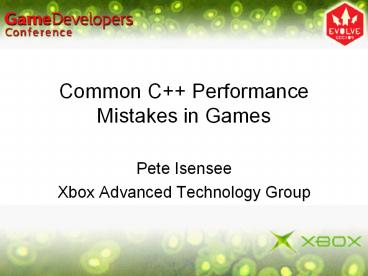

Common C++ Performance Mistakes in Games

1
Common C Performance Mistakes in Games

• Pete Isensee
• Xbox Advanced Technology Group

2
About the Data

• ATG reviews code to find bottlenecks and make
  perf recommendations
• 50 titles per year
• 96 use C
• 1 in 3 use advanced features like templates or
  generics

3
Why This Talk Is Important

• The majority of Xbox games are CPU bound
• The CPU bottleneck is often a language or C
  library issue
• These issues are not usually specific to the
  platform

4
Format

• Definition of the problem
• Examples
• Recommendation
• For reference
• A frame is 17 or 33 ms (60fps / 30fps)
• Bottlenecks given in ms per frame

5
Issue STL

• Game using stdlist
• Adding 20,000 objects every frame
• Rebuilding the list every frame
• Time spent 6.5 ms/frame!
• 156K overhead (2 pointers per node)
• Objects spread all over the heap

6
stdset and map

• Many games use set/map as sorted lists
• Inserts are slow (log(N))
• Memory overhead 3 ptrs color
• Worst case in game 3.8 ms/frame

7
stdvector

• Hundreds of push_back()s per frame
• VS7.1 expands vector by 50
• Question How many reallocations for 100
  push_back()s?
• Answer 13! (1,2,3,4,5,7,10,14,20,29,43,64,95)

8
Clearly, the STL is Evil
9
Use the Right Tool for the Job

• The STL is powerful, but its not free
• Filling any container is expensive
• Be aware of container overhead
• Be aware of heap fragmentation and cache
  coherency
• Prefer vector, vectorreserve()

10
The STL is Evil, Sometimes

• The STL doesnt solve every problem
• The STL solves some problems poorly
• Sometimes good old C-arrays are the perfect
  container
• Mike Abrash puts it well
• The best optimizer is between your ears

11
Issue NIH Syndrome

• Example Custom binary tree
• Sorted list of transparent objects
• Badly unbalanced
• 1 ms/frame to add only 400 items
• Example Custom dynamic array class
• Poorer performance than stdvector
• Fewer features

12
Optimizations that Arent

• void appMemcpy( void d, const void s, size_t b
  )
• // lots of assembly code here ...
• appMemcpy( pDest, pSrc, 100 ) // bottleneck
• appMemcpy was slower than memcpy for anything
  under 64K

13
Invent Only What You Need

• stdset/map more efficient than the custom tree
  by 10X
• Tested and proven
• Still high overhead
• An even better solution
• Unsorted vector or array
• Sort once
• 20X improvement

14
Profile

• Run your profiler
• Rinse. Repeat.
• Prove the improvement.
• Dont rewrite the C runtime or STL just because
  you can. There are more interesting places to
  spend your time.

15
Issue Tool Knowledge

• If youre a programmer, you use C/C every day
• C is complex
• CRT and STL libraries are complex
• The complexities matter
• Sometimes they really matter

16
vectorclear

• Game reused global vector in frame loop
• clear() called every frame to empty the vector
• C Standard
• clear() erases all elements (size() goes to 0)
• No mention of what happens to vector capacity
• On VS7.1/Dinkumware, frees the memory
• Every frame reallocated memory

17
Zero-Initialization

• struct Array int x1000
• struct Container
• Array arr
• Container() arr()
• Container x // bottleneck
• Costing 3.5 ms/frame
• Removing arr() speeds this by 20X

18
Know Thine Holy Standard

• Use resize(0) to reduce container size without
  affecting capacity
• T() means zero-initialize PODs. Dont use T()
  unless you mean it.
• Get a copy of the C Standard. Really.
• www.techstreet.com search on 14882
• Only 18 for the PDF

19
Issue C Runtime

• void BuildScore( char s, int n )
• if( n gt 0 )
• sprintf( s, d, n )
• else
• sprintf( s, )
• n was often zero
• sprintf was a hotspot

20
qsort

• Sorting is important in games
• qsort is not an ideal sorting function
• No type safety
• Comparison function call overhead
• No opportunity for compiler inlining
• There are faster options

21
Clearly, the CRT is Evil
22
Understand Your Options

• itoa() can replace sprintf( s, d, n )
• s \0 can replace sprintf( s, )
• stdsort can replace qsort
• Type safe
• Comparison can be inlined
• Other sorting options can be even faster
  partial_sort, partition

23
Issue Function Calls

• 50,000-100,000 calls/frame is normal
• At 60Hz, Xbox has 12.2M cycles/frame
• Function call/return averages 20 cycles
• A game calling 61,000 functions/frame spends 10
  CPU (1.7 ms/frame) in function call overhead

24
Extreme Function-ality

• 120,000 functions/frame
• 140,000 functions/frame
• 130,000 calls to a single function/frame
  (ColumnVeclt3,floatgtoperator)
• And the winner
• 340,000 calls per frame!
• 9 ms/frame of call overhead

25
Beware Elegance

• Elegance ? levels of indirection ? more functions
  ? perf impact
• Use algorithmic solutions first
• One pass through the world
• Better object rejection
• Do AI/physics/networking less often than
  once/frame

26
Inline Judiciously

• Remember inline is a suggestion
• Try inline any suitable compiler option
• 15 to 20 fps
• 68,000 calls down to 47,000
• Try __forceinline or similar keyword
• Adding to 5 funcs shaved 1.5 ms/frame
• Dont over-inline

27
Issue for loops

• // Example 1 Copy indices to push buffer
• for( DWORD i 0 i lt dwIndexCnt i )
• pPushBuffer arrIndices i
• // Example 2 Initialize vector array
• for( DWORD i 0 i lt dwMax i )
• mVectorArri XGVECTOR4(0,0,0,0)
• // Example 3 Process items in world
• for( itr i c.begin() i lt c.end() i )
• Process( i )

28
Watch Out For For

• Never copy/clear a POD with a for loop
• stdalgorithms are optimized use them
• memcpy( pPushBuffer, arrIndices,
• dwIndexCnt sizeof(DWORD) )
• memset( mVectorArr, 0, dwMax sizeof(XGVECTOR4)
  )
• for_each( c.begin(), c.end(), Process )

29
Issue Exception Handling

• Most games never throw
• Most games never catch
• Yet, most games enable EH
• EH adds code to do stack unwinding
• A little bit of overhead to a lot of code
• 10 size increase is common
• 2 ms/frame in worst case

30
Disable Exception Handling

• Dont throw or catch exceptions
• Turn off the C EH compiler option
• For Dinkumware STL
• Define _HAS_EXCEPTIONS0
• Write empty _Throw and _Raise_handler see
  stdthrow.cpp and raisehan.cpp in crt folder
• Add pragma warning(disable 4530)

31
Issue Strings

• Programmers love strings
• Love hurts
• 7000 calls to stricmp in frame loop
• 1.5 ms/frame
• Binary search of a string table
• 2 ms/frame

32
Avoid strings

• String comparisons dont belong in the frame loop
• Put strings in an table and compare indices
• At least optimize the comparison
• Compare pointers only
• Prefer strcmp to stricmp

33
Issue Memory Allocation

• Memory overhead
• Xbox granularity/overhead is 16/16 bytes
• Overhead alone is often 1 MB
• Too many allocations
• Games commonly do thousands of allocations per
  frame
• Cost 1-5 ms/frame

34
Hidden Allocations

• push_back(), insert() and friends typically
  allocate memory
• String constructors allocate
• Init-style calls often allocate
• Temporary objects, particularly string constants
  that convert to string objects

35
Minimize Per-Frame Allocations

• Use memory-friendly data structures, e.g. arrays,
  vectors
• Reserve memory in advance
• Use custom allocators
• Pool same-size allocations in a single block of
  memory to avoid overhead
• Use the explicit keyword to avoid hidden
  temporaries
• Avoid strings

36
Other Tidbits

• Compiler settings experiment
• dynamic_cast just say no
• Constructors performance killers
• Unused static array space track this
• Loop unrolling huge wins, sometimes
• Suspicious comments watch out
• Immensely slow matrix multiplication

37
Wrap Up

• Use the Right Tool for the Job
• The STL is Evil, Sometimes
• Invent Only What You Need
• Profile
• Know Thine Holy Standard
• Understand Your Options

• Beware Elegance
• Inline Judiciously
• Watch Out For For
• Disable Exception Handling
• Avoid Strings
• Minimize Per-frame Allocations

38
Call to Action Evolve!

• Pass the rubber chicken
• Share your C performance mistakes with your
  team
• Mentor junior programmers
• So they only make new mistakes
• Dont stop learning
• You can never know enough C

39
Questions

• Fill out your feedback forms
• Email pkisensee_at_msn.com
• This presentation www.tantalon.com/pete.htm
