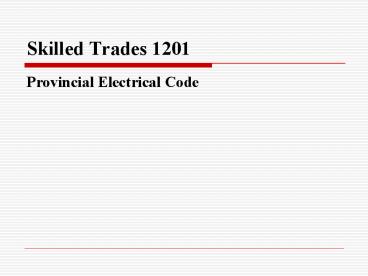

Skilled Trades 1201

1
Skilled Trades 1201

• Provincial Electrical Code

2
Electrical Code

• Wire Size
• The diameter of the wire determines the amount
  of current that can safely flow through it.

3
Electrical Code

• Wire Size
• The diameter of the wire determines the amount
  of current that can safely flow through it.
• Wires are sized according to a table known as
  the American Wire Gauge (AWG).

4
Electrical Code

• Wire Size
• Wire size varies from AWG 40 to 0000 with 40
  being the smallest and 0000 the largest.

5
Electrical Code

• Wire Size
• Wire size varies from AWG 40 to 0000 with 40
  being the smallest and 0000 the largest.
• The larger the number the smaller the wire
  diameter.

6
Electrical Code

• Common Residential Wire Sizes

7
Electrical Code

• Common Residential Wire Sizes
• 24 AWG Used for Computers

8
Electrical Code

• Common Residential Wire Sizes
• 24 AWG Used for Computers
• 22 AWG Used for Telephone

9
Electrical Code

• Common Residential Wire Sizes
• 24 AWG Used for Computers
• 22 AWG Used for Telephone
• 18 AWG Used for Doorbell Circuit

10
Electrical Code

• Common Residential Wire Sizes
• 24 AWG Used for Computers
• 22 AWG Used for Telephone
• 18 AWG Used for Doorbell Circuit
• 14 AWG Used for Light, Switches,
  Receptacles,

11
Electrical Code

• Common Residential Wire Sizes
• 12 AWG Used for Light, Switches,
  Receptacles, Baseboard
• Heaters, , Hot Water Heaters

12
Electrical Code

• Common Residential Wire Sizes
• 12 AWG Used for Light, Switches,
  Receptacles, Baseboard
• Heaters, , Hot Water Heaters
• 10 AWG Used for Clothes Dryers

13
Electrical Code

• Common Residential Wire Sizes
• 12 AWG Used for Light, Switches,
  Receptacles, Baseboard
• Heaters, , Hot Water Heaters
• 10 AWG Used for Clothes Dryers
• 8 AWG Used for Electric Range

14
Electrical Code

• Common Residential Wire Sizes
• 12 AWG Used for Light, Switches,
  Receptacles, Baseboard
• Heaters, , Hot Water Heaters
• 10 AWG Used for Clothes Dryers
• 8 AWG Used for Electric Range
• 2 AWG Used for Ground Wire

15
Electrical Code

• Common Residential Wire Sizes
• 000 AWG Service Entrance Cable

16
Electrical Code

• Common Residential Wire Sizes
• 000 AWG Service Entrance Cable
• 0000 AWG Service Entrance Cable

17
Electrical Code

• Residential Wire Colour Code
• Hot Wire Black or any other colour except
  White, Green, bare copper.

18
Electrical Code

• Residential Wire Colour Code
• Hot Wire - Black or any other colour except
  White, Green, bare copper.
• Neutral Wire White, Is grounded at the main
  switch and runs to each 120V outlet without
  interruption.

19
Electrical Code

• Residential Wire Colour Code
• Hot Wire - Black or any other colour except
  White, Green, Bare Copper.
• Neutral Wire White, Is grounded at the main
  switch and runs to each 120V outlet without
  interruption.
• Ground Wire Green or Bare Copper

20
Electrical Code

• Residential Wire Colour Code
• 2-Wire Circuit
• Black and White Wires-Used for lights and
  receptacles in 120 volts AC circuits.

21
Electrical Code

• Residential Wire Colour Code
• 2-Wire Circuit
• Black and White Wires - Used for lights and
  receptacles in 120 volts AC circuits.
• Black and Red Wires Used for electric heaters
  and hot water tanks in 220 volt circuits

22
Electrical Code

• Residential Wire Colour Code
• 2-Wire Circuit
• Black and White Wires - Used for lights and
  receptacles in 120 volts AC circuits.
• Black and Red Wires Used for electric heaters
  and hot water tanks in 220 volt circuits
• Black and Red Wires Used between switch and
  lighting outlets.

23
Electrical Code

• Residential Wire Colour Code
• 3-Wire Circuit
• Black, Red, White or Green Wires
• Used for electric Dryers and Ranges.

24
Residential Electrical Regulations

• Governing Bodies that control Residential Wiring

25
Residential Electrical Regulations

• Governing Bodies that control Residential Wiring
• Regulations of building and electrical codes is
  a provincial jurisdiction. Each province
  regulates by passing laws which mandates a
  standard set of codes and regulations

26
Residential Electrical Regulations

• The Standards Council of Canada is a federal
  crown corporation, which has advisors from all
  the provinces, that create a set of standards and
  codes for many areas of construction, including
  electrical.

27
Residential Electrical Regulations

• Regulations that govern the electrical trades
  are
• Canadian Electrical Codes
• Municipal Electrical Codes
• CSA and UL
• Insurance Regulations
