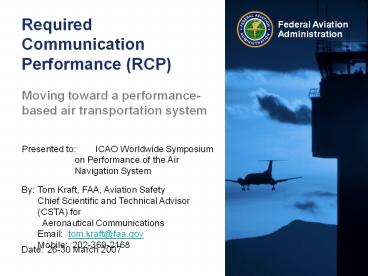

Required Communication Performance (RCP)

1
Required Communication Performance (RCP)

• Moving toward a performance-based air
  transportation system

Presented to ICAO Worldwide Symposium on
Performance of the Air Navigation System
By Tom Kraft, FAA, Aviation SafetyChief
Scientific and Technical Advisor (CSTA) for
Aeronautical CommunicationsEmail
tom.kraft_at_faa.govMobile 202-369-2168
Date 26-30 March 2007
2
Overview

• Current situation
• A little about RCP
• Activities underway
• Outlook for implementation

3
Introduction1995 air traffic data link services
U.S.
Goals Reduce separations Reroutes User
preferred trajectories Expose data
link Applications CPDLC, ADSC Technology FANS
1/A Airframe Boeing 744 Equipment Honeywell Col
lins Thales ATM Comm Services ARINC SITA INMAR
SAT
UAL
ANZ
QA
Fiji
French Polynesia
Australia
New Zealand
4
Introduction2007 air traffic data link services

• North Atlantic Region benefits from data link
• In 2004, traffic levels exceeded pre2001 levels
• NAV CANADA has reduced communication costs to
  users by 50
• 55 of the fleet use either FMC WPR or FANS 1/A
  ADSC for automatic position reporting

PDC DATIS via ACARS
U.S. oceanicairspace boundary

• Pacific SubRegion benefits from data link
• Reduced separations to 50/50 NM and 30/30 NM
  (trials)
• User preferred routes and reroute (trials) for
  all city pairs in South Pacific
• Weather deviations
• Automatic position reporting
• 80 of the fleet in South Pacific use CPDLC and
  ADSC, based on FANS 1/A, 60 in the Central
  Pacific, and 30 on average in the entire Pacific

5
And then some

• What will we do with
• HF voice
• INMARSAT Aero Classic Satellite Service
• And what about
• Voice communications, e.g., INMARSAT, Iridium
• Data communications, e.g., HF Data Link, Iridium,
  Swift Broadband, Internet Protocol Suite (IPS)

6
Harmonize data link services

• Planning Implementation Regional Groups
• North Atlantic Systems Planning Group
• European Air Navigation Planning Group

Operational Requirements
Data Link Steering Group (DLSG) andATN
Accommodation Drafting Group (ADG)
Standards for ADS-C
RTCA/EUROCAE FANS 1/A - ATN Interoperability
Standard
Harmonize data link services RCP is a key element
to the convergence process
7
Continued operational safety
Planning and Implementation Regional Groups
(including subordinate groups)
Asia-Pacific
North Atlantic
FANS Implementation Group (FIG)
Informal South Pacific Air Traffic Services
Coordinating Group (ISPACG) FANS Interoperability
Team (FIT)
Informal Pacific Air Traffic Control (ATC)
Coordinating Group (IPACG) FANS Interoperability
Team (FIT)
FAA - Oceanic Separations Reduction Working Group
(OSRWG) Scrutiny Group

• Review operational data and advise based on
  results
• Data link ? VHF, Satellite, HF data link
  performance
• Satellite voice ? Security procedures

8
Continued operational safety

• Fluctuations in performance levels for commercial
  satellite services
• Backups and redundancy
• Dissimilar technologies, e.g., Iridium, HF data
  link, INMARSAT, data/voice
• What are the performance criteria, what needs to
  be monitored, and what is the decision process
• What about predicted performance?

9
Standards guidance material

• ICAO completed standards and guidance material
  for RCP
• Provisions for RCP in Annex 6 and Annex 11
• Manual on RCP ? ICAO Doc 9869
• RTCA SC-189/EUROCAE WG-53 completed standards for
  data link services
• Continental Safety and Performance Standard
• Oceanic Safety and Performance Standard

10
Performance-based operations

• Balances capability performance of
• Communications, e.g., DCPC
• Navigation, e.g., RNAV/RNP
• Surveillance, e.g., ADS-C
• Air Traffic Management
• Builds on what we have to improve

RNP
RCP
ATM
C
N
S
RTSP
RSP
What is RNP x airspace?
What is applying separation using ADS-C?
11
Performance-based communications

• RCP type specifies communication transaction
  time, continuity, availability, integrity
• Other operational factors may be relevant, for
  example
• Messages or phraseology, transaction types, and
  intended use
• Interactive capability of voice communication
• Airground integration capability of data
  communication
• Performance monitoring and alerting
• Adapting the airspace to changes in performance
  level

12
Objectives and benefits

• Promotes a competitive market for aeronautical
  communication services enabling costeffective
  alternatives that meet business needs in a more
  timely manner
• Provides means to demonstrate communication
  performance using a variety of acceptable methods
  in lieu of time consuming data collection and
  empirical analyses
• Defines needed operations based on
  communication performance levels that are not yet
  obtainable with current technology
• Enables varying service levels in common airspace
  to a fleet of aircraft with varying communication
  capabilities and performances

13
Applicability

• When a change is implemented in air traffic
  management (ATM) and/or flight operations
• And the change is predicated on communication
  performance
• Safety management and monitoring

14
What it does

• Establishes operational criteria
• Determines capability and performance criteria
  based on intended operations in oceanic, en
  route, terminal, and airport domains
• Considers voice and data communications
• Considers global seamless operations
• Specifies RCP type and other relevant operational
  factors
• Not based on any particular technology

15
How it is used

• Performance-based criteria is used to
• Determine viability of a particular technology
• Qualify, certify, and approve various parts of an
  implementation
• Manage performance levels needed to provide a
  basic level of service and, for eligible
  operators, higher levels of service
• Real time monitoring and alerting (air and
  ground)
• Historical monitoring and evaluation
• Adapting the airspace based on the results of
  monitoring

16
Candidates for implementation

• Reduced separation minima, new procedures, or
  increasing airspace capacity that requires a
  communication capability and performance
• Operating in airspace with a basic level of
  service and, for eligible operators, with higher
  levels of service
• Provision and use of air traffic service using
  non-traditional technology or mixed technologies
• Communication capability installed on aircraft
  whose performance is suitable for use in some
  airspace, but not in others

17
PARC (Who - What)

• Performance-Based Operations Aviation Rulemaking
  Committee (PARC)
• Operates under the FAA Administrators legal
  authority in accordance with 49 USC 106(p)(5)
• Comprises members from the aviation community at
  large and FAA
• Provides recommendations to FAAs Senior
  Management for action implementation
• Effective in implementing RNAV/RNP

18
PARC Communications Working Group

• Roadmaps, etc.
• Build consensus among aviation stakeholders
• Communicate fundamental capabilities
• Assess benefit and investment
• Set metrics to measure success of FAA
  implementation programs

Roadmap for Performance-Based Communications
19
Outlook

• Complete industry-coordinated Roadmap for
  Performance-Based Communications by
  September 2007
• What are the applications for performance-based
  communications
• What standards are needed and schedule
• What is the strategy for aircraft type
  certification, operational approval, and
  implementation

20
Outlook

• Develop scenario outlines for implementation of
  RCP type, considering
• Voice and Data communications to increase
  capacity
• Oceanic and domestic (en route, terminal area,
  airport)
• Operating in airspace with a basic level of
  service and, for eligible operators, with higher
  levels of service
• Some existing communication capabilities and
  performance that are suitable only for basic
  level of service
• Performance monitoring, alerting, based on RCP
  type, and adaptation

21
And here we conduct our flight
SATCOM radio fails
En Route
Oceanic
En Route
Terminal
Terminal
GES Outage
1. RCP types for service level(s) published in
AIPs and charts
2. Ground side monitors communication service
3. Eligible Operators file for service level(s)
4. Air side monitors aircraft system
5. Pilot/controller know RCP type, just as they
know RNAV/RNP type
6. Pilot/controller operates according to RCP type
7. Pilot/controller receives alerts for
communication failures
/D - Data /V - Voice IC Increased capacity RHSM
Reduced horizontal separation minima TAP
Tailored Arrival Procedure
22
Thank you
