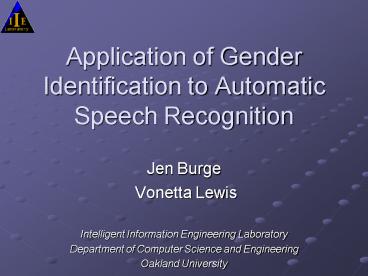

Application of Gender Identification to Automatic Speech Recognition

1
Application of Gender Identification to Automatic
Speech Recognition

• Jen Burge
• Vonetta Lewis
• Intelligent Information Engineering Laboratory
• Department of Computer Science and Engineering
• Oakland University

2
Voice Scoring System

• Enormous amount of audio data collected from
  intercepted telephone conversations
• Use speech recognition to transcribe text
• Use transcription to decide what data should be
  examined by human

3
Diagram from Sethi. Scoring Voice-stream for
Homeland Security, Oakland University. 2003.
4
Speech Recognition

• Recognize speech data (convert to text or
  perform commands, etc)
• Applications
• Use of speech as a form of input (dictation,
  control, etc.)
• Content based retrieval for audio files

5

• Feature extraction (LPC or MFCC)
• Model words or individual phonemes
• Attempt to match new sounds to models to
  recognize speech
• Can use knowledge of language to improve accuracy

Diagram from http//www.mor.itesm.mx/omayora/T
utorial/tutorial.html
6
Training Recognizer

• Speaker-dependent
• Specific user trains system
• Speaker-independent
• Attempt to recognize speech from any speaker
• Need to train for all possible speakers
• Less accurate

7
Variability Across Speakers

• Main obstacle in speaker independent speech
  recognition systems
• Gender, accent
• Approaches to Problem
• Build models for variability and choose
  appropriate one
• Adapt to current speaker during recognition

8
Project Goals

• Improve accuracy of speaker-independent
  recognition by having gender dependent models
• Automatically determine gender of speaker
• Use the gender recognition to select appropriate
  model for transcription
• Investigate Language Identification

9
Gender-related Acoustic Differences

• Differences in length of vocal tract and vocal
  folds causes different
• Fundamental frequency
• Formant frequencies
• Other differences

Diagram from Kent Read. Acoustic Analysis of
Speech. 2002.
10
Past Work on Gender Problem

• Recognition by pitch
• Difficulty accurately measuring fundamental
  frequency
• Male/Female threshold usually 160 Hz
• Model-based techniques
• Hidden Markov Model (HMM)
• Gaussian Mixture Model (GMM)
• Other
• Formant positions

11
Data Collection

• Used CNN and NPR radio broadcasts
• 16 kHz, 16 bit mono for gender recognition
  experiments
• 22 kHz, 16 bit mono for ViaVoice tests

12
Pitch Threshold Experiments

• Measured fundamental frequency using
  autocorrelation algorithm
• Averaged frequency over entire clip
• Compared to 160 Hz threshold
• Achieved approx. 89 accuracy

13
Gaussian Mixture Model

• Model data as a weighted sum of Gaussian
  distributions
• Use Expectation-Maximization algorithm to fit GMM
  to training data
• New data classified by finding the likelihood it
  was produced by each model

14
GMM Experiments

• Features MFCCs (10,12,14,16)
• GMM components (32,64,128)
• Trained with 10 speakers per gender, 20-22 second
  samples
• Tested with 51 utterances 23 male, 28 female
  of varying length

15
(No Transcript)
16
Observations

• Slight improvement in accuracy with GMM (14 or 16
  MFCCs)
• Misclassifications usually people with accents
  not represented in training speakers

17
ViaVoice Testing

• Attempt to improve accuracy using gender
  dependent models
• Trained one male model and one female model
  (trained by specific people)

18
Experiments

• Transcribed 24 radio clips with both male and
  female models as well as built-in ViaVoice
  speaker-independent model
• Measure of accuracy
• words correctly recognized
• total of words spoken

100
19
(No Transcript)
20
(No Transcript)
21
Observations

• Accuracy improvement by using same-gender model
  as opposed to opposite gender model 353
• Average accuracy of generic model 68.5

22
Language Identification

• Goal Automatically determine language spoken in
  order to select appropriate language model for
  transcription
• Previous methods
• HMM
• GMM

23
Experiments

• Hypothesized that English ViaVoice would
  recognize fewer words for clips of foreign
  languages
• Compared words recognized per second to voiced
  regions per second

24
Data Collection

• Used World Radio Network, BBC, and NPR radio
  broadcasts
• Recorded at 22 kHz, 16 bit mono
• 13-30 second samples
• 13 foreign languages, 17 different accents in
  English

25
Sample Transcriptions

• English sample

• Persian sample

26
(No Transcript)
27
English/Non-English Classifier

• Use line (Voiced/Sec Words/Sec) 0 as
  classifier
• Negative English, Positive Non-English
• Tested on 82 clips (65 Non-English, 22 English)
• Accuracy 80.5

28
Observations

• A previous paper achieved 76.8 in an
  English/Japanese decision
• To distinguish between multiple languages besides
  English/non-English, would need to perform
  similar procedure for all expected languages

29
Conclusions

• Gender classification with GMM slightly more
  accurate than with pitch
• ViaVoice model trained by person of same gender
  as speaker more accurate than one trained by
  person of opposite sex
• Achieved 80 accuracy in English/non-English
  decision based on the number of words produced by
  English ViaVoice

30
Future Work

• Possibility of accuracy improvement with
  speaker-independent male and female models
• Need for accent consideration
• Use of grammatical and semantic information to
  improve English/non-English decision

31
Acknowledgements

• IIE Lab Mingkun, Victor, Aiyesha, Dingguo,
  Shuo, Rishi
• Dr. Sethi
• Test Subjects
• Sniffy Fluffy

32
Books

• Kent, R. and Read, C. Acoustic Analysis of
  Speech Second Edition. Thompson Learning,
  Albany, NY, 2002.
• Deller, J., Proakis, J., and Hansen, J.
  Discrete-Time Processing of Speech Signals.
  Macmillan, New York, NY, 1993.
• Rabiner,L. and Schafer, R. Digital Processing of
  Speech Signals. Prentice Hall, New Jersey, 1978.
• Proakis, J. and Manolakis, D. Digital Signal
  Processing Principles, Algorithms, and
  Applications. Prentice Hall, New Jersey, 1996.

33
Papers

• 1. Parris, E. Carey, M, Language Independent
  Gender Identification, Proc. ICASSP, 1996.
• 2. Sethi, I. Scoring Voice-stream for Homeland
  Security, Oakland University, 2003.
• 3. Abdulla, W. Kasabov, N. Improving speech
  recognition performance through gender
  separation Proceedings of the Fifth Biannual
  Conference on Artificial Neural Networks and
  Expert Systems (ANNES2001), pp.218-222, 2001.
• 4. Chen, T., Huang, C., Chang, E., Wang, J.
  Automatic Accent Identification using Gaussian
  Mixture Models Proceedings IEEE Automatic Speech
  Recognition and Understanding Workshop
  (ASRU2001), Italy, 2001
• 5. Vergin, R., Farhat, A., OShaughnessy,D.
  Robust Gender-Dependent Acoustic-Phonetic
  Modeling in Continuous Speech Recognition Based
  On a New Automatic Male/Female Classification,
  Proc. ICASSP, 1996.

34
Papers

• 6. Gu, Q. Shibata, T. Speaker and Text
  Independent Language Identification Using
  Predictive Error Histogram, Proc. ICASSP, 2003.
