Field Effect Transistors (FETs)

1
Field Effect Transistors (FETs)

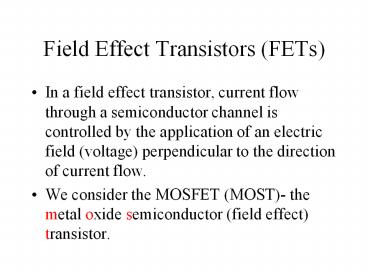

• In a field effect transistor, current flow
  through a semiconductor channel is controlled by
  the application of an electric field (voltage)
  perpendicular to the direction of current flow.
• We consider the MOSFET (MOST)- the metal oxide
  semiconductor (field effect) transistor.

2
Field Effect Transistors (FETs)

• In a depletion mode MOSFET a channel is built in
  so that conduction occurs with no control voltage
  applied.
• We consider an n-channel enhancement mode device
  which has no built-in conduction channel.

3
N-channel enhancement mode MOSFET (schematic)
Source (S)
4
Symbol for N-channel enhancement mode MOSFET

• Note connection to substrate shown

5
Symbol for N-channel enhancement mode MOSFET

• Note connection to substrate shown

6
N-channel enhancement mode MOSFET outline of
operation

• VGS 0, little or no current can flow S ? D, back
  to back p-n junctions.
• As a positive VGS is applied , holes in the
  p-region are repelled.
• As VGS increases further, electrons are attracted
  from the substrate towards the positive gate.
• An inversion layer of mobile electrons forms near
  the silicon surface.

7
N-channel enhancement mode MOSFET with inversion
layer
Source (S)
8
N-channel enhancement mode MOSFET outline of
operation

• This inversion layer is effectively n-type.
• Electrons can carry current in an continuous
  n-type path (or channel) from source to drain.
• The conduction channel forms when VGS attains a
  threshold voltage, VT

9
N-channel enhancement mode MOSFET

• The value of VT is determined by the device
  process and the level of the p-type (substrate)
  doping.
• Note that an n-channel device is formed with a
  p-type substrate.

10
N-channel enhancement mode MOSFET

• As VGS increases further, more electrons are
  drawn into the inversion layer and the channel
  resistance decreases (The device operates as a
  voltage controlled resistor).
• However

11
N-channel enhancement mode MOSFET

• The voltage between gate and channel varies from
  VGS at the source end to VGS -VDS at the drain
  end.
• Thus as the voltage at the drain end, VDS , is
  increased the effective gate-channel voltage
  (vertical field) is decreased.

12
N-channel enhancement mode MOSFET

• This causes the carrier density at the drain end
  of the inversion layer to decrease.
• The current levels off or saturates.
• The FET is then said to have entered its
  saturation region (This expression had a
  different meaning in our discussion of BJTs).

13
N-channel enhancement mode MOSFET

• The boundary where saturation starts occurs at
  (VGS VDS ) VT.
• i.e. VDS (VGS VT)
• Ideally we would want a further increase in VDS
  to have no effect on the drain current ID

14
N-channel enhancement mode MOSFET

• In practice as VDS is increased further ID also
  increases.
• This is due to a reduction in the effective
  channel length with VDS .
• We note, for design purposes, that the gate
  current (IG) is effectively zero. (We have an
  insulating oxide region)

15
N-channel Depletion mode MOSFET

• In a depletion mode MOST a channel is built into
  the device.
• Conduction occurs at VDS 0.
• (The threshold voltage VT is negative)

16
Symbol for N-channel depletion mode MOSFET

• Connection to substrate shown.
• The solid line indicates that a physical channel
  exists at VGS 0.

17
P-channel devices

• These are widely used, particularly in
  Complementary MOS (C-MOS) circuits.
• Electron mobility is larger than hole mobility so
  n-channel devices are faster, i.e. they have a
  higher frequency response.

18
Plots and Equations, Enhancement mode, VT ? 2 V
19
FET Plots and equations

• The FET is a voltage controlled device.
• The control parameter is VGS compare with IB
  in the BJT.

20
Loose equivalences

• FET
• Drain
• Source
• Gate

• BJT
• Collector
• Emitter
• Base

21
Plots and Equations
Saturation region
22
Plots and Equations
Triode region
23
Transfer Characteristic

• Gives the relationship between ID and VGS in the
  saturation (constant current) regime.
• e.g. for an enhancement mode device

24
Transfer Characteristic

• This I-V curve in the saturation region can be
  approximated by the parabola
• This equation is very important!
• The ID-VGS relationship is not a linear one!

25
Transfer Characteristic

• K is a device parameter whose value is typically
  0.25mA/V2

26
Transfer Characteristic

• Detailed analysis shows that
• L channel length, W channel width, ?e
  electron mobility and Cox is the capacitance per
  unit area formed by the the gate-oxide- substrate


27
Transfer Characteristic

• We could allow for channel length modulation by
  including a small linear dependence of ID on VDS
  in the saturation region.

28
Non-saturation (triode) region
29
Non-saturation (triode) region
30
Small Signal Model

• In the saturation region we can model the square
  law device by a linear small signal equivalent
  circuit.
• (Although the device characteristic is a parabola
  we approximate it by a straight line for small
  signals)

31
Small signal model
32
FET Small Signal Equivalent Circuit
33
FET Small Signal Equivalent Circuit

• Channel length modulation makes the output
  resistance in saturation finite

r0
34
Bias Circuit A Voltage Divider Bias

• Remember IG 0

VDD
RD
R1
ID IS
D
IG
S
G
R2
VGG
RS
IS ID
GND
35
Bias Circuit A

• Solve VGS VGG IDRS
• with
• to give

36
Bias circuit A
37
Bias circuit A

• This is a quadratic equation for ID.
• Usually one solves for ID then for VGS and
  determines the small signal transconductance gm
  as

38
Bias circuits

• We note that gm is determined by the d.c. bias
  condition in much the same way as the dynamic
  resistance r? was for the BJT.

39
Bias circuit B (Drain Feedback Bias)
VDD
RD
ID
RG 100M?
IG 0
IS ID
GND
40
Bias circuit B

• IG 0
• VGS VDS
• VDD-RDID- VDS 0
• For fixed supply VDD, an increase in ID means VDS
  decreases. This corresponds to a decrease in VGS
  which tends to decrease ID via
• RG is large to minimise current flow from output
  back to input (we assume IG 0).

41
Common Source Amplifier

• Same procedure as for BJT but using the simpler
  FET small signal equivalent circuit
• Remember the FET has Zin? and id is

ig ?0
id
G
D
vgs
gmvgs
vds
S
42
For Example Common Source Amplifier with Bias
Circuit A
VDD
RD
R1
vout
R2
RS
vi
GND
43
For Example Common Source Amplifier with Bias
Circuit A
D
id
RD
gmvgs
vds
S
