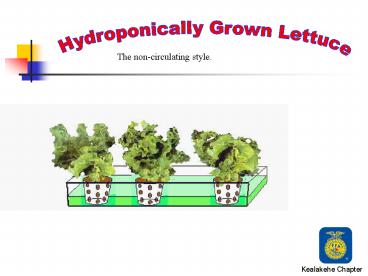

Hydroponically Grown Lettuce

1
Hydroponically Grown Lettuce
The non-circulating style.
Kealakehe Chapter
2
What is Hydroponics?
Hydroponics is the science of growing plants in
water without soil.
Kealakehe Chapter
3
History of Hydroponics
Babylon
Kealakehe Chapter
4
History of Hydroponics
Aztecs
Kealakehe Chapter
5
History of Hydroponics
Loi
Kealakehe Chapter
6
History of Hydroponics
WWII
Kealakehe Chapter
7
Advantages of Hydroponics
Less insects
More control of the growing environment of plant
Year-round supply
Minimal use of space
Kealakehe Chapter
8
Types of Hydroponics
Circulating hydroponics system
Non-circulating hydroponics system
Kealakehe Chapter
9
Materials Needed
for the box

• 1- 2x 3Sheet Ply wood Board
• Nails
• Staples
• Net Pots
• 1- 2x 3 Styrofoam Board
• 2 pieces of 3of 2x 4 wood
• 2 pieces of 2 of 2x 4 wood
• 1- 3 x 4 black plastic liner

Kealakehe Chapter
10
Equipment Needed

• Hammer
• Hand Saw or Skill Saw
• Tape Measure
• Utility Knife
• Staple Gun

Kealakehe Chapter
11
Building the Box

• Measure and Cut Sheet plywood to fit Styrofoam
  Board
• Next, measure and cut the 2x 4 wood

Kealakehe Chapter
12
Building the Box

• Attach the 2 X 4 box frame to the
• 2 x 3 plywood
• Measure the black plastic liner and drape the
  inside of the 2x 3 box, fasten liner using
  staple gun

Kealakehe Chapter
13
Box Cover

• Place Styrofoam on top of the 2x 3 box
• Use a utility knife to cut holes the size of the
  net pot and making sure that they are 5 inches
  apart (a total of 12 holes) evenly spaced

Kealakehe Chapter
14
Box Cover

• Place net pot in hole to make sure that it fits
  snuggly
• Note you dont want to cut the hole too big so
  sunlight will not enter the box.

Kealakehe Chapter
15
Germinating Seedlings

• ? Place seeds in Oasis Growing media
• ? Place the Oasis Block in a Tupperware container
  or planting flat and water oasis so it is
  saturated.

Kealakehe Chapter
16
Germinating Seedlings

• Seeds will emerge usually in 10 21 days
• Seeds then can be transplanted into the net pot
  and placed in non-circulating hydroponic box

Kealakehe Chapter
17
Nutrient Setup

• Fill hydroponics box half-way with water

• Place equal proportions of fertilizer solution
  from stock tanks.

• Adjust fertilizer level

• Adjust pH level as needed

Kealakehe Chapter
18
Maintenance of Plants
Check your fertilizer and pH levels at least
every other day to maintain proper growing
environments for your plant.
Kealakehe Chapter
19
Harvesting of Plants
Lettuce will mature around from 45-80 days and
will be ready for harvest.
Kealakehe Chapter
20
Hydroponically Grown Lettuce
The non-circulating style.
Questions?
Kealakehe Chapter
