Title: Defects in solids

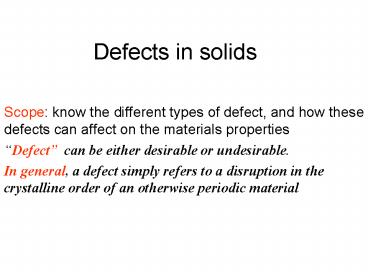

1Defects in solids
- Scope know the different types of defect, and
how these defects can affect on the materials
properties - Defect can be either desirable or undesirable.
- In general, a defect simply refers to a
disruption in the crystalline order of an
otherwise periodic material
2Types of defects in crystal structure
2.Line defect Dislocation
1.Point defect Vacancy atoms Interstitial
atoms Substitutional atoms
- 3.Area defect
- Grain boundaries
3Point defect
- Vacancy atoms
- Interstitial atoms
- Substitutional atoms
4vacancy defect
- The equilibrium number of vacancies ND depend on
- Temperature T
- Activation energy QD
- Total number of atomic sites
-
5Examplethe effect of temperature on the vacancy
concentration
- Calculate the concentration of vacancies in
copper at room temperature (25oC). What
temperature will be needed to heat treat copper
such that the concentration of vacancies produced
will be 1000 times more than the equilibrium
concentration of vacancies at room temperature?
Assume that 20,000 cal are required to produce a
mole of vacancies in copper.
6Impurities
- impurity addition of an atom of a different
species than the host or matrix - Example Defect does not necessarily imply a bad
thing - addition of C to Fe to make steel
- addition of Cr to Fe for corrosion resistance
- Alloys other types of atoms are deliberately
added to give the material certain properties - Example alloy of silver and copper (silver is
highly corrosion resistant but very soft - Copper enhance the strength of the silver.
7Solid solution
- Solid solution is a particular type of alloy
- Two types substitutional and interstitial
- solvent the host material, usually the
element or compound - present in the greatest amount.
- solute the minor phase, added to the solvent.
Usually the - element or compound present in minor
concentrations. - phase is a region of uniform composition or
crystal structure - What would a solid solution look like?
8Factors affect on solid solution
- 1. Atomic size factor2. Crystal structure3.
Electro negativity (they will form an
inter-metallic compound)4. Valences (metal with
high valence have a stronger tendency to dissolve
than another metal
9Comparison between a substitutional
solidsolution and an intermetallic compound
Intermetallic compound (1)Specific
stoichiometry, (2) Crystal structure is such
that this stoichiometry is allowed (3)bonding is
partially metallic and partially covalent (or
ionic)
Solid solution (1) random placement of solute
atoms (2) metallic bonding
10LINE Defect- dislocation
- Dislocation is a linear or one-dimensional
defect. - Dislocations result from solidification from the
melt, from mechanical work (e.g., rolling,
drawing, compressive impact, tensile or shear
stress), or from thermal stresses - It is very difficult to prepare a
dislocation-free crystal!!! - Type of dislocation
- 1. edge dislocation a missing half plane of
atoms - 2. Screw dislocation layers twisted with respect
to each other - 3. A combination of the two Mixed
11Types of dislocation
Edge dislocation Misalignment of atomic planes
due to the extra half plane
screw dislocation Crystal is "cut halfway through
and then slide sideways helical path through
structure hence screw.
12Significance of dislocation
- Dislocation is the main reason for plastic
deformation in materials. - Plastic deformation is due to the motion of a
large number of dislocations
13Slipping system
- Slip plane planes where dislocation move
- Slip directions Within the slip planes there are
preferred crystallographic directions for
dislocation movement - Slip system The set of slip planes and
directions constitute - The slip planes and directions are those of
highest packing density - BCC and FCC crystals have more slip systems as
- compared to HCP,
14Slip in Single Crystals - Resolving the
AppliedStress onto the Slip System
- Resolved shear stress
- Critical resolved shear stress - The shear stress
required to cause a dislocation to move and cause
slip -
15Critical resolved shear stressSchmids Law
Maximum value of (cosf cos?) corresponds to f ?
45o ? cosf cos? 0.5 ? sy 2tCRSS
16Slip in single crystal
Each step (shear band) result from the generation
of a large number of dislocations and their
propagation in the slip system with maximum
resolved shear stress.
17Polycrystalline Materials
- Most materials are polycrystalline and are made
of many single crystals - during solidification the crystal nucleate and
grow from the liquid in a random orientation - the grains impinge on each other when the
solidification - is complete
- junction of grains are grain
- boundaries
183.Surface defect grain boundaries
- Grain boundaries
- are boundaries between crystals.
- are produced by the solidification process, for
example. have a change in crystal orientation
across them. - impede dislocation motion.
19Plastic deformation
- Plastic deformation permeate deformation in
materials - Plastic deformation is due to the motion of a
large number of dislocations. - Plastic Deformation of Polycrystalline Materials
20Plastic Deformation of Polycrystalline Materials
- Slip directions vary from crystal to crystal ?
Some grains are unfavorably oriented with respect
to the applied stress (i.e. cosf cos? low) - Even those grains for which cosf cos? is high
may be limited in deformation by adjacent grains
which cannot deform so easily - Dislocations cannot easily cross grain
boundaries because of changes in direction of
slip plane and disorder at grain boundary - As a result, polycrystalline metals are stronger
than - single crystals (the exception is the perfect
single crystal without any defects, as in
whiskers)
21SUMMARY
Point, Line, and Area defects arise in solids.
The number and type of defects can be varied
and controlled. Defects affect material
properties (e.g., grain boundaries control
crystal slip) Defects may be desirable or
undesirable (e.g., dislocations may be good
or bad, depending on whether plastic
deformation is desirable or not.
.)
20
