ASTR 1020

1

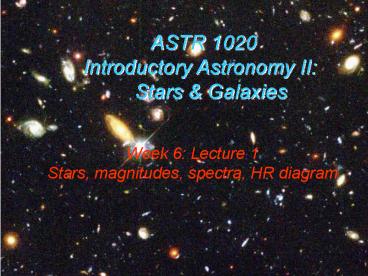

ASTR 1020 Introductory
Astronomy II Stars Galaxies
Week 6 Lecture 1 Stars, magnitudes, spectra, HR
diagram
2
Announcements Thursday
Midterm on Thursday Observing
on Thrusday at 700 PM Summary of Week 5
The Sun gravity ltgt
pressure 4H gt 4He energy
Stars 0.1 to 100
Mo H-R diagram Should
have read Chapter 15 (Surveying the Stars)
Stellar properties distances,
luminosities, masses How do we
determine these? The H-R diagram
Evolution of stars towards the
stellar graveyard
3
Measuring the Stars

• Measuring stellar luminosities
• Measuring distances
• Classifying stars

4
Inverse Square Law of Brightness
Apparent Brightness Lo / (distance)2
5
Stellar Luminosity

• What we measure APPARENT BRIGHTNESS
• how bright it appears to us here on Earth
• What we want to know (absolute) LUMINOSITY
• how much energy is emitted (Joules/sec or watts)
• Need to know DISTANCE to the star

6
How Do We Measure the Distances to Astronomical
Objects?

• Well keep asking this question again and again
  over the semester
• Several techniques, each valid for different
  objects at different distances
• Technique 1 Parallax

7
Parallax
Determining Distance Using

• Parallactic angle (p) 1/2 of the change in
  angular position over 6 months
• Larger for closer objects
• Smaller for farther objects

8
Parallax formula

• New Distance Unit invented for just this method
  of distance measurement!!
• Parsec (parallaxarcsecond)
• An object at a distance of one parsec has a
  parallax of 1 arcsecond
• Distance (parsecs) 1/p (arcsec)
• 1 parsec 1 pc 3.26 light years
• Remember 1 arcsecond 1/3600 degree!

9
The biggest ground-based telescopes with adaptive
optics can measure stars positions to accuracies
of about 0.01 arcseconds. How far away can they
map the positions of stars via parallax?
Clicker Question

• 1 pc
• 10 pc
• 100 pc
• 1000 pc

10
Parallax

• B. maximum distance is set by the accuracy with
  which you can measure positions in the sky (space
  does better than ground)
• Distance (pc)
• 1 / 0.01 arcsec
• 100 pc 320 ly


d (in parsecs) 1 / p (in arcsec)
11
Brad and Angelina are two stars that have the
same apparent brightness. Brad has a larger
parallax than Angelina. Which star is more
luminous?
Clicker Question

• Brad
• Angelina
• Not enough information to know

12
ANSWER

• Brad has a larger PARALLAX. Thus, he is closer to
  us.
• They both have the same APPARENT BRIGHTNESS, but
  Brad is closer
• B. Angelina must be more luminous.

13
Best parallax measurer Hipparcos satellite
(1989-1993)

• Space measurements not affected by atmosphere
• Measurement made many times until accurate to
  0.001 arcsec (?3300 light years)
• 100,000 stars mapped
• (2.5 million to slightly lesser accuracy)

14
Apparent Magnitudes

• Dates back to the original Hipparchus (the
  person! 190-120 B.C.)
• Brightest stars were of first magnitude
• Dimmest stars were of sixth magnitude
• Everything else sorted in between.
• Later calculated more precisely and found our eye
  sees on a logarithmic scale.
• Linear difference of 5 in magnitude is a factor
  of 100 in apparent brightness
• Tied to the brightness of Vega gt 0-th magnitude
•
  5-th is 100 times dimmer
•
  10-th is 104 times dimmer
•
  15-th is 106 timed dimmer
• M -2.5 log (Flux / Flux of Vega)
• NOTE THE BACKWARDS SCALE!
• Bigger number is fainter!

15
Tom is a magnitude 5 star and Katie is a
magnitude 10 star. Who is brighter and by how
much?
Clicker Question

• Tom appears 5 times brighter than Katie.
• Katie appears 5 times brighter than Tom.
• Tom appears 100 times brighter than Katie.
• Katie appears 100 times brighter than Tom.
• They are both the same brightness, just different
  colors.

16
Two ways to measure temperature

• 1) Thermal spectrum (i.e. Wiens Law, Chapter 5)
• Hotter bluer cooler redder

17
2.) Spectral class even better!

• Different atoms and molecules can be
  characterized as tough or fragile
• The more complex an atom or molecule (more
  electrons, more atoms), the more fragile it is
• Fragile types are more easily ionized or knocked
  apart by collisions in high temperature regions
• ? If there are signs of fragile atoms and
  molecules, the temperature must be low

18
Spectral Classification O B A F G K M

• Hottest stars O B mostly helium, little hydrogen
• Hot stars A F helium, hydrogen
• Cooler stars G hydrogen, heavier atoms
• Coolest stars M molecules, (complex absorption
  bands)

19
Spectra help classify stars
20
A bit of history Classifying Stars

• 1900 , Harvard College observatory
• Women were hired by the observatory director as
  computers to help with a new survey of the
  Milky Way
• Most had studied astronomy, but were not allowed
  to work as scientists

21
Devising the strange temperature code

• Original classification of spectra (1890) was
• A strongest hydrogen feature
• B less strong hydrogen C, D, etc.
• Annie Jump Cannon realized that a different
  sequence made more sense (1910)

? O B A F G K M !!
22

• Important the different spectral lines seen are
  NOT primarily because stars are made of different
  elements
• Most stars are made mostly of hydrogen
• The variety in spectra is due to temperature via
  the survival of electrons attached to atoms and
  molecules in at the stars surface

Cecelia Payne-Gaposchkin figured this out
23
Astronomers ToolboxWhat do we know how to do
now?

• Measure Distance
• parallaxgood to nearby stars but not beyond
• Measure Luminosity
• measure apparent brightness and distance, infer
  luminosity
• Measure Temperature
• Wiens law, or, better yet, take spectra and use
  spectral classification.
• Next Mass

24
Masses are much harder than distance, luminosity,
or temperature

• Since we are only ever seeing a point source, it
  is hard to determine how much mass is contained.
• If we could see another nearby object (another
  star maybe?) we could use the gravity between the
  objects as a measure of the mass.

25
Binary Stars to the Rescue!!

• Types of binary star systems
• Visual Binary
• Eclipsing Binary
• Spectroscopic Binary
• About half of all stars are in binary systems

26
Visual Binary
We can directly observe the orbital motions of
these stars
27
Eclipsing Binary
We can measure periodic eclipses
28
Spectroscopic Binary
We determine the orbit by measuring Doppler shifts
29
Newtons Laws of gravity provide the mass
Direct mass measurements are possible only for
stars in binary star systems Once we know
p period a average separation We can
solve Newtons equations for mass (M)
Isaac Newton
30
ASTR 1020 Introductory
Astronomy II Stars Galaxies
Week 7 Lecture 1 HR diagram Stellar Evolution
31
Announcements Thursday
Midterm on Thursday Observing
on Thrusday at 700 PM Summary of Week 5
The Sun gravity ltgt
pressure 4H gt 4He energy
Stars 0.1 to 100
Mo H-R diagram Should
have read Chapter 15 (Surveying the Stars)
Stellar properties distances,
luminosities, masses How do we
determine these? The H-R diagram
Evolution of stars towards the
stellar graveyard
32

Most massive stars 100 MSun Least
massive stars 0.08 MSun (MSun is the
mass of the Sun)
33
(No Transcript)
34
Main sequence stars

• Burning hydrogen in their cores
• Temperatures are hotter for more massive stars
  (more gravitational pressure ? higher T, remember
  Equation of State)
• More luminous (higher T ? much higher fusion
  rates)

35
Lifetimes on Main Sequence (MS)

• Stars spend 90 of their lives on MS
• Lifetime on MS amount of time star fuses
  hydrogen (gradually) in its core
• For Sun (G), this is about 10 billion years
• For more massive stars (OBAF), lifetime is (much)
  shorter
• For less massive stars (KM), lifetime is longer

36
George and Abe are two main sequence stars
George is an M star and Abe is a B star. Which is
more massive? Which is redder in color?
Clicker Question

• George is more massive and redder
• Abe is more massive and redder
• George is more massive Abe is redder
• Abe is more massive George is redder
• They are both main sequence, theyre the same
  mass and same color.

37
Main-Sequence Star Summary
High Mass High Luminosity Short-Lived
Large Radius Hot Blue Low Mass Low
Luminosity Long-Lived Small Radius Cool
Red
38
Astronomers ToolboxWhat do we know how to do
now?

• Measure Distance
• parallaxgood to nearby stars but not beyond
• Measure Luminosity
• measure apparent brightness and distance, infer
  luminosity
• Measure Temperature
• Wiens law, or, better yet, take spectra and use
  spectral classification.
• Measure Mass
• For stars in binary orbits, if we can get their
  orbital parameters, we can figure out their mass

39
H-R diagram depicts Temperature Color
Spectral Type Luminosity Radius
Luminosity
Temperature
40
Luminosity Class I. Supergiants II. Bright
Giants III.Giants IV. Subgiants V. Main
Sequence
Luminosity
The Sun is a G2 V star
Temperature
41

• As stars run out of hydrogen fuel their
  properties change (generally they turn into red
  giants-more on why next week)
• Top end of main sequence starts to peel off
• Pleiades star cluster shown ? no more O and B
  stars

42
Main-sequence turnoff point of a cluster tells us
its age
43
Where we see this best Star Clusters

• Groups of 100s to millions of stars
• All about the same distance (apparent brightness
  tracks luminosity well)
• All formed about the same time (i.e. all are same
  age)
• Range of different mass stars!

44
1.) Open Clusters

• Loose groups of 1000s of stars
• This is where most stars in the Galaxy are born

45

• Pleiades an open cluster of stars about 100
  million years old
• Compare with Suns age of about 4.6 BILLION years
  old

46
(No Transcript)
47
2.) Globular Clusters

• Generally much older- up to 13 BILLION years
• millions of stars, densely packed
• Intense gravitational interactions

48
(No Transcript)
49
Variable Stars

• Any star that varies significantly in brightness
  with time is called a variable star
• Some stars vary in brightness because they cannot
  achieve proper balance between power welling up
  from the core and power radiated from the surface
• Such a star alternately expands and contracts,
  varying in brightness as it tries to find a
  balance

50
Pulsating Variable Stars

• The light curve of this pulsating variable star
  shows that its brightness alternately rises and
  falls over a 50-day period

51
Cepheid Variable Stars

• Most pulsating variable stars inhabit an
  instability strip on the H-R diagram
• The most luminous ones are known as Cepheid
  variables

52
Evolution of Low Mass Stars (less than 2x Suns
mass)

• Protostars ? Main sequence
• Most of its life on Main sequence (billions of
  years)
• What happens when it runs out of hydrogen?

53
When The Core Runs Out Of Hydrogen, All That is
Left in the Center is Helium

• But the temperature is not hot enough to fuse
  helium.
• With fusion no longer occurring in the core,
  gravity causes core collapse ? key theme
• Core temperature starts to heat up
• Now Hydrogen fusion has moved to shells
  surrounding the core
• Pushes outer layers of the star out.

RED GIANT
54
Red Giants

• As core collapses, hydrogen SHELL burns faster
  and faster more energy created
• Luminosity increases, lifts outer parts of star
• Star becomes brighter, larger and cooler!!
• All the while, the core is continuing to shrink
  and is heating up.

55
What happens to the Earth?

• Red giants have sizes up to 100 x the Suns
  radius, 1000 times the luminosity
• Sun will swallow Mercury, Venus EARTH!!!
• In 5-7 billion years, we will be toast.

56
Putting Doom into Perspective

• 65 million years ago, the dinosaurs died
• Present-day mammals (like us) evolved from small
  rodents alive at that time
• In the next 5 billion years, we have about 80
  equal sized time intervals - enough time to
  re-evolve over and over again if necessary

57
Eventually, The Core Is Hot Enough To Burn Helium

• At Temp gt108 K helium flash occurs and helium
  ignites.
• Hydrostatic equilibrium has been restored and the
  core is now balanced again happily burning
  helium to carbon as a Horizontal Branch Star

58
Electron Degeneracy Pressure Causes The Helium
Flash

• Typical Conditions
• Temperature rise of gas corresponds to pressure
  rise (SOLAR THERMOSTAT)
• As pressure goes up, gas expands and temperature
  drops back down.
• Nuclear fusion is kept at a constant rate
• Degenerate conditions (extremely high pressures)
• As temperature rises pressure does not change.
• No expansion, no cooling, no stabilization(no
  ther
• RUNAWAY FUSION
• (lasts for only a few hours)

59
After the Helium Flash

• Helium burning into Carbon in the core- stable!
• Hydrogen still burning in a shell outside the
  core

60
On the HR Diagram

• Helium burning expands the core Hydrogen shell
  also lifted and slightly cooled
• Energy output DECREASES slightly after helium
  flash (still brighter than main sequence)
• Outer layers fall and heat

61
A star moves upwards and to the right on the HR
diagram. What is probably happening in the core?
Clicker Question

• The core has just started to burn a new element
• All nuclear burning is slowing down
• The inner core temperature is cooling
• The inner core is collapsing and heating up
  shell burning is increasing

62
HR Diagram for an old globular cluster
63
Time scales for Evolution of Sun-like Star

• H core burning Main Sequence 1010 yr
• 10 billion years
• Inactive He core, H shell burning Red Giant 108
  yr
• 100 million years
• He core burning (unstable), Helium Flash Hours

• He core burning (stable), Horizontal
  Branch 107 yr
• 10 million years

64
Variable Stars

• Any star that varies significantly in brightness
  with time is called a variable star
• Some stars vary in brightness because they cannot
  achieve proper balance between power welling up
  from the core and power radiated from the surface
• Such a star alternately expands and contracts,
  varying in brightness as it tries to find a
  balance

65
Pulsating Variable Stars

• The light curve of this pulsating variable star
  shows that its brightness alternately rises and
  falls over a 50-day period

66
Cepheid Variable Stars

• Most pulsating variable stars inhabit an
  instability strip on the H-R diagram
• The most luminous ones are known as Cepheid
  variables

67
(No Transcript)
