HYDROLOGIC COMPUTER MODELING Washington Hydrology Society March 2006

1

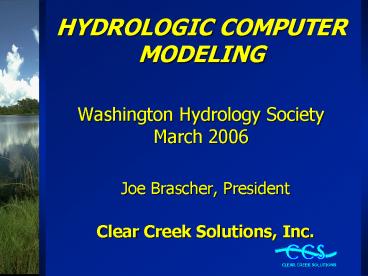

HYDROLOGIC COMPUTER MODELINGWashington
Hydrology SocietyMarch 2006

• Joe Brascher, President
• Clear Creek Solutions, Inc.

2
Clear Creek Solutions Hydrologic Modeling
Expertise
Clear Creek Solutions, Inc., provides complete
range of hydrologic and stormwater modeling
services.

• Clear Creek specializes in continuous simulation
  hydrologic modeling.
• We have 30 years of experience modeling complex
  hydrologic and stormwater problems.
• We created the Western Washington Hydrology
  Model Version 3 (WWHM3) for Washington State
  Department of Ecology.
• We teach WWHM and HSPF workshops.

3
Presentation

• Introduction
• History of Hydrologic Modeling
• Single Event Models
• Continuous Simulation Models
• Western Washington Hydrology Model 3
• Questions Answers

4
History of Hydrologic Modeling

• In the beginning Single event

5
History of Hydrologic Modeling

• Today Continuous simulation

6
Single-event Hydrologic Models

• Based on flood frequency.
• When slide rules roamed the earth modeling had to
  be simple.
• Rational Method (Q CIA)
• SCS Method (Curve Numbers)
• TR-20, TR-55, SBUH, HEC-1, Waterworks

7
Typical Synthetic Precipitation Event
8
Historical Precipitation Event
9
Single-event problems

10
Single-event problems

• Single-event frequency standards are based on
  inappropriate assumptions.
• Single-event methods cannot compute flow
  durations (percent of time a flow is exceeded).

11
Single-event inappropriate assumptions

• Assume stormwater detention facilities are empty
  at start of a rain event.
• Assume too large predevelopment runoff when
  using SCS Curve Numbers.
• Assume matching flow frequencies will result in
  no increase in erosive flows.
• Assume 100-yr storm causes 100-yr flood.

12
Single-event designed stormwater facilities fail
because

• The facilities are too small to store the
  additional runoff.
• The number of hours of erosive flows increases
  even if the flow frequency does not.
• The downstream riparian corridor is damaged by
  the increase of erosive flows.

13
Continuous Simulation Models

• Continuous simulation hydrology models the entire
  hydrologic cycle for multiple years.

14
Continuous Simulation Models

• Stanford Watershed Model (original)
• HSPF (EPA)
• KCRTS (King Co)
• MGS Flood (WSDOT)
• LIFE (CH2M Hill)
• WWHM (Ecology)
• WWHM3 PRO (Clear Creek Solutions)

15
Continuous Simulation Models

• HSPF DOS-based, steep learning curve,
  recommended only for experienced users
• KCRTS Limited to King County, pre-generated
  runoff from HSPF, limited LID capabilities
• MGS Flood (WSDOT) HSPF-based, extended precip
  time series, proprietary pond sizing option

16
Continuous Simulation Models

• LIFE (CH2M Hill) soil measurement-based,
  proprietary
• WWHM (Ecology) HSPF-based, NOAA precip records,
  LID elements included in WWHM3
• WWHM3 PRO (Clear Creek Solutions)
• WWHM3 with extra features

17
Western Washington Hydrology Model (WWHM)

• Developed for the State of Washington Department
  of Ecology.
• Project Manager Dr. Foroozan Labib
• Department of Ecology
• PO Box 47600
• Olympia, WA 98504-7600
• [phone]
• email flab461_at_ecy.wa.gov

18
Where Are We Going?
19
Where Are We Going?

• Models that do more
• Better user interfaces
• Combining the best models

20
WWHM

• Ecologys Stormwater Management Manual
• Specifies a flow duration standard
• Requires the use of Western Washington
  Hydrology Model (WWHM)

21
WWHM
Developed for the 19 counties of western
Washington. Part of Ecologys Stormwater
Management Manual

22
WWHM
Available free from the Washington State
Department of Ecology web site
http//www.ecy.wa.gov/programs/wq/stormwater/

23
WWHM Flow Duration Analysis Percent of time
the flow exceeds a specific value.

• Requires continuous simulation hydrology to
  compute flow duration.

24
WWHM

• Flow duration standard based on erosive flows.
• Erosive flow range ½ of the 2-year to the
  50-year

25
WWHM

• Guidance/help is provided by
• User Manual
• Training Workshops
• CCS Project Book

26
Where the rain goes
100
Evapotranspiration
Surface Runoff
Interflow

Groundwater/Base Flow
0
Land use development
Forest
Impervious
27
WWHM

• WWHM uses continuous simulation hydrology to
  compute stormwater runoff for both predevelopment
  and post-development conditions.
• Predevelopment Post-development

28
WWHM

• WWHM continuous simulation computations from
  HSPF (included in WWHM software).
• HSPF runs in the background with calibrated
  parameter values and local meteorological data.
• HSPF sponsored and funded by EPA and USGS.

29
WWHM

• Drainage areas are divided into pervious land
  segments based on soil, vegetation, and land
  slope and impervious land segments.
• Pervious and impervious segments are linked to
  conveyance pathways (pipes, ditches, ponds,
  streams, rivers, lakes, etc.)
• Historic rainfall and evaporation are used as
  input.

30
WWHM

• The entire water cycle is modeled on an hourly
  or shorter time step for multiple years.
• The model computes changes in soil moisture,
  evapotranspiration, and runoff every time step.
• Three types of runoff
• surface runoff
• interflow
• groundwater/base flow

31
WWHM

• Calibrated parameter values are built into WWHM
  (different calibrated parameter values are used
  for different climatic regions).
• Local precipitation and evaporation data are
  included in WWHM.

32
WWHM

• User locates project on county map, inputs pre-
  and post-development land use, and proposed
  mitigation measure(s).
• Predevelopment and mitigated flows are compared
  at Point of Compliance (POC).
• Mitigated flows are not allowed to exceed flow
  duration standards.

33
WWHM

• User outputs report file and project file.
• Output files can be submitted to the permitting
  agency for approval.
• Permitting agency can load project file and
  rerun analysis, if needed.
• Report file summarizes input data and output
  results.

34
WWHM

• WWHM-designed ponds meet Washington State
  Department of Ecologys standards

35
WWHM LID Options

• WWHM includes the following LID options
• Dispersion of impervious surface runoff on
  adjacent pervious surface (example roof runoff
  to lawn)
• Infiltration of impervious surface runoff on
  adjacent pervious surface (soil dependent)
• Pervious pavement
• PSAT (Puget Sound Action Team) recommends how to
  represent other LIDs in WWHM

36
Changes from WWHM2 to 3

• Goal give the user greater flexibility and
  options.
• Ecology wanted
• High groundwater element
• Lateral flow between basins
• More elements
• More output options
• New LID options

37
Changes from WWHM2 to 3

• Version 2 projects were limited to drainages of
  less than 320 acres because of lack of conveyance
  options (channels and pipes).
• Version 3 projects have no limitations entire
  watersheds can be modeled.
• Version 3 can be customized to local
  jurisdictions (e.g., City of Bellingham)

38
Changes from WWHM2 to 3

• 14 elements
• basin
• trapezoidal pond
• tank
• lateral pervious basin (NEW)
• high groundwater/wetland (NEW)
• vault
• open channel (NEW)
• time series (NEW)
• lateral impervious basin (NEW)
• gravel trench bed (NEW)
• sand filter
• flow splitter (IMPROVED)
• irregular-shaped pond
• stage-storage-discharge table

39
Changes from WWHM2 to 3

• Complex stormwater systems can be modeled

40
WWHM3 LID Analysis Tool

• WWHM compares different development options
  selected by the user and shows the runoff
  distribution

POC 1 Conventional
POC 2 Dispersion (20 reduction in pond volume)

POC 3 Dispersion and Infiltration (84
reduction in pond volume)
41
WWHM3 PRO

• WWHM3 with additional enhancements
• user selected time step
  (5 minutes to one hour)
• tagged flow routing
• additional elements
• culverts
• green roofs
• landscape swales/bioretention/ rain
  gardens
• SWMM routing connection
• GIS land use connection

42
City of Bellingham

• Comprehensive Stormwater Plan (streams and pipe
  systems) Includes SWMM and GIS connections

43
Seattle Public Utilities
Natural Drainage System Program
Green/vegetated/eco-roof modeling

44
Examples of Green Roofs

45
Green Roof Model Results

Hamilton Bldg, Portland, OR
46
Green Roof Flow Duration

Blue Conventional Roof Red Green Roof

47
Green Roof Hydrograph Change

48
Seattle Public Utilities
Rain garden/bioretention/landscape swale
modeling

49
Seattle Public Utilities
110th Street Cascades 12 swales in 3 blocks

50
WWHM3 PRO

• SWMM routing connection

51
WWHM3 PRO

• GIS connection

52
WWHM3 PRO

• WWHM3 PRO will be available
• Spring 2006
• See
• www.clearcreeksolutions.com
• for details.

53
Turning Hydrologic Modeling Upside Down
54
WWHM3 PRO Future Enhancements

• additional low impact development/
• source BMPs
• HSPF water quality
• 3-D graphical interface
• your ideas?

55
Questions?
