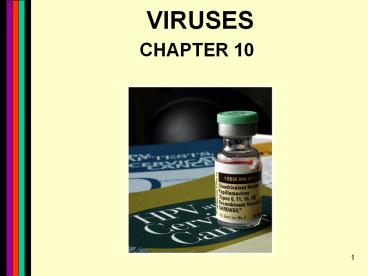

VIRUSES

1
VIRUSES

• CHAPTER 10

2
What are Viruses?

• Obligate intracellular parasites
• Viral components
• Nucleic acids
• Capsid (protein)
• Envelope

(Lipid w/intg proteins)
3
4 overall types of viruses

• 1) bacteriophages - almost always DNA with a
  protein capsid. Lytic and lysogenic types
• 2) DNA viruses of Eukaryotes - often have
  phospholipid envelope outside of capsid
• 3) RNA viruses - have RNA as genetic material.
  Often hypermutable
• 4) RNA retroviruses - have reverse
  transcriptase. Many can integrate into host
  chromosome

4
Viral Shapes and Sizes
TMV, M13

• Helical
• Icosahedral

T4 and adenovirus
5
Some viruses
T-even
lambda
HIV
6
Infectious Properties

• Viral Host range
• Viral specificity
• Viral Origins

Depends on target receptor
Depends on target receptor
Selfish DNA? Transposable elements
7
Bacteriophage
Most diverse?
8
Bacteriophages

• Plaque counts

9
Bacteriophages

• Replication

10
Bacteriophage Virus that attacks
bacteria and replicates by invading a living
cell and using the cells molecular machinery.
Structure of T2 phage DNA
protein
Hershey-Chase Bacteriophage Experiment - 1953
11
Lytic cyle
Fig. 2.5 Life cycle of virulent T2 phage
12
(No Transcript)
13
Composition and Structure

• Composition
• Nucleic acid
• Genome size
• Modified bases
• Protein
• Protection
• Infection

• Structure (T4)
• Size
• Head or capsid
• Tail

14
Infection of Host Cells

• Adsorption
• LPS for T4

lamB for l

• Irreversible attachment

• Sheath Contraction

• Nucleic acid injection

15
Bacteriophages
16
Lytic Phage Multiplication Cycle

• Eclipse
• Early genes
• Phage DNA synthesis
• Late genes
• Intracellular accumulation
• Lysis and Release

17
Assay for Lytic Phage
Phage

• Plaque assay
• Method
• Plaque forming unit (pfu)
• Measures infectious particles

Bacteria

Phage
18
Lytic vs Lysogenic Cycle?

• Role of repressor
• Role of cro gene product
• Role of proteases

Lytic copies and immediately lyses
Lysogenic integrates into host chromosome
Prophage the latent form of phage where
viral genome is
incorporated into host genome
19
Bacteriophages Lysogenic

• Lysogeny

20
Fig. 19-6
Function
Gene designation
Left end
Early promoters
Inhibits host restriction
0.3
0.7
Protein kinase
Transcribed by host RNA polymerase
Bacteriophage T7
1
T7 RNA polymerase Unknown
1.1
1. Replication cycle requires 25 minutes
Promoter
Origin of DNA replication
1.3
DNA ligase
2. Genome is linear double-stranded DNA of
39,737 bp
1.7
Nonessential
2
Inactivates host RNA polymerase
Proteins for DNA replication and host lysis
3
Endonuclease
3. T7 encodes all of its own proteins for DNA
replication and transcription
3.5
Lysozyme
4
Helicase, primase
4. Time to complete 100 T7 genome copies from
a single copy 5 minutes
5
DNA polymerase
6
Exonuclease
5. Burst size (Escherichia coli host) about
300 virions/cell
Promoter
Virion protein
7
Head protein
8
6. Head size, 45 nm
9
Head assembly protein
10
Major head protein
7. Forms large plaques
Promoter
Tail protein
11
Transcribed by T7 RNA polymerase
8. T7 promoters are unique and widely used in
biotechnology
Tail protein
12
Promoter
Virion protein
13
Head protein
14
Phage structural components and maturation
proteins
Head protein
15
Head protein
16
Promoter
Tail protein
17
18
DNA maturation
DNA maturation
19
21
Events Leading to Lysogeny

• Circularization of the phage chromosome
• Cohesive ends

22
Events Leading to Lysogeny

• Site-specific recombination
• Phage coded enzyme

• Repression of the phage genome
• Repressor protein
• Specific
• Immunity to superinfection

23
Termination of Lysogeny

• Induction
• Adverse conditions
• Role of proteases
• recA protein
• Destruction of repressor

• Gene expression

• Excision

• Lytic growth

24
Significance of Lysogeny

• Model for animal virus transformation
• Lysogenic or phage conversion
• Definition A change in the phenotype of a
  bacterial cell as a consequence of lysogeny
• Modification of Salmonella O antigen
• Toxin production by Corynebacterium diphtheriae

25
Types of Bacteriophage

• Lysogenic or temperate phage Phage that can
  either multiply via the lytic cycle or enter a
  quiescent state in the bacterial cell. (e.g., ?)
• Expression of most phage genes repressed
• Prophage
• Lysogen

26
Viruses part II - Animals and Plants
Unique challenges. Must evade immune systems
and must cross 2 lipid bilayer barriers. (ie
cross into nucleus)
27
RNA Viruses

• Chromosomal Arrangements
• strand (directly transcribed)
• strand
• Double strand

28
RNA Virus Families

• 11 RNA virus families
• Picornaviridae (fmdv, polio)
• Togaviridae (rubella)
• Flaviviridae (hep C, west nile, yellow fever)
• Orthomyxoviridae (flu)

RNA viruses more prone to mutation
29
Fig. 19-18
30
RNA Virus Families (cont.)

• Retroviridae (hep B, htlv)-retrovirus
• reverse transcriptase
• Paramyxoviridae (measles, mumps, pneumonia) -
  ss strand

31
RNA Virus Families (cont.)

• Rhabdoviridae (rabies)

32
RNA Virus Families (cont.)

• Orthomyxoviridae (all influenza)

33
RNA Virus Families (cont.)

• Filoviridae
• Bunyaviridae
• Arenaviridae
• Reoviridae

34
DNA Virus Families

• Adenoviridae
• Herpesviridae
• Poxviridae

35
DNA Virus Families (cont.)

• Papovaviridae
• Hepadnaviridae

36
DNA Virus Families (cont.)

• Parvoviridae
• Emerging viruses

37
Viral Replication

• Activities
• Adsorption
• Penetration (virus or chromosome)
• Synthesis
• Maturation
• Release

38
Animal Viruses

• DNA viruses

Envelope derives from cells own plasma membrane
39
Animal Viruses

• RNA viruses
• Latent viruses

retroviruses
40
Culturing Animal Viruses

• Live animals
• Eggs

41
Culturing Animal Viruses

• Cell Culture
• Primary
• Continuous

42
Viral Cytopathic Effects

• Cytopathy
• Teratogenic effects

Damage to cells
Japanese word for little monsters mutations
that affect
tissue growth
43
Viruslike Agents PLANTS

• Satellites
• Viroids

44
Viruslike Agents

• Prions

Kuru Creutzfeld-Jacob BSE Scrapie
Alpha helix
B-pleated sheet
45
Viruses and Cancer

• Mechanism of cancer causation
• HPV

46
Viruses and Cancer

• Oncogenes/proto-oncogenes
• V-myc V-ras

Rous Sarcoma Virus RSV
Kaposis sarcoma - appears when immune system
depressed probably by herpes virus 8
47
Viruses to know something about
HPV (DNA) HIV (RNA) Flu (RNA)
Adenovirus(DNA) Herpes(DNA)
48
Herpes Simplex
After initial infection, the viruses move to
sensory nerves, where they reside as life-long,
latent viruses.
49
HPV human papilloma virus
Causes warts and some strains cause cervical
cancer teratogenic
50
HIV human immunodeficiency virus
RNA retrovirus T-cell host (CD4 T-killer
cells) needs protease to replicate binds to
CCR5 and CD4 receptors
51
Adenovirus
Common cold Usually affects respiratory
tract. sometimes engineered for gene therapy
DS DNA virus
52
Influenza
H hemaglutinin N neuraminidase
RNA virus mutates rapidly animal
reservoirs can cross species lines
