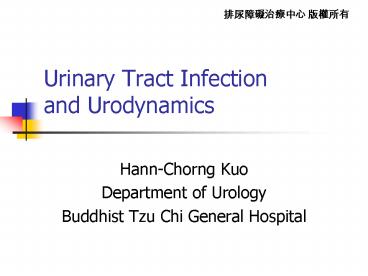

Urinary Tract Infection and Urodynamics

1
Urinary Tract Infection and Urodynamics

• Hann-Chorng Kuo
• Department of Urology
• Buddhist Tzu Chi General Hospital

2
Urinary Tract Infection

• Acute infection
• Chronic infection
• Non-specific UTI
• Granulomatous UTI- Tuberculosis
• Genital tract infection
• Complicated UTI- Surgery, Calculi

3
Acute Cystitis

• The most common form of Female UTI
• Annual incidence 0.5-0.7/person-year
• 25 of women have recurrent UTI
• 1/3 of women have recurrent cystitis within 3
  months, 75-80 recur within 2 years
• Sporadic or recurrent cystitis

4
Pathogenesis of recurrent UTI

• Bacterial factors Longer duration of
  colonization of vaginal introitus with pathogenic
  E. coli
• Host factors Women with recurrent UTI are 3-4
  times more likely to be nonsecretors of ABH
  blood-group antigen

5
Pathogenesis of recurrent UTI

• Immune status local and systemic immune
  response are weak in women with recurrent UTI
• Estrogen depletion Increased susceptibility of
  UTI in post-menopause women, a lower glycogen
  content in vaginal epithelium, vaginal bacterial
  flora shift toward E. coli G(-) bacilli

6
Pathogenesis of recurrent UTI

• Anatomical factors Distal urethral meatal
  stenosis, uterine prolapse, cystocele, increased
  postvoid residual urine
• Microbial ecology Lack of inhibitory effects of
  hydrogen peroxide producing lactobacilli against
  pathogenic micro-organisms including E. coli

7
Treatment of Acute cystitis

• First line antibiotics for 7 days
• 90 self-treatment cure rate
• Routine culture before therapy is not necessary
• Prophylactic therapy (gt2 UTI / 6Mo) decreases
  recurrence rate by 95
• Nitrofurantoin or sulfamethoxazole once daily for
  6 to 12 months

8
Acute pyelonephritis (APN)

• Uncomplicated or complicated APN
• Ampicillin or broad-spectrum cephalosporin
  combined with aminoglycoside for 2 weeks
• For relapsed APN a 6 weeks therapy according to
  culture is necessary

9
Asymptomatic bacteriuria

• Treatment for asymptomatic pyuria with positive
  culture is not mandatory
• Should be treated in diabetic, preganant women as
  well as women undergoing invasive GU procedures
• 70-80 pregnant women cured after therapy for
  7-10 days

10
Management of recurrent UTI

• Intermittent self-start therapy 92 responded
  clinically
• Estrogen therapy oral or topical estriol
• Behavioral therapy increased E coli bacteriuria
  after sexual intercourse certain contraceptives
  alter vaginal flora
• Anal sex, masturbation, sex during menstruation
  increase risk for UTI

11
Prophylaxis of recurrent UTI

• Cranberry contains fructose which interferes
  adhesion of type I fimbriated E. coli to
  uroepithelium
• Acupuncture 85 vs 58 sham 36 control group
  during 6 months
• Intravesical heparin therapy prevent bacterial
  adhesion to urothelium

12
Urodynamics and Recurrent UTI in Women

• Detrusor instability pseudo-dyssynergia
  (Dysfunctional voiding)
• Pelvic floor hypertonicity
• Detrusor external sphincter dyssynergia
• Poor compliant bladder
• Detrusor underactivity residual urine
• Bladder outlet obstruction

13
Detrusor Overactivity

• Idiopathic or neuropathic
• Involuntary contraction of external sphincter at
  initiation of voiding
• Increased intravesical pressure at bladder
  capacity
• Combined with inadequate contractility in elderly
  and CVA patients

14
Idiopathic Detrusor Overactivity
15
Increased Sphincter activity during Detrusor
overactivity
16
Detrusor instability Inadequate contractility
17
Low bladder compliance and low contractility
after surgery
18
Pelvic floor hypertonicity

• Poor relaxation of pelvic floor
• Low detrusor contractility and low efficient
  voiding
• Moderate to large residual urine developed
• Associated with constipation and increased
  vaginal colonization of E.coli

19
Spastic urethral sphincter High voiding pressure
20
Detrusor underactivity and Low efficient voiding
21
Detrusor external sphincter dyssynergia (DESD)

• Neuropathy in origin
• High voiding pressure and low bladder compliance
• Large residual urine
• Upper tract deterioration

22
Detrusor external sphincter dyssynergia in an SCI
woman
23
Poor Bladder Compliance

• Increased intravesical pressure at bladder
  capacity
• Urothelium damage
• Increased bacterial adherance to urothelium
• Diminished detrusor contractility
• Large residual urine

24
Bladder Outlet Obstruction

• Bladder neck dysfunction
• Urethral stricture
• Spastic urethral sphincter
• Cystocele
• Urethral meatal stenosis

25
Dysfunctional voiding in woman with UTI,
incontinence
26
Cystocele with Bladder outlet obstruction
27
Nocturnal polyuria and Recurrent UTI

• Women may have large nocturnal urine volume
  (gt900mL or gt33 total volume) and small bladder
  capacity or lower compliance
• UTI develops during night time
• Treatment with antidiuretics (DDAVP) or CISC
  before bed time

28
Recurrent UTI in Children

• In neonates UTI occurs more commonly in boys
  (2.7) than girls (0.7)
• In children gt1 y/o UTI is 9 times more frequent
  in girls than boys
• In asymptomatic children reflux is 1
• Reflux is diagnosed in 50 of infants lt 1 years,
  25 of children gt 4 years

29
Evaluation of UTI in Children

• All children regardless of sex and age be
  examined by ultrasound and VCUG after first UTI
• Radionuclide cystograpgy is more sensitive to
  detect VUR in younger child
• Renal scarring can be detected by ultrasound,
  IVP, DMSA scintigraphy

30
Voiding cystourethrography in Vesicoureteral
reflux
31
Recurrent UTI or VUR

• In girls with UTI, 40-60 have symptoms of
  urgency, frequency, squatting behaviour, and
  diurnal incontinence. In most girls with VUR,
  infrequent voids with large volume
• In boys, frequent small voids in more children
  with VUR (36) than healthy boys (15)

32
Vesicoureteral Reflux

• Primary A short submucosal tunnel
• Secondary Increased bladder pressure due to
  neuropathic bladder, anatomical abnormality,
  outlet obstruction
• At birth the majority of VUR is seen in boys, by
  age 1 the incidence of VUR is greater in girls
• Many girls have secondary VUR because of voiding
  dysfunction

33
Dysfunctional voiding in a girl with incontinence
VUR
34
Children Voiding dysfunction

• External sphincter as a role of UTI
• Close association of constipation with voiding
  dysfunction, recurrent UTI and vesicoureteral
  reflux (dysfunctional elimination syndromes)
• Non-invasive programs for pelvic floor
  hypertonicity can successfully treat
  incontinence, recurrent UTI, reducing surgical
  intervention for reflux

35
Voiding dysfunction and Incontinence in children

• Detrusor overactivity and/or Pelvic floor
  dysfunction
• Anticholinergics and behavioral therapy
• Diurnal enuresis or nocturnal enuresis
• Increased fluid intake, time voiding, correction
  of constipation cured 15-20 of children with
  voiding dysfunction

36
Detrusor overactivity in a boy with urge
incontinence
37
Dysfunctional voiding UTI

• Breakthrough UTI occurs 43 with DV leading to
  surgery versus 11 without DV
• VUR resolved spontaneously in 61 of girls with
  normal voiding and in 45 with DV after receiving
  antimicrobials and oxybutynin

38
Bilateral VUR in a girl with Meningomyelocele
39
Resolution of VUR after antibiotics and oxybutynin
40
Detrusor instability and VUR

• 28 unilateral VUR and 78 bilateral VUR have
  detrusor instability
• In cases with bilateral VUR 26 failed antireflux
  surgery
• Failed surgery for reflux is often associated
  with voiding dysfunction
• 70 VUR resolved after anticholinergics

41
Detrusor instability Pelvic floor overactivity

• Pelvic floor contracts with an uninhibited
  detrusor contraction
• Chronic contraction of pelvic floor can cause
  uninhibited detrusor contractions through
  collateral innervation
• Voiding dysfunction associates with constipation
• Anticholinergics and alpha-adrenergic blocker are
  effective

42
Voiding dysfunction and Pseudodyssynergia

• Bilateral VUR is a positive predictor for voiding
  dysfunction
• In voiding dysfunction with VUR, detrusor
  instability 55, large bladder capacity 14,
  pseudodyssynergia 30
• Managing constipation and voiding dysfunction has
  the biggest impact on preventing recurrent UTI

43
Pelvic Floor Therapy

• Individually adapted voiding drinking schedule
• Pelvic floor relaxation biofeedback
• Instruction on toilet behaviour
• Biofeedback uroflowmetry
• Prophylactic antimicrobials during treatment
• In 83 girls UTI was effectively treated, in 64
  incontinence cured, in 7/8 reflux cured

44
Diagnosis of Dysfunctional voiding

• Uroflowmetry combined with EMG
• Pressure flow study high voiding pressure low
  flow rate and overactive external sphincter EMG
  during voiding
• Videourodynamic study- high voiding pressure low
  flow rate, and a spinning top urethrogram

45
Voiding cystourethrographyof Dysfunctional
voiding
46
Videourodynamic study forDysfunctional voiding
47
Factors for Recurrent UTI

• Low bladder compliance
• Large residual urine
• High voiding pressure
• Pseudodyssynergia
• Constipation
• Large bladder capacity and infrequent voids

48
Treatment of recurrent UTI in Children

• Treat constipation,recurrent UTI, voiding
  dysfunction together
• Increased fluid intake for constipation
• Trimethoprim- Sulfamethoxazole is the drug of
  choice
• Patients gt 4 years pelvic floor retraining
• Start prophylactic antimicrobial if breakthrough
  UTI develops

49
Genital Tract Infection

• Acute chronic prostatitis
• Acute chronic epididymitis
• Should search for urinary tract obstruction such
  as prostate obstruction, urethral stricture, poor
  relaxation of urethral sphincter

50
Poor relaxation of urethral sphincter

• In younger population men
• Severe hesitancy, poor stream, intermittency,
  residual urine sensation
• Combined with chronic prostatitis
• No frequency or nocturia
• Low voiding pressure low flow urodynamic tracing

51
Uroflowmetry in Spastic urethral sphincter
52
Low pressure low flow in young man with dysuria
53
Reflux Genital infection and Chronic prostatitis
54
Postprostatectomy UTI genital tract infection

• Residual prostatic obstruction
• Urethral stricture
• Poor relaxation of urethral sphincter
• Low detrusor contractility and large residual
  urine
• Presence of diverticulum or VUR
