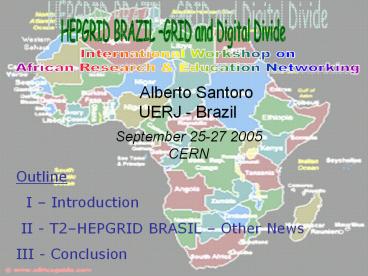

HEPGRID BRAZIL GRID and Digital Divide
International Workshop on African Research
Education Networking
Alberto Santoro UERJ - Brazil
September 25-27 2005 CERN
Outline I Introduction II - T2HEPGRID
BRASIL Other News III - Conclusion
2
I - INTRODUCTION

• Brasil and Africa has a long Cultural tradition

• The roots of Brazilian Music, Food, dances,
• have a strong component of African culture.
• By the way, this is true for all Latin
  American
• Networks is an open opportunity to Cooperate
• Brazil X AFRICA X EUROPE X USA need
• cooperate more, in Science, and Computing
• GRID.
• I sincerely think that Digital Divide can be
• our common start point

3

• I will try to show what we are doing in
• Brazil in Grid for HEP and Digital Divide.
• Our project in Brazil is being developped
• not so fast as we would like it.
• Links/Networks is being upgraded in the whole
• country also not so fast as we would like
• but it is much better than 3 years ago.
• New projects has being helpful, like GIGA
• from RNP, Direct Collaboration with RNP
• providing new link to Grid projects.

4
II -T2-HEPGRID BRASILOther News
short summary
http//www.hepgrid.br
I will forget today old history and will get only
the more recent events involving HEP. I have
limited my talk by Brazilian HEP projects only.

• 1999- First contacts with Grid ideas.
• End of the Client/Server Cluster
• 2000- Presentation of the first Brazilian HEP
  project for a Tier 1 several Tiers 2

Jobs was submitted remotely and results sent
directly to FNAL/ Dzero.

• After 2 years we consider completely out of
  date.
• Follow new strategies.

5
T2HEPGRID BRASIL - short summary

• 2001- Presentation of a New Project
• - Aproved! 500 Machines ?
  But...Dollar increase of a factor 3
• and we could buy only 100 Double
  CPU Machines.
• - First meeting with Harvey Newman in
  Rome (LP2001)
• 2002- The first part of the financial support
  delivered.
• - bureaucracy impose us about 2
  years of delay to our projects
• - Need to create infrastructure.
• - Link provided by REDE RIO at 2
  Mbps!

• 2003- Starting to buy the machines and build the
  Group
• Again here CALTECH group has been
  very helpfull- Thanks!
• 2004- Hepgrid and Digital Divide Workshop UERJ,
• Rio Feb. 16-20 See
  http//www.lishep.uerj.br/
• - by december 20th. inauguration of our
  Tier 2

6
Harvey Newman
T2-HEPGRID TEAM
A.Santoro
7
São Paulo Regional Analysis Center

• FAPESP Thematic Project Implementation in 3
  Phases - They are operating with D0SAR

Phase 2
Phase 1
8
2005- May 12 HEPGRID Workshop for CMS

• Brazil/Caltech collaboration 2002-5 in Data
  Analysis, Physics, Cyberinfrastructure
• Federate with Caltech T2 connected to the T1 of
  Fermilab
• T2-Hepgrid Brazil become member of the GriPhyN,
  ivgdl, Grid3, OSG,...
• Colleagues from other Universities start to use
  our Cluster for Local production of Monte Carlo
  Students are producing Monte Carlo events for
  analysis on CMS environment
• RNP decide to provide our connectivity From Now
  till October 100 Mbps, From October 10 Gbps but 1
  Gbps exclusive for T2-HEPGRID Brazil.
• Let us show a bit the progress of RNP

9

• RNP is the Brazilian national research
• and education network
• maintained by the Brazilian government
• provides national (inter-state) and international
  connectivity for more than 200 universities and
  research centers through the provision of
  advanced networking infrastructure
• collaboration links to other similar networks
  internationally (Internet2, GÉANT, APAN,
  RedCLARA)
• commodity links to the commercial Internet
• supports the development of advanced networking
  and its applications

M. Stanton
10
International connectivity

• Two kinds of traffic commodity (Internet1) and
  cooperation (Internet2, or Research and
  Education)
• Except for RedCLARA, all current connections are
  to the USA
• RNP operates
• 2 155 (Rio) 45 Mbps (SP) commodity to Miami
• 155 Mbps cooperation via RedCLARA (SP) to LA
  Europe
• Other Brazilian RE network connections
• 622 Mbps operated by ANSP (São Paulo state
  network)
• 155 Mbps operated by Rede-Rio (Rio de Janeiro
  state network)

M. Stanton
11
Project GIGA

• Objectives
• - Explore user control of optical fibre

• infrastructure
• - Interconnect 18 universities and RD
  centres
• in SE Brazil
• - provide Networking Research Testbed
  (NRT)
• for optical and IP network development
• - provide Experimental Infrastructure
  Network
• (EIN) for development and demonstration
  of
• applications
• OTHER IMPORTANT PROJECTS
• What is going on North of Brazil?

M. Stanton
12
Suggestion2 for Fiber Installation
Suggestion1 for Fiber Installation
RNP LOCAL Network are paying Attention to this
Region Also
Manaus
Amazonas
13
Belém a Possible Topology (30 km ring)
M. Stanton
14
Situation of Local Access in Belém in Brazil in
2004
Annual telco charges for POOR local access US
241,000
M. Stanton
15
Alternative Approach in Brazil Do It Yourself
(DIY) Networking (M. Stanton, RNP)

• Form a consortium for joint network provision
• 2. Build your own optical fiber network to reach
  ALL the campi of ALL consortium members
• 3. Light it up and go! Costs involved
• Building out the fiber using utility poles of
  electric company
• US 7,000 per km
• Monthly rental of US 1 per pole (25 poles per
  km)
• Equipment costs mostly use cheap 2 port GbE
  switches
• Operation and maintenance in Belém for 11
  institutions using All GigE connections
• Capital costs around US 500,000
• Running costs around US 40,000 p.a.
• Compare with current US 240,000 p.a. for
  traditional telco solution for 0.128 to 6 Mbps
  100-1000X less bandwidth

16
Brazil RNP Natl Plan for Optical Metro Nets in
2005-6

• In December 2004, RNP signed contracts with
  Finep (the agency of the Ministry of Science
  and Technology) to build optical metro networks
  in all 27 capital cities in Brazil
• Total value of more than US15 millions
• Most of this money will be spent in 2005
• Many Future Projects. (http//www.hepgrid.uerj.br/
  ) Go to Information after click on Meetings, look
  for Brazilian Connectivity for e-Science (Michael
  Stanton)

M. Stanton
17
Present Topologia of RNP
18
SLOW? YES! But we continue our main project

• The purpose of HEPGRID-CMS/BRAZIL is to become
• At Regional Level, Federate with CBPF, UFRJ,
  UFRGS, UFBA, UERJ UNESP
• At International Level, Federate with Caltech,
  T1-FNAL, GRID3/OSG...
• Strong cooperation with CALTECH

Brazilian HEPGRID
On line systems
Soon not more a Dream!
T0 T1
2.5 - 10 Gbps
CERN
T1
UNESP/USP SPRACE-Working
T2 ?T1
UERJ Regional Tier2 Ctr
Gigabit
T3 ?T2
UFRGS
CBPF
UERJ T2?T1,100?500 Nodes Plus T2s to 100
Nodes
UERJ
UFRJ
UFBA
Individual Machines
T4
19
Cluster Topology
20
III - Conclusion

• Networks From RNP We will go to 10 Gbps.
• Got Certifications
• Other Brazilian regions, Very far of the big
  Brazilian cities Amazonas State
• Infraestructure of the University (UERJ) is being
  upgraded with Optical Fibers to expand good links
  in the future.
• All that demonstrate that RNP and Regional
  networks with exceptions, are taken seriously
  Digital Divide.
• Please, we have to understand, that, there are a
  lot of local effort! But,
• IT IS ALSO A CONSEQUENCE OF OUR MEETINGS IN
  RIO, WITH MANY AUTHORITIES
• WITH RNP!!! THANKS!
