What is RFID?

1

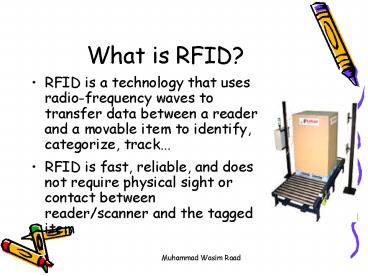

What is RFID?

• RFID is a technology that uses radio-frequency
  waves to transfer data between a reader and a
  movable item to identify, categorize, track...
• RFID is fast, reliable, and does not require
  physical sight or contact between reader/scanner
  and the tagged item

2
What is RFID

• Tag enters RF field
• RF signal powers tag
• Tag transmits ID, plus data
• Reader captures data
• Reader sends data to computer
• Computer determines action
• Computer instructs reader
• Reader transmits data to tag

Radio Frequency Identification
Label (Transponder)
Reader/Antenna (Interrogator)
Computer
3
RFID Primer

• RFID Diagram

Antenna
RF Module
Reader
Host Computer
Note The host is the software database...
4
RFID Primer
Antenna
RF Module
Reader
Host Computer
Note The RF module creates radio frequency (RF).
It receives and transmits RF through the antenna
5
RFID Primer
Antenna
RF Module
Reader
Host Computer
Note The RF module creates radio frequency (RF).
It receives and transmits RF through the antenna
6
RFID Primer
Antenna
RF Module
Tag
Reader
Host Computer
Note Tag (transponder) is interrogated by the
antenna....
7
RFID Primer
(Tag ID Communication)
Antenna
RF Module
Tag
Reader
Host Computer
Note The antenna captures the tag ID
numberfirst as analog RF waves, then it is
converted to digital information.
8
An RFID Tag Is A Portable Database
Interrogation Unit
Micro
Tag
Antenna
Tx/Rx
Computer
Computer Network

• A sophisticated computing and communications
  device
• A wireless extension of Information Systems

9
Inlays for RFID Tags for 13.56 Mhz
10
Why use RFID ?

• To determine authentication of a package
• To provide automated traceability of an item

11
Motivation of using RFID

• Generate Revenue
• Reduce operating costs

12
The RFID Reader Anti-collision protocol
13
What is RFID? -- The Tags

• Tags can be read-only or read-write
• Tag memory can be factory or field programmed,
  partitionable, and optionally permanently locked
• Bytes left unlocked can be rewritten over more
  than 100,000 times

14
What is RFID? -- The Tags

• Tags can be attached to almost anything
• pallets or cases of product
• vehicles
• company assets or personnel
• items such as apparel, luggage, laundry
• people, livestock, or pets
• high value electronics such as computers, TVs,
  camcorders

15
Are All Tags The Same?

• Basic Types
• Active
• Tag transmits radio signal
• Battery powered memory, radio circuitry
• High Read Range (300 feet)
• Passive
• Tag reflects radio signal from reader
• Reader powered
• Shorter Read Range (4 inches - 15 feet)

16
Are All Tags The Same?

• Variations
• Memory
• Size (16 bits - 512KBytes )
• Read-Only, Read/Write or WORM
• Type EEProm, Antifuse, FeRam
• Arbitration (Anti-collision)
• Ability to read/write one or many tags at a time
• Frequency
• 125KHz - 5.8 GHz
• Physical Dimensions
• Thumbnail to Brick sizes
• Price (0.50 to 250)

17
Types of Tags - Memory Segmentation

• Read Only (Factory Programmed)
• WORM - Write Once, Read Many times
• Reprogrammable (Field Programmable)
• Read/Write (In-Use Programmable)

18
What are chipless tags?

• No IC
• Use RF fibers or materials reflect readers
  signal producing unique serial no
• Cost 10-25 cents each
• Tolerates wide range temperature
• Less sensitive RF

19
Chipless tags

• 2.5 of RFID market
• Expected to become 30 in 2010
• Chipless RFID smart labels have a range of 10
  meters

20
What is RFID? -- The Readers

• Readers (interrogators) can be at a fixed point
  such as
• Entrance/exit
• Point of sale
• Warehouse
• Readers can also be mobile -- tethered,
  hand-held, or wireless

21
lt150 kHz (125 kHz 134 kHz )

• Advantages
• Uses normal CMOS processing basic and
  ubiquitous
• Relative freedom from regulatory limitations
• Well suited for applications requiring reading
  small amounts of data at slow speeds and
  minimal distances
• Penetrates materials well (water, tissue, wood,
  aluminum)

22
lt150 kHz (125 kHz 134 kHz )

• Disadvantages
• Does not penetrate or transmit around metals
  (iron, steel)
• Handles only small amounts of data
• Slow read speeds
• Large Antennas -- compared to higher frequencies
• Minimal Range

23
lt150 kHz (125 kHz 134 kHz )

• Disadvantages
• Tag construction
• is thicker (than 13.56 MHz)
• is more expensive (than 13.56 MHz)
• more complex (requires more turns of the
  induction coil)

24
13.56 MHz

• Advantages
• Uses normal CMOS processing--basic and ubiquitous

• Well suited for applications requiring reading
  small amounts of data and minimal distances
• Penetrates water/tissue well
• Simpler antenna design (fewer turns of the coil)
  lower costs to build
• Higher data rate (than 125 kHz--but slower than
  higher MHz systems)
• Thinner tag construction (than 125 kHz)

25
13.56 MHz

• Disadvantages
• Government regulated frequency (U.S. versus
  Europe)
• Does not penetrate or transmit around metals
  (unless very thick)
• Large Antennas (compared to higher frequencies)
• Larger tag size than higher frequencies
• Tag construction requires more than one surface
  to complete a circuit
• Minimal Range

26
Bar Codes vs. RFID
27
RFID Applications

• Petrol Service Stations
• In Singapore, the Mobil petrol service stations
  has already introduced RFID technology to
  implement their Speed Pass system to enable
  drivers to fill up the petrol and drive away.
  All information will be gathered automatically
  through RFID smart tags and customers bills can
  be settled through the net.

28
RFID Application in Petrol Service Station

29
RFID Application in a Factory Canteen

• it is very interesting to notice that in the
  factory canteens environment, RFID tags are
  attached at the bottom of the plates to identify
  the cooked food and its price.
• The staff of the factory need only to pick up the
  food on the tray and place the tray on top of a
  RFID reader.
• The RFID reader will identify the products and
  its price. The staff need only to place the cash
  card to pay for the food.

30
Paperless Maintenance Senario at Frankfort Airport
31
Configuration of RFID Antennas on doors in Metro
ware house
32
Application in Smart Appliances
33
Smart Appliances using RFID
34
Advantage
Cooking a pizza
Forget about your pizza
Not Expired, Expired
Expiration
Cannot cook
Can cook
Healthy, Unhealthy
RFiD
Diet
35
(No Transcript)
36
What is EPC (Electronic Product Coding)?

• EPC is a globally unique serial number
  identifying individual item attached to it
• Enables enquiries to be made about individual
  item wherever it is in the global supply chain

37
The EPC Network

• EPCglobal network enable immediate retrieval
  accurate trusted information
• EPC network uses RFIDEPC internet to allow
  trading partners to share this information
  securely

38
Benefits EPCglobal RFID network

• Faster and more precise reads
• Accurate and trusted data
• Lower inventory levels
• Fewer out of stock
• Better asset utilization

39
Example and Structure of An EPC Number
40
EPC Information Service
41
EPC meets pharmaceutical supply chain
42
Case StudyLogistics processes at HP
43
Automotive production at BMW
44
Event information in automotive process chain
45
What is EAS(Electronic Article Surveillance)?

• Books, hairdryers.. Bear small tags for theft
  prevention
• Initially at book shelf tag has a bit of 0
• At point of sale sales clerk deactivate tags by
  setting bit to 1

46
Smart Shelves

• Antennas have to be optimally placed on shelves
• Still expensive, requires numerous readers
• Smart shopper carts scan items and objects on
  shelves

47
Privacy

• Privacy bit on tag
• Tags belong to consumers
• If privacy bit1 it will be invisible to readers
• Readers watch on each other private tag command
• What is blocker tag?

48
The privacy bit

• Blocker tag command can prevent privacy
  violations before they occur
• A blocker effectively jams readers that emit
  private-read commands
• When it detects it, it simulates all possible
  RFID tags in the world rendering reader incapable

49
Market Trend
50
HID MIFARE Card

• 13.56 MHz contactless card
• used for public transportation, access
  control,road toll, park ride, airline
  ticketing, customer loyalty and ID card

51
Mifare features
Reader
Card
Unique Chip Serial Number
13.56 MHz Transmission ISO 14443
8Kbit EEPROM 16 independent sectors
Anticollision
Cryptography
Key Storage WOM
Protection by cryptographic algorithm
52
Main applications

• Access Control
• Vehicle identification
• Electronic driver license
• Ski Passes
• Airline tickets
• Transportation buses, taxis underground
• Baggage Identification

53
Contactless card reader

• Read/Write to contactless memory cards
• Utilizes Mifare technology
• Used in Access control to buildings

54
(No Transcript)
55
Corporate Physical access control Strategy
56
(No Transcript)
57
Proximity Solutions for MULTOS

• 2 types of MULTOS Dual-Interface cards
  supporting communication with the chip via both
  the contact plate and the contactless interface
  based on Proximity Standard - ISO 14443
• Hitachi/DNP Contactless MULTOS 36K EEPROM, Type
  B contactless interface, Available now
• Supports both versions of Paypass transaction
  (contactless M/Chip 4, or Contactless Track 2
  data) and in fact can execute ANY existing MULTOS
  application over the contactless interface.
• Keycorp / Philips Contactless MULTOS, 16K
  EEPROM, MIFARE Type A contactless interface,
  Prototypes available now
• Supports Mifare ticketing only. Full contactless
  MULTOS application execution planned for Q3 2004

250K issued for Japan Residential ID card
58
Cost

• RFID readers 1000
• Tags gt 20 cents.
• Active tags 1-5
• Tags will become cost effective when production
  inlay very high
• Only handful of quality suppliers

59
Cost continue

• Production methods and materials used to build
  RFID inlays being defined
• Tag antennas metallic, very expensive and large
  size
• Chip less Tags much cheaper .1-10 cents

60
Future of RFID Tags

• Low cost active tags for locating tracking
  objects with limited no of readers
• Higher frequencies Tags developed at Siemens
  lab 2.5-24 Ghz, have batteries and range extend
  to several kilometers

61
Future continue

• Recently, Ultra WIDE BAND (ubw) can locate
  objects in 2 3 dimensions within few inches
• Marketed for asset tracking in hospitals
• The size of wristwatch, 40 grams
• Indoor range 300 feet

62
Future Science Fiction

• Transparent packages will light up in moving
  color advertisement
• Disposable smart labels will detect viruses and
  specific chemicals

63
References

• www.rfidjournal.com
• RFID book by Steven Shepard, McGraw-Hill
  2005-ISBN-0-07-144299-5
• www.gs1uk.org
• RFID Field Guide Deploying Radio Frequency
  Identification systems By Manish
  Bhuptani-ISBN-0-13-185355-4
