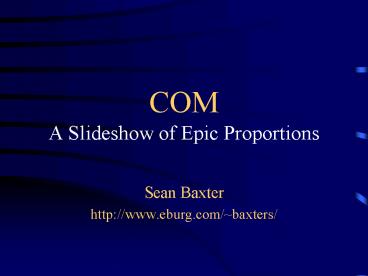

COMA Slideshow of Epic Proportions

• Sean Baxter
• http//www.eburg.com/baxters/

2
What is COM?

• A standard for interoperable software
• A runtime library providing low-level or
  hard-to-implement functionality
• A competitive, capitalist marketplace for selling
  functionality to application developers
• An endless source of healthy obfuscation

3
That Last Slide Was Pulled From Booboos Rear
End. What is COM, Really?

• A sacred covenant held by the worlds best
  developers. All software functionality is
  encapsulated through a COM class (coclass) and
  exposed through COM interfaces

Mooooo
Blah Blah Blah Blah Blah Blah Blah Blah Blah
Booboo
4
Interface and Coclass Fundamentals

• An interface is a group of methods
• A coclass is a group of interfaces
• All coclasses implement the IUnknown interface
• All other interfaces derive IUnknown
• Lollipop diagrams describe coclasses

5
About Interfaces

• The client communicates with the server through
  interface pointers (think base class pointers)
• Methods implemented by the coclass are invoked
  through interface pointers
• Interface pointers are acquired through IUnknown
• Because all interfaces derive IUnknown, any
  interface pointer on an object can be acquired
  through any other interface pointer on the object
• The method to acquire an interface pointer is
  IUnknownQueryInterface (think dynamic_cast)

6
More About Interfaces

• Interfaces are equivalent to C abstract base
  classes
• Because there is no standard thunk mechanism,
  interfaces do not support multiple inheritance
• Two IUnknown pointers point to the same object if
  their values are equal
• Dispatch interfaces are special case interfaces
  allowed by the COM Specification

7
Interfaces and Virtual Tables

• An interface pointer points to the corresponding
  slice of a COM object
• The first 4 bytes of this slice comprise a
  pointer to the interfaces virtual table
• Each slot in this virtual table is the address of
  an interface method
• A method implementation may be referenced by more
  than one vtbl entry

8
Interface Method Indirection
9
Reference Counting

• To regulate destruction of objects, COM requires
  that all coclasses implement a reference counter
• COM objects can have their methods invoked from
  other threads, processes, and even machines.
  Reference Counting eliminates a number of
  problems associated with synchronization

10
Reference Counting Rules

• Each object is given a reference count of 1 upon
  instantiation
• IUnknownAddRef increments the reference count
• A successful IUnknownQueryInterface call
  increments the reference count
• IUnknownRelease decrements the reference count
• When the reference count is decremented to zero,
  the object destroys itself

11
So Why All These Interface and Reference Counting
Formalities?

• One of the most amazing features of COM objects
  is location transparency COM marshals interfaces
  between processes and remote computers
• Reference counting guarantees that a client
  cannot prematurely destroy a shared object
• COM is language transparent unsophisticated
  languages like Visual Basic, VBA, J-Script, and
  VB-Script would not otherwise be able to properly
  delete objects

12
Speaking of Location Transparency...

• COM objects (servers) can be delivered in two
  module types EXEs or DLLs (aka OCXs)
• EXEs cannot run in-process
• DLLs can only run in-process
• A surrogate EXE can load a DLL to make it an
  out-of-process server

13
An In-process Server (same apartment)
14
In-process Server(different apartment)
15
Local Server
16
Remote Server
17
Things To Note

• All interface method calls are synchronous a
  remote call to a New York server must complete
  its round-trip before the client can continue
  execution
• Asynchronous services are available through
  Microsoft Message Queue (MSMQ) and ICallFactory
  (Windows 2000)
• Encryption, authentication, and impersonation
  services are available with remote server
  connections (at least on NT)

18
Confused?
Where Am I?
The Guy In The Back Row
19
COM Owns You

• So what does all this nonsense about location
  transparency and reference counting have to do
  with anything?
• Ever heard of OLE? Ever heard of ActiveX? You
  may suspect that these have something to do with
  COM...

20
WRONG!

• They are COM.

All will soon be clear
21
MS MarketectureCommon Misperceptions

• OLE is a system of linking and embedding data
  into a document (hence the acronym Object Link
  and Embedding)
• ActiveX, like Java, is a system for building web
  page applets
• Microsoft Transaction Server (MTS) processes
  business data from the internet

Faery Tales!
22
The Journey of COM

• Dynamic Data Exchange (DDE) was introduced while
  the Earth was still cooling.
• DDE was unsavory. MS unveils OLE 1.0 after the
  villagers riot
• OLE 1.0 is a big success but hard to program. MS
  unveils OLE 2.0 for Windows 3.1 COM is born
  (its 16bit)
• Windows NT 3.5 is blessed with OLE (look ma - no
  version number!) and true 32bit COM. OLE is now
  Olè, which is synonymous with COM

23
The Journey of COM (II)

• To celebrate Windows 95, MS blesses COM with the
  apartment model
• 1996 sees Windows NT 4. DCOM brings network and
  multithreading enhancements to COM
• Microsoft Transaction Server (MTS) becomes
  available for NT Server. This doesnt process
  web business data. Its a COM runtime
  environment which allows components to run more
  efficiently (solving scalability difficulties
  often faced in processing business data)

24
The Journey of COM (III)

• OLE-DB provides consistency when accessing data
  from a variety of providers
• MS makes web browsers a priority (IE3) and
  simultaneously coins the term ActiveX, adding
  to the COM marketecture. Like OLE, ActiveX is a
  synonym for COM.
• Microsoft Message Queue (MSMQ) delivers
  asynchronous (and vastly more reliable) method
  calls
• Visual C 5.0 ships with ATL 2.1. OLE Control
  creation has never been so easy!

25
The Journey of COM (IV)

• Windows 2000 ships in 2004. Microsoft introduces
  COM acronym COM is simply COM on Win2k
• Win2k includes many COM updates including a third
  threading model (the Neutral Threaded Apartment)
  and integration of MTS into the COM runtimes
• COM 2.0 delivers legendary COM virtual machine
• Windows NT 6 device contexts replaced by
  DirectDraw surfaces. Classic OLE Control
  interfaces deprecated for new, ultra-spiffy
  interfaces

26
COMprehension

• COM is a set of many, many technologies.
• COM is really Microsofts software engineering
  strategy
• Computer people (you) are betting the bank on
  Microsoft
• Microsoft is betting the bank on COM
• COM Owns You

27
COM Defined

• A single sentence cant define COM, because COM
  is such a monumental and omnipresent set of
  technologies.
• So what is a COM technology? Any software
  creation that leverages interfaces and coclasses,
  as described in the earlier slides.

28
COM in Everyday Life
The Month View is from the Microsoft Windows
Common Controls-2 6.0 controls library
29
Property Pages
How does Visual Basic know which properties to
put in the box?
30
Events
How does Visual Basic know which events the
control exposes?
31
What is a VB Control?
32
What Functionality Does It Expose?
33
Properties and Methods
34
The Secret of Property Pages
35
Property Page Coclasses
36
Property Pages Abound!
37
Standard Interfaces

• Programming sucks. Best to fall back on
  platform-provided functionality
• A container/client can interact with any
  server/control simply by implementing the
  required site interfaces
• Application developers who license your
  components are already familiar with the
  interfaces
• Standard interfaces can use the
  Microsoft-provided proxy/stubs

38
What Are Some COM-Based Technologies?

• OLE Controls
• OLE-DB
• ADO
• DAO
• DirectX
• TAPI 3.0
• Exchange Server
• Exchange Client
• Active Scripting

• CDO 2.0
• MAPI
• SQL-DMO
• SQL-NS
• Microsoft Repository
• Broadcast Architecture
• Still Image API
• Microsoft Multimedia
• Indexing Service

39
Still More COM Technologies!

• Active Desktop
• IIS
• Microsoft Agent
• Microsoft Java SDK
• NetMeeting
• NetShow
• Microsoft Wallet
• Active Directory
• Active Accessibility
• Clustering Service

• Fax Services
• MSMQ
• RAS
• Synchronization Manager
• Structured Storage
• MTS
• MMC
• Windows Shell API
• all OLE Applications

40
The Glory of COM

• COM eliminates thread synchronization and IPC/RPC
  confusion
• COM enables real polymorphism language
  transparency and location transparency
• COM mandates a consistency among component
  interfaces to reduce learning curves
• COM allows versionless updates
• COM is the best component standard it is by far
  the most commercially successful

41
DLL Server Mechanisms

• DllRegisterServer and DllUnregisterServer
  manipulate the registry
• DllCanUnloadNow tells COM when the module is not
  being used
• DllGetClassObject provides the client with the
  class factory of the required COM object

42
EXE Server Mechanisms

• A /RegServer argument registers the EXE
• A /UnregServer argument un-registers the EXE
• CoRegisterClassObject registers a class factory
  for clients to connect to
• RegisterActiveObject adds an object to the
  Running Object Table (ROT)

43
COM Object Instantiation

• CoGetClassObject (wrapped by CoCreateInstance and
  CoCreateInstanceEx) launches a module and
  retrieves its class factory
• CoGetClassObjectFromURL downloads a module from
  an URL, decompresses it, registers it, and
  invokes CoGetClassObject on it
• GetActiveObject loads an object off the ROT

44
COM Security

• CoInitializeSecurity sets the authentication
  requirements for the current process
• The COSERVERINFO structure specifies the machine
  name and authentication info for clients
  connecting to remote objects
• CoImpersonateClient allows the server to
  impersonate the client when accessing other
  servers

45
Books of COMpetency

• The C Programming Language (Bjarne Stroustrup)
• Programming Windows (Charles Petzold)
• Advanced Windows (Jeffrey Richter)
• Design Patterns (Gamma, Helm, Johnson, Vlissides)
• Essential COM (Don Box)

46
Hoorah For Reading!

• Effective COM (Box, Brown, Ewald, Sells)
• Inside OLE (Kraig Brockschmidt)
• Professional ATL COM Programming (Richard Grimes)
• Microsoft Systems Journal (www.microsoft.com/msj)
• Seans Web Page (www.eburg.com/baxters/)

47
May the COM Be With You

• Thank You
