Pig

1

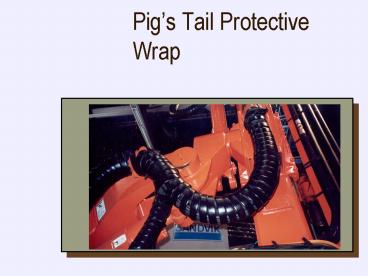

Pigs Tail Protective Wrap

• Insert Product Photograph Here

2
Overview

• Use Pigs Tail protective wrap to
• Extend hose life by protecting it from abrasion,
  crushing or vibration.
• Bundle multiple hoses/cables.
• Prevent UV damage.
• Color coordinate with equipment.

3
Features Benefits

• Pure virgin polyethylene
• Excellent abrasion resistance and durability.
• UV protection to prevent weather checking.
• Protects from 40 to 280F.
• Allows for thinner wall and greater flexibility.
• User friendly
• Beveled edges will not cut hose or user.
• Wall thickness designed for easier installation.
• Pitch designed to prevent leapfrogging.
• Can be used in specific wear spots.
• Install and remove without removing fittings.

4

• Multiple Sizes and Colors
• Broad size range gives user ability to wrap or
  bundle almost any hose and/or cable.
• Proper sizing prevents Pigs Tail from sliding on
  hose or cable.
• Variety of colors to organize or co-ordinate
  hoses and/or cables.
• Match color of wrap with equipment color.

5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9

• Competitive Comparisons
• Nylon or Canvas Sleeve
• has to cover entire hose.
• need to remove fittings to install or remove.
• if worn only in one spot the whole length needs
  to be replaced.
• Other plastic wraps have sharper edges and
  thicker walls that are harder to work with.

10
(No Transcript)
11
(No Transcript)
12
Specifications

• NOMINAL INTERNAL EXTERNAL DIMENSIONS IN INCHES

•
• PRODUCT CODE ID in. OD in. Wall in. Hose OD
  in.
• R12SSG 164 Ft. Roll .380 .500 .06 3/8 7/16
• R16SSG 66 Ft. Roll .500 .640 .07 7/16 5/8
• R20SSG 66 Ft. Roll .630 .790 .08 5/8 7/8
• R25SSG 66 Ft. Roll .840 .980 .08 15/16
  17/16
• R32SSG 66 Ft. Roll 1.06 1.26 .10 1-1/8
  1-3/8
• R40SSG 66 Ft. Roll 1.34 1.57 .12 1-½ - 1-5/8
• R50SSG 66 Ft. Roll 1.73 1.97 .12 1-¾ - 2-1/8
• R63SSG 66 Ft. Roll 2.17 2.48 .16 2-¼ - 2-½

13
Availability

• Stocking locations in Los Angeles and Virginia.
• Black and yellow are stock. Blue and red
  available in limited quantities.
• Same day shipping available.
• Sold in 66 foot continuous coils except R12 is
  164 feet and R110 is 40 feet.
• Can be shipped UPS, Fed-Ex, DHL.
• Terms Net 30 (O.A.C.), C.O.D.
