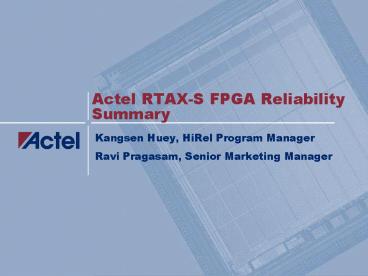

Actel RTAX-S FPGA Reliability Summary

1
Actel RTAX-S FPGA Reliability Summary

• Kangsen Huey, HiRel Program Manager
• Ravi Pragasam, Senior Marketing Manager

2
Agenda RTAX-S

• Introduction
• Qualification
• MIL-PRF-38535, Class Q
• Actel Antifuse Reliability Studies
• EAQ ( Enhanced Antifuse Qualification)
• HSB (High Single S, Single B) Design
• New Processes and Procedures
• ELA Enhanced Lot Acceptance
• XSEM Die Cross Sections at Antifuse
• Reliability Data and FIT Rate
• Summary
• Actel Flash Product Roadmap

3
RTAX-S Product Lineup

• Introduced in 2004 and QML class Q level
  Qualified in 2005
• Wafers fabricated on 0.15 µm process at United
  Microelectronics Corp (UMC), Taiwan

4
RTAX-S New Technology Features

• First Antifuse FPGA that offers up to 4 Million
  system gates with enhanced features
• Embedded RAM blocks
• Extensive I/O standard support
• Hardened charge pump, clock trees, Power On Reset
  circuit
• TMR Flip Flops
• RTAX-S Antifuse Technology
• Implemented with 0.15 µm CMOS process with new
  circuits designed to improve programming current
  and reduce net loading
• Antifuse is similar in structure, but thinner
  than RTSX-SU generation due to the lower
  programming voltage
• Results in less distance for material transport
  of the plate material during programming,
  resulting in better IPEAK tolerance for net
  loading
• Single S-Antifuses get 67 less IPEAK stress
  during switching compared to RTSX-SU
• Designer software has SAL (S- Antifuse Loading)
  to dramatically reduce Single S-Antifuse count
• Single B-Antifuses have 50 less IPEAK vs.
  RTSX-SU
• Architecture includes adding buffers to reduce
  net loading on long nets
• Programming Current
• B, I, S, K antifuses have 10 to 20 more
  programming current

5
RTAX-S QML Qualification with Enhanced Testing
for Antifuse
Actel Antifuse Reliability Studies (Enhanced
Antifuse Qualification HSB)
MIL-PRF-38535, Class Q Qualification

RTAX-S QUALIFICATION
6
RTAX-S Qualification (1/3)

• MIL-PRF-38535, Class Q Level Compliant
  Qualification
• Qualification Burn In (QBI) Design was developed
  for qualification life test
• Tests the overall CMOS and Antifuse technology
• Maximizes resources utilization like the Flip
  Flops, IOs, SRAM, FIFO, Carry chains, etc.
• Functional test vector developed to for 3-temp FT
• Uses fully class Q level screened devices
• Group C test
• 87 RTAX2000S and 98 RTAX1000S devices passed
  1,000 hours of group C at 125oC
• Pass/Fail criteria tightened to LTPD(3)
  equivalent of 129(1) of the largest RTAX2000S
  devices
• Assuming every 2 RTAX1000S equals to one
  RTAX2000S
• Added LTOL (Low Temp Operating Life) test
• 78 RTAX1000S devices passed 1,000 hours of LTOL
  at -55oC
• Group A, B, D, ESD, Latch-Up, IO Capacitance also
  performed
• 6 parts (2 RTAX2000S and 4 RTAX1000S) in Group C
  and 1 part in LTOL failed due to equipment
  failures
• FA reports available upon request

7
RTAX-S Qualification (2/3)

• EAQ (Enhanced Antifuse Qualification)
• Objective is to uncover antifuse failure modes
  and determine antifuse failure rate
• Uses highly perceptive and stressful designs for
  antifuse evaluation
• Similar to the antifuse studies employed for
  RTSX-SU
• The EAQ design is capable to detect small (pico
  to nano seconds) shifts in net propagation delay,
  which can be detected through analyzing the delta
  delays
• High and Low Temperature Operating Life tests
  (HTOL/LTOL) performed with RTAX1000S-CG624
  devices
• 291 units passed 1,000 hours of HTOL at 125oC
  and 250 hours of LTOL at -55oC
• One unit had CMOS process related failure
  (non-antifuse related) after 500 hours of HTOL
• 6 units failed due to equipment (BIB data
  contention)
• Devices did not go through the Burn-In screening
  required for QML class Q level devices
• 120 units carried on and all passed 6,000 hours
  of HTOL with No failures

8
RTAX-S Qualification (3/3)

• High single S-Antifuse and high single B-Antifuse
  (HSB) utilization design
• Testing was conducted after the completion of QML
  qualification activity
• HSB design maximized the utilization of both
  single S-Antifuse and single B-Antifuse
• High and Low Temperature Operating Life tests
  (HTOL/LTOL) performed with RTAX1000S-CG624
  devices
• 298 units passed 1,000 hours of HTOL at 125oC
  and 250 hours of LTOL at -55oC
• Two units had CMOS failure due to electrical
  over-stress (non-antifuse related) at 250 hours
  pull point of HTOL
• Devices did not go through the Burn-In screening
  required for QML class Q level devices

9
RTAX-S Qualification Designs

• Design utilization for QBI, EAQ and HSB
  Reliability Testing
• Qualification designs represent the worst case
  end-use condition
• User designs have generally less utilization than
  the above qualification designs

10
Antifuse Usage Statistics

• The EAQ and HSB designs were created to study
  specific Antifuse types like
• The Critical K-Antifuse
• Single S-Antifuse
• Single B-Antifuse
• Number of critical antifuses utilized in the
  various RTAX1000S Reliability Test Vehicles
• NO antifuse faults have been observed in
  RTAX1000S-CG624 reliability studies with these
  designs

11
RTAX-S Production Process Enhancement
Wafer specific XSEM
Standard Quality Control Monitor
Actel Specific E-test
RTAXS
Extended Lot Acceptance (ELA)
Standard B, E Flow processing
XY Programming
Thermal Runaway Characterization
New Process Steps
Old Process Steps
12
RTAX-S Processes and Procedures (1/2)

• Standard Quality Control Monitor (QCM)
• Programming functional test using LTPD 30 (8
  samples, 0 failures)
• Design is identical to QBI (targeted for general
  CMOS/Antifuses)
• Test is done per assembly build for the RTAX250S
• Extended Lot Acceptance (ELA)
• Test is done per wafer lot
• 168 hours of burn in at 125 ºC with stringent EAQ
  design
• Sample size
• RTAX250S 100 units
• RTAX1000S 24 units
• RTAX2000S 14 units
• Wafer lot acceptance criteria allows Zero
  antifuse related failures
• If any failures or outliers are detected, failure
  analysis is performed to determine root cause
• XY Programming
• Wafer number and die location on wafer is now
  programmed into each unit during wafer sort
• Silicon Sculptor Programming SW revision also
  programmed into device at final design
  programming

13
RTAX-S Processes and Procedures (2/2)

• Wafer-specific cross section inspection (XSEM)
• Two samples per wafer are cross-sectioned at
  antifuses
• XSEMs are inspected for anomalous antifuse
  construction
• Wafers are scrapped if found to be beyond the
  specification
• Susceptible wafers are required to be used as ELA
  samples
• All the wafers that pass are built for shipments
• Thermal Runaway Characterization
• This test is required per wafer lot (starting
  with 2007 fab out lots)
• 2 sample units are programmed with ELA design and
  characterized at oven temperature of 125oC,
  130oC, and 135oC
• Lots that exhibit thermal run-away phenomena are
  scrapped
• Actel E-test
• In addition to wafer foundry provided E-test
  data, Actel runs additional E-test after wafers
  arrive
• Provides more in depth information on antifuse
  related parameters

14
RTAX-S Reliability FIT Rate

• NO Antifuse faults have been observed to date in
  any of the reliability testing (QBI, EAQ, ELA,
  HSB) thus far
• 1.7 Million device hours have been accumulated to
  date
• Refer http//www.actel.com/documents/RTAXS_Rel_Tes
  t_WP.pdf for details (updated as needed)
• Failure rate estimation Device FIT 11.7 _at_ Tj
  55 ºC
• Using the chi-square distribution and a minimum
  upper confidence limit of 60 per JESD74
• CMOS Activation Energy Ea 0.7 eV
• Includes 1 CMOS process related failure
• The remaining failures were identified as EOS or
  equipment related
• FA reports available upon request

15
RTAX-S On-Going Quality and Reliability
Improvement

• Process Change Notification through GIDEP Problem
  Advisory
• SC7-P-06-01 (PCN0608), Elimination of RTAX-S ICCA
  Current Increase Due to Heavy Ion-Induced Upset
• SC7-P-06-02 (PCN0606), EDAC Macro modification to
  correct simultaneous reads and writes occur to a
  single address.
• SC7-P-07-02 (PCN0625), to correct routed clock
  timing under-estimation
• All issues were associated with software bugs and
  discovered through internal and customer failure
  analysis
• Silicon has remained the same since qualification
• On-Going Process Improvement After Qualification
• X-Y Programming, Thermal Run-Away Analysis
• High Frequency SET, High Temperature SEL, Prompt
  Dose
• Completed ESD Testing

16
RTAX-S Reliability Summary

• Actel has enhanced its Qualification Procedure to
  include both MIL-PRF-38535 QML-Q and Enhanced
  Antifuse Qualification (EAQ)
• New processes have been implemented to ensure
  high quality and highly reliable RTAX-S product
  is shipped
• NO antifuse failures detected with almost 1.7M
  device-hours of testing which showcases
  robustness of this technology
• Parts have been baselined in many programs
• Has started to develop QML class V level
  qualification/certification with the RTAX4000S
  qualification process

17
Planning to Fly RTAX-S
MUOS
Advanced EHF
NPOESS
Galileo
GOES-R
Lunar Reconnaissance Orbiter
James Webb Space Telescope
Mars Science Lab
Bepi Colombo
GAIA
18
New Technology PlansSpace-Flight Flash FPGAs

• Actel continues to develop new technology for
  Space applications such as Flash based FPGAs
• Unique Flash advantages
• Non-Volatile and Live at Power-Up
• Reprogrammable
• RTA3PE (130nm)
• Based on the commercial Flash product line
• Radiation projections suitable for LEO / short
  duration payloads
• Immune to SEL
• TID to 15 to 20 Krad, parametric and functional
• To implement Soft TMR for protection against data
  SEUs
• Flight units expected 2008 to 2009
• Mil-Std-883 qualified
• RT-G4 (90nm)
• Project founded by DTRA
• In architecture concept phase
• Expect flight units 2010 to 2012
• Target TID to 300 Krad
• 5M to 10M system gates

19
Thank You
