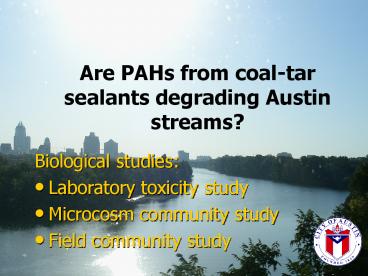

Are PAHs from coaltar sealants degrading Austin streams

1
Are PAHs from coal-tar sealants degrading Austin
streams?

• Biological studies
• Laboratory toxicity study
• Microcosm community study
• Field community study

2
Background Sealant work to date

• Coal tar sealants contain high concentrations of
  PAHs.
• Sealants abrade off of parking lots and wash off
  in stormwater.
• Concentrations and yields of sealant wash-off
  indicate it is a major source of PAHs in urban
  environments.

3
1. Lab Study Are sealants toxic to aquatic
organisms?

• Sediment spiked with dried pavement sealant (low,
  medium high).
• 28 day exposure followed by UV.

4
1. Lab Study
5
1. Lab Study
6
2. Microcosm Is coal tar toxic to aquatic
communities?

• Spiked at three treatment levels.
• Seeded with stream organisms.
• 24-day exposure period.

7
2. Microcosm
PEC 23 ppm
Average Number of organisms
Control Low Medium High
8
2. Microcosm
9
3. Field Study Are PAHs degrading aquatic life
in Austin streams?

• Upstream and downstream of coal tar sealed lots.
• Biological communities and sediment chemistry
  sampled in 5 streams.

10
3. Field Study
PEC 23 ppm
11
3. Field Study
12
3. Field Study
13
3. Field Study
14
Conclusions

• Coal tar sealants are concentrated source of
  PAHs.
• Sealants represent a major source of PAHs in
  urban streams.
• Ecological impacts demonstrated in Austin.
• Chemical tracing, toxicity, field verification
• Austin City Council Bans use and sale of coal tar
  sealant.

15
(No Transcript)
16
Coal Tar vs. Asphalt Sealants

• Concentrations of PAHs in coal tar sealants 1,000
  times higher than asphalt-based sealants.
• Particulates washing off coal tar sealed lots had
  PAH concentrations 6.5 times higher than asphalt
  sealed lots.
• USGS PAH load estimates are 2x times higher from
  coal tar sealed lots than asphalt-sealed lots.
  Industry reports current asphalt formulations are
  less durable.
• Due to the concentrated source and local stream
  hydrology, higher concentrations from coal tar
  sealed lots would result in local hot spots.
• Toxicity was higher for coal tar compared to
  asphalt sealants at equivalent dilutions in lab
  studies.

17
Field Study sampling locations
18
Field Study
(TU0.8)
(TU2.6)
PEC 23 ppm
(TU1.1)
(TU1.4)
(TU0.8)
19
Field Study
