CAD Drawing Requirements

1

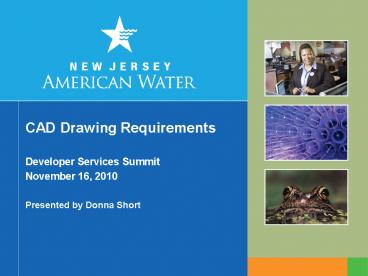

CAD Drawing Requirements

• Developer Services Summit
• November 16, 2010
• Presented by Donna Short

2
The Past Pre 2005
CAD
The Past

• Drawings were submitted to New Jersey American
  Water in AutoCAD format
• New Jersey American Water extracted needed
  linework from Developers drawing and added them
  to the distribution maps in AutoCAD format
• New Jersey American Water submitted revised
  distribution maps in AutoCAD format to NJDEP for
  SDW permits

CAD
3
The Past 2005 to 2010
CAD

• Drawings are submitted to New Jersey American in
  AutoCAD format
• New Jersey American Water extracts needed
  linework from Developers drawing and adds them
  to the distribution maps in ArcGIS format
• For projects requiring individual SDW permit
  applications, New Jersey American Water extracts
  specific project linework and provides data in
  ArcGIS format for submittal to NJDEP
• For project in areas under Master Permits, New
  Jersey American Water provides an annual update
  to NJDEP of all proposed projects list must
  match the NJDEPs list of PAW projects.

GIS
4
The Past 2005 to 2010 (contd)

• Current Process in place since 2005
• Have logged over 1400 projects
• Over 610 Different Applicants
• Utilizing over 575 different Engineers
• Resulting Issues
• Over 1400 projects to track
• Countless numbers of CAD standards
• Time consuming process, regardless of SDW permit
  status

5
The Present

• Drawings are submitted to New Jersey American
  Water in a standard New Jersey American Water
  AutoCAD format
• New Jersey American Water extracts needed
  linework from Developers CAD drawing and adds to
  the distribution network in ArcGIS format
• New Jersey American Water exports data from GIS
  for SDW permit submittals, Individual or Master
  permits

6
The Present (continued)

• Developers/Engineers are able to draft plans
  utilizing their current CAD standards or directly
  in New Jersey American Water standard template
• New Jersey American Water provides a drawing
  template in AutoCAD format along with
  step-by-step instructions for converting objects
  from original layering standard into New Jersey
  American Waters layering standard
• Standard block symbols are utilized and provided
  in template file
• A scaled down version of the original design is
  submitted to New Jersey American Water for
  approval

7
Benefits

• All projects submitted to New Jersey American
  Water are in the same format
• GIS essential objects are layered so that they
  are easily identified and separated from
  nonessential GIS objects
• Conversion process is easy for developers and/or
  engineers to follow
• Allows for more timely updates to GIS and thus
  more timely submissions to NJDEP

8
Details of the Standard

• Standard CAD drawing template with layering
  convention and blocks included
• Attributed block symbols provided
• Layering standard based on the National CAD
  Standard Format
• Layer colors based on the One Call Format for
  Utilities
• Step-by-step guideline for converting existing
  CAD drawings into New Jersey American Water
  Standard template file

9
Logistics

• Standard is available for download from the
  American Water website http//www.amwater.com/nja
  w/working-with-us/doing-business-with-us/developer
  s-customer-resources.html
• First glance for developers was made available
  November 2009
• Standard went into effect January 1, 2010

10
Results

• We have seen varying levels of compliance with
  standard
• Block symbols
• Layers
• Spatial accuracy
• Time to input data from CAD files has decreased
  dramatically
• Drawings are easier to interpret
• Layering allows editors to grab only what they
  need
• Consistent symbology eliminates guesswork
• Act as training sessions for new employees

11
Next Up Fire Flow Calculations By Joseph P.
Dugandzic
Questions?
