Light Emitting Diodes

1

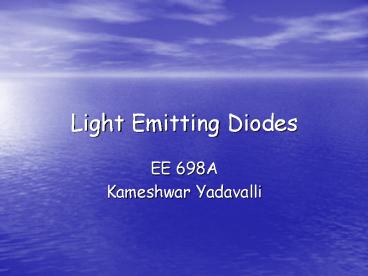

Light Emitting Diodes

• EE 698A
• Kameshwar Yadavalli

2
Outline

• Basics of Light Emitting Diodes (Electrical)
• Basics of Light Emitting Diodes (Optical)
• High internal efficiency designs
• High extraction efficiency structures
• Visible Spectrum LEDs
• White-Light LEDs
• The promise of solid state lighting

3
LED-Electrical Properties-PN junctions

• PN junction diode in forward bias, the
  electron-hole recombination leads to photon
  emission
• I Is(eeV/kT-1)
• Threshold voltage Vth Eg/e
• I IseeV/?kT
• where ? is the ideality factor

Double Heterostructure is used to confine the
carriers, improving the radiative recombination
rate

• From Light-Emitting Diodes, Fred Schubert.

4
LED-Electrical Properties-Hetero junctions
Grading of the heterojunction is done to reduce
the resistance seen by carriers
From Light-Emitting Diodes, Fred Schubert.
5
LED-Electrical Properties-Hetero junctions
From Light-Emitting Diodes, Fred Schubert.
6
LED-Electrical Properties-Carrier loss

• The confinement barriers are typically several
  hundred meV (gtgtkT)
• Due to Fermi-Dirac distribution of carriers in
  the active region, some carriers will have energy
  higher than that of the barriers
• In AlGaAs/GaAs and AlGaN/GaN the barriers are
  high
• In AlGaInP/GaInP the barriers are lower resulting
  in higher leakage currents

From Light-Emitting Diodes, Fred Schubert.
7
LED-Electrical Properties-Blocking layers

• Electron Blocking Layers are required to prevent
  electron escape at high injection current
  densities

From Light-Emitting Diodes, Fred Schubert.
8
LED-Optical Properties-Efficiency

• ?int of photons emitted from active region
  per second
• of electrons injected in to LED per
  second
• Pint / (h?)
• I / e
• ?extr of photons emitted into free space per
  second
• of photons emitted from active
  region per second
• P / (h?)
• Pint / (h?)

From Light-Emitting Diodes, Fred Schubert.
9
LED-Optical Properties-Emission Spectrum

• The linewidth of an LED emitting in the visible
  range is relatively narrow compared with the
  entire visible range (perceived as monochromatic
  by the eye)
• Optical fibers are dispersive, limiting the bit
  rate X distance product achievable with LEDs
• Modulation speeds achieved with LEDs are
  1Gbit/s, as the spontaneous lifetime of carriers
  in LEDs is 1-100 ns

From Light-Emitting Diodes, Fred Schubert.
10
LED-Optical Properties-Light Escape Cone

• Total internal reflection at the semiconductor
  air interface reduces the external quantum
  efficiency.
• The angle of total internal reflection defines
  the light escape cone.
• sin?c nair/ns
• Area of the escape cone 2pr2(1-cos?c)
• Pescape / Psource (1-cos?c)/2 ?c2/4
  (nair2/ns2)/4

From Light-Emitting Diodes, Fred Schubert.
11
LED-Optical Properties-Emission Spectrum

• Light intensity in air (Lambertian emission
  pattern) is given by
• Iair (Psource/4pr2) X (nair2/ns2) cosF
• Index contrast between the light emitting
  material and the surrounding region leads to
  non-isotropic emission pattern

From Light-Emitting Diodes, Fred Schubert.
12
LED-Optical Properties-Epoxy encapsulants

• Light extraction efficiency can be increased by
  using dome shaped encapsulants with a large
  refractive index.
• Efficiency of a typical LED increases by a factor
  of 2-3 upon encapsulation with an epoxy of n
  1.5.
• The dome shape of the epoxy implies that light is
  incident at an angle of 90o at the epoxy-air
  interface. Hence no total internal reflection.

From Light-Emitting Diodes, Fred Schubert.
13
Temperature dependence of emission intensity

• Emission intensity decreases with increasing
  temperature.
• Causes include non-radiative recombination via
  deep levels, surface recombination, and carrier
  loss over heterostucture barriers.

From Light-Emitting Diodes, Fred Schubert.
14
High internal efficiency LED designs

• Radiative recombination probability needs to be
  increased and non-radiative recombination
  probability needs to be decreased.
• High carrier concentration in the active region,
  achieved through double heterostructure (DH)
  design, improves radiative recombination.
•
  RBnp
• DH design is used in all high efficiency designs
  today.

From Light-Emitting Diodes, Fred Schubert.
15
High internal efficiency designs

• Doping of the active regions and that of the
  cladding regions strongly affects internal
  efficiency.
• Active region should not be heavily doped, as it
  causes carrier spill-over in to the confinement
  regions decreasing the radiative efficiency
• Doping levels of 1016-low 1017 are used, or none
  at all.
• P-type doping of the active region is normally
  done due to the larger electron diffusion length.

• Carrier lifetime depends on the concentration of
  majority carriers.
• In low excitation regime , the radiative carrier
  lifetime decreases with increasing free carrier
  concentration.
• Hence efficiency increases with doping.
• At high concentration, dopants induce defects
  acting as recombination centers.

From Light-Emitting Diodes, Fred Schubert.
16
P-N junction displacement

• Displacement of the P-N junction causes
  significant change in the internal quantum
  efficiency in DH LED structures.
• Dopants can redistribute due to diffusion,
  segregation or drift.

From Light-Emitting Diodes, Fred Schubert.
17
Doping of the confinement regions

• Resistivity of the confinement regions should be
  low so that heating is minimal.
• High p-type conc. in the cladding region keeps
  electrons in the active region and prevents them
  from diffusing in to the confinement region.
• Electron leakage out of the active region is more
  severe than hole leakage.

From Light-Emitting Diodes, Fred Schubert.
18
Non radiative recombination

• The concentration of defects which cause deep
  levels in the active region should be minimum.
• Also surface recombination should be minimized,
  by keeping all surfaces several diffusion lengths
  away from the active region.
• Mesa etched LEDs and lasers where the mesa etch
  exposes the active region to air, have low
  internal efficiency due to recombination at the
  surface.
• Surface recombination also reduces lifetime of
  LEDs.

From Light-Emitting Diodes, Fred Schubert.
19
Lattice matching

• Carriers recombine non-radiatively at misfit
  dislocations.
• Density of misfit dislocation lines per unit
  length is proportional to lattice mismatch.
• Hence the efficiency of LEDs is expected to drop
  as the mismatch increases.

From Light-Emitting Diodes, Fred Schubert.
20
High extraction efficiency structures

• Shaping of the LED die is critical to improve
  their efficiency.
• LEDs of various shapes hemispherical dome,
  inverted cone, truncated cones etc have been
  demonstrated to have better extraction efficiency
  over conventional designs.
• However cost increases with complexity.

From Light-Emitting Diodes, Fred Schubert.
21
High extraction efficiency structures

• The TIP LED employs advanced LED die shaping to
  minimize internal loss mechanisms.
• The shape is chosen to minimize trapping of
  light.
• TIP LED is a high power LED, and the luminous
  efficiency exceeds 100 lm/W.
• TIP devices are sawn using beveled dicing blade
  to obtain chip sidewall angles of 35o to vertical.

Krames et. al, Appl. Phys. Lett., Vol. 75, No.
16, 18 October 1999
22
Visible spectrum LEDs
The plot charts the gains made in luminous
efficiency till date.
From Light-Emitting Diodes, Fred Schubert.
23
Visible spectrum LEDs

• The emission spectrum of the blue, green and red
  LEDs indicate that the green LED has a wider
  spectrum.
• Alloy broadening leads to spectral broadening
  that is greater than 1.8 kT linewidth.

From Light-Emitting Diodes, Fred Schubert.
24
White-light LEDs

• White light can be generated in several different
  ways.
• One way is to mix to complementary colors at a
  certain power ratio.
• Another way is by the emission of three colors at
  certain wavelengths and power ratio.
• Most white light emitters use an LED emitting at
  short wavelength and a wavelength converter.
• The converter material absorbs some or all the
  light emitted by the LED and re-emits at a longer
  wavelength.
• Two parameters that are important in the
  generation of white light are luminous efficiency
  and color rendering index.
• It is shown that white light sources employing
  two monochromatic complementary colors result in
  highest possible luminous efficiency.

From Light-Emitting Diodes, Fred Schubert.
25
White-light LEDs

• Wavelength converter materials include phosphors,
  semiconductors and dyes.
• The parameters of interest are absorption
  wavelength, emission wavelength and quantum
  efficiency.
• The overall energy efficiency is given by
• ?
  ?ext(?1/ ?2)
• Even if the external quantum efficiency is 1,
  there is always an energy loss associated with
  conversion.
• Common wavelength converters are phosphors, which
  consist of an inorganic host material doped with
  an optically active element.
• A common host is Y3Al5O12.
• The optically active dopant is a rare earth
  element, oxide or another compound.
• Common rare earth elements used are Ce, Nd, Er
  and Th.

From Light-Emitting Diodes, Fred Schubert.
26
White-light LEDs

• Phosphors are stable materials and can have
  quantum efficiencies of close to 100.
• Dyes also can have quantum efficiencies of close
  to 100.

• Dyes can be encapsulated in epoxy or in optically
  transparent polymers.
• However, organic dyes have finite lifetime. They
  become optically inactive after 104-106 optical
  transitions.

From Light-Emitting Diodes, Fred Schubert.
27
White LEDs based on phosphor converters
A blue GaInN/GaN LED and a phosphor
wavelength converter suspended in a epoxy resin
make a white Light LED. The thickness of the
phosphor containing epoxy and the concentration
of the phosphor determine the relative
strengths of the two emission bands
From Light-Emitting Diodes, Fred Schubert.
28
Promise of Solid State Lighting

• The use of solid state lighting devices promises
  huge savings in energy consumption.
• The electricity for lighting needs is 60GW, over
  24 hrs.
• About 24 GWyear is consumed by incandescent lamps
  with a luminous intensity of 15lm/W.
• 36 GWyear is consumed by FL/HID lamps with a
  luminous intensity of 75lm/W.
• Assuming that by year 2020, they are replaced by
  LEDs with luminous intensity of 150 lm/W, energy
  savings are 40 GWyear.
• That translates to 40 billion in savings.
• At 4Mtons / GWyear of coal consumption, net
  savings lead to 25 less coal consumption,
  leading to lesser emissions of green house gases.
• Global savings are projected to be about 140B.

Roland Haitz, Adv. in Solid State Physics
