Artificial Neural Networks

1

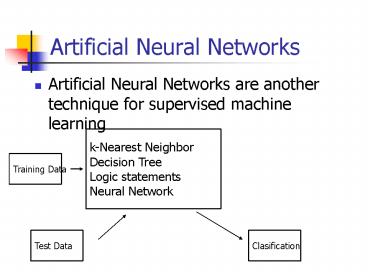

Artificial Neural Networks

• Artificial Neural Networks are another technique
  for supervised machine learning

k-Nearest Neighbor Decision Tree Logic
statements Neural Network
Training Data
Test Data
Clasification
2
Human neuron

• Dendrites pick up signals from other neurons
• When signals from dendrites reach a threshold, a
  signal is sent down axon to synapse

3
Connection with AI

• Most modern AI
• Systems that act rationally
• Implementing neurons in a computer
• Systems that think like humans
• Why artificial neural networks then?
• Universal function fitter
• Potential for massive parallelism
• Some amount of fault-tolerance
• Trainable by inductive learning, like other
  supervised learning teachniques

4
Perceptron Example
1 malignant 0 benign
of tumors
w1 -0.1
Output Unit
w2 0.9
Avg area
Avg density
w3 0.1
Input Units
5
The Perceptron Input Units

• Input units features in original problem
• If numeric, often scaled between 1 and 1
• If discrete, often create one input node for each
  category
• Can also assign values for a single node (imposes
  ordering)

6
The Perceptron Weights

• Weights Represent importance of each input unit
• Combined with input units to feed output units
• The output unit receives as input

7
The Perceptron Output Unit

• The output unit uses an activation function to
  decide what the correct output is
• Sample activation function

8
Simplifying the threshold

• Managing the threshold is cumbersome
• Incorporate as a virtual weight

9
How do we compute weights?

• Initialize all weights randomly
• Usually between -0.5, 0.5
• Put the first point through the network
• Actual Output
• Define Error Correct Output Actual Output

10
Perceptron Example
1 malignant 0 benign
of tumors
w1 -0.3
w0 0
Output Unit
w2 -0.2
Actual Output 0 Correct Output 1 Error 1
0 1 If input is positive, wantweight to be
more positiveIf input is negative, wantweight
to be more negative
Avg area
Avg density
w3 0.4
Input Units
11
The Perceptron Learning Rule How do we compute
weights?

• Put the first point through the network
• Actual Output
• Define Error Correct Output Actual Output
• Update all weights
• a learning rate
• Repeat with all points, then all points again,
  and again, until all correct or stopping
  criterion reached

12
Can appropriate weights always be found?

• ONLY IF data is linearly separable

13
What if data is not linearly separable? Neural
Network.
O
Vj

• Each hidden unit is a perceptron
• The output unit is another perceptron with hidden
  units as input

14
How to compute weights for a multilayer neural
network?

• Need to redefine perceptron
• Step function no good need something
  differentiable
• Replace with sigmoid approximation

15
Sigmoid function

• Good approximation to step function
• As b?infinity,sigmoid ? step
• Well just take b 1 for simplicity

16
Computing weights backpropogation

• Think of as a gradient descent method, where
  weights are variables and trying to minimize
  error

17
Minimize squared errors

• For all training points, let
• Tp correct output
• Op actual output
• Want to minimize error
• Work with one point at a time, and move weights
  in direction to reduce error the most

18
Expand (drop the p for simplicity)

• Direction of most rapid positive rate of change
  (gradient) is given by partial derivative

Update rule for hidden layer
19
Simplify as

• Input layer backprop is similar, but requires
  some more chain rule partial derivatives

20
Neural Networks and machine learning issues

• Neural networks can represent any training set,
  if enough hidden units are used
• How long do they take to train?
• How much memory?
• Does backprop find the best set of weights?
• How to deal with overfitting?
• How to interpret results?
