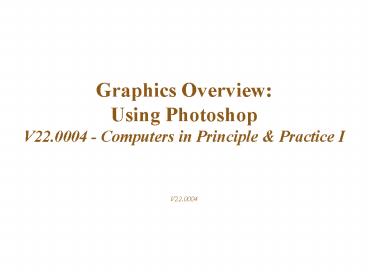

Title: Graphics Overview:


1
  • Graphics Overview
  • Using Photoshop
  • V22.0004 - Computers in Principle Practice I
  • V22.0004

2
  • Computer graphics boil down to two basic types
    (bitmaps and vectors )
  • Bitmap (or raster) graphics
  • Bitmap graphics are stored as a series of tiny
    dots called pixels.
  • Each pixel is assigned a color, and when they are
    viewed all together, they form the picture.
  • Bitmap graphics can be edited by erasing or
    changing the color of individual pixels.
  • There are many different bitmap file formats
  • TIFF for print Photoshop's PSD and BMP and
  • GIF, JPG, and PNG for the Web.
  • 2. Vector graphics
  • Unlike bitmaps, vector graphics are not based on
    pixel patterns, but instead use
  • mathematical formulas consisting
    of lines and curves that make shapes.
  • Vector graphics are ideal for illustrations, line
    art, and type.
  • However, with the exception of Macromedia's Flash
    and Shockwave formats, most browsers do not
    support vector graphics.
  • As a result, vectors have to be converted to
    bitmap (rasterized) before being displayed on the
    Web.
  • Some vector graphics file formats include EPS
    Illustrators' AI and WMF and PICT for the Mac.

3
Types of graphics
  • Photographic images
  • Continuous tones, 24 bit color, no text, few
    lines and edges
  • Graphics, Logos, Line art and Screen Captures
  • Solid colors, up to 256 colors, with text or
    lines and sharp edges

4
Image mode (RGB, indexed color, Gray scale, CMYK)
  • RGB
  • Uses millions of colors. Flexible for editing.
  • Use when working on editing or creating an image
    (millions of colors).
  • Save file as .psd . Remember when saving in PSD,
    this will produce a large file and will not be
    viewed on the web. The PSD file is good to use
    while editing file.
  • Layers are available in this mode and not in gif
    or jpg, or png (they are compressed/ flattened
    files)
  • Jpg/png24, uses RGB but NOT gif.
  • CMYK
  • The CMYK model is based on the light-absorbing
    quality of ink printed on paper.
  • - Pure cyan (C), magenta (M), and yellow (Y)
    pigments should combine to
  • absorb all light and produce black. For
    this reason these colors are called subtractive
  • colors.
  • Use when working on images for print and save as
    .tiff and use high resolution (200-600).
  • Indexed color mode
  • 8bit or 256 colors. Used with .gif files. Not
    flexible to use while editing and you will get
    chunky result

5
Resolution
  • Resolution
  • The resolution of an image describes how fine the
    dots are that make up that image.
  • The more dots, the higher the resolution (better
    quality).
  • Resolution for the screen/web (dependant on
    monitor size)
  • When displayed on a monitor, the dots are called
    pixels.
  • A 640-by-480-pixels on screen is capable of
    displaying 640 distinct dots on each of its 480
    lines, or about (640 X 480) 300,000 pixels.
  • Use 72 - 200 resolution for web (Note if use
    higher resolution than 72, your file size will
    increase and dimensions of height and width as
    well)
  • Resolution for printer
  • A 300 dpi (dots per inch) printer is capable of
    printing 300 dots in a line 1 inch long.
  • This means it can print 90,000 (300 X 300) dots
    per square inch
  • Use 200- 1200 resolution for printing

6
Working with mode
  • To change your image over to RGB mode
  • - select Mode from the Image pull down
    menu and choose RGB Color.

  • To resize image
  • go back to the Image pulldown and select Image
    Size. Enter in the size you want (either the
    pixel dimension or in inches - make sure the
    resolution box reads "72") and click OK.

7
Graphic format for the web/screen
  • GIF Graphic Interchange Format
  • First graphic format for the web created by
    CompuServ
  • Standard gif is 8bits or 216 colors
  • Transparent gif GIF89a (No background color
    blends into any background since it doesnt have
    any background color of is own)
  • Gif uses LZW (Lemple-Zev-Welch) compression.
  • This compression takes advantage of the
    repetitions in data streams.
  • LZW is efficient for storing simple graphic, flat
    colors, Banners, logos (images with little color
    shading)..

8
Graphic format for the web
  • Jpeg or JPG Joint Photographic Experts
  • 24 bits... Millions of colors
  • used for photograph and complex images
  • Uses Lossy compression method
  • which compresses shades of tones that are not
    visible by the eye without loss of quality
  • Used to compress photographs

9
PNG (png8 and png 24)
  • PNG Portal Network Format
  • Types of PNG
  • Png_8 8 bits.. 256 colors, good for simple
    graphics .. Not too many shades of colors
  • Png_24 24 bits or millions of colors. Good for
    complicated images such as photographs.
  • Lossless compression scheme and better
    compression than gif

10
Format for Print/editing/scan Tiff (great
quality image used for print)
  • TIFF - Image File Format (.TIF files).
  • TIF files are large, huge even, but it's the
    price we pay, it's how large the data is.
  • TIFF is the most universal format, about any
    program on any platform will handle TIFF.
  • TIFF has been the format of choice for use for
    master copies of scanned data for years.
  • TIFF was developed by Aldus, before Adobe bought
    them, and is the most widely supported format
    across other platforms.
  • Not used on the web
  • Great for print (good quality), but remember that
    its a large file

11
PSD standard Photoshop file(.psd)
  • Uses millions of colors (RGB red, Green, blue)
  • (0-256 shades of red, 0-256 shades of Green,
    0-256 shades of blue)
  • Great for editing / work in progress
  • Saves with layers / helpful while editing a file
  • Very Large file
  • PSD file format will not work on the web
    (except in Safari under Mac OS X... Which will
    display a flattened version of your image.)

12
Other formats These formats are not commonly
used on the web (as they are not supported by all
browsers)
  • BMP (Windows Bitmap)
  • BMP will handle 24 bit data but it cannot be
    compressed.
  • BMP uses RLE (Run Length Encoding) to compress 8
    bit data, which is effective in graphics, but
    much less effective in continuous tones like
    photos.
  • PICT (Macintosh Quickdraw) PICT is used in page
    layout and graphics programs it creates large
    files and is not suitable for exchange with
    Windows programs.

13
Browser color palette
  • Browser Safe palate ( web)
  • Browser uses 256 colors (8 bits).
  • 40 colors are reserved for its own use
  • 216 colors are used by the browser
  • Dithering browser tries to substitute colors if
    not part of its palate
  • Interlace browser will display image gradually
  • Anti-alias blending of pixel colors on perimeter
    of hard-edge shapes. Smooth edges and not jagged

14
  • Photoshop tips for the web

15
Graphic format for the web/screen
  • File formats to use gif, jpg or png
  • To save for the web using Photoshop
  • From the FILE menu, select SAVE FOR WEB and then
    select the desired web format from the window
    that comes up.
  • Make sure you select 0 dithering colors
    (minimal loss of color)

16
General Photoshop tips (such as after scanning)
  • To reduce image size and resolution
  • From the image menu, select image size
  • You can also use the Crop tool to remove parts
    of the image along the perimeter
  • You can change the orientation of the image
  • From the image menu, select Rotate canvas
  • To restore some lost information after resizing
    image (or scanning)
  • Apply unsharp mask from filter menu choose
    sharpen then select unsharp mask
  • You can also try to adjust colors (after scanning
    or changing size of image)
  • Image menu select adjustments, then try the
    following
  • Curves
  • Auto levels
  • Auto contrast
  • Variations

17
Useful Chart when working with image (web vs
print)
Image type Editing image/While working on with image Output to screen/web Output to printer
Photograph (complicated image) Mode RGB best for web Save file as .psd CMYK mode used for printing Save file as .tiff Format Jpg or png Mode RGB -Millions of colors Resolution 72-200 The lower resolution, the lower file size Format .tiff or .pict - mode CMYK -Millions of colors -resolution200-600
Line art image (simple image) Mode RGB mode best for screen Save file as .psd) CMYKmode used for printing Save file as .tiff Format Gif or png8 -256 colors (mode index) Resolution72 The lower resolution, lower file size Format .tiff or pict -Millions of colors -resolution 200-600 Mode CMYK
Scanning Scan at high resolution 150-300 web 200-600 print After scanning and editing image, save for desired output as mentioned above
18
Overview of Photoshop tools
Move object tool
- Rectangular marquee tool - press to select
Elliptical Marquee tool
- Crop tool - used to Shrink image. You can also
use to enlarge image
-Pencil tool free hand drawing (uses foreground
color) - Press on same tool to select a Brush
tool
- Paint bucket tool - used to paint large area of
canvas. It uses colors in the foreground
-Type tool
- Eye dropper tool -to select a foreground color
from image
-Foreground color - used when using type, paint
bucket, pecil, paint brush
-Background color - used when cut from edit menu
