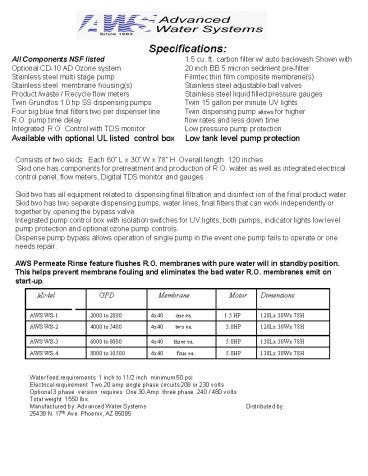

Specifications:

1
Specifications All Components NSF listed .
1.5 cu. ft. carbon filter w/ auto backwash
Shown with Optional CD-10 AD Ozone system 20
inch BB 5 micron sediment pre-filter Stainless
steel multi stage pump Filmtec thin film
composite membrane(s) Stainless steel membrane
housing(s) Stainless steel adjustable ball
valves Product /waste / Recycle flow meters
Stainless steel liquid filled pressure gauges
Twin Grundfos 1.0 hp SS dispensing pumps Twin
15 gallon per minute UV lights Four big blue
final filters two per dispenser line Twin
dispensing pump allows for higher R.O. pump time
delay flow rates and less down time
Integrated R.O. Control with TDS monitor Low
pressure pump protection Available with optional
UL listed control box Low tank level pump
protection
Consists of two skids. Each 60 L x 30 W x 78
H Overall length 120 inches Skid one has
components for pretreatment and production of
R.O. water as well as integrated electrical
control panel, flow meters, Digital TDS monitor
and gauges Skid two has all equipment related
to dispensing final filtration and disinfect ion
of the final product water. Skid two has two
separate dispensing pumps, water lines, final
filters that can work independently or together
by opening the bypass valve . Integrated pump
control box with isolation switches for UV
lights, both pumps, indicator lights low level
pump protection and optional ozone pump controls.
Dispense pump bypass allows operation of single
pump in the event one pump fails to operate or
one needs repair. AWS Permeate Rinse feature
flushes R.O. membranes with pure water will in
standby position. This helps prevent membrane
fouling and eliminates the bad water R.O.
membranes emit on start-up.
Model GPD Membrane Motor Dimensions
AWS WS-1 2000 to 2800 4x40 one ea. 1.5 HP 120Lx 30Wx 78H
AWS WS-2 4000 to 5400 4x40 two ea. 3.0HP 120Lx 30Wx 78H
AWS WS-3 6000 to 8000 4x40 three ea. 5.0HP 138Lx 30Wx 78H
AWS WS-4 8000 to 10500 4x40 four ea. 5.0HP 138Lx 30Wx 78H
Water feed requirements 1 inch to 11/2 inch
minimum 50 psi Electrical requirement Two 20
amp single phase circuits 208 or 230 volts
Optional 3 phase version requires One 30 Amp
three phase 240 / 480 volts Total weight 1550
lbs. Manufactured by Advanced Water
Systems Distributed by 25438 N. 17th Ave.
Phoenix, AZ 85085
2
Advanced Water Systems Complete Skid Mounted
Water Store Comes complete with all components
necessary to supply purified water to your
customers . Includes water storage . Tank(s) not
shown
The water station is pre plumbed and pre-wired to
minimize installation time.





Optional wheels may be added to each skid to make
set up and moving a snap. Various size tanks are
le depending on space requirements and system
size . All components NSF listed or equal .

• Stainless steel fill station

Dual stainless window vending machine
Stainless steel fill stations

Dual Window Vending
