Title: Nepali Water Solutions Inc.

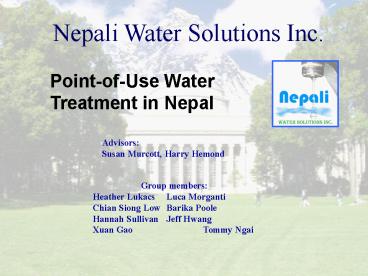

1
Nepali Water Solutions Inc.
Point-of-Use Water Treatment in Nepal
Advisors Susan Murcott, Harry Hemond
Group members Heather Lukacs Luca
Morganti Chian Siong Low Barika Poole Hannah
Sullivan Jeff Hwang Xuan Gao Tommy Ngai
2
Presentation Outline
  1. Project Background
  2. Project Goals
  3. Arsenic Removal
  4. Filtration
  5. Chlorine Disinfection
  6. Tubewell Maintenance
  7. Conclusion

3
Project Background
4
Project Background
Population 24 million (88 rural) Average
annual income 210 Pop. below poverty
line 42 Access to safe water 90 urban, 30
rural
Infant mortality 75/1000 birth (5/1000 in
US) Diarrheal illnesses 44000 child
death/year Life expectancy 58
5
Project Goals
Main objective To investigate appropriate
technology to provide safe drinking water for
rural Nepal population
Criteria
1. Technical performance
2. Social/cultural acceptability
3. Economic viable/sustainability
6
Arsenic Remediation
7
Introduction
  • Arsenic contaminated groundwater discovered in
    Terai region.
  • 4 of 5000 tubewells tested have arsenic contents
    greater than 50 ppb (18 have greater than 10
    ppb).
  • Arsenic causes
  • hyperpigmentation,
  • skin and liver cancer,
  • and circulatory disorder.

8
Goals
  • Evaluate Test three different household arsenic
    removal technologies
  • Develop a comprehensive map to identify the
    extent of arsenic contamination within Nepal.
  • Water quality analysis to determine factors that
    affect arsenic presence and removal.

9
Evaluation Criteria
  • Effectiveness of unit to reduce arsenic
    concentration below 10 ppb (WHO Standard)
  • Appropriateness/Social Acceptability
  • - Can it be made with local material by local
    labor?
  • - Is it easy to operate and maintain?
  • - Can it meet the water demand (40-50 liters per
    day per household)?
  • Cost
  • - Is it affordable to average Nepali household?

10
Arsenic Removal withActivated Alumina (AA)
  • Promising household unit using AA developed by
    Bangladesh University of Engineering and
    Technology (BUET)
  • Adsorption by AA efficiently removes Arsenic (up
    to 98 removal achieved)
  • Current cost per unit is 26 (15 per unit
    possible with mass production)

11
Prototype Design
  • Features
  • - Oxidation-sedimentation unit
  • - Sand filtration unit
  • - AA adsorption column
  • Problems with the Current Design
  • - Flimsy frame
  • - Too tall
  • - Inadequate flow rate

12
Arsenic Removal with Iron Coated Sand
  • Iron oxide adsorbs arsenic from water
  • Iron coated sand is more porous and has a higher
    specific surface area than scrap iron
  • Can be regenerated and reused at least 50 times
    with out loss in treatment efficiency.
  • Has been effective in Bangladesh

13
System Design
  • Sand preparation
  • - Fe(NO3)3 is dissolved
  • - NaOH is added, and iron oxide is formed
  • - Sand is added to the colloid solution, mixed
    and baked for 15 hours
  • Cost US 8
  • Flow rate 6 L/h
  • 94-99 removal

14
Pepperell, MA
  • Well water analysis for arsenic contamination
    conducted 20 years ago
  • Sample collection and analysis on Industrial Test
    System Arsenic Test Kits
  • Arsenic still present in Pepperell, MA well water
  • Confirmation on Graphite Furnace Atomic
    Absorption Spectrometer
  • EPA has lowered the arsenic MCL to 10 ppb, and
    many households are over the new limit
  • We will test our technologies in Pepperell prior
    to field tests in Nepal

15
How to improve removal?
  • Both AA and Iron coated sand work best with As(V)
    instead of As(III)
  • Arsenic speciation in Nepal varies
  • Oxidation of Arsenic can improve removal
    efficiency

16
BP/I3 resin
  • Benzyl Pyridinium Triiodine
  • Developed by Aquatic Treatment Systems
  • 100 oxidation in 1 second
  • On-demand oxidant
  • Very stable, no by-products
  • Some ability to disinfect

17
Arsenic map of Nepal
  • Based on well info from ENPHO and Nepal Red Cross
    Society
  • Develop a map to show the extent arsenic
    contamination
  • Integrate
  • information
  • into GIS format

18
To develop arsenic map
  • Attend GIS class
  • Get relevant maps (scale, regions, details)
  • Get data from ENPHO/Red Cross
  • Obtain field data
  • Integrate all data into GIS format
  • Perform analysis on data
  • Print a big map

19
Water Quality Parameters
  • Want to investigate correlations between presence
    of arsenic and other parameters
  • Parameters of interest
  • pH, hardness, alkalinity, turbidity,
    conductivity, arsenic, iron, aluminum, sulfate,
    chloride, copper,
  • phosphate, nitrate
  • Investigate the effects of these parameters on
    arsenic removal efficiency by our technologies
  • Can integrate these data on GIS

20
Current Progress
  • Accomplishments thus far
  • - Literature review
  • - Technology selection
  • - Contacts made
  • - Received some supplies and equipment
  • - Test kit analysis
  • - Arranged GFAAS analysis

21
Next Steps
  • Next steps
  • - Obtain supplies (e.g. buckets, pipes)
  • - Build prototypes
  • - Preliminary lab tests
  • - GFAAS analysis
  • - Field tests in Pepperell
  • - BP/I3 Resin tests
  • - Water quality analysis
  • - Order digitized maps of Nepal

22
Terafil Filter
23
Terafil Terracotta Filter
  • Mixture of red pottery clay, river sand, wood
    sawdust
  • Designed by Regional Research Laboratory, India
  • Field tested in cyclone affected areas in Orissa,
    India (Oct 1999)
  • In-house test verification

24
Scope of Work
  • In MIT,
  • Carry out lab tests on Terafil Filter and Potters
    for Peace Filter (PFP) (ongoing)
  • Terafil and PFP Literature Review
  • Compare effectiveness of Terafil and PFP Filter
  • Research into ceramic manufacturing process and
    local practices

25
Scope of Work
  • In Nepal,
  • Carry out field tests on Terafil and/or PFP
    Filter
  • Get involved with local filter manufacture
  • Back in MIT,
  • Wrap up test results into thesis
  • Possible research into other suitable filters for
    use in developing countries

26
Work in Progress
  • Lab familiarization completed with preliminary
    testing of Terafil filter
  • Devise comprehensive lab tests on filter with
    specific goals
  • Lab tests on PFP and improvised Terafil filter
  • Pre- and Post-Chlorination (Terafil only)
  • Colloidal silver coating (both)

27
Laboratory Testing
  • Physical parameter
  • Flowrate, turbidity, temperature
  • Chemical parameter
  • pH
  • Microbial parameters
  • H2S bacteria, Total Coliform/E.Coli (P/A tests)
  • Total Bacteria (Microscopic Direct Counts)
  • Total Coliform (Coliform Counts)

28
Presence/Absence test
29
Membrane Filtration
30
Biosand Filter
31
Biosand Filter Features
  • Slow sand filtration
  • Relatively fast flow rate
  • Made of local materials
  • Intermittent use
  • No chemical additives
  • Biofilm (Schmutzdecke)
  • Easy to clean
  • Economically sustainable

32
Biosand Filter Performance
  • Laboratory Studies
  • Parasite removal 100
  • Virus removal 99.9
  • Bacteria removal 99.5 (Lee 2001)
  • Field Studies
  • Bacteria removal 60-99.9

33
Biosand Project Goals
  • Expand 2001 MIT Biosand work
  • Slow sand literature review and applicability
  • Global Biosand usage
  • Methodology development
  • Maintain constant concentration input
  • Laboratory study of bacterial removal
  • After cleaning
  • Following pause time
  • Field study in Nepal
  • Quantification of fecal coliform removal
  • (membrane filtration)
  • Turbidity, pH, Temperature

34
Chlorine Disinfection
35
Chlorine Disinfection
  • Investigated Fields
  • Household Chlorination (Hannah Sullivan)
  • Chlorine Generation (Luca Morganti)

36
Safe Water System (CDC)
  • Point-of-Use Treatment using locally produced and
    distributed sodium hypochlorite solution.
  • Safe Water Storage in plastic containers with
    narrow mouths, secure lids and dispensing spigots
    to prevent recontamination.
  • Behavior Change Techniques to influence hygiene
    behaviors and increase awareness about the
    dangers of contaminated water and waterborne
    disease.

37
Promising Results
  • Implemented World-wide
  • Kenya, Uganda, Zambia, Guatemala, Bolivia,
    Ecuador, Peru, Pakistan
  • Reduces levels of bacterial contamination
  • Low Cost
  • Annual cost of 1.17 - 1.62 per household
  • Reduces incidence of waterborne disease

38
Lumbini Pilot Study
  • Pilot Study of Household Chlorination
  • March 2001
  • Modeled after CDCs Safe Water Systems
  • Experimental Group 50 Families 10 Schools
  • Control Group 50 Families 10 Schools

39
M.Eng Project
  • Review of CDCs Safe Water System Program
  • - History, Types of Programs, Costs,
    Sustainability
  • Evaluation of Lumbini Pilot Project
  • - Point-of-Use Testing
  • - Chlorine Residual,
  • - Bacterial Analysis (H2S and MF)
  • - Health Survey
  • - Social Acceptability Survey
  • Recommendations for Lumbini and Nepal
  • - Is the Safe Water Systems Approach Appropriate?

40
The Problem
  • Chlorine is not readily available for
    disinfection
  • Chlorine disinfectant (Piyush) is produced from
    imported bleaching powder (calcium chloride)
  • Dependence
  • Limited availability
  • Export of money

41
The Solution
  • PRODUCE CHLORINE LOCALLY
  • Self-sufficiency
  • Easier supply
  • Generation of income for local people
  • HOW ?
  • Chlorine Generator (CG)
  • (Nadine Van Zyl, M.Eng.2001)

42
Chlorine Generator Specs-1
  • Electrolytic cell NaCl H2O -gt NaClO H2
  • Batch system easy regulation

Amount/day equivalent Cl2 6.0 Lb 2.7 kg
Salt consumption per 24 h. cycle 30.0 Lb 13.6 kg
Water consumption per 24 h. cycle 120 Gal 455 L
Specific energy consumption 2.5 kW/Lb 5.5 kW/kg
43
Chlorine Generator Specs-2
Diameter 17.8 cm
Length 102.6 cm
Weight 4.1 kg
Cost US 2000
44
Purpose of the study
  • Identify performance influencing factors (water
    and salt quality)
  • Define CG set-up procedure
  • Learn CG use and maintenance procedures
  • Test CG performance (concentration)
  • Train local personnel
  • Outline a micro-enterprise program

45
CG Sustainability
  • Economically
  • Cost of materials, energy, labor
  • Reasonable price
  • Environmentally
  • Energy source (solar energy)
  • Socially
  • Actractive business?
  • Reliable business ?
  • Expanding market ?

46
Tubewell Maintenance Program
47
Tubewell
  • Ground water is the main source in the most of
    the Terai areas
  • Ground water hand pump device
  • 5 to 10 households share 1 tube well
  • Tubewell water is better than dugwell water or
    surface water

48
Problem with Tubewells
  • Past study has shown that over 70 of the tube
    well water in Lumbini is contaminated by
    bacteria.

49
Possible Causes of the Problem
  • Poor Sanitary Conditions
  • Sludge drilling which uses a slurry of cow dung
  • Inadequate sealing or protection of the well
  • Improper drainage that causes accumulation of
    wastewater in the pit nearby
  • Flooding during monsoon

50
Tubewell Maintenance Program
  • Determination of the sources of tubewell
    contamination
  • Development of a plan to eliminate the
    contamination and maintain the wells properly
  • A study of the suitability for shock chlorination
    of wells
  • One-time introduction of a strong chlorine
    solution into a well.

51
Progress and Future Work
  • Progress
  • Laboratory Testing at MIT
  • Contact with FINNIDA
  • Literature Review
  • Future work
  • More literature review
  • Pilot study in Butwal, Nepal

52
Conclusion
53
Conclusion
  • Project Goals
  • Technologically sound, socially acceptable, and
    economically sustainable solutions
  • Improved health through safe drinking water
    supply to Nepali people
  • Future work
  • Literature Review
  • Laboratory studies at MIT
  • Field studies in Nepal
  • Nepal in Jan, 2002!
Write a Comment
User Comments (0)
About PowerShow.com
