Sources of Energy in the Earth System

1
Sources of Energy in the Earth System

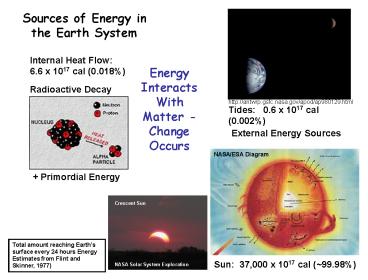

Internal Heat Flow 6.6 x 1017 cal (0.018)
Energy Interacts With Matter - Change Occurs
Tides 0.6 x 1017 cal (0.002)
External Energy Sources
Crescent Sun
Total amount reaching Earths surface every 24
hours Energy Estimates from Flint and Skinner,
1977)
Sun 37,000 x 1017 cal (99.98)
NASA Solar System Exploration
2
Earth Processes Driven by two heat
engines Internal - Heat Flow - 6.6 x
1017 cal (0.018) External - Solar Radiation -
37,000 x 1017 cal (99.98) Tides
0.6 x 1017 cal (0.002) (Total
amount reaching Earths surface every 24 hours)
Amounts of energy available from different sources
3
External Heat Engine Driven by energy from
the sun Drives the physical processes of the
atmosphere and hydrosphere
The Model for the Earth is a GreenHouse!!!!
Diagram to help explain the process of global
warming and how greenhouse gases create the
"greenhouse effect" www.eecs.umich.edu/mathscienc
e/funexperiments/agesubject/lessons/images/diagram
page.html
4
Earths External Energy Budget
Inflow Outflow
5
Earths Internal Heat Engine Drives the
dynamic processes of the geosphere - driving
force for on-going catastrophic events such as
earthquakes and volcanic eruptions - creates
an irregular distribution of heat flow at the
surface to the Earth
Global Heat Flow Map, Pollack and others, 1993,
http//www.geo.lsa.umich.edu/hpollack/globalq.htm
l
6
Earths Internal Heat Engine - Sources Primordi
al Processes - (1) extraterrestrial impacts
(2) gravitational contraction of the Earth's
interior. Radioactive Decay (3)
unstable isotopes Processes
Please Read THE EARTH'S INTERNAL HEAT ENERGYAND
INTERIOR STRUCTURE
7
EXTRATERRESTRIAL IMPACTS
From NASA Archives
Primordial Heat Sources
From NASA Archives
Meteor Crater, Arizona
GRAVITATIONAL CONTRACTION
http//astrogeology.usgs.gov/Projects/BrowseTheSol
arSystem/gifs/moon2.gif
8
Radioactive Decay Unstable isotopes.
The spontaneous emission of radiation, generally
alpha or beta particles, often accompanied by
gamma rays, from the nucleus of an unstable
isotope.
(Gamma Rays -Electromagnetic Radiation)
U.S. Nuclear Regulatory Commission
(alpha or beta particles)
Learning More About Radiation Radioactivity
Click Here
9
Where does the internal energy go?
Go to the Sources of Earths Energy folder, print
out Earth Plate Puzzle I and II. Cut out the
pieces and put the puzzle together. (Source
FEMA K-6 Earthquake Curriculum, 2000)
Global Heat Flow Map, Pollack and others, 1993,
http//www.geo.lsa.umich.edu/hpollack/globalq.htm
l
Compare the puzzle to the Heat Flow Map above!
10
Where does the internal energy go?
Compare the puzzle to the map of tectonic plates
above!
11
Where does the internal energy go?
Compare the puzzle to the Earthquake Occurrence
Map below. What is the relationship between
heat flow, earthquakes, and the puzzle pieces?
12
Where does the internal energy go?
Compare the puzzle to the active volcanoes map
below. What is the relationship between heat
flow, active volcanoes, and the puzzle pieces.
13
Where does the internal energy go?
14
Where does the internal energy go?
How does energy get transferred?
