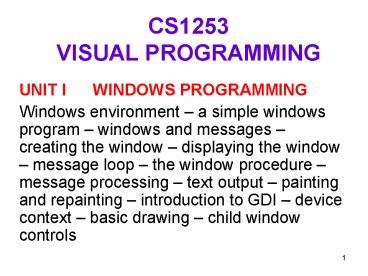

CS1253 VISUAL PROGRAMMING

1
CS1253 VISUAL
PROGRAMMING

• UNIT I WINDOWS PROGRAMMING
• Windows environment a simple windows program
  windows and messages creating the window
  displaying the window message loop the window
  procedure message processing text output
  painting and repainting introduction to GDI
  device context basic drawing child window
  controls

2
CS1253 VISUAL
PROGRAMMING

• UNIT II VISUAL C PROGRAMMING INTRODUCTION
• Application Framework MFC library Visual C
  Components Event Handling Mapping modes
  colors fonts modal and modeless dialog
  windows common controls bitmaps

3
CS1253 VISUAL
PROGRAMMING

• UNIT III THE DOCUMENT AND VIEW ARCHITECTURE
• Menus Keyboard accelerators rich edit control
  toolbars status bars reusable frame window
  base class separating document from its view
  reading and writing SDI and MDI documents
  splitter window and multiple views creating
  DLLs dialog based applications

4
CS1253 VISUAL
PROGRAMMING

• UNIT IV ACTIVEX AND OBJECT LINKING AND EMBEDDING
  (OLE)
• ActiveX controls Vs. Ordinary Windows Controls
  Installing ActiveX controls Calendar Control
  ActiveX control container programming create
  ActiveX control at runtime Component Object
  Model (COM) containment and aggregation Vs.
  inheritance OLE drag and drop OLE embedded
  component and containers sample applications

5
CS1253 VISUAL
PROGRAMMING

• UNIT-V ADVANCED CONCEPTS
• Database Management with Microsoft ODBC
  Structured Query Language MFC ODBC classes
  sample database applications filter and sort
  strings DAO concepts displaying database
  records in scrolling view Threading VC
  Networking issues Winsock WinInet building
  a web client Internet Information Server
  ISAPI server extension chat application
  playing and multimedia (sound and video) files

6
CS1253 VISUAL
PROGRAMMING

• TEXT BOOKS
• 1. Charles Petzold, Windows Programming,
  Microsoft press, 1996 (Unit I Chapter 1-9)
• 2. David J.Kruglinski, George Shepherd and Scot
  Wingo, Programming Visual C, Microsoft press,
  1999 (Unit II V)
• REFERENCES
• 1. Steve Holtzner, Visual C 6 Programming,
  Wiley Dreamtech India Pvt. Ltd., 2003.

7
UNIT I Windows Programming

• Text Book
• Charles Petzold, Windows Programming,
  Microsoft press, 1996
• (Unit I Chapter 1-9)

8
Windows Programming

• History of Windows
• IBM PC 1981
• OS MSDOS ( Microsoft Disk Operating System)
• MS DOS was minimal operating system.
• For the user, it provided a command-line
  interface to commands such as DIR and TYPE and
  loaded application programs into memory for
  execution.

9
Windows Programming

• History of Windows
• For the application programmer, MS-DOS offered
  little more than a set of function calls for
  doing file input/output (I/O).
• For other tasksin particular, writing text and
  sometimes graphics to the video
  displayapplications accessed the hardware of the
  PC directly.

10
Windows Programming

• History of Windows
• Apple Computer Jan 1983
• OS - Lisa
• set a standard for graphical environments with

• Macintosh in Jan 1984.
• Windows
• announced by Microsoft corporation in Nov 1983
  (post-Lisa but pre-Macintosh)

11
Windows Programming

• History of Windows
• Windows1.0
• Nov 1985.
• with several updates to support the international
  market.
• with additional drivers for additional video
  displays and printers.

12
Windows Programming

• History of Windows
• Windows2.0
• Nov 1987.
• with several changes to the user interface.
• also enhancements to the keyboard and mouse
  interface, particularly for menus and dialog
  boxes.

13
Windows Programming

• History of Windows
• Windows2.0
• requires only Intel 8086 or 8088 microprocessor
  running in "real mode" to access 1 megabyte (MB)
  of memory.
• Windows/386
• released shortly after Windows 2.0
• used the "virtual 86" mode of the Intel 386
  microprocessor to window
• multitask many DOS programs that directly
  accessed hardware.

14
Windows Programming

• History of Windows
• Windows/286
• Windows 2.1 was renamed Windows/286.
• Windows3.0
• May 22, 1990.
• Windows/286 and Windows/386 versions were merged
  into one product with this release.

15
Windows Programming

• History of Windows
• Windows3.1 April 1992
• several significant features included the
  TrueType font technology, multimedia (sound and
  music), Object Linking and Embedding (OLE), and
  standardized common dialog boxes.
• ran only in protected mode.
• required a 286 or 386 processor with at least 1
  MB of memory.

16
Windows Programming

• History of Windows
• WindowsNT July 1993
• was the first version of Windows to support the
  32-bit mode of the Intel 386, 486, and Pentium
  microprocessors.
• Programs that run under Windows NT have access to
  a 32-bit flat address space and use a 32-bit
  instruction set.
• required a 286 or 386 processor with at least 1
  MB of was also designed to be portable to
  non-Intel processors.
• it runs on several RISC-based workstations.

17
Windows Programming

• History of Windows
• Windows95 Aug 1995
• also supported the 32-bit programming mode of the
  Intel 386 and later microprocessors.
• Adv - requiring fewer hardware resources.
• Dis adv - lacked some of the features of Windows
  NT, such as high security and portability to RISC
  machines.

18
Windows Programming

• History of Windows
• Windows95 June 1998
• has a number of enhancements such as,
• performance improvements.
• better hardware support.
• a closer integration with the Internet and the
  World Wide Web.

19
Windows Programming

• Dynamic Linking
• Windows provides function calls that an
  application needs to implement its user interface
  and display text and graphics on the video
  display.
• These functions are implemented in dynamic-link
  libraries, or DLLs. These are files with the
  extension .DLL or sometimes .EXE.
• They are located in
• Win98 - \WINDOWS\SYSTEM
• WinNT - \WINNT\SYSTEM and \WINNT\SYSTEM32

20
Windows Programming

• Dynamic Linking
• In the early days, Windows was implemented in
  just three dynamic-link libraries.
• These represented the three main subsystems of
  Windows, which were referred to as Kernel, User,
  and GDI.
• Kernel - handles memory management, file I/O and
  tasking.
• User - refers to the user interface, and
  implements all the
• windowing logic.
• GDI - is the Graphics Device Interface, which
  allows a
• program to display text and
  graphics on the screen
• and printer.

21
Windows Programming

• Dynamic Linking
• Windows98 supports several thousand function
  calls that applications can use.
• Each function has a descriptive name, such as
  CreateWindow.
• This function creates a window for the program.
• All the Windows functions that an application may
  use are declared in header files.

22
Windows Programming

• Dynamic Linking
• In Windows program, we use the Windows function
  calls same as C library functions like strlen.
• Difference
• The machine code for C library functions is
  linked into program code.
• whereas the code for Windows functions is located
  outside of the program in the DLLs.

23
Windows Programming

• Dynamic Linking
• When you run a Windows program,
• it interfaces to Windows through a process called
  "dynamic linking.
• A Windows .EXE file contains references to the
  various dynamic-link libraries.

24
Windows Programming

• Dynamic Linking
• When a Windows program is loaded into memory,
• the calls in the program are resolved to point to
  the entries of the DLL functions.
• DLL functions are also loaded into memory if not
  already there.

25
Windows Programming

• Dynamic Linking
• When link a Windows program to produce an
  executable file,
• must link with special "import libraries"
  provided with programming environment.
• These import libraries contain the dynamic-link
  library names and reference information for all
  the Windows function calls.
• The linker uses this information to construct the
  table in the .EXE file that Windows uses to
  resolve calls to Windows functions when loading
  the program.

26
Simple Windows Program

• First Windows Program
• The Windows program has exactly the same
  components as the character-mode version.
• It has
• an include statement,
• a program entry point,
• a function call, and
• a return statement.

27
Simple Windows Program

• First Windows Program
• For Example,
• To display "Hello Welcome!!! in a message box.
• include ltwindows.hgt
• int WINAPI WinMain (HINSTANCE hInstance,
  HINSTANCE hPrevInstance, PSTR szCmdLine, int
  iCmdShow)
• MessageBox (NULL, TEXT ("Hello Welcome!!!"),
  TEXT ("HelloMsg"), 0)
• return 0

28
Simple Windows Program

• First Windows Program
• The header file STDIO.H has been replaced with
  WINDOWS.H.
• The entry point main has been replaced with
  WinMain.
• The C run-time library function printf has been
  replaced with the Windows API function
  MessageBox.
• However, there is much in the program that is
  new, including several strange-looking uppercase
  identifiers.

29
Simple Windows Program

• The Header Files
• include ltwindows.hgt
• WINDOWS.H is a master include file that
  includes other Windows header files.
• The most important and most basic of these header
  files are
• WINDEF.H -   Basic type definitions.
• WINNT.H -   Type definitions for Unicode
  support.
• WINBASE.H -  Kernel functions.
• WINUSER.H   - User interface functions.
• WINGDI.H   - Graphics device interface
  functions.

30
Simple Windows Program

• The Header Files
• These header files define all the Windows data
  types, function calls, data structures, and
  constant identifiers.
• They are an important part of Windows
  documentation.
• It is convenient to use the Find In Files option
  from the Edit menu in the Visual C Developer
  Studio to search through these header files.
• It can also open the header files in the
  Developer Studio and examine them directly.

31
Simple Windows Program

• Program Entry Point
• Just as the entry point to a C program is the
  function main, the entry point to a Windows
  program is WinMain, which always appears like
  this
• int WINAPI WinMain (HINSTANCE hInstance,
  HINSTANCE hPrevInstance, PSTR szCmdLine, int
  iCmdShow)
• This entry point is documented in,
• /Platform SDK/User Interface Services/Windowing/
  Windows/Window Reference/Window Functions.

32
Simple Windows Program

• Program Entry Point
• It is declared in WINBASE.H like so (line breaks
  and all)
• int
• WINAPI
• WinMain(
• HINSTANCE hInstance,
• HINSTANCE hPrevInstance,
• LPSTR lpCmdLine,
• int nShowCmd
• )
• LPSTR PSTR are two data types defined in
  WINNT.H as pointers to character strings.
• The LP prefix stands for "long pointer.

33
Simple Windows Program
Prefix Data Type b BOOL c or ch char clr COLOR
REF cx, cy Horizontal or vertical
distance dw DWORD h Handle l LONG n int p Poi
nter sz Zero-terminated string w WORD wnd CWnd
str CString m_ class member variable
Hungarian Notation
Note Prefixes can be combined pszName m_nAge
34
Simple Windows Program

• Program Entry Point
• WinMain Parameters
• First parameter -
• It is something called an "instance handle.
• In Windows programming, a handle is simply a
  number that an application uses to identify
  something.
• In this case, the handle uniquely identifies the
  program.

35
Simple Windows Program

• Program Entry Point
• WinMain Parameters
• Second parameter -
• A program could determine if other instances of
  itself were running by checking the hPrevInstance
  parameter.
• It could then skip certain chores and move some
  data from the previous instance into its own data
  area.
• In the 32-bit versions of Windows, this concept
  has been abandoned. The second parameter to
  WinMain is always NULL (defined as 0).

36
Simple Windows Program

• Program Entry Point
• WinMain Parameters
• Third parameter -
• is the command line used to run the program.
• Some Windows applications use this to load a file
  into memory when the program is started.
• Fourth parameter
• indicates how the program should be initially
  displayedeither normally or maximized to fill
  the window, or minimized to be displayed in the
  task list bar.

37
Simple Windows Program

• MessageBox Function
• It is designed to display short messages.
• The little window that MessageBox displays is
  actually considered to be a dialog box, although
  not one with a lot of versatility.
• For example,
• MessageBox (NULL, TEXT ("Hello, Windows 98!"),
• TEXT("HelloMsg"), 0)

38
Simple Windows Program

• MessageBox Function
• Parameters
• First Parameter - is normally a window handle.
• Second Parameter - is the text string that
  appears in the body of the message box.
• Third Parameter - is the text string that
  appears in the caption bar of the message
  box.

39
Simple Windows Program

• MessageBox Function
• Parameters
• Fourth Parameter - can be a combination of
  constants beginning with the prefix MB_
  that are defined in WINUSER.H.
• can pick one constant from the first set to
  indicate what buttons you wish to appear in the
  dialog box

40
Simple Windows Program

• MessageBox Function
• Buttons
• define MB_OK 0x00000000L
• define MB_OKCANCEL 0x00000001L
• define MB_ABORTRETRYIGNORE 0x00000002L
• define MB_YESNOCANCEL 0x00000003L
• define MB_YESNO 0x00000004L
• define MB_RETRYCANCEL 0x00000005L
• Note When set the fourth argument to 0, only the
  OK button appears in the message box.

41
Simple Windows Program

• MessageBox Function
• Buttons
• can use the OR () operator to combine one of the
  constants shown above with a constant that
  indicates which of the buttons is the default
• define MB_DEFBUTTON1 0x00000000L
• define MB_DEFBUTTON2 0x00000100L
• define MB_DEFBUTTON3 0x00000200L
• define MB_DEFBUTTON4 0x00000300L

42
Simple Windows Program

• MessageBox Function
• Buttons
• can also use a constant that indicates the
  appearance of an icon in the message box
• define MB_ICONHAND 0x00000010L
• define MB_ICONQUESTION 0x00000020L
• define MB_ICONEXCLAMATION 0x00000030L
• define MB_ICONASTERISK 0x00000040L

43
Simple Windows Program

• MessageBox Function
• Buttons
• Some of these icons have alternate names
• define MB_ICONWARNING MB_ICONEXCLAMATION
• define MB_ICONERROR MB_ICONHAND
• define MB_ICONINFORMATION MB_ICONASTERISK
• define MB_ICONSTOP MB_ICONHAND

44
Simple Windows Program

• Compile, Link and Run
• When ready to compile HELLOMSG, select Build
  Hellomsg.exe from the Build menu, or press F7, or
  select the Build icon from the Build toolbar.
• Alternatively, select Execute Hellomsg.exe from
  the Build menu, or press CtrlF5, or click the
  Execute Program icon from the Build toolbar.
• Will get a message box asking you if you want to
  build the program.

45
Simple Windows Program

• Compile, Link and Run
• During the compile stage,
• the compiler generates an .OBJ (object) file from
  the C source code file.
• During the link stage,
• the linker combines the .OBJ file with .LIB
  (library) files to create the .EXE (executable)
  file.
• can see a list of these library files by
  selecting Settings from the Project tab and
  clicking the Link tab.

46
Simple Windows Program

• Compile, Link and Run
• Import Libraries
• In particular, KERNEL32.LIB, USER32.LIB, and
  GDI32.LIB.
• These are "import libraries" for the three major
  Windows subsystems.
• They contain the dynamic-link library names and
  reference information that is bound into the .EXE
  file.

47
Simple Windows Program

• Compile, Link and Run
• Import Libraries
• Windows uses this information to resolve calls
  from the program to functions in the
  KERNEL32.DLL, USER32.DLL and GDI32.DLL
  dynamic-link libraries.
• Configuration Files
• In the Visual C Developer Studio, compile and
  link the program in different configurations.
• By default, these are called Debug and Release.

48
Simple Windows Program

• Compile, Link and Run
• Configuration Files
• The executable files are stored in subdirectories
  of these names.
• In the Debug configuration, information is added
  to the .EXE file that assists in debugging the
  program and in tracing through the program source
  code.
