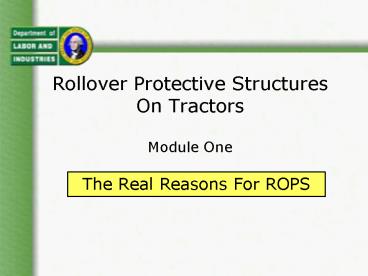

Rollover Protective Structures On
TractorsModule One

• The Real Reasons For ROPS

2
What You Will Learn

• Rollover Protective Structures are called ROPS
• Why do tractors need ROPS?
• What happens if my tractor rolls over?
• What are some rollover prevention strategies?
• Where can I buy ROPS?

3
What Are ROPS?

• ROPS are
• Rollover Protective Structures. They are a frame
  or cab that creates a protective zone around the
  operator. They virtually eliminate tractor
  rollover fatalities when used properly.

These are ROPS
4
What is a Protective Zone?

• Protective Zone
• An imaginary space surrounding an operators
  body. ROPS and a seatbelt keeps the operator
  within this safe space in the event of a rollover.

This is the Protective Zone
5
WARNING !!!

• If your tractor does not have ROPS
• DO
• Consult an authorized dealership or the
  manufacturer to purchase and install ROPS.
• NEVER
• Make and install ROPS yourself.

6
WARNING !!!

• You should not make and install ROPS yourself
• BECAUSE
• ROPS are specifically engineered for each
  individual tractor model,
• engineered to structurally support the tractor
  weight in the event of a rollover,
• engineered to protect the life of the operator.

7
Why Do Tractors Need ROPS?
According to the University of Iowa Agricultural
Center

• Tractors that roll over without ROPS 75
  chance of operator death

• With ROPS and seatbelts
• 95 chance of walking away from the
  accident

8
Why Do Tractors Need ROPS?
According to the University of Iowa Agricultural
Center

• In 76 fatal rollover cases studied
• All 76 victims were operating tractors without
  ROPS and seatbelts.

9
Why Do Tractors Need ROPS?

• Because you DONT want this to happen

10
Basic Cause of Rollovers

• Rollovers happen when the center of gravity
  passes over the baseline of stability, either to
  the side or the rear of the machine.
• The center of gravity must be kept within the
  baseline of stability to keep the tractor right
  side up.

11
How Do ROPS Work?

• With ROPS, the tractor often rolls just 90
  degrees, keeping the operator in a safe zone.
• ROPS, and a seatbelt prevents the operator from
  being thrown off the tractor and being crushed by
  the tractor, or being thrown into the ground or
  into surrounding objects.

12
How Do ROPS Work?

• You must wear the seatbelt or ROPS are worthless.
  Tighten the seatbelt sufficiently, so you stay in
  the protective zone. Wear the seatbelt always,
  even on flat ground.

ROPS
Seatbelt
13
How Do ROPS Work?

• The next two slides show a tractor with ROPS in a
  side rollover.
• Side rollovers account for about 75 of all
  rollovers.
• Notice how an operator could survive the roll by
  staying within the safe area.

14
Tractor is heading towards depressions in the
side of the hill.
Front wheels catch the depressions and start the
roll
15
Definitely past the point of no return.
With ROPS and seatbelt, operator has an excellent
chance of surviving a side rollover.
16
How Side Rollovers Happen

• When the tractor is driven on a hillside that is
  too steep.
• When the tractor bucket is elevated too high for
  a given load, driven on a hillside that is too
  steep, or is turned at excessive speed.
• When the tractor is driven too close to the edge
  of the road, a ditch, or other steep slope.

17
To Belt or Not?

• Just in case you think you might consider
  skipping using the seatbelt, look at the next
  slide and see what can happen.

18
Operator
Even though this tractor had ROPS, the seatbelt
was not used, causing the operator to be ejected
from the protective zone.
19
How Do ROPS Work?

• What about a rear rollover?

With ROPS and seatbelt, operator has an excellent
chance of being contained in the protective zone
and surviving a rear rollover.
20
How Rear Rollovers Happen

• Tractors will easily tip to the rear when the
  rear wheels cannot rotate enough to move the
  tractor forward.
• As the tractor front rises, momentum and engine
  power work together to keep the tractor body
  lifting and rotating.
• The process can take less than ¾ of a second.

21
How Rear Rollovers Happen

• Five situations causing rear rollovers
• Stuck in mud or snow, prevents rear wheels from
  rotating.
• Rear wheels cannot turn because chains, boards,
  or other materials are used to improve traction
  and actually prevent the wheels from turning.
• Tractor is climbing a hill that is too steep. The
  steeper the hill, the greater the risk.

22
How Rear Rollovers Happen (Cont.)

• Five situations causing rear rollovers,
• - With the transmission in a lower gear and
  the engine running at high speed, the clutch
  is released too quickly.
• A load is hitched above the drawbar.

23
Prevention Strategies

• To Prevent Side Rollovers
• Set wheels at widest possible setting for the
  job.
• Lock brake pedals for road travel.
• Reduce speed while turning, crossing slopes, and
  on rough, slick, or muddy terrain.
• Watch where you are going, look out for bumps,
  stumps, holes, etc.

24
Prevention Strategies

• To Prevent Side Rollovers (Cont.)
• Avoid steep slopes if possible.
• Keep side mounted equipment on uphill side of
  slope.
• Pull heavy loads at slow speeds.
• Avoid driving too close to ditches, stream banks,
  and canals.

25
Prevention Strategies

• To Prevent Rear Rollovers
• Hitch towed loads to the drawbar only.
• Use weight to increase stability.
• Start forward motion slowly and change speed
  gradually.
• Back up steep slopes.

26
Prevention Strategies - Training

• Of the many tractor injuries and deaths that
  happen, few are caused by machinery failure.
• Most are caused, directly or indirectly, by
  carelessness and hurry.
• Every operator should be trained in safe
  operating procedures.
• See the presentation Ten Commandments of Tractor
  Safety

27
Prevention Strategies - Training

• The operator must be aware of the ever-changing
  environment and be able to react accordingly.
• For examples, operators must know
• When a hillside too steep for safe travel
• When an elevated load too high for a given speed
• See Training Requirements for ROPS

28
Where Do I Buy ROPS?

• If your tractor does not have a ROPS
• Check with your local dealership or contact the
  tractor manufacturer.
• Many manufacturers will sell ROPS at cost.
• Check this publication
• A Guide to Agricultural Tractor Rollover
  Protective Structures

29

• Thank you for taking the time to learn about
  safety and health and how to prevent future
  injuries.
• Learn about the Rules for Rollover Protective
  Structures On Tractors in Module Two.
