Pigments in Forensic Geology

1

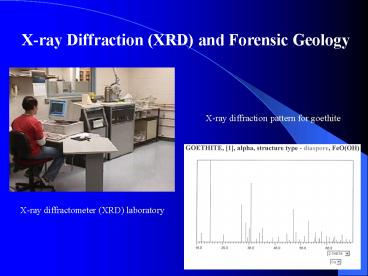

X-ray Diffraction (XRD) and Forensic Geology
X-ray diffraction pattern for goethite
X-ray diffractometer (XRD) laboratory
2
Structure of minerals

• Minerals consist of an orderly array of atoms
  chemically bonded to form a particular
  crystalline structure.
• Internal atomic arrangement in ionic compounds is
  determined by ionic size.

3
Geometric packing of various ions
Figure 3.8
4
Structure of Minerals

• Crystal Lattice the three dimensional molecular
  structure of a mineral. (Shape of the unit
  cell.)
• the various ions that make up the mineral.
• Geometry chemistry!

5
(No Transcript)
6
Structure of Minerals
Halite (rock salt)
7
Diagram illustrating Braggs law. ? angle of
incidence and diffraction when Braggs law
conditions are met. d inter-planar spacing.
8
Braggs Law ? 2d(sin?) where ? x-ray
wavelength d spacing between planes of atoms
in crystal ? ? x-ray incidence angle (Bragg
angle) also d ? /2sin ? sin ? ? /2d
9
