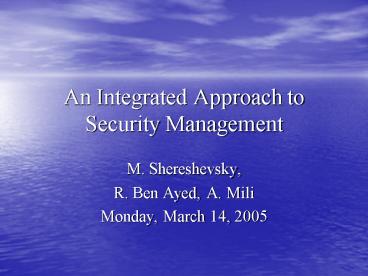

An Integrated Approach to Security Management

• M. Shereshevsky,
• R. Ben Ayed, A. Mili
• Monday, March 14, 2005

2
Target A Prototype for Managing Security Goals
and Claims

• Composing Claims Given a set of security
  measures, each resulting in a claim,
• Can we add up the claims (resulting from
  different security measures) in a comprehensive
  manner?
• Can we infer specific security properties
  (probability/ cost of specific attacks)?
• Can we expose redundancies between claims?
• Can we expose loopholes/ vulnerabilities?

3
Target A Prototype for Managing Security Goals
and Claims

• Decomposing Security Goals Given a security
  goal we want to achieve,
• How can we decompose it into achievable
  sub-goals?
• Dispatch sub-goals to layers/ sites to maximize
  impact.
• Dispatch sub-goals to methods so as to control
  (minimize?) verification effort.
• Dispatch verification effort to sub-goals so as
  to control (minimize?) failure cost?
• Issues Representing, Reasoning about claims and
  goals.

4
Outline

• Dependability A Multi-dimensional attribute
• An Integrated Approach to Reliability
• A Uniform Representation for Dependability
  Measures
• Inference Rules
• General Applications
• Specialization A Prototype for Managing Security

5
Dependability A Multi Dimensional Attribute

• Four Dimensions to Dependability
• Availability Probability of providing services
  when needed.
• Reliability Probability of Failure Free
  Operation.
• Safety Probability of Disaster Free Operation.
• Security Probability of Interference Free
  Operation (exposure, intrusion, damage).
• Conceptually orthogonal, actually interdependent.

6
Availability

• Depends on
• Reliability.
• Repair Time.
• Dependent on Reliability.
• Related to Security DoS affects availability.

7
Reliability

• Basic Concepts
• Fault. System feature that may cause system to
  misbehave.
• Error. Impact of fault on system state. Early
  warning of misbehavior.
• Failure. Impact of fault on system (mis)
  behavior. Observable misbehavior.
• System feature State feature Output feature.

8
Reliability, II

• Basic Means
• Fault Avoidance. Fault Free Design.
• Fault Removal. Debugging/ Testing.
• Fault Tolerance. Error detection and recovery.
• Three successive, increasingly desperate, lines
  of defense.

9
Safety

• Key Concepts
• Hazard. System feature that makes accidents
  possible.
• Mishap. Operational conditions that makes
  accident imminent.
• Accident. Unplanned, undesirable event.
• Damage. Loss that results from an accident.

10
Safety, II

• Key Measures
• Hazard Avoidance. Hazard Free design.
• Hazard Removal. Intervene before hazards cause
  accidents.
• Damage Limitation. Limit the impact of an
  accident.
• Three successive lines of defense.

11
Reliability vs. Safety
12
Security

• Key Concepts
• Vulnerability. System feature that makes an
  attack possible.
• Threat. Situational condition that makes an
  attack possible.
• Exposure/ Attack. Deliberate or accidental loss
  of data and/or resources.

13
Security, II

• Key Measures
• Vulnerability Avoidance. Vulnerability Free
  design.
• Attack Detection and Neutralization. Intervene
  before Attacks cause loss/ damage.
• Exposure Limitation. Limit the impact of
  attacks/ exposure. Intrusion-tolerance.
• Three successive lines of defense.

14
Special Role of Security

• Without security, there can be no reliability nor
  safety. All claims about reliability and safety
  become void if the systems data and programs can
  be altered.
• Without reliability, there can be no security.
  Security measures can be viewed as part of the
  functional requirements of the system.

15
Integrated Approach to Reliability

• Three Broad families of methods Fault
  avoidance, fault removal, fault tolerance.
• Which works best? Spirited debate, dogmatic
  positions, jokes, etc.
• Pragmatic position use all three in concert,
  whenever possible/ warranted.

16
Rationale for Eclectic Approach

• The Law of Diminishing Returns.
• Method effectiveness varies greatly according to
  specification.
• Refinement calculus allows us to compose
  verification efforts/ claims.
• Refinement calculus allows us to decompose
  verification goals.

17
Mapping Methods to Specifications

• Proving Reflexive, transitive relations.
• Testing Relations that are good candidates for
  oracles (reliably implemented).
• Fault Tolerance Unary relations that are
  reliably and efficiently implemented.

18
Composing Verification Effort

• All methods must be cast in a common logical
  framework.
• Refinement calculus (based on relations) offers
  such a common framework.
• Specifications and programs are relations
  refinement ordering between relations lattice
  properties.

19
Modeling Verification Methods

• Proving Proving that P is correct with respect
  to specification V
• P ? V.
• Testing Certification testing, Oracle ?, test
  data D, successful test on D.
• P ? T,
• where T D\? .

20
Modeling Verification Methods, II

• Fault Tolerance Upon each recovery block, check
  condition C, invoke recovery routine R. Because
  we do not which outcome we have each time, all we
  can claim is
• P ? F,
• where F C ? R.

21
Cumulating Results

• Proving P ? V.
• Testing P ? T.
• Fault Tolerance P ? F.
• Lattice Identity
• P ? (V?T?F).
• Cumulating verification results into a
  compre-hensive correctness claim.

22
Lattice Properties
23
Decomposing Verification Goals

• Premises
• A Complex Specification can be decomposed into
  simpler sub-specifications in a
  refinement-compatible manner
• S S1 ? S2 ? ?SN.
• We can consider each SI in turn, mapping it to
  the method that is most efficient for it.

24
Mapping Specifications to Methods
25
A Uniform Representation for Dependability
Measures

• Logical representation of verification results
  unrealistic
• Most verification results are best viewed as
  probabilistic, not logical, statements.
• Most verification results are conditional,
  contingent upon different conditions.
• Many verification results can be interpreted in
  more than one way.

26
Probabilistic (vs Logical) Claims

• No absolute certainty.
• Even highly dependable, totally formal,
  verification systems may fail.
• We want to quantify level of confidence.

27
Verification Results are Conditional

• Proving Conditional on verification rules being
  consistent with actual compiler.
• Testing Conditional on testing environment
  being identical to operating environment.
• Fault Tolerance Conditional on system
  preserving recoverability.

28
Multiple Interpretations

• Testing, first interpretation P ? D\? , with
  probability 1.0.
• Testing, second interpretation P ? ? , with
  probability plt1.0, conditional on D being
  representative.
• Which interpretation do we choose? We do not
  have to choose, in fact. We can keep both, and
  learn to add/ cumulate them.

29
Characterizing Verification Claims

• Goal. Correctness preservation, recoverability
  preservation, operational attribute.
• Reference. Specification, Safety requirement,
  security requirement, etc.
• Assumption. Implicit conditions in each method.
• Certainty. Quantified by probability.
• Stake. Cost of failure to meet the goal applies
  to safety and security.
• Method. Static vs dynamic, others. May affect
  the cost of performing the verification task.

30
Representing Verification Claims

• List
• ?(G,R,A,P,S,M)
• G Goal R Reference A Assumption
• P Probability S Stake M Method.

31
Sample Representations

• Certification Testing
• First Y( ?, D\?, true, 1.0, , Testing),
• where D is successful test data.
• Second Y( ?, ?, A, 0.7, , Testing),
• where A is representativity of D.

32
Sample Representations

• Formal Verification
• First Y( ?, R, A, 0.99, , Proving),
• where R is system specification, A is
  condition that the verification method is
  consistent with operational environment.
• Second Y( ?, R1, A, 0.995, HighC, Proving) ?
  Y( ?, R2, A, 0.97, LowC, Proving).

33
Sample Representations

• Verifying Initialization Sequence with respect to
  N
• Y( ?, R, A ? B, P, , Proving),
• R is system specification,
• A is condition that the verification method is
  consistent with operational environment,
• B is condition that the body of the system
  refines right residual of R by N (solution to
  N?X ? R).
• Approach also applicable to regression testing
  updating claims after maintenance operation.
  Open issue negating, overriding, replacing
  previous claims?

34
Sample Representation

• Safety Measure
• Y( ?, S, A, 0.999, HiC, Proving),
• Where S is safety requirement, A is consistency
  of verification method with operational
  environment, HiC is cost of failing to meet the
  condition P ? S.
• How does security differ from safety/
  reliability a different goal or a different
  reference?

35
Inference Rules

• Collecting claims is insufficient.
• Cumulating/Synthesizing claims (as we did with
  logical results) is impractical.
• Build inference mechanisms that can infer
  conclusions from a set of claims.
• We will explore applications of this capability,
  subsequently.

36
Inference Rules

• Orthogonal Representation, for the purpose of
  enabling inferences
• ?(S ? R A) P.
• Two additional cost functions
• Verification cost
• Goal ? Ref ? Meth ? Assum ? Cost.
• Failure cost
• Goal ? Ref ? Cost.

37
Inference Rules

• Derived from refinement calculus
• ?(S?(R1?R2) A)
• ? ?(S?R1 A) ? ?(S?R2 A).
• ?(S?(R1?R2) A)
• ? ?(S?R1 A) ?(S?R2 A).
• ?(S?(R1?R2) A)
• ? max(?(S?R1 A), ?(S?R2 A)).

38
Inference Rules

• Derived from Probability Calculus
• R1?R2 ? ?(S?R1 A) ? ?(S?R2 A).
• (A1?A2) ? ?(S?R A1) ? ?(S?R A2).
• ?(S?R A ? B)
• ?(S?R A) ? ?(S?R B) / ?(S?R).
• Bayes Theorem.

39
Inference Rules

• Derived from Cost functions
• R1?R2 ? VC(?,R1, M, A) ? VC(?,R2, M, A).
• (A1 ? A2) ?
• VC(?,R, M, A2) ? VC(?,R, M, A1).
• R1?R2 ? FC(?,R1) ? FC(?,R2).

40
General Applications

• Providing dependability
• Deploy eclectic approaches.
• Dispatch goals to methods to control verification
  costs.
• Dispatch verification effort to verification
  goals to control failure costs.
• Budget verification cost.
• Minimize / assess failure risk (probability,
  severity of failure).

41
General Applications

• Assessing dependability
• Deploy eclectic/ diverse approaches.
• Record all measures in knowledge base.
• Updating knowledge base as system evolves.
• Maximize coverage.
• Minimize overlap.
• Budget verification cost.
• Minimize / assess failure risk (probability,
  severity of failure).

42
General Applications

• Certifying dependability
• Deploy eclectic/ diverse approaches.
• Budget certification cost.
• Target certification effort (certification goal
  inferred from claims established by certification
  activity).

43
Security Specific Considerations

• Unbounded Cost.
• Distributed Measures.
• Distributed Control.
• Focus on Components
• Refinement by Parts Requirements RA, RB
  components CA, CB.

44
A Prototype for Managing Security

• Theoretical/ Modeling steps.
• Adapting/ specializing dependability model to
  security properties.
• Exploring Security in the broader context of
  dependability (clarifying dependencies).
• Modeling security measures (vulnerability
  avoidance, attack detection and neutralization,
  intrusion tolerance, exposure limitation, etc).
• Representing such measures in a uniform knowledge
  base.

45
A Prototype for Managing Security

• Experimental/ Empirical steps.
• Designing, Coding inference rules.
• Modeling / Representing Claims, Rules.
• Specifying query capabilities.
• Selecting a sample system (modeling security
  aspects, relations to dependability).
• Experimenting with query capabilities.
• Build a demo.

46
Sample Queries

• Can we infer
• ?(S ? R A) ? P.
• for a given ?, R, A, P?
• Provide lower bound for
• ?(S ? R A).
• Provide Upper Bound for weighted failure cost,
  for given ?, R, A.

47
Conclusion

• Premise Consider security in the broader
  context of dependability, of which it depends.
• Premise Exploit analogies between aspects of
  dependability to migrate methods.
• Premise Capture all measures taken during
  design and maintenance in uniform representation,
  that lends itself to inferences.

48
Prospects

• Eclectic, yet Integrated, Approach.
• Allows us to model diverse approaches, and
  combine their results.
• Allows us to measure claims.
• Allows us to budget cost, risks.
• Support Tool.

49
Relevant Wisdom

• Une Science a lage de ses instruments de mesure.
• Louis Pasteur.
• A Science is as advanced as its measurement tools.
