Title: HL1115 Influences on Health at Work


1

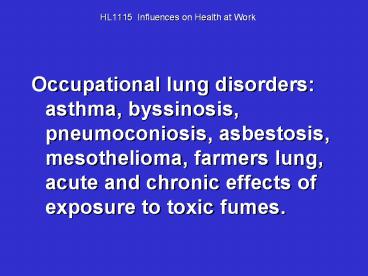

HL1115 Influences on Health at Work
  • Occupational lung disorders asthma, byssinosis,
    pneumoconiosis, asbestosis, mesothelioma, farmers
    lung, acute and chronic effects of exposure to
    toxic fumes.

2
Routes of Entry
3
Routes of Entry
  • Mechanism vs. Pathway
  • Mechanism is action
  • Pathway is route of entry
  • We use both terms!

4
Routes of Entry
  • Nasal
  • Inhalation

5
Routes of Entry
  • Oral
  • Ingestion

6
Routes of Entry
  • Dermal (Skin)
  • Absorption
  • Injection

7
Routes of Entry
  • Inhalation
  • Ingestion
  • Skin
  • Absorption
  • Injection

8
Routes of Entry
  • Target Organ vs. Pathway
  • Target organ is system affected
  • Pathway is route of entry
  • They dont have to be the same!

9
Routes of Entry
  • Inhalation is particularly important exposure
    portal

10
Routes of Entry
11
Inhalation
  • Air exchange region of lungs is around 300 square
    ft at rest and about 1000 square ft at full
    inspiration

12
Inhalation
13
Inhalation
14
Inhalation
  • Absorption Factors
  • High surface area
  • Small air/blood distance
  • Particle size
  • Solubility

15
Inhalation
  • Absorption Factors
  • Concentration
  • Duration
  • Respiration Rate

16
Ingestion
  • Methods
  • Incidental
  • Accidental
  • Deliberate

17
Ingestion
  • Absorption Factors
  • Emotional state
  • Digestive acids/enzymes
  • Diahhrea/constipation
  • Gastrointestinal content

18
Ingestion
  • Absorption Factors
  • Micro-flora in gut
  • Metabolite formation
  • Age
  • Predisposing factors

19
Skin Absorption
  • Primary layers
  • Epidermis
  • Dermis
  • Subcutaneous layer

20
Skin Absorption
  • Absorption Factors
  • Disease/injury state
  • Blood flow, sweat heat
  • Skin age
  • Skin thickness

21
Skin Injection
  • Intraperitoneal
  • Subcutaneous
  • Intramuscular
  • Intravenous

22
Respiratory System
  • Nasopharynx Region
  • Tracheobronchial Region
  • Pulmonary (Alveolar) Region

23
Respiratory System
  • Nasopharynx Region the head region, including
    the nose, mouth, pharynx, and larynx

24
Respiratory System
  • Tracheobronchial Region includes the trachea,
    bronchi, and bronchioles

25
Respiratory System
  • Pulmonary (Alveolar) Region comprised of the
    alveoli the exchange of oxygen and carbon
    dioxide through the process of respiration occurs
    in the alveolar region.

26
Respiratory System
27
(No Transcript)
28
Particle deposition
  • Sedimentation

29
Particle deposition
  • Diffusion

30
Particle deposition
  • Interception

31
Particle deposition
  • Impaction

32
Deposition of particles4-5 mm in respiratory
tract 2.5-3 mm in upper respiratory tract 2 mm
in URT and lung spaces 1 mm in alveolar spaces
33
Particulate Sizing
  • Inhalable Particle Mass
  • Thoracic Particle Mass
  • Respirable Particle Mass

34
Inhalable Particle Mass - hazardous when
deposited anywhere in the respiratory tract, 50
cut point 100 mm
35
Thoracic Particle Mass - hazardous when deposited
anywhere in the lung airways or gas exchange
region, 50 cut point 10 mm
36
Respirable Particle Mass - hazardous when
deposited in the gas exchange region, 50 cut
point 4 mm
37
Stokes Law
An equation relating the terminal settling
velocity of a smooth, rigid sphere in a viscous
fluid of known density and viscosity to the
diameter of the sphere when subjected to a known
force field.
38
Stokes Law
39
Stokes Law
v settling velocity g gravitational
acceleration, 9.80 m/s2 rs density of object d
diameter of object rF density of fluid m
viscosity of fluid
40
Stokes Law
41
Reynolds Number
laminar flow if Re lt500 turbulent flow if Re gt500
42
Stokes Law
  • settling velocity relates to diameter

43
Pulmonary function testing(Spirometry)Pulmonary
function tests are sensitive indicators of lung
disease and are commonly used in the workplace
environment
HL1115 Influences on Health at Work
44
HL1115 Influences on Health at Work
45
Common tests
HL1115 Influences on Health at Work
  • Forced Vital Capacity (FVC)
  • One Second Forced Expiratory Volume (FEV1)
  • Ratio of FVC to FEV1
  • Peak flow

46
HL1115 Influences on Health at Work
  • The most common measurements used however are
    those of FEV1, FVC, and the ratio of these two
    variables, tests which are highly reproducible
    within individuals and are easy to administer.

47
Pulmonary function abnormalities are generally
categorized into two patterns obstructive or
restrictive.
HL1115 Influences on Health at Work
48
Obstructive flow impairment, such as observed
in asthma bronchitis and emphysema is indicated
by a decrease in flow (often indicated by
decreased FEV1/FVC ratio).
HL1115 Influences on Health at Work
49
HL1115 Influences on Health at Work
50
Restrictive flow impairment, such as observed in
interstitial lung disease is indicated by a
decrease in volume.
HL1115 Influences on Health at Work
51
HL1115 Influences on Health at Work
52
Pulmonary function tests can be given before and
after the workshift to observe changes in the
workers lung function during the workday.
HL1115 Influences on Health at Work
53
Technical Requirements for Spirometry of Good
QualityAt least 3 acceptable tests are made
with
HL1115 Influences on Health at Work
54
Spirometry Requirements
HL1115 Influences on Health at Work
  • Full inhalation before start of test
  • Satisfactory start of exhalation
  • Evidence of maximal effort
  • No hesitation
  • No cough or glottal closure during the first
    second

55
Spirometry Requirements
HL1115 Influences on Health at Work
  • Satisfactory duration of test
  • At least 6 seconds
  • Up to 15 seconds in patients with airflow
    restrictions
  • No evidence of leak in the system
  • No evidence of obstruction of the mouthpiece

56
Spirometry Requirements
HL1115 Influences on Health at Work
  • Reproducible resultsFor FVC and FEV1, the 2
    largest values should be within 5 percent or 0.1
    liter (whichever is larger) of each other.If
    these criteria are not met testing is continued.

57
Spirometry Requirements
HL1115 Influences on Health at Work
  • If the criteria are not met after 8 trials,
    testing is stopped and the interpretation is made
    using only the 3 best acceptable tests.

58
Selection of test values for interpretation
HL1115 Influences on Health at Work
  • Tests of acceptable quality are used with the
    largest values for FVC and FEV1 used, regardless
    of test..

59
Selection of test values for interpretationTests
of acceptable quality are used with the largest
values for FVC and FEV1 used, regardless of
test.
HL1115 Influences on Health at Work
60
For indexes of average or instantaneous flow
values from the test with the largest value for
FVC and FEV1 combined are used.
HL1115 Influences on Health at Work
61
Biological Reaction to inhaled dust
HL1115 Influences on Health at Work
62
Lung DiseasesFibrosis - scar tissue formation
Bronchitis - overproduction of mucus Asthma -
constriction of bronchial tubes
HL1115 Influences on Health at Work
63
Systemic reactionstoxicants adsorbed by blood
and distributed to target organs e.g. - lead,
manganese, cadmium, mercury
HL1115 Influences on Health at Work
64
Metal fume feverinhalation of finely divided,
freshly generated metal fumes Al, Zn, Mg, Cu and
their oxides
HL1115 Influences on Health at Work
65
Allergic and sensitization reactionsinhalation
of certain dusts from woods, grains chemicals
HL1115 Influences on Health at Work
66
Bacterial and fungal infectionsinhalation of
contaminated dusts from grains, textiles etc.
HL1115 Influences on Health at Work
67
Irritation of the nose and throatinhalation of
acids and alkalis soluble chromates can cause
nasal passage ulceration ( cancer)
HL1115 Influences on Health at Work
68
Internal damageinhalation of radioactive
materials
HL1115 Influences on Health at Work
69
Examples
HL1115 Influences on Health at Work
70
Allergic Alveolitis
  • Also known as
  • Hypersensitivity Pneumonitis (HP) or
  • Extrinsic Allergic alveolitis (EAA)
  • Other names include
  • farmers lung
  • bagassosis
  • pigeon fanciers lung

71
Allergic Alveolitis
  • Acute symptoms include fever, chills, dyspnea,
    leukocytosis 4-6 hours after exposure and may
    recur on re-exposure.
  • Chronic disease shows progressive dyspnea,
    fatigue, low-grade fever, weight loss, chronic
    nonproductive cough, and bibasilar crackles.

72
Allergic Alveolitis
  • a restrictive type impairment
  • type III and IV hypersensitivity reaction

73
Farmers Lung
  • source moldy crops
  • organisms
  • Thermoactinomyces sacchari
  • Thermoactinomyces vulgaris
  • Micropolyspora faeni

74
Bagassosis
  • source moldy sugar cane
  • organisms
  • Thermoactinomyces vulgaris
  • Micropolyspora faeni
  • Aspergillus species

75
Pigeon Fanciers Lung
  • source pigeon dust and bloom
  • substance
  • proteins

76
Byssinosis
  • source cotton dust
  • substance
  • Endotoxin?

77
Byssinosis
  • chest tightness,
  • cough, wheezing, dyspnea
  • decreased FEV
  • bronchitis malaise fever, chills,
  • upper respiratory symptoms after initial exposure

78
Byssinosis
  • Stages
  • only on Monday
  • persistent, greater on Monday
  • irreversible

79
Organic Dust Toxic Syndrome (ODTS)
80
ODTS
  • Grain fever
  • Pulmonarymycotoxicosis
  • Silo unloader's syndrome
  • Inhalation fever
  • Mill fever

81
ODTS
  • Not a hypersensitivity reaction
  • Does not require repeated exposures to the same
    causative agent
  • May occur after a single heavy exposure to dust

82
ODTS
  • Fever occurs 4-12 hours after exposure followed
    by flulike symptoms such as general weakness,
    headache, chills, body aches, and cough.

83
Occupational Asthma(OA)
84
Common Asthmagens
  • Isocyanates
  • Solder fume
  • Metals
  • Latex
  • Vegetable dusts
  • Animal proteins
  • Enzymes

85
Occupational Asthma
  • Variable airflow limitation and/or bronchial
    hyperresponsiveness from work-related exposure
  • Obstuctive type impairment

86
(No Transcript)
87
Asthma
  • Characterized by episodes of airflow obstruction
    in the bronchial tubes.
  • Symptoms caused by this obstruction include
    coughing, chest tightness, wheezing and shortness
    of breath.
  • Although problems are often separated by
    symptom-free periods, asthma is a chronic
    illness.

88
(No Transcript)
89
Rhinitis
  • A reaction that occurs in the eyes, nose and
    throat when airborne irritants or allergens
    trigger the release of histamine.
  • Histamine causes inflammation and fluid
    production in the fragile linings of nasal
    passages, sinuses, and eyelids.

90
Rhinitis
  • sneezing
  • congestion
  • runny nose
  • itchy nose, throat, eyes, and ears

91
Rhinitis
  • Allergic rhinitis
  • pollen
  • dust mites
  • mold
  • animal dander

92
Rhinitis
  • Nonallergic rhinitis
  • fumes
  • odors
  • temperature
  • smoke
  • other irritants

93
Pneumoconiosis
HL1115 Influences on Health at Work
94
Silicosis seen in any industry using quartz
containing dusts such as stonework, foundries,
glassmaking, pottery, etc.
HL1115 Influences on Health at Work
95
Several forms of free silica quartz,
cristobalite, tridymite, fused silica dust,
tripoli silica flour inhalation of
crystalline silica (silicon dioxide) causes
fibrotic changes in the lungs
HL1115 Influences on Health at Work
96
BentoniteUses foundry sand bond, drilling mud,
clays for dams etc.Disease silicosisCause
quartz
HL1115 Influences on Health at Work
97
Fuller's earthUses adsorbent clayDisease
silicosis like pneumoconiosisCause
montmorillonite, quartz
HL1115 Influences on Health at Work
98
MicaUses drilling mud, decorative
finishesDisease radiographic changes and
fibrotic changesCause mica and silica
HL1115 Influences on Health at Work
99
BerylliosisUses - Be/Cu alloys, Be/Ni alloys,
Be ceramicsspark proof tools, aircraft brakes,
electronics
HL1115 Influences on Health at Work
100
Two diseases acute pneumonitis and chronic
berylliosis
HL1115 Influences on Health at Work
101
Acute syndrome less than a year during exposure
includes any or all of the following
nasopharyngitis, tracheitis, bronchitis,
pneumonitis, dermatitis, conjunctivitis
HL1115 Influences on Health at Work
102
Chronic longer than a year with both systemic and
pulmonary abnormalities
HL1115 Influences on Health at Work
103
A separate disease is subcutaneous granulomas
secondary to direct implantation of Be compounds
under the skin
HL1115 Influences on Health at Work
104
CWP Coal workers pneumoconiosis, "Black Lung"
HL1115 Influences on Health at Work
105
HL1115 Influences on Health at Work
106
HL1115 Influences on Health at Work
107
HL1115 Influences on Health at Work
108
HL1115 Influences on Health at Work
109
HL1115 Influences on Health at Work
110
HL1115 Influences on Health at Work
111
HL1115 Influences on Health at Work
112
HL1115 Influences on Health at Work
113
HL1115 Influences on Health at Work
114
Hard metal diseaseTungsten Carbidetungsten
carbide used in abrasive tools can result in an
asthma syndrome or a diffuse interstitial fibrosis
HL1115 Influences on Health at Work
115
Mica pneumoconiosis
HL1115 Influences on Health at Work
116
Kaolinosis
HL1115 Influences on Health at Work
117
Bauxite pneumoconiosis
HL1115 Influences on Health at Work
118
Siderosis Inhalation of iron fumerelatively
benign pneumoconiosis, by itself, with fibrogenic
mineral dusts, pulmonary fibrosis termed mixed
dust pneumoconiosis or siderosilcosis
HL1115 Influences on Health at Work
119
Factors that influence the development of
pneumoconiosis
HL1115 Influences on Health at Work
120
HL1115 Influences on Health at Work
  1. Amount and kind of dust inhaled.
  2. of mineral compound in the dust (concentration)
  3. the crystalline structure of the mineral
  4. the size of the particles inhaled

121
HL1115 Influences on Health at Work
  1. duration of the exposure
  2. Individual susceptibility resistance
  3. Presence of other pre-disposing factors

122
AsbestosAsbestosUses - insulation,
fireproofing
HL1115 Influences on Health at Work
123
Where asbestos is found
124
Asbestos cement
125
Sprayed asbestos
125
126
Sprayed asbestos
127
Lagging
128
Asbestos insulating board
129
Asbestos insulating board
130
Asbestos textiles
131
Several types in two main forms
HL1115 Influences on Health at Work
132
Serpentine chrysotile (white A), Amphibole -
crocidolite (blue A), amosite (brown A),
anthophyllite, tremolite and actinolite
HL1115 Influences on Health at Work
133
Asbestosis - diffuse interstitial
scarringBronchogenic carcinomaMesothelioma
(pleural or peritoneal)Cancer of stomach,
colon, rectum
HL1115 Influences on Health at Work
134
HL1115 Influences on Health at Work
135
HL1115 Influences on Health at Work
136
Questions?
Write a Comment
User Comments (0)
About PowerShow.com
