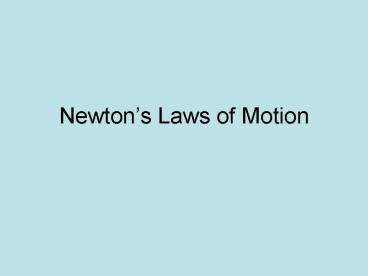

Newtons Laws of Motion

1
Newtons Laws of Motion
2

• Violent motion resulted from pushing or pulling
  of an outside force.
• Natural motion the nature of an objects motion
  depends on its combination of earth, water, air
  and fire.
• Air moves up
• Earth moves down
• Feather air earth, slowly moves down
• Conclusion - An objects proper state of motion
  was at rest.
• The earth must be at rest what force is large
  enough to push the earth?

3
Aristotelian Thinking

• If the earth orbited the sun it would move at 30
  km/sec.
• If a bird descended from the tree in one second
  the worm would have been swept by the moving
  earth 30 km!

4
Galileo Galilei (1564 1642)Gave credence to
the Copernican sun-centered model and discredited
Aristotelian ideas. He proved force was not
needed to keep an object in motion.
5
Galileo imagined motion without friction. Objects
have a resistance to change their state of
motion. He called this resistance inertia.
6
Galileos Interpretation

• If the earth orbited the sun it would move at 30
  km/sec.
• If a bird descended from the tree in one second
  the bird, the worm, the tree and everything else
  would move 30 km in that second.

7

• Aristotle failed to imagine what motion would be
  like without friction.
• He did not recognize friction for what it is,
  namely a force.
• This impeded the progress of physics for nearly
  1800 years.

8

• Newtons first law is a restatement of the
  concept of inertia.
• Every object continues in its state of rest, or
  of uniform motion in a straight line, unless it
  is compelled to change that state by a force
  impressed upon it.

9
Asteroids have been moving though space for
billions of years. What keeps them moving?
10
The amount of inertia an object has depends on
its mass

• Mass is not volume
• Mass represents kilograms of matter while volume
  represents liters of space.
• Mass is not weight
• The astronaut finds it just as difficult to shake
  the anvil in its weightless state as it is to
  shake it in its weighted state on earth.

11
Newtons Second Law
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
Gravity accelerates objects by the same amount
regardless of their mass.Why dont we normally
observe this?
16
(No Transcript)
17
(No Transcript)
18
Newtons Third Law
19
Newtons Third Law For any force there is an
equal and opposite force
20
A force is not a thing in itself but makes up an
interaction between one thing and another. You
cant push on the wall unless the wall pushes
back on you. A single force can not exist. Force
must come in pairs.
21
(No Transcript)
22
Identify the action and reaction
23
Worksheets

• Action reaction
• Interaction

24
(No Transcript)
25
(No Transcript)
26
An interaction has an equal and opposite force
pairAn interaction does not always create an
equal and opposite acceleration.
27
Rifle and BulletWhich experiences more force?
Which experiences more acceleration?
28
(No Transcript)
29
Action Windshield hits bugReaction

• Which object experiences more force?
• Which object experiences more deceleration?

30
Interactions between objects do not have to be in
contact with each other
31
(No Transcript)
32

• If the Earth exerts a force on the Moon does the
  Moon exert a force on the Earth?

33
Gravitational force used to keep planets in
circular motion
34
A force is required to keep an object moving in a
circle (orbit)
35
Ancients believed celestial objects were divine.
No force needed to keep them moving in circles

• Newton recognized a force must act on celestial
  objects to keep them in orbit.
• If an apple hanging in a tree is pulled to Earth
  then the Moon must also be pulled to Earth.
• Gravity extends out into the heavens.

36
Section 5.4 Types of Forces and Free Body Diagrams
37
Worksheet on Identifying Forces
