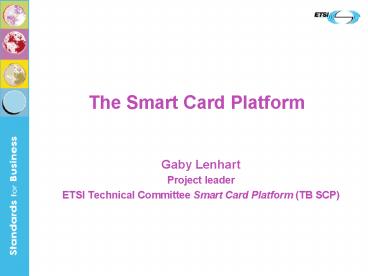

Title: The Smart Card Platform


1
The Smart Card Platform
  • Gaby Lenhart
  • Project leader
  • ETSI Technical Committee Smart Card Platform (TB
    SCP)

2
ETSI Technical Committee Smart Card Platform
  • 16 Years of dedication and real-life experience
  • founded in March 2000 as the successor of SMG9,
    the SIM-people, who specified the most
    successful smart card application with currently
    more than 1 billion subscribers and 2 billion
    SIMs deployed
  • mission
  • to create a series of specifications for a smart
    card platform, based on real-life (outside)
    requirements, on which other committees can base
    their system specific work to achieve basic
    compatibility

3
TC SCP Terms of Reference
  • to develop the physical and the logical IC card
    platform
  • to develop advanced security methods for
    applications such as financial transactions
    (mobile commerce)
  • to develop a card-side toolkit to allow the
    creation of terminal independent value added
    services
  • to develop supporting specifications and
    technical reports

4
TC SCP Working Structure
SCP Technical Group
as of April 2006
5
TC SCP - Who Does What
  • Plenary
  • strategy and other general topics
  • approval of requirements for technical solutions
  • approval of new work items and specifications/repo
    rts
  • approval of Change Requests (CRs) to
    specifications/reports
  • liaisons with other committees and organizations
  • Requirement Working Group
  • analysis of requirements coming from outside and
    inside SCP
  • elaboration of requirements for the technical
    work
  • development of requirement specifications
  • Technical Working Group
  • enhancements to the core platform specifications
  • development of the next generation UICC
  • use of PKI, security between applications on the
    card
  • secure messaging, administrative commands
  • Card Application Toolkit (CAT)
  • Application Programming Interfaces (APIs)
  • development of card interfaces

6
From Mono-" to Multi-Application
  • To provide interoperability in a
    multi-application environment a split was made
  • in GSM (GERAN)
  • SIM physical card GSM application (GSM
    11.11)
  • in 3G (UMTS/UTRAN)
  • UICC physical card and physical, logical
    interface the multi-application platform
  • USIM UMTS application on a UICC the
    application implementation
  • TS 102.221 owned by TC SCP
  • TS 31.102 owned by 3GPP T3

7
The UICC System
USIM
SIM
TETRA
TS 102 221 The multi-application platform
Scope similar to EMV2000 as used by
financial sector
Additional commands, features, security, PKI
.......
CDMA2000
GAIT
8
From Mono-" to Multi-Application
  • The UICC -
  • the multi-application platform
  • separation of layers and applications
  • logical channels to run applications in parallel
  • The SIM - a "mono-application" card
  • SIM according to GSM 11.11
  • applications based on SIM Application Toolkit
  • WIM as exception(own command set and triggered
    by WAP browser)

9
New Features of the USIM/UICC
10
Published (1) - The Platform
  • TS 102 221 Physical and logical characteristics
    of the card / terminal interface
  • the core specification which provides a
    multi-application platform with logical channels
    for smart cardsbased on this platform a smart
    card application can be defined for any system
  • specifies the lower layers of a smart card
    including the electrical and mechanical
    interface, the logical structure, the basic
    commands and the intrinsic security system
  • Related test specification published as TS 102 230

11
Published (2) - Core Documents
  • Administrative commands (TS 102 222)
  • allows standardized personalization and
    standardized remote administration, e.g.
    over-the-air (OTA)
  • Card Application Toolkit (TS 102 223 / 227)
  • based on the successful GSM specification "SIM
    Application Toolkit" which was stripped of all
    the GSM specific features
  • allows the card issuer to create value added
    services independent from the terminal
  • application writers benefit by using CAT for
    different systems
  • Transport protocol for CAT applications between
    a UICC application and a remote entity to ensure
    acknowledgement, segmentation/fragmentation,
    retransmission of messages
  • ETSI numbering system for telecommunication
    application providers (TS 101 220)
  • the ETSI offering of managing Application
    Identifiers (AIDs) for UICC based applications

12
Published (3) - Derivatives
  • Generalization of well-known GSM specifications
  • (GSM 03.48 Secure messaging GSM 03.19 Java
    CardTM API)
  • Secure messaging
  • defines end-to-end (smart card to application
    server) secure messaging over a variety of
    bearers (e.g. enciphered and integrity protected
    messages between the smart card and a banking
    server)
  • TS 102 224 Security mechanisms for UICC based
    Applications
  • TS 102 225 Secured packet structure for UICC
    based applications
  • TS 102 226 Remote APDU Structure for UICC based
    Applications
  • Application Programming Interface (API)
  • allows applications to be developed independently
    of the underlying card operating system
  • TS 102 240 Application Programming Interface and
    Loader, Requirements
  • TS 102 241 Java CardTM Application Programming
    Interface for the UICC Stage 2 (Java CardTM 2.2)

13
Published (4) - EMC
  • Technical Reports on interference topics
  • Measurement of Electromagnetic Emission of SIM
    Cards (TR 102 151)
  • definition of a standard hardware equipment for
    electromagnetic measurements of smart cards and a
    common electromagnetic measurement procedure
  • Terminal - card interface Considerations on
    robustness improvements (TR 102 242)
  • describes failure mechanisms that could
    potentially generate major operating issues
    between the terminal and the card, the
    countermeasures that should be applied within the
    current specifications and the enhancements that
    may further increase the interface robustness

14
Published (5) - The Toolkit Transport Protocol
  • CAT_TP provides the following functionality as
    underlying layer for application protocols (TS
    102 124 and TS 102 127)
  • reliability of the data communication (not
    necessarily security, security can be handled by
    an independent GSM 03.48 layer)
  • segmentation and concatenation of data
  • retransmission of messages
  • addressing for different physical bearers (GPRS
    uses IP, SMS uses telephone numbers, Bluetooth
    has its own addressing scheme...)
  • access to BIP channels (up to 8 channels may be
    open the same time)
  • possible multiplexing of BIP channels
  • standardised opening a BIP channel from the
    server side

15
CAT_TP and BIP
BIP
Mechanism originally specified by 3GPP T3 by
which the ME provides the UICC with access to the
data bearers supported by the ME and the network
16
How Small Is Small?
  • 3rd Form Factor (3FF)
  • specification of a new smaller card size
    providing backward compatibilityi.e. to utilize
    the same silicon / device for both the current
    plug-in and the new card size. The new card size
    may enable the use of devices currently not
    feasible for Plug-in cards.

Reduce Plug-in Cardfrom 15 x 25 mm to 15 x 16.3
mm (375 mm2 to 244.5 mm2)
12 x 13 mm
8 x 8 mm
17
The New Mini UICC
Too big
The solution
12 mm x 15 mm
18
Co-operation
  • SCP is co-operating on both technical and service
    aspects with a number of other committees both
    within and outside the telecommunications sector.
    These include
  • 3GPP (UTRAN/GERAN), 3GPP2 (CDMA2000), ARIB and
    some ETSI Technical Bodies
  • provision of requirements, referencing SCP
    specifications
  • GSMAssociaton (GSMA SCaG and GSMNA)
  • provision and alignment of requirements
  • GlobalPlatform
  • close co-operation in the advancement of, in
    particular, OTA specifications
  • all specifications updated to and aligned with
    GlobalPlatform 2.1
  • Liberty Alliance
  • close co-operation on identity issues
  • Open Mobile Alliance (OMA)
  • connectivity to the Smart Card Web Server,
    developed in OMA
  • close co-operation regarding Digital Rights
    Management (DRM)
  • and many others

19
Current Topics (1)
  • High speed interface
  • evolution of the smart card communication channel
    with respect to transfer rate, size and protocol
    considering issues such as
  • performance and power consumption
  • value to applications and scalability
  • to allow for large memory on the USIM
  • ease of implementation (in both terminal and
    UICC)
  • candidates
  • MMC (Multi Media Card protocol)
  • USB (Universal Serial Bus)

To be finalized soon
  • UICC external peripherals data-exchange (near
    field communication
  • providing an interface for the UICC to access
    contactless technology in the terminal, which
    would allow e.g. for
  • communicating patient data
  • accessing public transport
  • micro-payments using an electronic purse on the
    UICC

20
Current Topics (2)
  • Support for Large Files on the UICC
  • Multimedia and PKI applications among others need
    to exceed the current maximum file size of 65,535
    bytes. The aim is to increase the maximum file
    size beyond this limit providing backward
    compatibility (for existing implementations)
  • Environmental conditions
  • temperature range and humidity
  • vibration and acceleration shocks

To be finalized soon
  • Sensitive data creation and initialization
  • The USSM (UICC Security Service Module)
  • container for security related topics such as
    keys, certificates, PINs and management of
    algorithms utilized by UICC based applications

21
The Future - UICC ng
  • The scope of the next generation Work Item
    includes
  • possible role of memory management units
  • 32-bit processors and ASIC co-processors
  • proof-carrying code
  • new memory architectures
  • multi-tasking operating systems
  • embedded electrical sources
  • alternative form factors (not restricted by
    backward compatibility)
  • free-running oscillators on the chip
  • integrated biometric sensors, universal byte
    codes, new chip carriers, and high-speed
    communication channels

22
Equation of Success
Success

23
How to Get More Information
  • ETSI
  • http//www.ETSI.org
  • ? all (gt12 000!) published specifications are
    available free of charge !!
  • ? but, can only be downloaded one at a time
  • ? but, not so many smart card specifications, so
    no problem !
  • ETSI SCP website
  • http//portal.etsi.org/scp/summary.asp

Next SCP Requirement WG / Plenary
meeting Toulouse, 03-05 / 05-07 July 2006
24
Current Technical Specifications/Reports (1)
Annex
  • TS 101 220ETSI numbering system for
    telecommunication application providers
  • TS 102 124Transport protocol for CAT
    applications Service description Stage 1
  • TS 102 127Transport protocol for CAT
    applications Stage
  • TR 102 151Measurement of Electromagnetic
    Emission of SIM Cards
  • TR 102 216Vocabulary for Smart Card Platform
    Specifications
  • TS 102 221UICC-Terminal interface Physical and
    logical characteristics
  • TS 102 222Administrative commands for
    telecommunications applications
  • TS 102 223Card Application Toolkit (CAT)

25
Current Technical Specifications/Reports (2)
Annex
  • TS 102 224Security mechanisms for UICC based
    Applications - Functional requirements
  • TS 102 225Secured packet structure for UICC
    based applications
  • TS 102 226Remote APDU Structure for UICC based
    Applications
  • TS 102 230UICC-Terminal interface Physical,
    electrical and logical test specification
  • TS 102 240 UICC Application Programming
    Interface and Loader Requirements Service
    description
  • TS 102 241Java CardTM Application Programming
    Interface for the UICC
  • TR 102 242Terminal - card interface
    Considerations on robustness improvements

26
Current Technical Specifications/Reports (3)
Annex
  • TS 102 266USSM UICC Security Service Module
  • TS 102 310EAP Support in UICC
  • TS 102 350Identity files and procedures on a
    UICC Stage 1
  • TS 102 384Card Application Toolkit (CAT)
    conformance specification
  • TS 102 412 Smart Card Platform Requirements
Write a Comment
User Comments (0)
About PowerShow.com
